IMPORTANT MANUAL INFORMATION
EAU34111
Particularly important information is distinguished in this manual by the following notations:NOTE:

This manual should be considered a permanent part of this scooter and should remain with it even if the scooter is sub-
sequently sold.


Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most
current product information available at the time of printing, there may be minor discrepancies between your scooter andthis manual. If you have any questions concerning this manual, please consult your Yamaha dealer.WARNING
EWA12410
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS SCOOTER.
*Product and specifications are subject to change without notice.The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death
to the
scooter operator, a bystander, or a person inspecting or repairing the scooter.
A CAUTION indicates special precautions that must be taken to avoid damage to
the scooter.
A NOTE provides key information to make procedures easier or clearer.
WARNING
CAUTION:
NOTE:

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
Further safe-riding points ................1-4
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch/steering lock ................3-1
Indicator and warning lights ............3-2
Speedometer ..................................3-2
Fuel gauge ......................................3-3
Coolant temperature gauge ............3-3
Multi-function display ......................3-3
Handlebar switches ........................3-6
Front brake lever ............................3-7
Rear brake lever .............................3-8
Fuel tank cap ..................................3-8
Fuel .................................................3-8
Catalytic converter ..........................3-9
Seat ..............................................3-10
Storage compartment ...................3-10
Storage compartment ...................3-11
Adjusting the shock absorber
assemblies ................................3-12
Luggage hook ...............................3-12
Sidestand ......................................3-13
Ignition circuit cut-off system ........3-13PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing cowlings
and panels .................................. 6-5
Checking the spark plug ................. 6-6
Engine oil ....................................... 6-7
Final transmission oil ...................... 6-9
Coolant ......................................... 6-10
Air filter and V-belt case air filter
elements ................................... 6-11
Checking the throttle cable free
play ........................................... 6-12
Valve clearance ............................ 6-13
Tires ............................................. 6-13Cast wheels ................................. 6-15
Front and rear brake lever free
play ........................................... 6-15
Checking the front and rear brake
pads .......................................... 6-16
Checking the brake fluid level ...... 6-16
Changing the brake fluid .............. 6-17
Checking and lubricating the
cables ....................................... 6-18
Checking and lubricating the
throttle grip and cable ............... 6-18
Lubricating the front and rear
brake levers .............................. 6-18
Checking and lubricating the
centerstand and sidestand ....... 6-19
Checking the front fork ................. 6-19
Checking the steering .................. 6-20
Checking the wheel bearings ....... 6-21
Battery ......................................... 6-21
Replacing the fuses ..................... 6-22
Replacing a headlight bulb .......... 6-23
Replacing a front turn signal light
bulb ........................................... 6-25
Replacing a tail/brake light bulb or
a rear turn signal light bulb ....... 6-26
Replacing the license plate light
bulb ........................................... 6-27
Replacing an auxiliary light
bulb ........................................... 6-27
Troubleshooting ........................... 6-27
Troubleshooting charts ................ 6-28

1-1
1
SAFETY INFORMATION
EAU10261
SCOOTERS ARE SINGLE TRACK
VEHICLES. THEIR SAFE USE AND
OPERATION ARE DEPENDENT
UPON THE USE OF PROPER RIDING
TECHNIQUES AS WELL AS THE EX-
PERTISE OF THE OPERATOR. EV-
ERY OPERATOR SHOULD KNOW
THE FOLLOWING REQUIREMENTS
BEFORE RIDING THIS SCOOTER.
HE OR SHE SHOULD:

OBTAIN THOROUGH INSTRUC-
TIONS FROM A COMPETENT
SOURCE ON ALL ASPECTS OF
SCOOTER OPERATION.


OBSERVE THE WARNINGS AND
MAINTENANCE REQUIRE-
MENTS IN THE OWNER’S MAN-
UAL.


OBTAIN QUALIFIED TRAINING
IN SAFE AND PROPER RIDING
TECHNIQUES.


OBTAIN PROFESSIONAL TECH-
NICAL SERVICE AS INDICATED
BY THE OWNER’S MANUAL
AND/OR WHEN MADE NECES-
SARY BY MECHANICAL CONDI-
TIONS.Safe riding


Always make pre-operation
checks. Careful checks may help
prevent an accident.


This scooter is designed to carry
the operator and passenger.


The failure of motorists to detect
and recognize scooters in traffic is
the predominating cause of auto-
mobile/scooter accidents. Many
accidents have been caused by an
automobile driver who did not see
the scooter. Making yourself con-
spicuous appears to be very effec-
tive in reducing the chance of this
type of accident.
Therefore:
Wear a brightly colored jacket.
Use extra caution when ap-
proaching and passing through
intersections, since intersec-
tions are the most likely places
for scooter accidents to occur.
Ride where other motorists can
see you. Avoid riding in another
motorist’s blind spot.


Many accidents involve inexperi-
enced operators. In fact, many op-
erators who have been involved in
accidents do not even have a cur-
rent driver’s license.
Make sure that you are qualified
and that you only lend your
scooter to other qualified opera-
tors.
Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
We recommend that you prac-
tice riding your scooter where
there is no traffic until you have
become thoroughly familiar with
the scooter and all of its con-
trols.


Many accidents have been caused
by error of the scooter operator. A
typical error made by the operator
is veering wide on a turn due to
EXCESSIVE SPEED or undercor-
nering (insufficient lean angle for
the speed).
Always obey the speed limit and
never travel faster than warrant-
ed by road and traffic conditions.

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU34121
ON “”
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.NOTE:The headlights come on automatically
when the engine is started and stay on
until the key is turned to “” or the sid-estand is moved down.
EAU10660
OFF “”
All electrical systems are off. The key
can be removed.
EAU10680
LOCK “”
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “” posi-
tion, and then turn it to “” while
still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to “”
while still pushing it.
WARNING
EWA10060
Never turn the key to “” or “”
while the vehicle is moving, other-
wise the electrical systems will be
switched off, which may result inloss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “” or “”.
PUSHOPEN
ZAUM0253

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11480
Engine trouble warning light “”
This warning light comes on when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
The electrical circuit of the warning light
can be checked by turning the key to
“”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU11591
Speedometer UK ONLY
The speedometer shows the riding
speed.
1. High beam indicator light “”
2. Left turn signal indicator light “”
3. Right turn signal indicator light “”
4. Engine trouble warning light “”
12 3 4
ZAUM0635
1. Speedometer
1. Speedometer
1
ZAUM0636
1mph
0 1020304050
60
70
80
90
100
ZAUM0637

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAUM1470

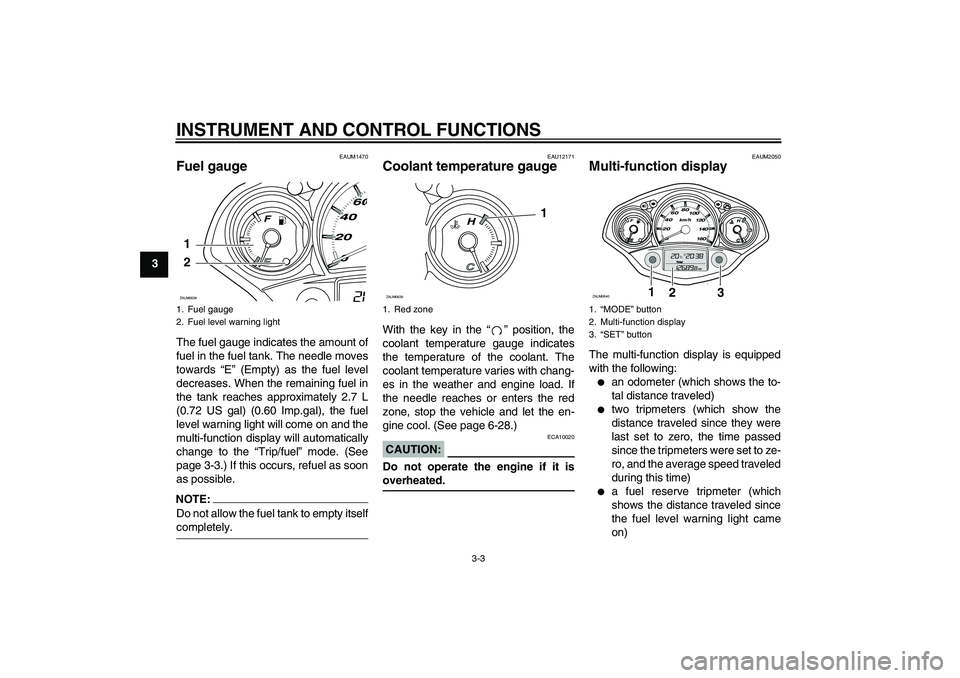

Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the remaining fuel in
the tank reaches approximately 2.7 L
(0.72 US gal) (0.60 Imp.gal), the fuel
level warning light will come on and the
multi-function display will automatically
change to the “Trip/fuel” mode. (See
page 3-3.) If this occurs, refuel as soon
as possible.NOTE:Do not allow the fuel tank to empty itselfcompletely.
EAU12171
Coolant temperature gauge With the key in the “” position, the
coolant temperature gauge indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the needle reaches or enters the red
zone, stop the vehicle and let the en-
gine cool. (See page 6-28.)CAUTION:
ECA10020
Do not operate the engine if it isoverheated.
EAUM2050
Multi-function display The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to ze-
ro, and the average speed traveled
during this time)


a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)
1. Fuel gauge
2. Fuel level warning light1
2ZAUM0638
1. Red zone
1
ZAUM0639
1.“MODE” button
2. Multi-function display
3.“SET” button
1
2
3
ZAUM0640

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3


a clock


an ambient temperature display


an oil change indicator (which
comes on when the engine oil
should be changed)
NOTE:

For the UK, the distance traveled
is displayed in miles and the tem-
perature reading is displayed in °F.


For other countries, the distance
traveled is displayed in kilometers
and the temperature reading is dis-played in °C.
Odometer and tripmeter modes
Pushing the “MODE” button switches
the display between the odometer
mode “Total” and the tripmeter modes
“Trip” in the following order:
Total → Trip 1 → Trip 2 → Trip/fuel →
Total
NOTE:

The Trip/fuel odometer is only acti-
vated if the fuel level warning light
comes on.


The Trip 2 odometer is automati-
cally reset after turning the key to“” and two hours have passed.
Pushing the “SET” button when in the
tripmeter mode switches the display
between the different tripmeter func-
tions in the following order:
Trip 1 or Trip 2 → Time 1 or 2 → Aver-
age speed 1 or 2 → Trip 1 or Trip 2If the fuel level warning light comes on
(See page 3-3.), the display will auto-
matically change to the fuel reserve
tripmeter mode “Trip/fuel” and start
counting the distance traveled from that
point. In that case, pushing the “MODE”
button switches the display between
the various tripmeter and odometer
modes in the following order:
Trip/Fuel → Trip 1 → Trip 2 → Total →
Trip/fuel
1. Total
2. Trip 1
3. Trip 2
4. Trip/Fuel
"Mode"
"Mode"
"Mode"
"Mode"1
2
3
4
ZAUM0391
1. Distance
2. Time
3. Average speed
"Set"
"Set""Set"
12
3
ZAUM0392

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
To reset a tripmeter, select it by push-
ing the “MODE” button, and then push
the “SET” button for at least one sec-
ond. If you do not reset the fuel reserve
tripmeter manually, it will reset itself au-
tomatically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).
Clock mode
To set the clock:
1. When the display is in the “Total”
mode, push the “SET” button for at
least two seconds.
2. When the hour digits start flashing,
push the “SET” button to set the
hours.3. Push the “MODE” button, and the
minute digits will start flashing.
4. Push the “SET” button to set the
minutes.
5. Push the “MODE” button and then
release it to start the clock. The
display will return to the “Total”
mode.Ambient temperature display
This display shows the ambient tem-
perature from –30 °C (–86 °F) to 50 °C
(122 °F).
The frost warning indicator “” auto-
matically comes on if the temperature is
lower than 3 °C (37.4 °F).
ZAUM0393
ZAUM0394ZAUM0395
1. Frost warning indicator “”
2. Minus item
3. Temperature1
2
3ZAUM0396
