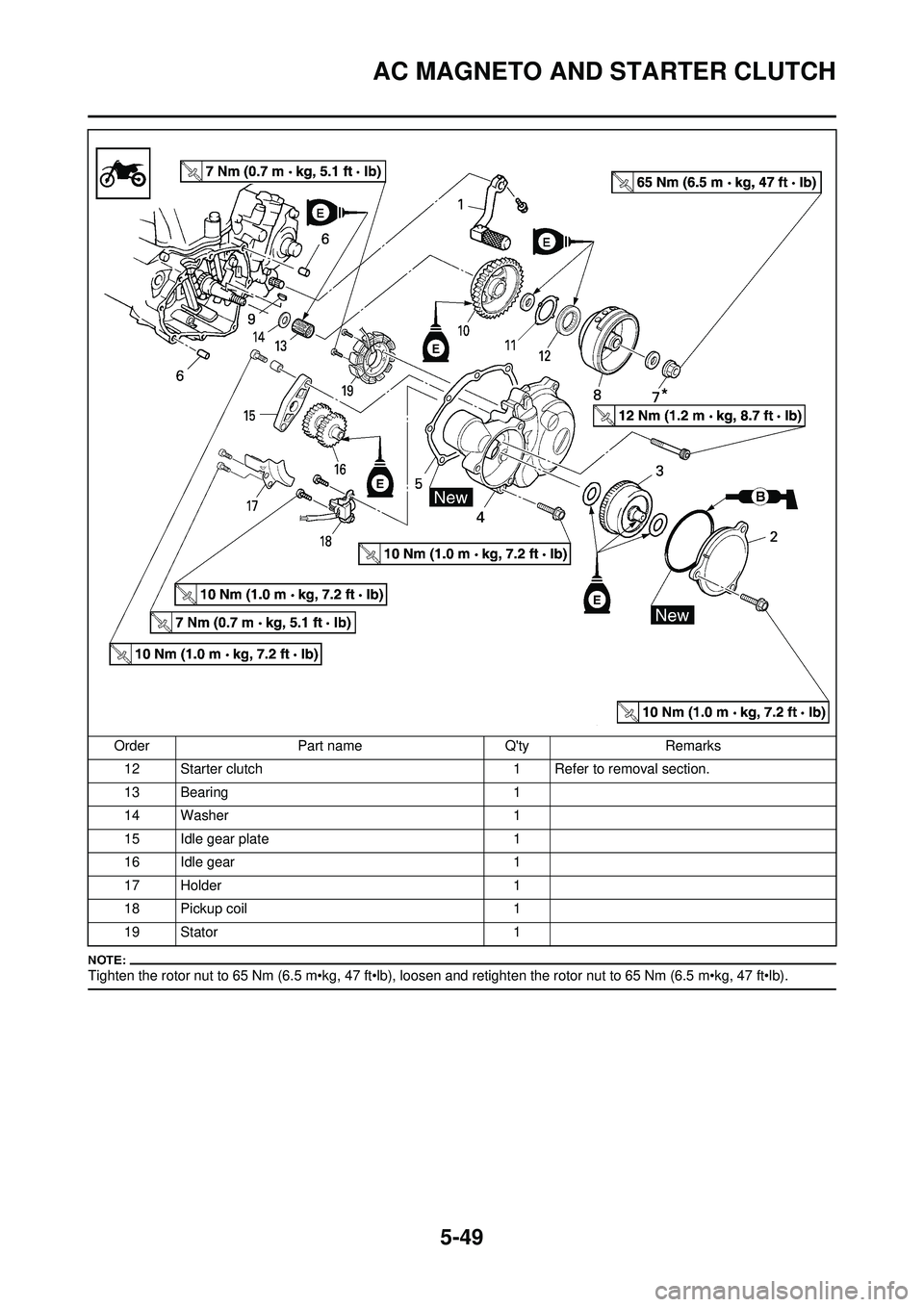

AC MAGNETO AND STARTER CLUTCH
Tighten the rotor nut to 65 Nm (6.5 m•kg, 47 ft•lb), loosen and retighten the rotor nut to 65 Nm (6.5 m•kg, 47 ft•lb).
12 Starter clutch1 Refer to removal section.
13 Bearing 1
14 Washer 1
15 Idle gear plate 1
16 Idle gear 1
17 Holder 1
18 Pickup coil 1
19 Stator 1
Order
Part name Q'tyRemarks

5-50
AC MAGNETO AND STARTER CLUTCH
REMOVING THE ROTOR
1. Remove:• Nut (rotor) "1"
• Washer
Use the sheave holder "2".
2. Remove: • Rotor "1"Use the rotor puller "2".
REMOVING THE STARTER
CLUTCH
1. Remove: • Starter clutch a ssembly cover "1"
Insert a thin screwdriver or the like
under the convexity "a" and remove
the starter clutch assembly cover by
prying it gently to void damage to the
cover.
2. Remove:
• Starter clutch "1"
Using a thin screwdriver or the like,
remove the plate "a" while prying it
upward little by little.
CHECKING THE AC MAGNETO
1. Inspect:
• Rotor inner surface "a"
• Stator outer surface "b"Damage →Inspect the crankshaft
runout and crankshaft bearing.
If necessary, replace AC magneto
and/or stator.
CHECKING THE WOODRUFF KEY
1. Inspect: • Woodruff key "1"
Damage →Replace.
CHECKING THE STARTER
CLUTCH
1. Check: • Starter clutchDamage/wear →Replace.
2. Check:
• Idle gear
• Starter clutch drive gearPitting/burrs/chips/roughness/
wear →Replace the defective
parts.
1. Check: • Starter clutch operation
a. Install the starter clutch drive gear "1" onto the starter clutch "2" and
hold the starter clutch.
b. When turning the starter clutch drive gear counterclockwise "B",
the starter clutch and the starter
clutch drive gear should engage.
If the starter clutch drive gear and
starter clutch do not engage, the
starter clutch is faulty and must be
replaced.
c. When turning the starter clutch
drive gear clockwise "A", it should
turn freely. If the starter clutch
drive gear does not turn freely, the
starter clutch is faulty and must be
replaced.
CHECKING THE TORQUE LIMITER
1. Check:• Torque limiterDamage/wear →Replace.
INSTALLING THE AC MAGNETO
AND STARTER CLUTCH
1. Install: • Stator "1"
• Bolt (stator) "2"
• Pickup coil "3"
• Bolt (pickup coil) "4"
Sheave holder:
YS-1880-A/90890-
01701
Rotor puller: YM-04141/90890-04141
Bolt (stator):
7 Nm (0.7 m•kg, 5.1
ft•lb)
Bolt (pickup coil): 10 Nm (1.0 m•kg, 7.2
ft•lb)

5-51
AC MAGNETO AND STARTER CLUTCH
2. Install:• Holder "1"
•Bolt "2"
Pass the pickup coil lead and
charging coil lead under the holder
while taking care not to allow these
leads to get caught with each oth-
er. Also take care to pass the leads
so that they do not become loose
at the bend of the holder "a" in or-
der to avoid their contacting the
starter clutch drive gear.
Apply the sealant to the grommet of
the AC magneto lead.
3. Install:• Idle gear 2 "1"
• Dowel pin "2"
Apply the engine oil on the idle gear
2.
4. Install:• Idle gear plate "1"
• Bolt (idle gear plate) "2" 5. Install:
• Washer "1"
•Bearing "2"
• Starter clutch drive gear "3"
• Washer "4"
Apply the engine oil on the washer,
bearing and starter clutch drive gear
inner circumference.
6. Install:• Starter clutch "1"To rotor "2".
• Install the starte r clutch with its
plate side upward.
• While installing the starter clutch, push in the projections "a" one by
one on the clutch circumference.
• Push in the starter clutch until it hits the rotor.
7. Install:• Starter clutch assembly cover "1"To rotor "2".
Install the starter clutch assembly
cover by fitting its pawls "a" into the
groove "b" in the rotor.
8. Install:
• Woodruff key "1"
• Rotor "2"
• Degrease the contact surfaces of the tapered portions of the crank-
shaft and rotor.
• When installing the woodruff key, make sure that its flat surface "a" is
in parallel with the crankshaft center
line "b".
• When installing the rotor, align the
keyway "c" of the rotor with the
woodruff key.
9. Install:• Washer (rotor)
• Nut (rotor) "1"
Use the sheave holder "2"
Tighten the rotor nut to 65 Nm (6.5
m•kg, 47 ft•lb), loosen and retighten
the rotor nut to 65 Nm (6.5 m•kg, 47
ft•lb).
10. Install:• Dowel pin
• Gasket [crankcase cover (left)]
• Crankcase cover (left) "1"
• Bolt [crankcase cover (left)] "2"
Bolt:
7 Nm (0.7 m•kg, 5.1
ft•lb)
YAMAHA Bond No. 1215
(ThreeBond
® No. 1215):
90890-85505
Bolt (idle gear plate): 10 Nm (1.0 m•kg, 7.2
ft•lb)
E
E
Nut (rotor):65 Nm (6.5 m•kg, 47
ft•lb)
Sheave holder: YS-1880-A/90890-
01701
Bolt [crankcase cover
(left)]: 10 Nm (1.0 m•kg, 7.2
ft•lb)

5-52
AC MAGNETO AND STARTER CLUTCH
• Bolt [crankcase cover (left)] "3"
Tighten the bolts in stage, using a
crisscross pattern.
11. Install:• Washer "1"
• Torque limiter "2"
• Washer "3"
Apply the engine oil to the shaft and
washers.
12. Install:• O-ring
• Cover (idle gear 1) "1"
•Bolt "2"
• Apply the lithium soap base grease on the O-ring.
• Install the cover (idle gear 1) with its
mark "a" facing upward.
13. Connect:• AC magneto leadRefer to "CABLE ROUTING DIA-
GRAM" section in the CHAPTER
2.
14. Install: • Shift pedal "1"
• Bolt (shift pedal)
When installing the shift pedal onto
the shift shaft, be sure that the center
of the shift pedal is about 1.4 mm
(0.06 in) "a" above the top of the foot-
rest.
Bolt [crankcase cover
(left)]: 12 Nm (1.2 m•kg, 8.7
ft•lb)
Bolt: 10 Nm (1.0 m•kg, 7.2
ft•lb)
E
Bolt (shift pedal):
12 Nm (1.2 m•kg, 8.7
ft•lb)

5-53
ENGINE REMOVAL
ENGINE REMOVAL
REMOVING THE ENGINEOrder Part name Q'ty Remarks Hold the machine by placing the suitable stand
under the frame. Refer to "HANDLING NOTE".
Drain the engine oil. Refer to "CHANGING THE ENGINE OIL"
section in the CHAPTER 3.
Seat and fuel tank Refer to "REMOVING THE SEAT, FUEL
TANK AND SIDE COVERS" section in the
CHAPTER 3.
Carburetor Refer to "CARBURETOR" section.
Exhaust pipe and silencer Refer to "REMOVING THE EXHAUST PIPE
AND SILENCER" section in the CHAPTER 3.
Air cut-off valve assembly Refer to "AIR INDUCTION SYSTEM" section.
Clutch cable Disconnect at the engine side.
Radiator Refer to "RADIATOR" section.
Shift pedal Refer to "AC MAGNETO AND STARTER
CLUTCH" section.
Cylinder head breather hose Refer to "CAMSHAFTS" section.
Oil hose and oil tank breather ho seRefer to "OIL PUMP" section.
Ignition coil

5-54
ENGINE REMOVAL
Disconnect the AC magneto lead.
Negative battery lead Disconnect at the engine side.
1 Engine guard 1
2 Neutral switch 1
3 Drive chain sprocket cover 1
4 Nut (drive sprocket) 1 Refer to removal section.
5 Lock washer 1 Refer to removal section.
6 Drive sprocket 1 Refer to removal section.
7Clip 1
8 Bolt (brake pedal) 1
9 Brake pedal 1
10 Upper engine bracket 2
11 Lower engine bracket 2
12 Engine mounting bolt 3
13 Pivot shaft 1 Refer to removal section.
14 Engine 1 Refer to removal section.
Order
Part name Q'tyRemarks

5-55
ENGINE REMOVAL
HANDLING NOTE
Support the machine securely so
there is no danger of it falling over.
REMOVING THE DRIVE
SPROCKET
1. Remove:• Nut (drive sprocket) "1"
• Lock washer "2"
• Straighten the lock washer tab.
• Loosen the nut while applying the rear brake.
2. Remove:• Drive sprocket "1"
• Drive chain "2"
Remove the drive sprocket together
with the drive chain.
REMOVING THE ENGINE
1. Remove:• Pivot shaft "1"
If the pivot shaft is pulled all the way
out, the swingarm will come loose. If
possible, insert a sh aft of similar di-
ameter into the other side of the swin-
garm to support it.
2. Remove:
• Engine "1"From right side.
Make sure that the couplers, hoses
and cables are disconnected.
INSTALLING THE ENGINE
1. Install:
• Engine "1"Install the engine from right side.
• Pivot shaft "2"
• Engine mounting bolt (lower) "3"
• Lower engine bracket "4"
• Bolt (lower engine bracket) "5"
• Patch "6"
• Engine mounting bolt (front) "7"
• Upper engine bracket "8"
• Bolt (upper engine bracket) "9"
• Engine mounting bolt (upper) "10"
• Lower engine guard "11"
• Bolt (lower engine guard) "12"
• Apply the molybdenum disulfide grease on the pivot shaft.
• Install the patch with the claw "a"
facing outside the chassis.
INSTALLING THE BRAKE PEDAL
1. Install:• Spring "1"
• Brake pedal "2"
• O-ring "3"
• Bolt (brake pedal) "4"
• Clip "5"
Apply the lithium soap base grease
on the bolt, O-rings and brake pedal
bracket.
INSTALLING THE DRIVE
SPROCKET
1. Install:• Drive sprocket "1"
• Drive chain "2"
Install the drive sprocket together
with the drive chain.
Pivot shaft:
85 Nm (8.5 m•kg, 61
ft•lb)
Engine mounting bolt
(lower): 53Nm (5.3 m•kg, 38
ft•lb)
Bolt (lower engine brack-
et): 34 Nm (3.4 m•kg, 24
ft•lb)
Engine mounting bolt
(front): 53 Nm (5.3 m•kg, 38
ft•lb)
Bolt (upper engine brack-
et): 34 Nm (3.4 m•kg, 24
ft•lb)
Engine mounting bolt
(upper): 55 Nm (5.5 m•kg, 40
ft•lb)
Bolt (lower engine
guard): 7 Nm (0.7 m•kg, 5.1
ft•lb)
Bolt (brake pedal): 26 Nm (2.6 m•kg, 19
ft•lb)

5-56
ENGINE REMOVAL
2. Install:• Lock washer "1"
• Nut (drive sprocket) "2"
Tighten the nut while applying the
rear brake.
3. Bend the lock washer tab to lock the nut.
4. Install: • Drive chain sprocket guide "1"
• Drive chain sp rocket cover "2"
• Screw (drive chain sprocket cov- er) "3"
INSTALLING THE NEUTRAL
SWITCH
1. Install: • Spring "1"
•Pin "2"
• O-ring "3"
• Neutral switch "4"
• Screw (neutral switch) "5"
Apply the lithium soap base grease
on the O-ring.
Nut (drive sprocket): 75 Nm (7.5 m•kg, 54
ft•lb)
Screw (drive chain
sprocket cover): 8 Nm (0.8 m•kg, 5.8
ft•lb)
Screw (neutral switch): 4 Nm (0.4 m•kg, 2.9
ft•lb)
