WARNING
EWB00161Always stop the ATV before changing from
two-wheel drive to four-wheel drive and vice-
versa. The ATV handles differently in two-
wheel drive than in four-wheel drive in some
circumstances. Changing from two-wheel
drive to four-wheel drive or vice-versa while
moving may cause the ATV to unexpectedly
handle differently. This could distract the oper-
ator and increase the risk of losing control andof causing an accident.
EBU18280Throttle lever Once the engine is running, movement of the throt-
tle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
1. On-Command four-wheel-drive switch “2WD”/“4WD”
1. Throttle lever
U3C262E0.book Page 6 Tuesday, June 26, 2007 3:36 PM

4-7
4
WARNING
EWB00250Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the op-
eration of the throttle lever before you start the
engine. If the throttle does not work smoothly,
check for the cause. Correct the problem be-fore riding the ATV or consult a Yamaha dealer.EBU18321Speed limiter Your ATV was delivered with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b).3. Tighten the locknut.
WARNING
EWB00240Improper adjustment of the speed limiter and
throttle could cause throttle cable damage or
improper throttle operation. You could lose
control, have an accident or be injured. Do not
turn the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 3.0–5.0 mm (0.12–0.20 in).(See page 8-37.)1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
U3C262E0.book Page 7 Tuesday, June 26, 2007 3:36 PM

4-8
4
EBU18391Front brake lever The front brake lever is located on the right handle-
bar. To apply the front brake, pull the brake lever
toward the handlebar grip.EBU18442Brake pedal and rear brake lever The brake pedal is located on the right side of the
ATV and the rear brake lever is located on the left
handlebar. To apply the rear brake, push down on
the brake pedal or pull the brake lever toward the
handlebar grip.1. Front brake lever
1. Brake pedal
1. Rear brake lever
U3C262E0.book Page 8 Tuesday, June 26, 2007 3:36 PM

4-9
4
EBU18621Drive select lever The drive select lever is used to shift your ATV into
the forward, neutral, reverse and park positions.
See the “Operating the drive select lever and driv-
ing in reverse” section on page 6-3 for the drive se-
lect lever operation.EBU18720Fuel tank cap Remove the fuel tank cap by turning it counter-
clockwise.
EBU28940Fuel Make sure that there is sufficient fuel in the tank.
Fill the fuel tank to the bottom of the filler tube as
shown.
1. Drive select lever
1. Fuel tank cap
U3C262E0.book Page 9 Tuesday, June 26, 2007 3:36 PM

4-10
4
NOTE:If knocking or pinging occurs, use a different brandof gasoline or higher octane grade.
CAUTION:ECB00070Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and pistonrings, as well as to the exhaust system.
WARNING
EWB00310
Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.
Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.
Do not refuel right after the engine has been
running and is still very hot.
Be sure the fuel tank cap is closed securely.EBU18820Fuel cock The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations.
1. Fuel level
2. Fuel tank filler tubeRecommended fuel:
Regular unleaded gasoline only with a re-
search octane number of 91 or higher
Fuel tank capacity:
14.5 L (3.83 US gal) (3.19 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal) (0.99 Imp.gal)
U3C262E0.book Page 10 Tuesday, June 26, 2007 3:36 PM

4-11
4OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.ON
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding.
1. Arrow mark positioned over “OFF”
1. Arrow mark positioned over “ON”
U3C262E0.book Page 11 Tuesday, June 26, 2007 3:36 PM

4-12
4 RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18850Starter (choke)“” Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
the starter (choke).Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU26981Seat To remove the seat
Push the seat lock lever backward and pull up the
seat at the rear.
1. Arrow mark positioned over “RES”
1. Starter (choke)“”
U3C262E0.book Page 12 Tuesday, June 26, 2007 3:36 PM

4-13

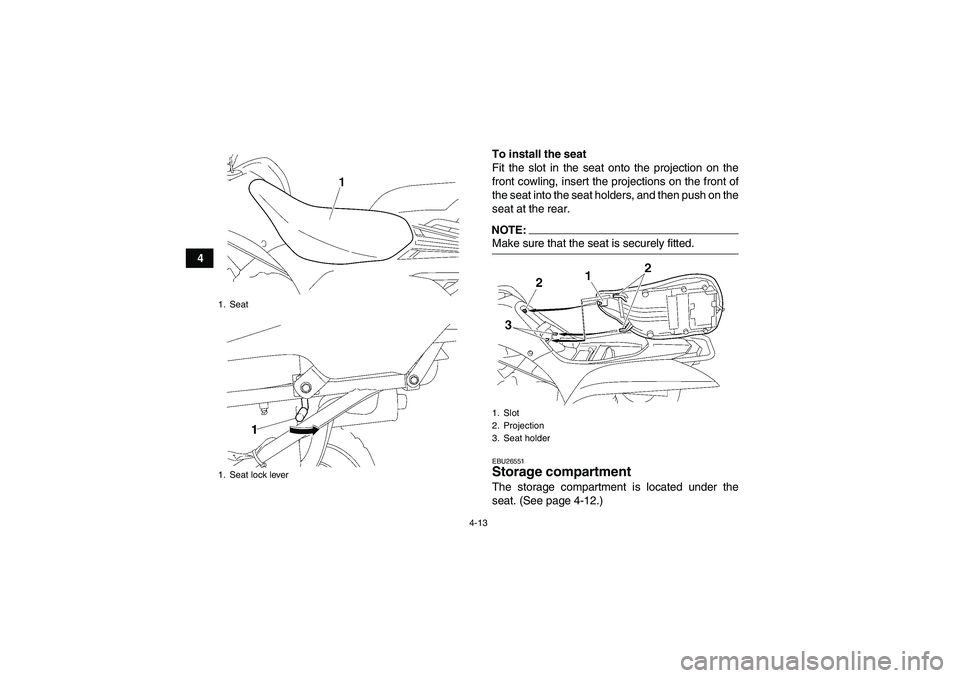

4To install the seat
Fit the slot in the seat onto the projection on the
front cowling, insert the projections on the front of
the seat into the seat holders, and then push on the
seat at the rear.
NOTE:Make sure that the seat is securely fitted.EBU26551Storage compartment The storage compartment is located under the
seat. (See page 4-12.)
1. Seat
1. Seat lock lever
1. Slot
2. Projection
3. Seat holder
