OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU16820
Tips for reducing fuel con-
sumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Avoid high engine speeds during
acceleration.


Avoid high engine speeds with no
load on the engine.


Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16830
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1000 km (600 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1000 km (600 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU45580
0–150 km (0–90 mi)
Avoid prolonged operation above 1/3
throttle.
150–500 km (90–300 mi)
Avoid prolonged operation above 1/2
throttle.
500–1000 km (300–600 mi)
Avoid prolonged operation above 3/4
throttle.
CAUTION:
ECA16500
After 1000 km (600 mi) of operation,
be sure to change the engine oil and
final transmission oil, and to cleanthe oil strainer.
1000 km (600 mi) and beyond
The vehicle can now be operated nor-
mally.CAUTION:
ECA10270
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealercheck the vehicle.
U4P7E1E0.book Page 4 Wednesday, December 12, 2007 9:37 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
19*Shock absorber as-
semblyCheck operation and shock ab-
sorber for oil leakage.√√√√
20*Fuel injectionCheck engine idle speed.√√√√√√
21 Engine oilChange. (See page 6-9.)
Check oil level and vehicle for oil
leakage.√Every 2000 km (1200 mi)
22*Engine oil strainerClean.√
23Final transmission
oilCheck vehicle for oil leakage.√√√√√
Change.√√√
24*V- b e l tReplace. Every 12000 km (7000 mi)
25*Front and rear brake
switchesCheck operation.√√√√√√
26Moving parts and
cablesLubricate.√√√√√
27*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
28*Air induction sys-
temCheck the air cut-off valve, reed
valve, and hose for damage.
Replace any damaged parts if
necessary.√√√√√
29*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
U4P7E1E0.book Page 4 Wednesday, December 12, 2007 9:37 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6
EAU45590
Checking the spark plug The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
To remove the spark plug
1. Place the vehicle on the center-
stand.
2. Remove panel A. (See page 6-6.)
3. Remove the spark plug cap.
4. Remove the spark plug as shown,
using the spark plug wrench,
which is located in the rear storage
compartment. (See page 3-9.)
To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
NOTE:If the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer checkthe vehicle.
2. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
1. Spark plug wrench
1. Spark plug wrench
1
1
Specified spark plug:
NGK/CR7E
U4P7E1E0.book Page 8 Wednesday, December 12, 2007 9:37 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
62. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
NOTE:If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
4. Install the spark plug cap.
5. Install the panel.
EAU45480
Engine oil The engine oil level should be checked
before each ride. In addition, the oil
must be changed at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
The engine oil must also be changed at
the initial 1000 km (600 mi) and when
the oil change indicator color changes
from green to red. The oil change indi-
cator must be reset after the initial 1000
km (600 mi). (See page 3-2 for reset
procedures.)
To check the engine oil level
1. Place the vehicle on the center-
stand.NOTE:Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in afalse reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
1. Spark plug gapSpark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
U4P7E1E0.book Page 9 Wednesday, December 12, 2007 9:37 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6 3. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.
NOTE:The engine oil should be between theminimum and maximum level marks.
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
To change the engine oil
1. Place the vehicle on the center-
stand.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine
to collect the used oil.
4. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:Check the washer for damage and re-place it if necessary.5. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
6. Refill with the specified amount of
the recommended engine oil, and
then install and tighten the engine
oil filler cap.
1. Engine oil filler cap
2. Dipstick
3. Maximum level mark
4. Minimum level mark
32
1 4
1. Engine oil drain bolt
Tightening torque:
Engine oil drain bolt
20 Nm (2.0 m·kgf, 14 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
1.00 L (1.06 US qt) (0.88 Imp.qt)
1
U4P7E1E0.book Page 10 Wednesday, December 12, 2007 9:37 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
CAUTION:
ECA11670


Do not use oils with a diesel
specification of “CD” or oils of a
higher quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Be sure no foreign material en-ters the crankcase.
7. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.8. Turn the engine off, and then
check the oil level and correct it if
necessary.
9. Reset the oil change indicator.
(See page 3-2 for reset proce-
dures.)
NOTE:If the engine oil is changed before the
oil change indicator color changes from
green to red (i.e. before the periodic oil
change interval has been reached), the
oil change indicator must be reset after
the oil change for the next periodic oil
change to be indicated at the correcttime.
EAU20063
Final transmission oil The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final transmis-
sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart.
1. Start the engine, warm up the final
transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the center-
stand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the final transmission oil
filler cap and final transmission
drain bolt to drain the oil from the fi-
nal transmission case.
1.“CD” specification
2.“ENERGY CONSERVING II”
1
2
U4P7E1E0.book Page 11 Wednesday, December 12, 2007 9:37 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
63. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case.
CAUTION:
ECA10480


Make sure that the air filter ele-
ment is properly seated in the
air filter case.


The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) maybecome excessively worn.
5. Install the air filter case cover by in-
stalling the screws.
Cleaning the air filter check hoses1. Check the hoses on the rear side
of the air filter case for accumulat-
ed dirt or water.
2. If dirt or water is visible in the air fil-
ter check hoses, remove the
clamps from them, and then re-
move the plugs to drain the hoses.
Cleaning the V-belt case air filter el-
ement
1. Place the scooter on the center-
stand.
2. Remove the screws, and then pull
the V-belt case air filter element
cover outward and away from V-
belt case.
1. Air filter case cover
2. Screw
1. Air filter element
2 1
2
1
1. Air filter check hose
2. Clamp
3. Air filter check hose plug
1
23
1. V-belt case air filter element cover
2. Screw
2 1
U4P7E1E0.book Page 13 Wednesday, December 12, 2007 9:37 AM

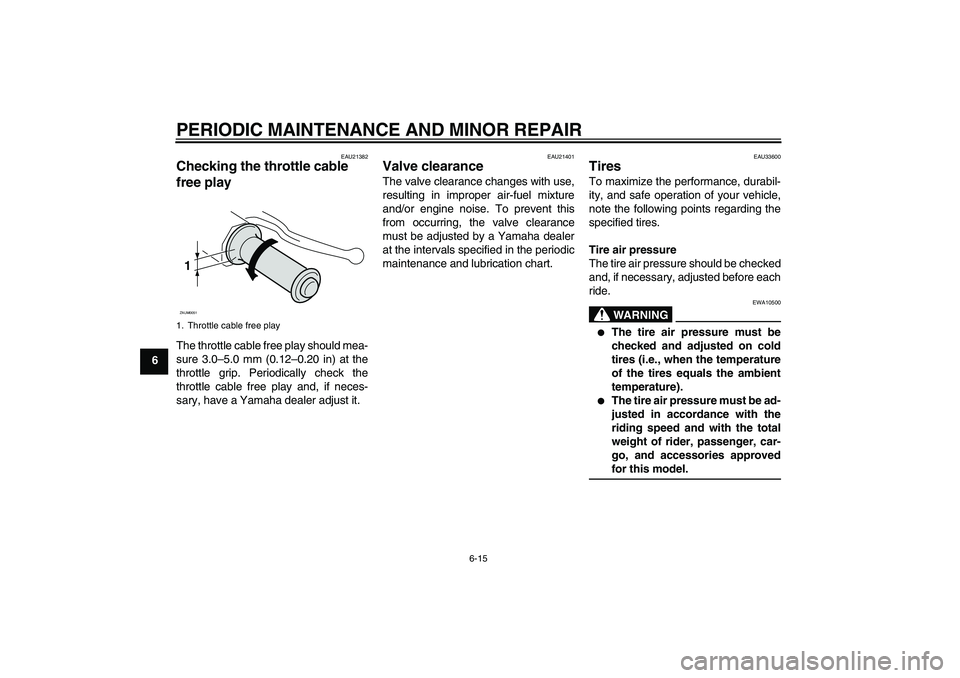

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6
EAU21382
Checking the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU33600
Tires To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500


The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).


The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
1. Throttle cable free play1ZAUM0051
U4P7E1E0.book Page 15 Wednesday, December 12, 2007 9:37 AM
