PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU17310
Owner’s tool kit The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.NOTE:If you do not have the tools or experi-
ence required for a particular job, havea Yamaha dealer perform it for you.
WARNING
EWA10340
Modifications not approved by
Yamaha may cause loss of perfor-
mance, excessive emissions, and
render the vehicle unsafe for use.
Consult a Yamaha dealer before at-tempting any changes.U5B680E0.book Page 2 Tuesday, July 17, 2007 9:11 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
62. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.2. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
NOTE:
If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
4. Install the spark plug cap.
EAU39841
Engine oil The engine oil level should be checked
before each ride. In addition, the oil
must be changed at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the motorcycle on a level
surface and hold it in an upright po-
sition.NOTE:Make sure that the motorcycle is posi-
tioned straight up when checking the oil
level. A slight tilt to the side can result ina false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.
Specified spark plug:
NGK/CR6HSA1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
U5B680E0.book Page 8 Tuesday, July 17, 2007 9:11 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6
NOTE:
The engine oil should be between theminimum and maximum level marks.
4. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.To change the engine oil
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
4. Install the engine oil drain bolt, and
then tighten it to the specified
torque.5. Add the specified amount of the
recommended engine oil, and then
install and tighten the engine oil fill-
er cap.
CAUTION:
ECA11620


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-rial enters the crankcase.
6. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
1. Engine oil filler cap
2. Dipstick
3. Maximum level mark
4. Minimum level mark
1
3
4
2
1. Engine oil drain bolt
Tightening torque:
Engine oil drain bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
1
Recommended engine oil:
See page 8-1.
Oil change quantity:
0.80 L (0.85 US qt) (0.70 Imp.qt)
U5B680E0.book Page 9 Tuesday, July 17, 2007 9:11 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6 3. Insert the tailpipe into the muffler,
and then install and tighten the
bolts to the specified torque.
NOTE:
Make sure to align the bolt holes wheninserting the tailpipe.
EAU39930
Adjusting the carburetor The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, most car-
buretor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience. The adjustment described in the
following section, however, may be ser-
viced by the owner as part of routine
maintenance.CAUTION:
ECA10550
The carburetor has been set and ex-
tensively tested at the Yamaha fac-
tory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-mance of or damage to the engine.
EAU21362
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.NOTE:
A diagnostic tachometer is needed tomake this adjustment.
1. Attach the tachometer to the spark
plug lead.
2. Start the engine and warm it up for
several minutes at 1000–2000
r/min while occasionally revving it
to 4000–5000 r/min.NOTE:The engine is warm when it quickly re-sponds to the throttle.
3. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the throttle stop
screw. To increase the engine
idling speed, turn the screw in di-
Tightening torque:
Tailpipe bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U5B680E0.book Page 13 Tuesday, July 17, 2007 9:11 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU44661
Adjusting the clutch free play The clutch free play must be checked
and, if necessary, adjusted as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
1. Loosen the locknut.
2. Slowly turn the clutch adjusting
screw in direction (a) until resis-
tance is felt, and then turn it 1/8
turn in direction (b).NOTE:Turning the clutch adjusting screw in di-
rection (a) decreases clutch free play
and turning it in direction (b) increasesclutch free play.3. Tighten the locknut to the specified
torque.
NOTE:
When tightening the locknut, hold the
clutch adjusting screw with a screwdriv-
er so that it does not turn together withthe locknut.
EAU44880
Adjusting the brake lever free
play The brake lever free play should mea-
sure 10.0–20.0 mm (0.39–0.79 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows.
1. Loosen the locknut at the brake le-
ver.
2. To increase the brake lever free
play, turn the adjusting bolt in di-
rection (a). To decrease the brake
lever free play, turn the adjusting
bolt in direction (b).
1. Locknut
2. Clutch adjusting screw
12
(a)
(b)
Tightening torque:
Locknut:
8.0 Nm (0.8 m·kgf, 5.8 ft·lbf)
1. Brake lever free play adjusting bolt
2. Locknut
3. Brake lever free play
2
1
(b)3
(a)
U5B680E0.book Page 17 Tuesday, July 17, 2007 9:11 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
CAUTION:
ECA10570
Improper drive chain slack will over-
load the engine as well as other vital
parts of the motorcycle and can lead
to chain slippage or breakage. To
prevent this from occurring, keep
the drive chain slack within thespecified limits.
3. Tighten both locknuts and the axle
nut to the specified torques.4. Adjust the brake pedal free play.
(See page 6-18.)
EAU23013
Cleaning and lubricating the
drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.CAUTION:
ECA10581
The drive chain must be lubricated
after washing the motorcycle andriding in the rain.
1. Remove all dirt and mud from the
drive chain with a brush or cloth.NOTE:For a thorough cleaning, have a
Yamaha dealer remove the drive chainand soak it in solvent.
2. Spray Yamaha Chain and Cable
Lube or a high-quality spray-type
drive chain lubricant on both sides
and on the middle of the chain,
1. Axle nut
2. Drive chain slack adjusting nut
3. Locknut
4. Alignment marks
Tightening torques:
Locknut:
7.0 Nm (0.7 m·kgf, 5.1 ft·lbf)
Axle nut:
60 Nm (6.0 m·kgf, 43 ft·lbf)
U5B680E0.book Page 21 Tuesday, July 17, 2007 9:11 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6 3. Lift the front wheel off the ground
according to the procedure on
page 6-28.
4. Remove the axle nut and washer.
5. Pull the wheel axle out, and then
remove the wheel.
EAU41691
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle from the
right-hand side.NOTE:Make sure that the slot in the brake
shoe plate fits over the retainer on thefork leg.
3. Lower the front wheel so that it is
on the ground.
4. Install the washer and axle nut,
and then tighten the axle nut to the
specified torque.5. Adjust the brake lever free play.
(See page 6-17.)
6. While applying the front brake,
push down hard on the handlebar
several times to check for proper
fork operation.
1. Axle nut
2. Washer
1. Wheel axle
1. Slot
2. Retainer
21
Tightening torque:
Axle nut:
35 Nm (3.5 m·kgf, 25 ft·lbf)
U5B680E0.book Page 29 Tuesday, July 17, 2007 9:11 AM

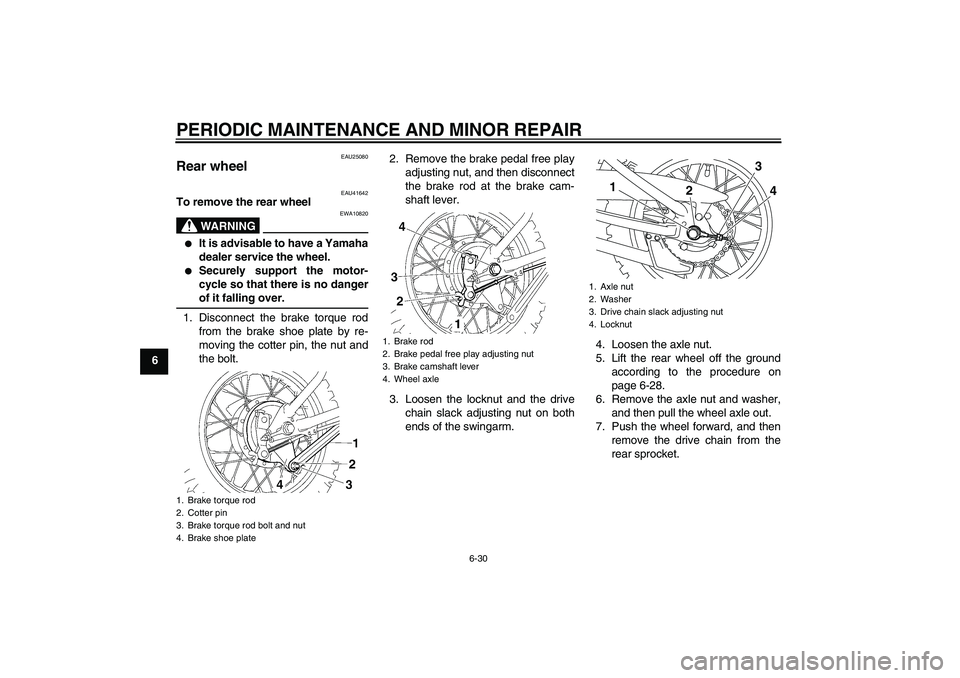

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
EAU25080
Rear wheel
EAU41642
To remove the rear wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Disconnect the brake torque rod
from the brake shoe plate by re-
moving the cotter pin, the nut and
the bolt.2. Remove the brake pedal free play
adjusting nut, and then disconnect
the brake rod at the brake cam-
shaft lever.
3. Loosen the locknut and the drive
chain slack adjusting nut on both
ends of the swingarm.4. Loosen the axle nut.
5. Lift the rear wheel off the ground
according to the procedure on
page 6-28.
6. Remove the axle nut and washer,
and then pull the wheel axle out.
7. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
1. Brake torque rod
2. Cotter pin
3. Brake torque rod bolt and nut
4. Brake shoe plate
1. Brake rod
2. Brake pedal free play adjusting nut
3. Brake camshaft lever
4. Wheel axle
1. Axle nut
2. Washer
3. Drive chain slack adjusting nut
4. Locknut
1
2
4 3
