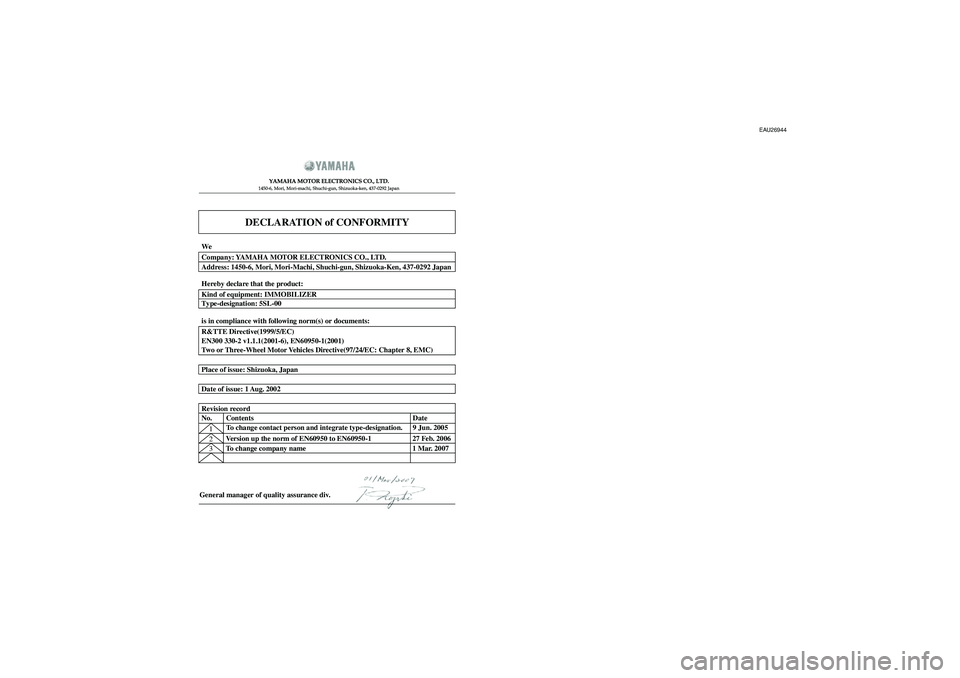

DECLARATION of CONFORMITY
YAMAHA MOTOR ELECTRONICS CO., LTD.1450-6, Mori, Mori-machi, Shuchi-gun, Shizuoka-ken, 437-0292 Japan
General manager of quality assurance div.1
Version up the norm of EN60950 to EN60950-1
To change company name27 Feb. 2006
1 Mar. 2007
2
3Revision record
No. Contents Date
To change contact person and integrate type-designation. 9 Jun. 2005Date of issue: 1 Aug. 2002Place of issue: Shizuoka, JapanR&TTE Directive(1999/5/EC)
EN300 330-2 v1.1.1(2001-6), EN60950-1(2001)
Two or Three-Wheel Motor Vehicles Directive(97/24/EC: Chapter 8, EMC) is in compliance with following norm(s) or documents:Kind of equipment: IMMOBILIZER
Type-designation: 5SL-00 Hereby declare that the product:Company: YAMAHA MOTOR ELECTRONICS CO., LTD.
Address: 1450-6, Mori, Mori-Machi, Shuchi-gun, Shizuoka-Ken, 437-0292 JapanWe

EAU26944

TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Immobilizer system ..........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-4
Tachometer unit ...............................3-6
Coolant temperature gauge .............3-6
Multi-function display .......................3-7
Anti-theft alarm (optional) ................3-8
Handlebar switches .........................3-9
Clutch lever ....................................3-10
Shift pedal ......................................3-10
Brake lever ....................................3-11
Brake pedal ...................................3-11
ABS ...............................................3-12
Fuel tank cap .................................3-12
Fuel ................................................3-13
Fuel tank breather hose .................3-14
Catalytic converters .......................3-14
Seat ...............................................3-14
Storage compartment ....................3-15
Adjusting the front fork ...................3-16
Adjusting the shock absorber
assembly ....................................3-17Luggage strap holders .................. 3-19
Sidestand ...................................... 3-19
Ignition circuit cut-off system ......... 3-20
PRE-OPERATION CHECKS
.............. 4-1
Pre-operation check list ................... 4-2
OPERATION AND IMPORTANT RIDING
POINTS
............................................... 5-1
Starting the engine .......................... 5-1
Shifting ............................................ 5-2
Tips for reducing fuel
consumption ................................ 5-3
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND MINOR
REPAIR
............................................... 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and lubrication
chart ............................................. 6-2
Removing and installing cowlings and
panels .......................................... 6-6
Checking the spark plugs ................ 6-7
Engine oil and oil filter element ....... 6-8
Coolant .......................................... 6-11
Replacing the air filter element ...... 6-13
Adjusting the engine idling
speed ......................................... 6-15
Checking the throttle cable free
play ............................................ 6-15Valve clearance ............................ 6-16
Tires .............................................. 6-16
Cast wheels .................................. 6-19
Adjusting the clutch lever free
play ............................................ 6-19
Adjusting the rear brake light
switch ......................................... 6-20
Checking the front and rear brake
pads ........................................... 6-20
Checking the brake fluid level ....... 6-21
Changing the brake fluid ............... 6-22
Drive chain slack ........................... 6-22
Cleaning and lubricating the drive
chain .......................................... 6-24
Checking and lubricating the
cables ........................................ 6-25
Checking and lubricating the throttle
grip and cable ............................ 6-25
Checking and lubricating the brake
and shift pedals ......................... 6-25
Checking and lubricating the brake
and clutch levers ........................ 6-26
Checking and lubricating the
sidestand ................................... 6-26
Lubricating the rear suspension .... 6-26
Checking the front fork .................. 6-27
Checking the steering ................... 6-27
Checking the wheel bearings ........ 6-28
Battery ........................................... 6-28
Replacing the fuses ...................... 6-30
Replacing a headlight bulb ........... 6-31

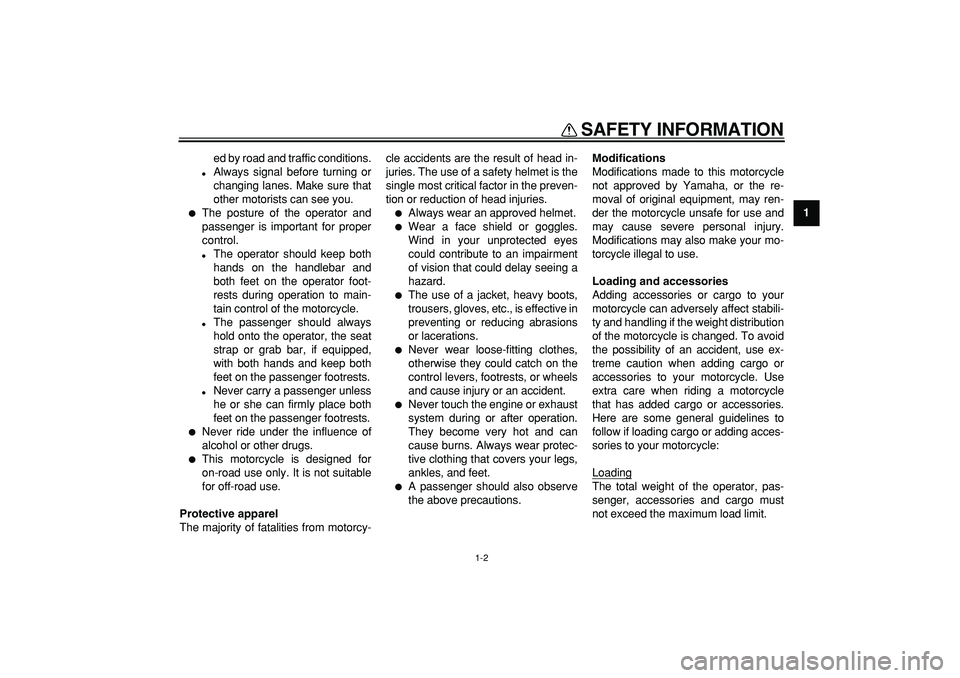

SAFETY INFORMATION
1-2
1
ed by road and traffic conditions.

Always signal before turning or
changing lanes. Make sure that
other motorists can see you.

The posture of the operator and
passenger is important for proper
control.

The operator should keep both
hands on the handlebar and
both feet on the operator foot-
rests during operation to main-
tain control of the motorcycle.

The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger footrests.

Never carry a passenger unless
he or she can firmly place both
feet on the passenger footrests.

Never ride under the influence of
alcohol or other drugs.

This motorcycle is designed for
on-road use only. It is not suitable
for off-road use.
Protective apparel
The majority of fatalities from motorcy-cle accidents are the result of head in-
juries. The use of a safety helmet is the
single most critical factor in the preven-
tion or reduction of head injuries.

Always wear an approved helmet.

Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.

The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.

Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.

Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protec-
tive clothing that covers your legs,
ankles, and feet.

A passenger should also observe
the above precautions.
Modifications
Modifications made to this motorcycle
not approved by Yamaha, or the re-
moval of original equipment, may ren-
der the motorcycle unsafe for use and
may cause severe personal injury.
Modifications may also make your mo-
torcycle illegal to use.
Loading and accessories
Adding accessories or cargo to your
motorcycle can adversely affect stabili-
ty and handling if the weight distribution
of the motorcycle is changed. To avoid
the possibility of an accident, use ex-
treme caution when adding cargo or
accessories to your motorcycle. Use
extra care when riding a motorcycle
that has added cargo or accessories.
Here are some general guidelines to
follow if loading cargo or adding acces-
sories to your motorcycle:
Loading
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.

INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9
WARNING

EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to cause
the wheels to lock during emergen-
cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU38610
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
NOTE:

This model is also equipped with a
self-diagnosis device for the immobiliz-
er system. If the immobilizer system is
defective, the indicator light will start
flashing a pattern and the odometer/
tripmeter will display a 2-digit code
when the key is turned to “ON”. When
this occurs, have a Yamaha dealer
check the self-diagnosis system. How-
ever, if the indicator light slowly flashes
five times, and then quickly flashes two
times repeatedly, error code 52 will be
displayed. This error could be caused
by signal interference. If this occurs, try
the following.
1. Use the code re-registering key to
start the engine.
NOTE:

Make sure there are no other immobi-
lizer keys close to the main switch, anddo not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.

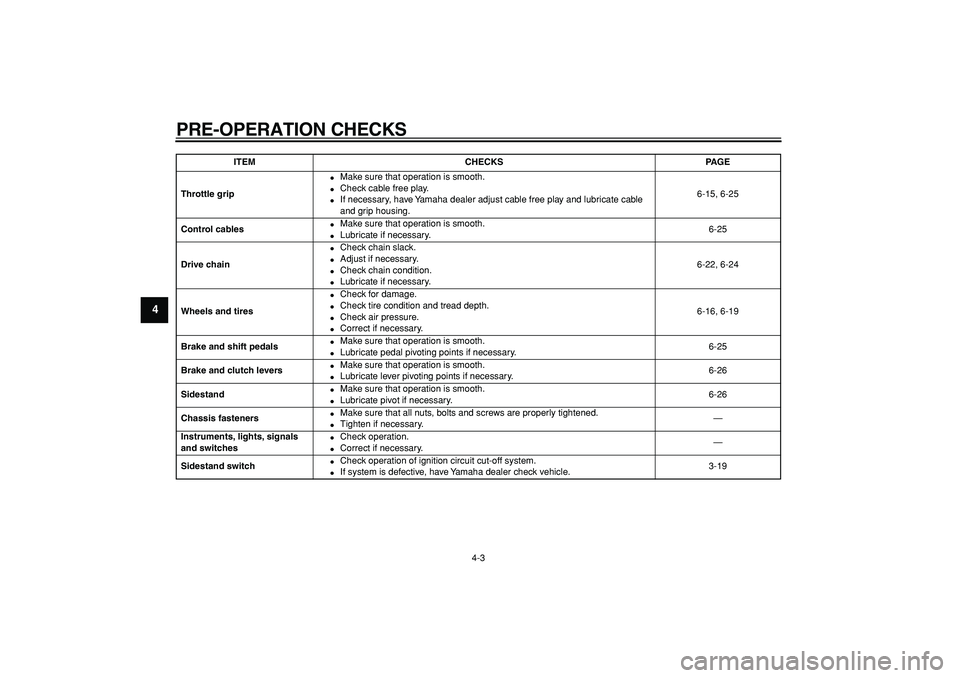

PRE-OPERATION CHECKS
4-3
1
2
3
4
5
6
7
8
9

Throttle grip

Make sure that operation is smooth.

Check cable free play.

If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.6-15, 6-25
Control cables

Make sure that operation is smooth.

Lubricate if necessary.6-25
Drive chain

Check chain slack.

Adjust if necessary.

Check chain condition.

Lubricate if necessary.6-22, 6-24
Wheels and tires

Check for damage.

Check tire condition and tread depth.

Check air pressure.

Correct if necessary.6-16, 6-19
Brake and shift pedals

Make sure that operation is smooth.

Lubricate pedal pivoting points if necessary.6-25
Brake and clutch levers

Make sure that operation is smooth.

Lubricate lever pivoting points if necessary.6-26
Sidestand

Make sure that operation is smooth.

Lubricate pivot if necessary.6-26
Chassis fasteners

Make sure that all nuts, bolts and screws are properly tightened.

Tighten if necessary.—
Instruments, lights, signals
and switches

Check operation.

Correct if necessary.—
Sidestand switch

Check operation of ignition circuit cut-off system.

If system is defective, have Yamaha dealer check vehicle.3-19
ITEM CHECKS PAGE

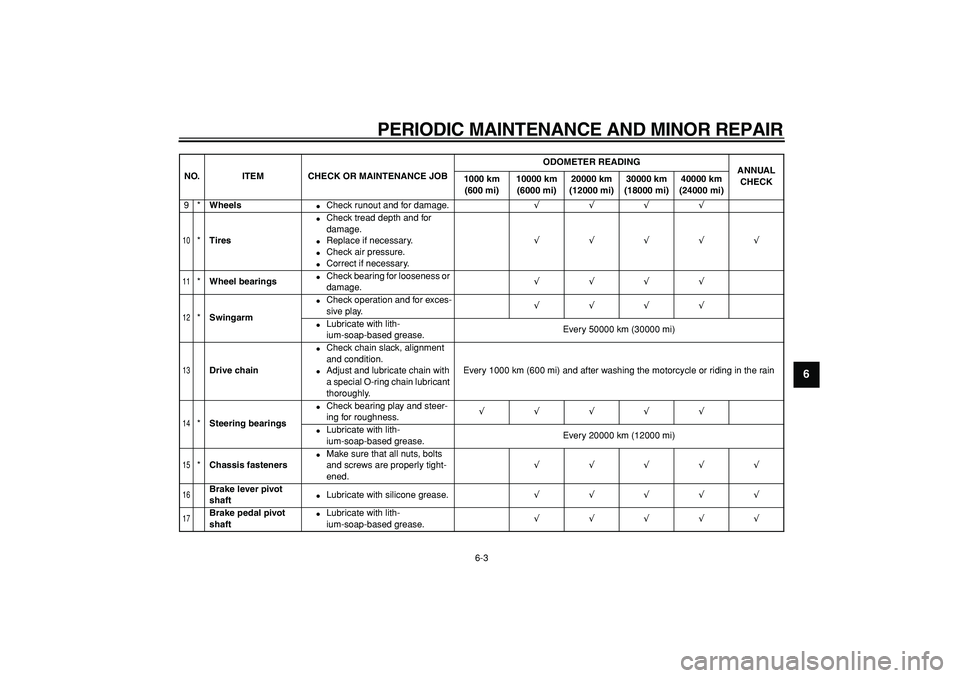

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
2
3
4
5
67
8
9

9*
Wheels

Check runout and for damage.
√√√√
10

*
Tires

Check tread depth and for
damage.

Replace if necessary.

Check air pressure.

Correct if necessary.
√√√√√
11

*
Wheel bearings

Check bearing for looseness or
damage.
√√√√
12

*
Swingarm

Check operation and for exces-
sive play.
√√√√

Lubricate with lith-
ium-soap-based grease.Every 50000 km (30000 mi)
13

Drive chain

Check chain slack, alignment
and condition.

Adjust and lubricate chain with
a special O-ring chain lubricant
thoroughly.Every 1000 km (600 mi) and after washing the motorcycle or riding in the rain
14

*
Steering bearings

Check bearing play and steer-
ing for roughness.
√√√√√

Lubricate with lith-
ium-soap-based grease.Every 20000 km (12000 mi)
15

*
Chassis fasteners

Make sure that all nuts, bolts
and screws are properly tight-
ened.
√√√√√
16

Brake lever pivot
shaft

Lubricate with silicone grease.
√√√√√
17

Brake pedal pivot
shaft

Lubricate with lith-
ium-soap-based grease.
√√√√√
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
2
3
4
5
67
8

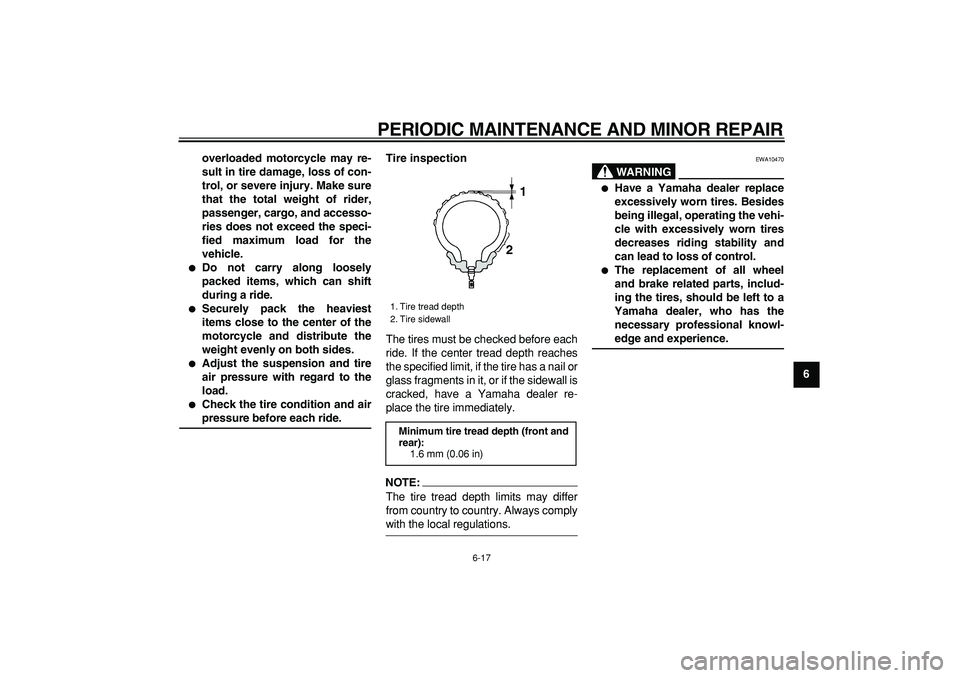

9 overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider,
passenger, cargo, and accesso-
ries does not exceed the speci-
fied maximum load for the
vehicle.


Do not carry along loosely
packed items, which can shift
during a ride.

Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.

Adjust the suspension and tire
air pressure with regard to the
load.

Check the tire condition and air
pressure before each ride.Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
NOTE:

The tire tread depth limits may differ
from country to country. Always comply
with the local regulations.
WARNING

EWA10470

Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.

The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.
1. Tire tread depth
2. Tire sidewall
Minimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
21

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
1
2
3
4
5
6
7
8
9Tire information
This motorcycle is equipped with cast
wheels and tubeless tires with valves.
WARNING

EWA10900

The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the motorcy-
cle cannot be guaranteed.

After extensive tests, only the
tires listed below have been ap-
proved for this model by
Yamaha Motor Co., Ltd.

Always make sure that the valvecaps are securely installed to
prevent air pressure leakage.

Use only the tire valves and
valve cores listed below to
avoid tire deflation during a ride.
WARNING

EWA10600
This motorcycle is fitted with su-
per-high-speed tires. Note the fol-
lowing points in order to make themost efficient use of these tires.

Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super
high speeds.

Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been
“broken in”. Therefore, it is ad-
visable before doing any
high-speed riding to ride con-
servatively for approximately
100 km (60 mi) after installing a
new tire.

The tires must be warmed up
before a high-speed run.

Always adjust the tire air pres-
sure according to the operating
conditions.
1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal
123

Front tire:
Size:
120/70 ZR18M/C (59W)
Manufacturer/model:
DUNLOP/D220FSTJ
Tire air valve:
TR412
Valve core:
#9000A (original)
Rear tire:
Size:
160/60 ZR17M/C (69W)
Manufacturer/model:
DUNLOP/D220STJ
Tire air valve:
TR412
Valve core:
#9000A (original)
