TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Immobilizer system ..........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-4
Tachometer unit ...............................3-6
Coolant temperature gauge .............3-6
Multi-function display .......................3-7
Anti-theft alarm (optional) ................3-8
Handlebar switches .........................3-9
Clutch lever ....................................3-10
Shift pedal ......................................3-10
Brake lever ....................................3-11
Brake pedal ...................................3-11
ABS ...............................................3-12
Fuel tank cap .................................3-12
Fuel ................................................3-13
Fuel tank breather hose .................3-14
Catalytic converters .......................3-14
Seat ...............................................3-14
Storage compartment ....................3-15
Adjusting the front fork ...................3-16
Adjusting the shock absorber
assembly ....................................3-17Luggage strap holders .................. 3-19
Sidestand ...................................... 3-19
Ignition circuit cut-off system ......... 3-20
PRE-OPERATION CHECKS
.............. 4-1
Pre-operation check list ................... 4-2
OPERATION AND IMPORTANT RIDING
POINTS
............................................... 5-1
Starting the engine .......................... 5-1
Shifting ............................................ 5-2
Tips for reducing fuel
consumption ................................ 5-3
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND MINOR
REPAIR
............................................... 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and lubrication
chart ............................................. 6-2
Removing and installing cowlings and
panels .......................................... 6-6
Checking the spark plugs ................ 6-7
Engine oil and oil filter element ....... 6-8
Coolant .......................................... 6-11
Replacing the air filter element ...... 6-13
Adjusting the engine idling
speed ......................................... 6-15
Checking the throttle cable free
play ............................................ 6-15Valve clearance ............................ 6-16
Tires .............................................. 6-16
Cast wheels .................................. 6-19
Adjusting the clutch lever free
play ............................................ 6-19
Adjusting the rear brake light
switch ......................................... 6-20
Checking the front and rear brake
pads ........................................... 6-20
Checking the brake fluid level ....... 6-21
Changing the brake fluid ............... 6-22
Drive chain slack ........................... 6-22
Cleaning and lubricating the drive
chain .......................................... 6-24
Checking and lubricating the
cables ........................................ 6-25
Checking and lubricating the throttle
grip and cable ............................ 6-25
Checking and lubricating the brake
and shift pedals ......................... 6-25
Checking and lubricating the brake
and clutch levers ........................ 6-26
Checking and lubricating the
sidestand ................................... 6-26
Lubricating the rear suspension .... 6-26
Checking the front fork .................. 6-27
Checking the steering ................... 6-27
Checking the wheel bearings ........ 6-28
Battery ........................................... 6-28
Replacing the fuses ...................... 6-30
Replacing a headlight bulb ........... 6-31
Page 12 of 92
2-1
1
2
3
4
5
6
7
8
9

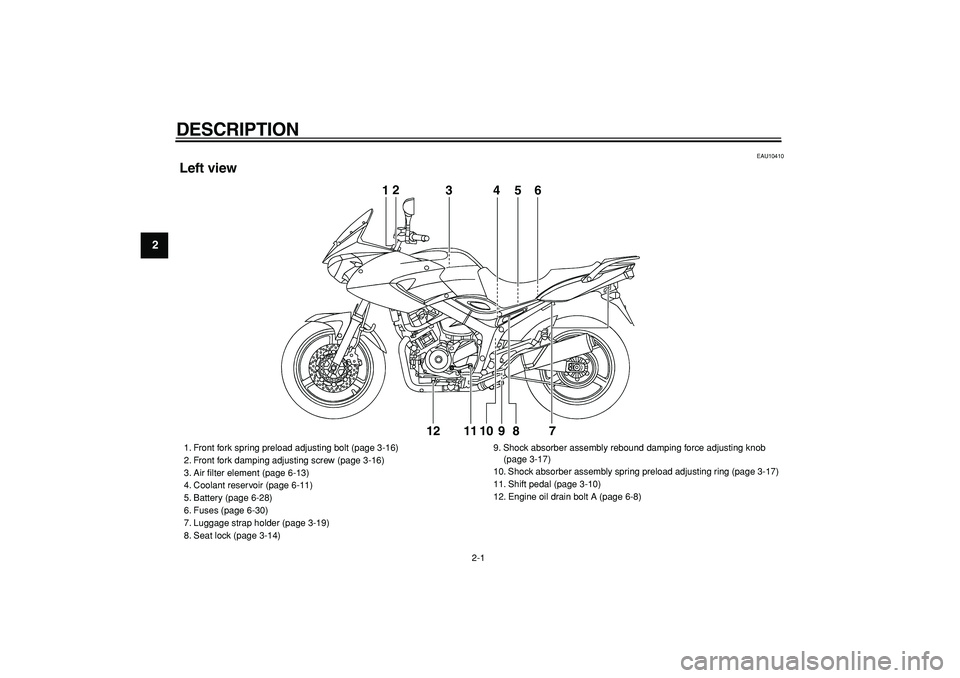

DESCRIPTION
EAU10410
Left view
12
3456
7 8 9 10 11 1212
3456
1. Front fork spring preload adjusting bolt (page 3-16)
2. Front fork damping adjusting screw (page 3-16)
3. Air filter element (page 6-13)
4. Coolant reservoir (page 6-11)
5. Battery (page 6-28)
6. Fuses (page 6-30)
7. Luggage strap holder (page 3-19)
8. Seat lock (page 3-14)9. Shock absorber assembly rebound damping force adjusting knob
(page 3-17)
10. Shock absorber assembly spring preload adjusting ring (page 3-17)
11. Shift pedal (page 3-10)
12. Engine oil drain bolt A (page 6-8)
Page 20 of 92
INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9
EAU11911
Tachometer unit
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.
CAUTION:
ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 8000 r/min and above
This tachometer unit is equipped with a
clock.
To set the clock:
1. Push both the “SELECT” and “RE-
SET” buttons for at least two sec-
onds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button to
change the minutes.
4. When the minute digits start flash-
ing, push the “RESET” button to
set the minutes.
5. Push the “SELECT” button to start
the clock.
NOTE:
After setting the clock, be sure to
push the “SELECT” button before
turning the key to “OFF”, otherwise
the clock will not be set.
When the key is turned to “OFF”,
the clock display will remain on for
48 hours and then go off to prevent
the battery from discharging.
EAU12181
Coolant temperature gauge
With the key in the “ON” position, the
coolant temperature gauge indicates
the temperature of the coolant. When
the key is turned to “ON”, the coolant
temperature gauge needle will sweep
once across the temperature range and
then return to “C” in order to test the
electrical circuit. The coolant tempera-
ture varies with changes in the weather
and engine load. If the needle reaches
or enters the red zone, stop the vehicle
and let the engine cool. (See
page 6-35.)
1. Tachometer
2. Tachometer red zone
3. Clock
1
2
3
1. Coolant temperature gauge
2. Coolant temperature gauge red zone
12
Page 37 of 92
PRE-OPERATION CHECKS
4-2
2
3
45
6
7
8
9
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
Fuel
Check fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-13
Engine oil
Check oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-8
Coolant
Check coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.6-11
Front brake
Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-20, 6-21
Rear brake
Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-20, 6-21
Clutch
Check operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-19
Page 46 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
1
2
3
4
5
6
7
8
9
18
Clutch lever pivot
shaft
Lubricate with lith-
ium-soap-based grease.
√√√√√
19
Shift pedal pivot
shaft
Lubricate with lith-
ium-soap-based grease.
√√√√√
20
Sidestand
Check operation.
Lubricate.
√√√√√
21
*
Sidestand switch
Check operation.
√√√√√√
22
*
Front fork
Check operation and for oil
leakage.
√√√√
23
*
Shock absorber
assembly
Check operation and shock
absorber for oil leakage.
√√√√
24
*
Rear suspension
relay arm and con-
necting arm pivoting
points
Check operation.
√√√√
Lubricate with lith-
ium-soap-based grease.
√√
25
*
Fuel injection
Adjust engine idling speed and
synchronization.
√√√√√√
26
Engine oil
Change.
Check oil level and vehicle for
oil leakage.
√√√√√√
27
Engine oil filter ele-
ment
Replace.
√√√
28
*
Cooling system
Check coolant level and vehi-
cle for coolant leakage.
√√√√√
Change. Every 3 years
29
*
Front and rear brake
switches
Check operation.
√√√√√√
30
Moving parts and
cables
Lubricate.
√√√√√
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
Page 53 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
2
3
4
5
67
8
9
NOTE:
Be sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.
CAUTION:
ECA11620
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-
rial enters the crankcase.
9. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
10. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU20252
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
NOTE:
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
NOTE:
The coolant should be between the
minimum and maximum level marks.
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter element replace-
ment:
3.80 L (4.02 US qt) (3.34 Imp.qt)
With oil filter element replacement:
3.90 L (4.12 US qt) (3.43 Imp.qt)
1. “CD” specification
2. “ENERGY CONSERVING II”
1
2
Page 54 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
1
2
3
4
5
6
7
8
9
3. If the coolant is at or below the
minimum level mark, remove pan-
el A (See page 6-6.), remove the
reservoir cap, add coolant to the
maximum level mark, and then in-
stall the reservoir cap and the pan-
el.
CAUTION:
ECA10471
If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion.
If water has been added to thecoolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness of
the coolant will be reduced.
WARNING
EWA10380
Never attempt to remove the radiator
cap when the engine is hot.
NOTE:
The radiator fan is automatically
switched on or off according to the
coolant temperature in the radia-
tor.
If the engine overheats, see page
6-35 for further instructions.
1. Maximum level mark
2. Coolant reservoir
3. Minimum level mark
3 1
2
1. Coolant reservoir cap
Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
1
Page 78 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
1
2
3
4
5
6
7
8
9Engine overheating
WARNING
EWA10400
Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissing
sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
NOTE:
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant
as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
