2008 YAMAHA RHINO 700 tires

EVU00050
1 -CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION ........................................ 3-1
INSTRUMENT AND CONTROL
FUNCTIONS ............................................ 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-3
Multi-function meter unit ..................... 4-13
Switches ............................................. 4-25
Accelerator pedal ............................... 4-29
Brake pedal ........................................ 4-31
Parking brake lever ............................ 4-31
Drive select lever ................................ 4-33
Fuel tank cap ...................................... 4-33
Doors .................................................. 4-35
Seats .................................................. 4-37
Seat belts ........................................... 4-39
Glove compartment ............................ 4-39
Cup holders ........................................ 4-41
Cargo bed........................................... 4-43
1234
Front and rear shock absorber
adjustment ....................................... 4-47
Trailer hitch bracket and receiver....... 4-51
Auxiliary DC jack ................................ 4-51
FOR YOUR SAFETY –
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-7
Fuel .................................................... 5-11
Engine oil ........................................... 5-19
Coolant............................................... 5-21
Final gear oil ...................................... 5-23
Differential gear oil ............................. 5-23
Accelerator pedal ............................... 5-25
Seat belts ........................................... 5-25
Steering.............................................. 5-27
Fittings and fasteners......................... 5-27
Lights ................................................. 5-27
Switches............................................. 5-29
Control cables .................................... 5-29
Tires ................................................... 5-29
5
EE.book Page 1 Monday, October 8, 2007 4:48 PM

2-23

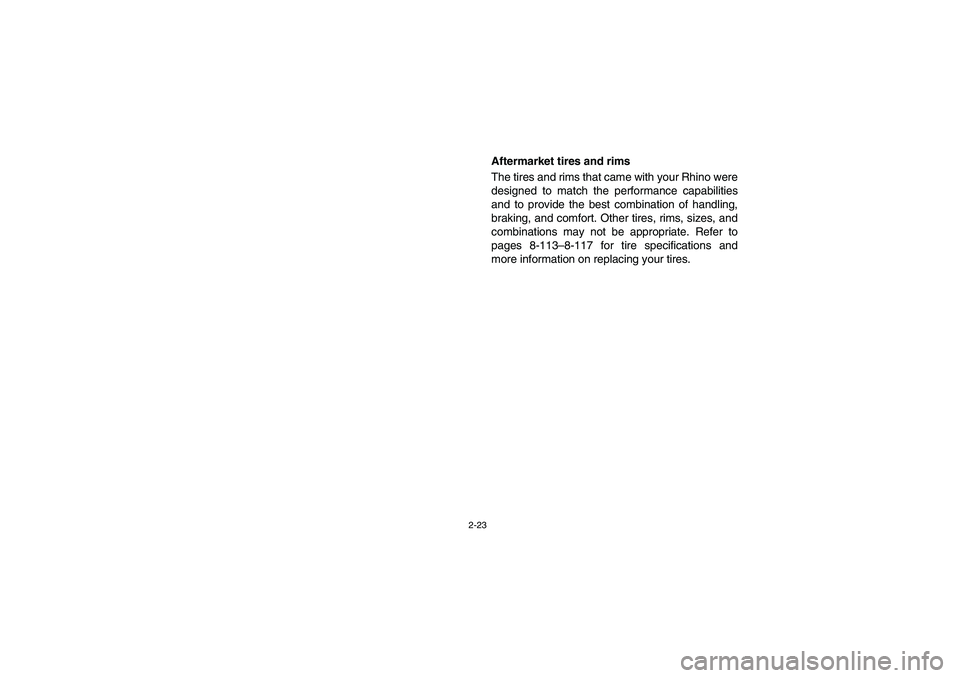

Aftermarket tires and rims
The tires and rims that came with your Rhino were
designed to match the performance capabilities
and to provide the best combination of handling,
braking, and comfort. Other tires, rims, sizes, and
combinations may not be appropriate. Refer to
pages 8-113–8-117 for tire specifications and
more information on replacing your tires.
EE.book Page 23 Monday, October 8, 2007 4:48 PM

5-2
5
SteeringCheck for proper operation. 5-27
Fittings and fastenersCheck all fittings and fasteners. 5-27
Lights and switchesCheck for proper operation.5-27–5-29,
8-137–8-149
Wheels and tiresCheck tire pressure and for wear and damage.5-29–5-33,
8-111–8-117
Axle bootsCheck for damage. 8-57 ITEM ROUTINE PAGE
EE.book Page 2 Monday, October 8, 2007 4:48 PM

5-29
EVU00490
Switches
Check the operation of all switches. Have a
Yamaha dealer repair as necessary for proper op-
eration.
Control cables
When riding in cold weather, always make sure all
control cables work smoothly before you begin
riding. WARNING! Control cables can freeze in
cold weather and you could be unable to con-
trol the vehicle.
EVU00500
Tires
Check tire pressure regularly to make sure it is at
the recommended specifications. Also check for
wear and damage.
EE.book Page 29 Monday, October 8, 2007 4:48 PM

5-31 1. Tire pressure gauge
1. Manomètre pour pneus
1. Manómetro para neumáticos
EVU00510
Tire pressure
Use the tire pressure gauge to check and adjust
tire pressures when the tires are cold. Tire pres-
sures must be equal on both sides. WARNING!
Operation of this vehicle with improper tire
pressure may cause severe injury or death
from loss of control or rollover. Tire pressure
below the minimum specified could also cause
the tire to dislodge from the rim under severe
riding conditions.
Set tire pressures to the following specifications:ACE-02EThe tire pressure gauge is included as standard
equipment. Make two measurements of the tire
pressure and use the second reading. Dust or dirt
in the gauge could cause the first reading to be in-
correct.
Recommended
pressureMinimum Maximum
Front70 kPa
(0.70 kgf/cm
2,
10 psi)63 kPa
(0.63 kgf/cm
2,
9 psi)77 kPa
(0.77 kgf/cm
2,
11 psi)
Rear98 kPa
(0.98 kgf/cm
2,
14 psi)91 kPa
(0.91 kgf/cm
2,
13 psi)105 kPa
(1.05 kgf/cm
2,
15 psi)
EE.book Page 31 Monday, October 8, 2007 4:48 PM

7-29 a. CORRECT GRIP EXAMPLE
b. INCORRECT GRIP EXAMPLE
a. EXEMPLE DE MAINTIEN CORRECT
b. EXEMPLE DE MAINTIEN INCORRECT
a. EJEMPLO DE SUJECIÓN CORRECTA
b. EJEMPLO DE SUJECIÓN INCORRECTA
a
b
Steering wheel
Keep both hands on the steering wheel. Do not
hold the steering wheel with your thumbs inside
the rim. Keep your palms on the outside of the
steering wheel. Similar to other off-road vehicles, if
the Rhino hits a deep rut or large obstacle, the
steering wheel could briefly jerk in one direction or
back and forth as the tires and vehicle respond to
the obstacle. This quick motion could injure your
thumbs or wrist if your thumbs or hand(s) are in-
side the steering wheel. Grip the steering wheel so
that your thumbs will not be hit by the spokes. As
an example, see the illustration.
EE.book Page 29 Monday, October 8, 2007 4:48 PM

7-43
Braking
When slowing down or stopping, take your foot off
the accelerator pedal and press the brake pedal
smoothly. Improper use of the brakes can cause
the tires to lose traction, reducing control of the ve-
hicle and increasing the possibility of an accident.
Braking ability is affected by type of terrain. In most
cases, gradual application of the brakes is more
effective than abrupt braking, particularly on loose
surfaces, such as gravel. Always allow for greater
braking distance on rough, loose, or slippery sur-
faces.
Engine braking
Engine compression braking is designed to assist
you when operating your Rhino off-road. With this
feature, the engine helps slow the vehicle down af-
ter you take your foot off the accelerator. Engine
braking is more noticeable in 4WD. Application of
vehicle brakes provides additional stopping power.
EE.book Page 43 Monday, October 8, 2007 4:48 PM

8-113
Tire replacement
Always use the same size and type of tires recom-
mended in this owner’s manual. The tires that
came with your Rhino were designed to match the
performance capabilities and to provide the best
combination of handling, braking, and comfort. It is
best to replace all four tires at the same time. If that
is not possible, you must replace the tires in pairs
(front or rear) with tires of the same size and type
as the originals. Never replace just one tire.
WARNING
Installing improper tires on your Rhino can af-
fect handling and stability. This can cause a
loss of control.The tires listed below have been approved by
Yamaha Motor Manufacturing Corporation of
America for this model.
Manufacturer Size Type
Front MAXXIS 25 × 8-12NHS M951Y
Rear MAXXIS 25 × 10-12NHS M952Y
EE.book Page 113 Monday, October 8, 2007 4:48 PM
