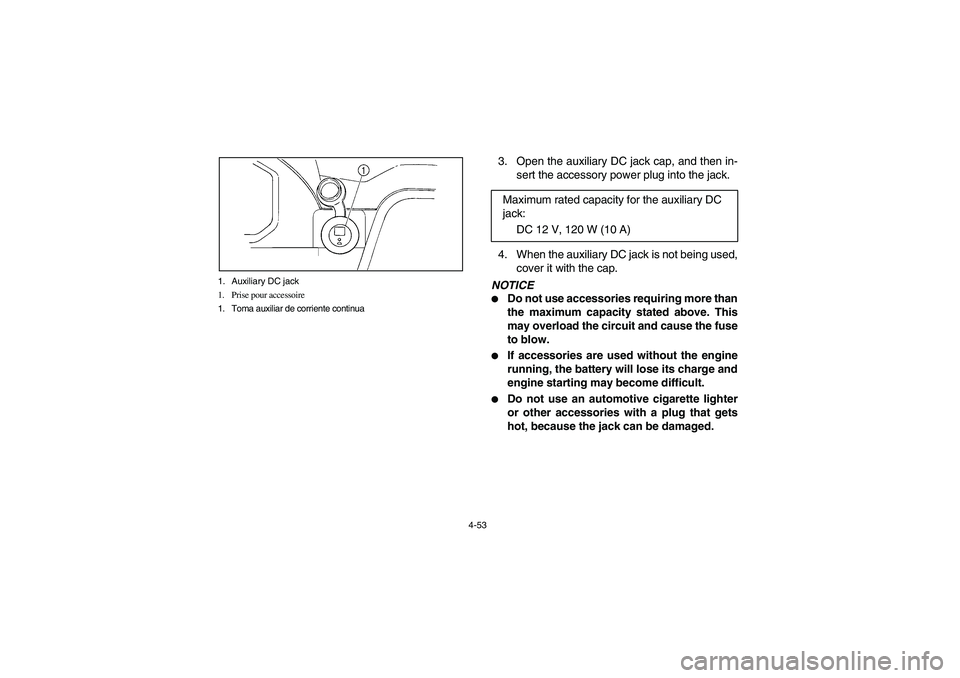

4-53 1. Auxiliary DC jack
1. Prise pour accessoire
1. Toma auxiliar de corriente continua
3. Open the auxiliary DC jack cap, and then in-
sert the accessory power plug into the jack.
4. When the auxiliary DC jack is not being used,
cover it with the cap.NOTICE
Do not use accessories requiring more than
the maximum capacity stated above. This
may overload the circuit and cause the fuse
to blow.
If accessories are used without the engine
running, the battery will lose its charge and
engine starting may become difficult.
Do not use an automotive cigarette lighter
or other accessories with a plug that gets
hot, because the jack can be damaged. Maximum rated capacity for the auxiliary DC
jack:
DC 12 V, 120 W (10 A)
