2008 YAMAHA RHINO 700 four wheel drive

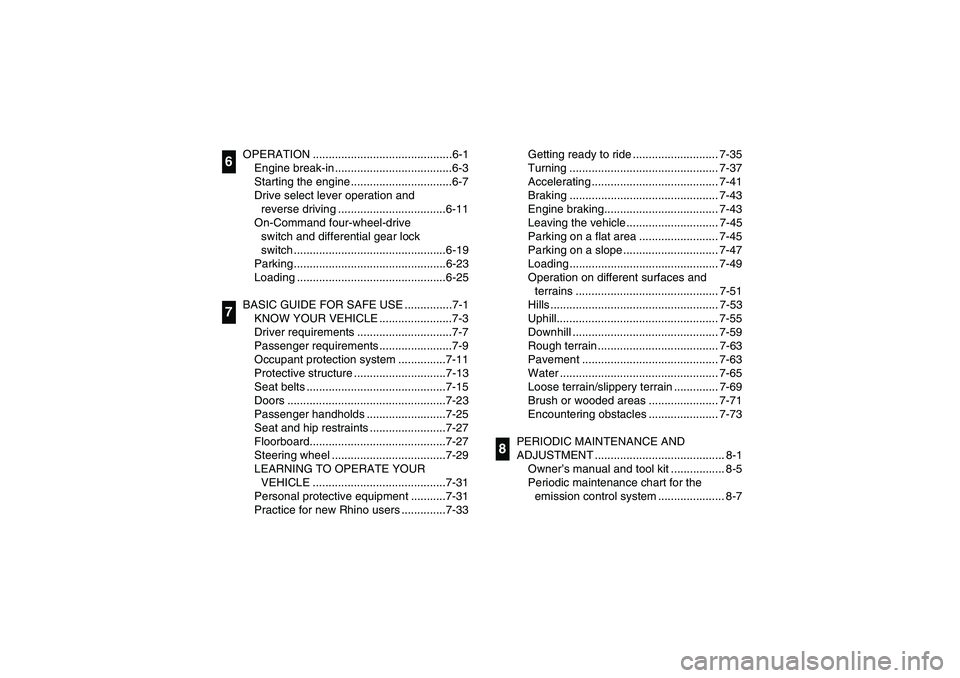

OPERATION ............................................6-1
Engine break-in .....................................6-3
Starting the engine ................................6-7
Drive select lever operation and
reverse driving ..................................6-11

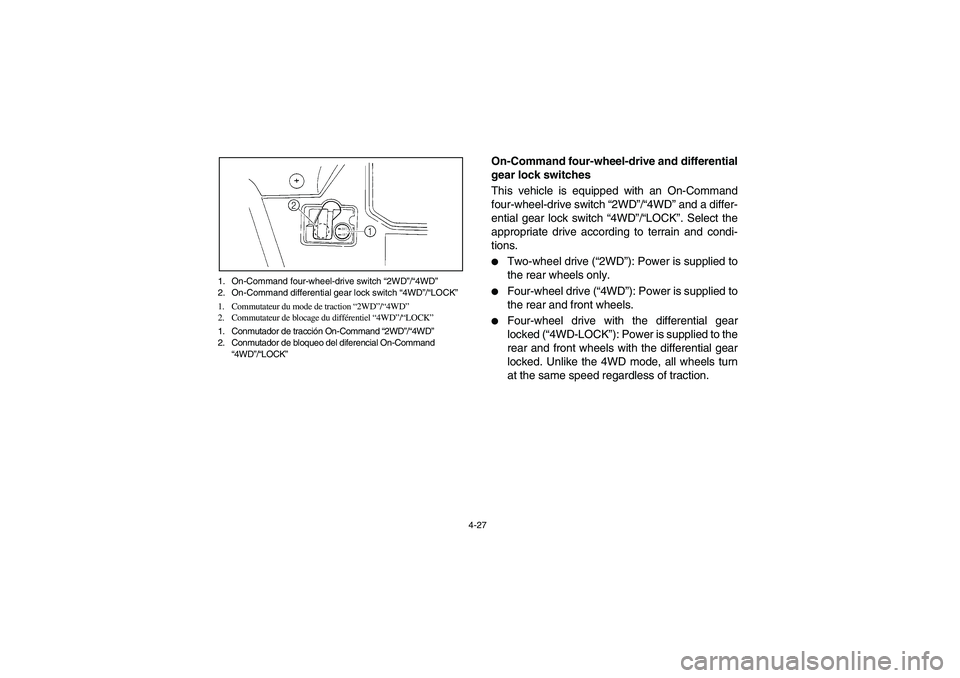

On-Command four-wheel-drive
switch and differential gear lock
switch ................................................6-19
Parking ................................................6-23
Loading ...............................................6-25
BASIC GUIDE FOR SAFE USE ...............7-1
KNOW YOUR VEHICLE .......................7-3
Driver requirements ..............................7-7
Passenger requirements .......................7-9
Occupant protection system ...............7-11
Protective structure .............................7-13
Seat belts ............................................7-15
Doors ..................................................7-23
Passenger handholds .........................7-25
Seat and hip restraints ........................7-27
Floorboard...........................................7-27
Steering wheel ....................................7-29
LEARNING TO OPERATE YOUR
VEHICLE ..........................................7-31
Personal protective equipment ...........7-31
Practice for new Rhino users ..............7-33
67
Getting ready to ride ........................... 7-35
Turning ............................................... 7-37
Accelerating ........................................ 7-41
Braking ............................................... 7-43
Engine braking.................................... 7-43
Leaving the vehicle ............................. 7-45
Parking on a flat area ......................... 7-45
Parking on a slope .............................. 7-47
Loading ............................................... 7-49
Operation on different surfaces and
terrains ............................................. 7-51
Hills ..................................................... 7-53
Uphill................................................... 7-55
Downhill .............................................. 7-59
Rough terrain ...................................... 7-63
Pavement ........................................... 7-63
Water .................................................. 7-65
Loose terrain/slippery terrain .............. 7-69
Brush or wooded areas ...................... 7-71
Encountering obstacles ...................... 7-73
PERIODIC MAINTENANCE AND
ADJUSTMENT ......................................... 8-1
Owner’s manual and tool kit ................. 8-5
Periodic maintenance chart for the
emission control system ..................... 8-7
8
EE.book Page 2 Monday, October 8, 2007 4:48 PM

3-2
3

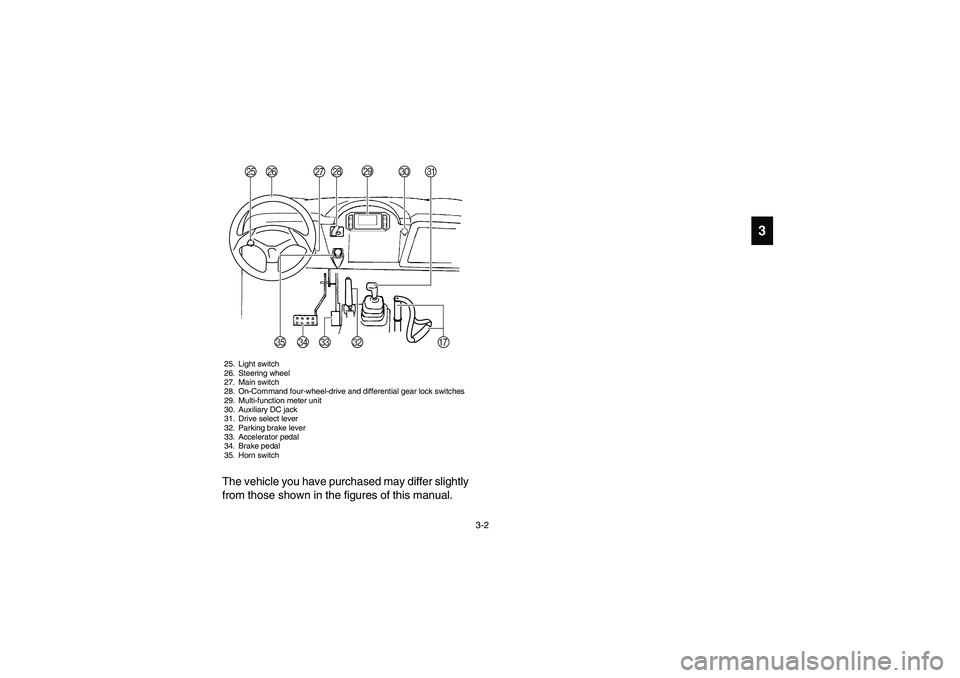

25. Light switch
26. Steering wheel
27. Main switch
28. On-Command four-wheel-drive and differential gear lock switches
29. Multi-function meter unit
30. Auxiliary DC jack
31. Drive select lever
32. Parking brake lever
33. Accelerator pedal
34. Brake pedal
35. Horn switchThe vehicle you have purchased may differ slightly
from those shown in the figures of this manual.
Q
R O
PS
T
W X
V
G U
Y
EE.book Page 2 Monday, October 8, 2007 4:48 PM

4-3
1. On-Command differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”3. High-range indicator light “H”
4. Neutral indicator light “N”5. Reverse indicator light “R”
6. Parking brake indicator light “P”
7. On-Command four-wheel-drive/differential gear lock indicator
“”/“”
8. Coolant temperature warning light “”
9. Engine trouble warning light “”
1. Témoin de blocage du différentiel “DIFF. LOCK”
2. Témoin de la gamme basse “L”3. Témoin de la gamme haute “H”
4. Témoin de point mort “N”5. Témoin de la marche arrière “R”
6. Témoin du frein de stationnement “P”
7. Indicateur de la commande du mode de traction/du système de
blocage du différentiel “”/“”
8. Témoin d’alerte de la température du liquide de refroidissement “”
9. Témoin d’alerte de panne du moteur “”
1. Testigo de bloqueo del diferencial On-Command “DIFF. LOCK”
2. Testigo de marcha corta “L”3. Testigo de marcha larga “H”
4. Testigo de punto muerto “N”5. Testigo de marcha atrás “R”
6. Testigo del freno de estacionamiento “P”
7. Indicador de tracción a las cuatro ruedas/bloqueo del diferencial
On-Command “”/“”
8. Luz de alarma de la temperatura del líquido refrigerante “”
9. Luz de alarma de avería del motor “”
1
2
3
4
5
6
8
9 7
km/h
DIFF.
LOCK
DIFF.
LOCK
DIFF.
LOCK
EVU00150
Indicator and warning lights
EVU01131
On-Command differential gear lock indicator
light “DIFF. LOCK”
This indicator light and the On-Command differen-
tial gear lock indicator in the display come on when
the On-Command differential gear lock switch is
set to the “LOCK” position.
When the switch is set to “LOCK”, the On-Com-
mand differential gear lock indicator light will flash
until the differential gear is locked.
EVU01140
Low-range indicator light “L”
This indicator light comes on when the drive select
lever is in the “L” position.
EVU01150
High-range indicator light “H”
This indicator light comes on when the drive select
lever is in the “H” position.
EE.book Page 3 Monday, October 8, 2007 4:48 PM

4-5
1. On-Command differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”3. High-range indicator light “H”
4. Neutral indicator light “N”5. Reverse indicator light “R”
6. Parking brake indicator light “P”
7. On-Command four-wheel-drive/differential gear lock indicator
“”/“”
8. Coolant temperature warning light “”
9. Engine trouble warning light “”
1. Témoin de blocage du différentiel “DIFF. LOCK”
2. Témoin de la gamme basse “L”3. Témoin de la gamme haute “H”
4. Témoin de point mort “N”5. Témoin de la marche arrière “R”
6. Témoin du frein de stationnement “P”
7. Indicateur de la commande du mode de traction/du système de
blocage du différentiel “”/“”
8. Témoin d’alerte de la température du liquide de refroidissement “”
9. Témoin d’alerte de panne du moteur “”
1. Testigo de bloqueo del diferencial On-Command “DIFF. LOCK”
2. Testigo de marcha corta “L”3. Testigo de marcha larga “H”
4. Testigo de punto muerto “N”5. Testigo de marcha atrás “R”
6. Testigo del freno de estacionamiento “P”
7. Indicador de tracción a las cuatro ruedas/bloqueo del diferencial
On-Command “”/“”
8. Luz de alarma de la temperatura del líquido refrigerante “”
9. Luz de alarma de avería del motor “”
1
2
3
4
5
6
8
9 7
km/h
DIFF.
LOCK
DIFF.
LOCK
DIFF.
LOCK
EVU00170

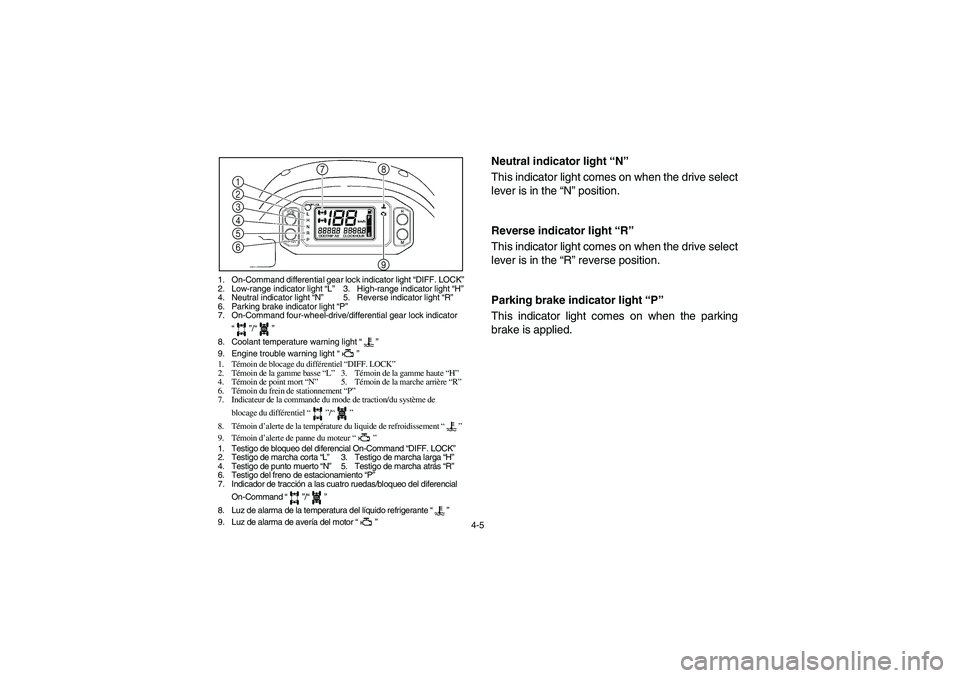

Neutral indicator light “N”
This indicator light comes on when the drive select
lever is in the “N” position.
5B410001
Reverse indicator light “R”
This indicator light comes on when the drive select
lever is in the “R” reverse position.
EVU00210
Parking brake indicator light “P”
This indicator light comes on when the parking
brake is applied.
EE.book Page 5 Monday, October 8, 2007 4:48 PM

4-7
1. On-Command differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”3. High-range indicator light “H”
4. Neutral indicator light “N”5. Reverse indicator light “R”
6. Parking brake indicator light “P”
7. On-Command four-wheel-drive/differential gear lock indicator
“”/“”
8. Coolant temperature warning light “”
9. Engine trouble warning light “”
1. Témoin de blocage du différentiel “DIFF. LOCK”
2. Témoin de la gamme basse “L”3. Témoin de la gamme haute “H”
4. Témoin de point mort “N”5. Témoin de la marche arrière “R”
6. Témoin du frein de stationnement “P”
7. Indicateur de la commande du mode de traction/du système de
blocage du différentiel “”/“”
8. Témoin d’alerte de la température du liquide de refroidissement “”
9. Témoin d’alerte de panne du moteur “”
1. Testigo de bloqueo del diferencial On-Command “DIFF. LOCK”
2. Testigo de marcha corta “L”3. Testigo de marcha larga “H”
4. Testigo de punto muerto “N”5. Testigo de marcha atrás “R”
6. Testigo del freno de estacionamiento “P”
7. Indicador de tracción a las cuatro ruedas/bloqueo del diferencial
On-Command “”/“”
8. Luz de alarma de la temperatura del líquido refrigerante “”
9. Luz de alarma de avería del motor “”
1
2
3
4
5
6
8
9 7
km/h
DIFF.
LOCK
DIFF.
LOCK
DIFF.
LOCK
EVU01161

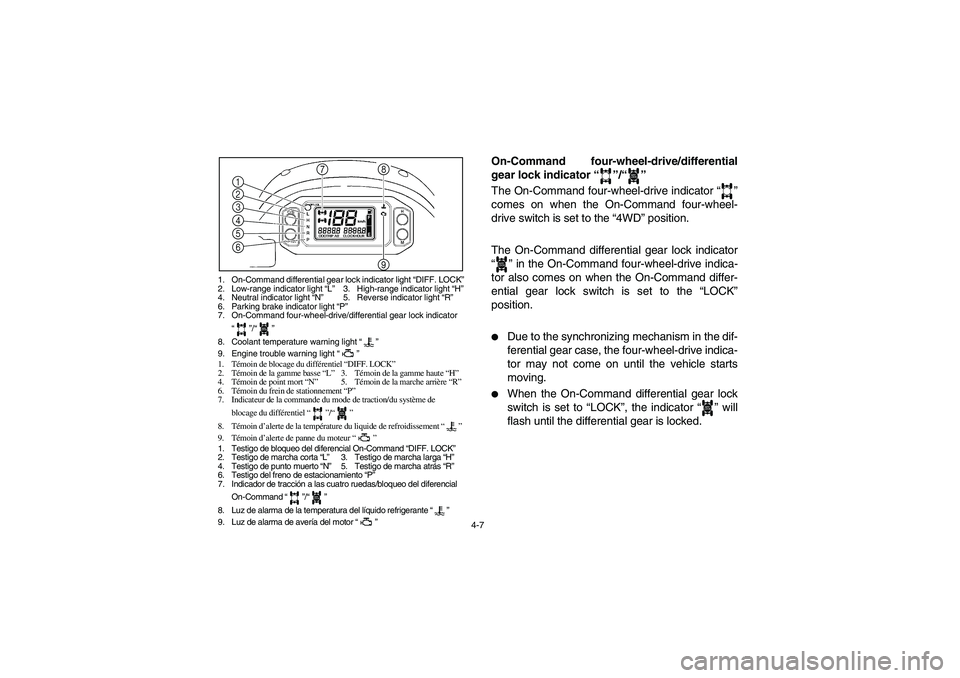

On-Command four-wheel-drive/differential
gear lock indicator “”/“”
The On-Command four-wheel-drive indicator “”
comes on when the On-Command four-wheel-
drive switch is set to the “4WD” position.
The On-Command differential gear lock indicator
“” in the On-Command four-wheel-drive indica-
tor also comes on when the On-Command differ-
ential gear lock switch is set to the “LOCK”
position.

Due to the synchronizing mechanism in the dif-
ferential gear case, the four-wheel-drive indica-
tor may not come on until the vehicle starts
moving.


When the On-Command differential gear lock
switch is set to “LOCK”, the indicator “” will
flash until the differential gear is locked.
DIFF.
LOCK
DIFF.
LOCK
DIFF.
LOCK
EE.book Page 7 Monday, October 8, 2007 4:48 PM

4-9
1. On-Command differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”3. High-range indicator light “H”
4. Neutral indicator light “N”5. Reverse indicator light “R”
6. Parking brake indicator light “P”
7. On-Command four-wheel-drive/differential gear lock indicator
“”/“”
8. Coolant temperature warning light “”
9. Engine trouble warning light “”
1. Témoin de blocage du différentiel “DIFF. LOCK”
2. Témoin de la gamme basse “L”3. Témoin de la gamme haute “H”
4. Témoin de point mort “N”5. Témoin de la marche arrière “R”
6. Témoin du frein de stationnement “P”
7. Indicateur de la commande du mode de traction/du système de
blocage du différentiel “”/“”
8. Témoin d’alerte de la température du liquide de refroidissement “”
9. Témoin d’alerte de panne du moteur “”
1. Testigo de bloqueo del diferencial On-Command “DIFF. LOCK”
2. Testigo de marcha corta “L”3. Testigo de marcha larga “H”
4. Testigo de punto muerto “N”5. Testigo de marcha atrás “R”
6. Testigo del freno de estacionamiento “P”
7. Indicador de tracción a las cuatro ruedas/bloqueo del diferencial
On-Command “”/“”
8. Luz de alarma de la temperatura del líquido refrigerante “”
9. Luz de alarma de avería del motor “”
1
2
3
4
5
6
8
9 7
km/h
DIFF.
LOCK
DIFF.
LOCK
DIFF.
LOCK
5B410002
Coolant temperature warning light “”
If the coolant temperature reaches a specified lev-
el, this light comes on to warn that the coolant tem-
perature is too hot. If the light comes on during
operation, stop the engine as soon as it is safe to
do so and allow the engine to cool down for about
10 minutes. (See page 8-154.)
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, have a Yamaha dealer
check the electrical circuit.NOTICE

The engine may overheat if the vehicle is
overloaded. If this happens, reduce the load
to specification.


After restarting, make sure that the light is
out. Continuous use while the light is on
may cause damage to the engine.
EE.book Page 9 Monday, October 8, 2007 4:48 PM

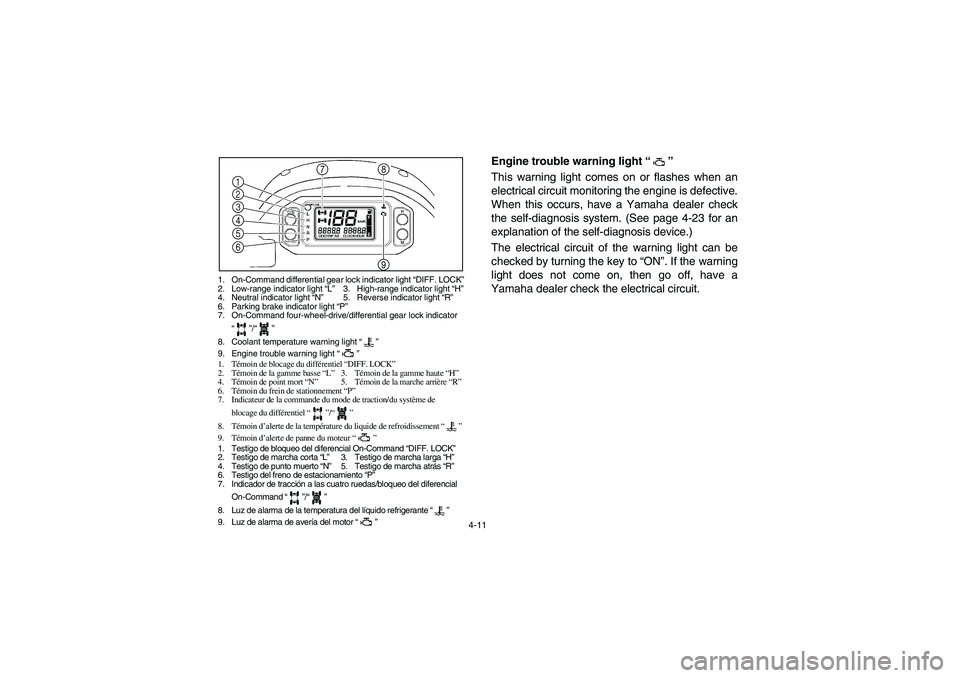

4-11
1. On-Command differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”3. High-range indicator light “H”
4. Neutral indicator light “N”5. Reverse indicator light “R”
6. Parking brake indicator light “P”
7. On-Command four-wheel-drive/differential gear lock indicator
“”/“”
8. Coolant temperature warning light “”
9. Engine trouble warning light “”
1. Témoin de blocage du différentiel “DIFF. LOCK”
2. Témoin de la gamme basse “L”3. Témoin de la gamme haute “H”
4. Témoin de point mort “N”5. Témoin de la marche arrière “R”
6. Témoin du frein de stationnement “P”
7. Indicateur de la commande du mode de traction/du système de
blocage du différentiel “”/“”
8. Témoin d’alerte de la température du liquide de refroidissement “”
9. Témoin d’alerte de panne du moteur “”
1. Testigo de bloqueo del diferencial On-Command “DIFF. LOCK”
2. Testigo de marcha corta “L”3. Testigo de marcha larga “H”
4. Testigo de punto muerto “N”5. Testigo de marcha atrás “R”
6. Testigo del freno de estacionamiento “P”
7. Indicador de tracción a las cuatro ruedas/bloqueo del diferencial
On-Command “”/“”
8. Luz de alarma de la temperatura del líquido refrigerante “”
9. Luz de alarma de avería del motor “”
1
2
3
4
5
6
8
9 7
km/h
DIFF.
LOCK
DIFF.
LOCK
DIFF.
LOCK
5B410003
Engine trouble warning light “”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is defective.
When this occurs, have a Yamaha dealer check
the self-diagnosis system. (See page 4-23 for an
explanation of the self-diagnosis device.)
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, then go off, have a
Yamaha dealer check the electrical circuit.
EE.book Page 11 Monday, October 8, 2007 4:48 PM

4-27 1. On-Command four-wheel-drive switch “2WD”/“4WD”
2. On-Command differential gear lock switch “4WD”/“LOCK”
1. Commutateur du mode de traction “2WD”/“4WD”
2. Commutateur de blocage du différentiel “4WD”/“LOCK”
1. Conmutador de tracción On-Command “2WD”/“4WD”
2. Conmutador de bloqueo del diferencial On-Command
“4WD”/“LOCK”
EVU01183
On-Command four-wheel-drive and differential
gear lock switches
This vehicle is equipped with an On-Command
four-wheel-drive switch “2WD”/“4WD” and a differ-
ential gear lock switch “4WD”/“LOCK”. Select the
appropriate drive according to terrain and condi-
tions.

Two-wheel drive (“2WD”): Power is supplied to
the rear wheels only.


Four-wheel drive (“4WD”): Power is supplied to
the rear and front wheels.


Four-wheel drive with the differential gear
locked (“4WD-LOCK”): Power is supplied to the
rear and front wheels with the differential gear
locked. Unlike the 4WD mode, all wheels turn
at the same speed regardless of traction.
EE.book Page 27 Monday, October 8, 2007 4:48 PM
