2008 YAMAHA RHINO 700 check engine

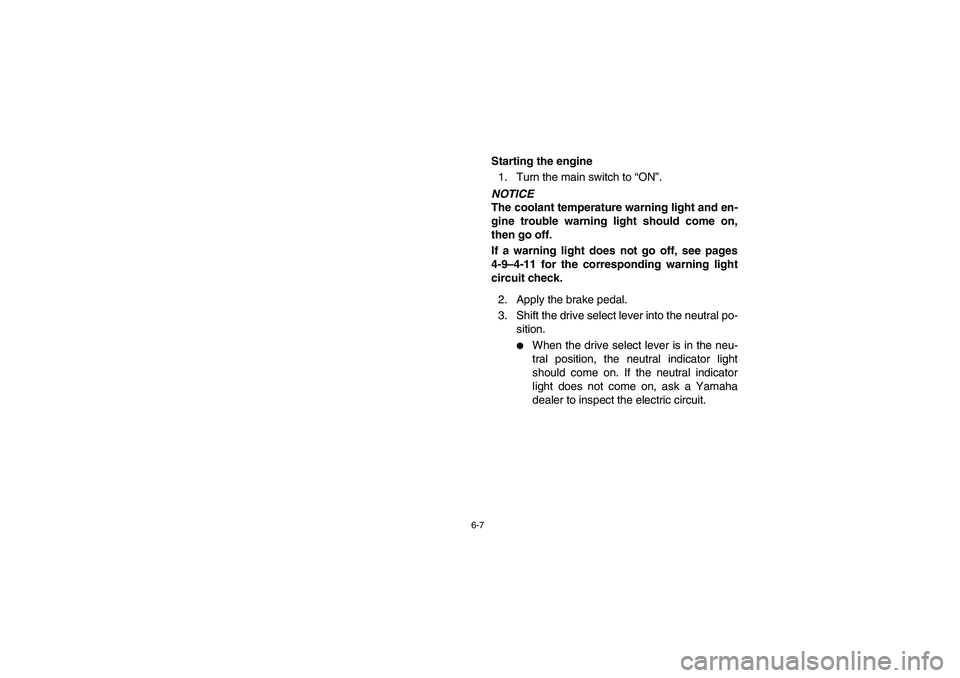

6-7
5B410007
Starting the engine
1. Turn the main switch to “ON”.NOTICE
The coolant temperature warning light and en-
gine trouble warning light should come on,
then go off.
If a warning light does not go off, see pages
4-9–4-11 for the corresponding warning light
circuit check.
2. Apply the brake pedal.
3. Shift the drive select lever into the neutral po-
sition.


When the drive select lever is in the neu-
tral position, the neutral indicator light
should come on. If the neutral indicator
light does not come on, ask a Yamaha
dealer to inspect the electric circuit.
EE.book Page 7 Monday, October 8, 2007 4:48 PM

6-15 1. Drive select lever a. L (Low)
b. H (High) c. N (Neutral)
d. R (Reverse)
1. Sélecteur de marche a. L (gamme basse)
b. H (gamme haute) c. N (point mort)
d. R (marche arrière)
1. Palanca selectora a. L (marcha corta)
b. H (marcha larga) c. N (punto muerto)
d. R (marcha atrás)
Shifting: neutral to reverse
WARNING
Before you shift into reverse, make sure there
are no obstacles or people behind you. When it
is safe to proceed, go slowly. Hitting an obsta-
cle or person could result in serious injury or
death.1. Stop the vehicle. Take your foot off the accel-
erator pedal and check behind you.
2. Apply the brake pedal.
3. Shift from neutral to reverse or vice versa by
moving the drive select lever along the shift
guide.


When in reverse, the reverse indicator
light should be on. Due to the synchroniz-
ing mechanism in the engine, the light
may not come on until the vehicle starts
moving.


If the light does not come on, ask a
Yamaha dealer to inspect the reverse in-
dicator light electrical circuit.
EE.book Page 15 Monday, October 8, 2007 4:48 PM

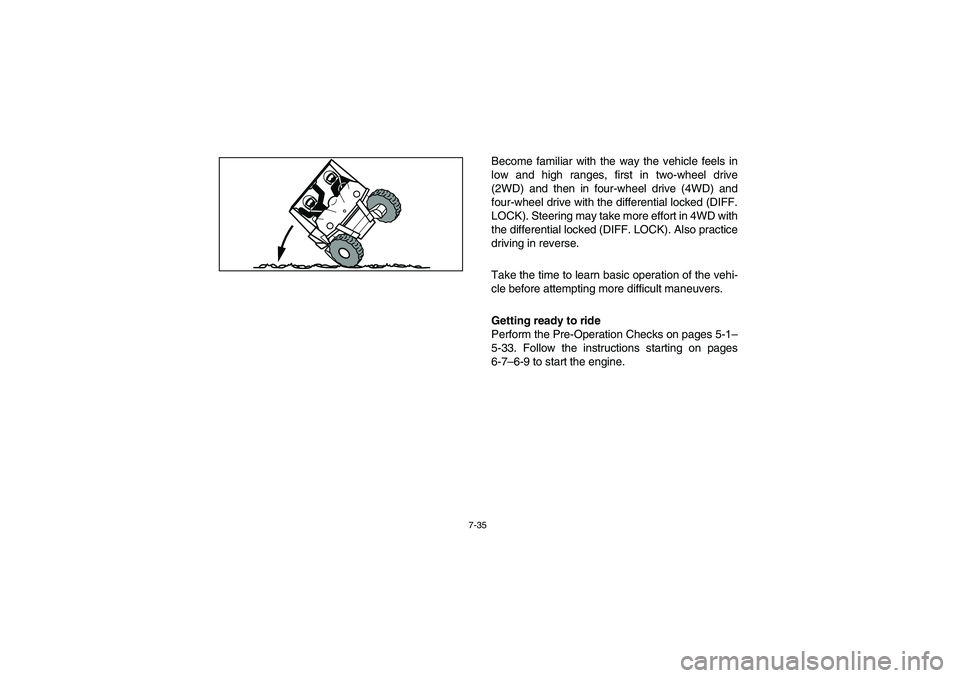

7-35
Become familiar with the way the vehicle feels in
low and high ranges, first in two-wheel drive
(2WD) and then in four-wheel drive (4WD) and
four-wheel drive with the differential locked (DIFF.
LOCK). Steering may take more effort in 4WD with
the differential locked (DIFF. LOCK). Also practice
driving in reverse.
Take the time to learn basic operation of the vehi-
cle before attempting more difficult maneuvers.
Getting ready to ride
Perform the Pre-Operation Checks on pages 5-1–
5-33. Follow the instructions starting on pages
6-7–6-9 to start the engine.
EE.book Page 35 Monday, October 8, 2007 4:48 PM

7-59
Downhill
Check the terrain carefully before going downhill.
When possible, choose a path that lets you drive
your vehicle straight downhill. Choose your path
carefully and drive slowly enough to be able to re-
act to obstacles that you encounter.
For more traction and control, before going down
steeper and/or rougher slopes, shift into low gear
and select 4WD or 4WD Diff. Lock. Engine braking
will help you go downhill slowly. Go as slowly as
possible. If you begin to go too fast, apply the
brakes gently. Avoid hard application of the
brakes, which could cause the vehicle to slide.
EE.book Page 59 Monday, October 8, 2007 4:48 PM

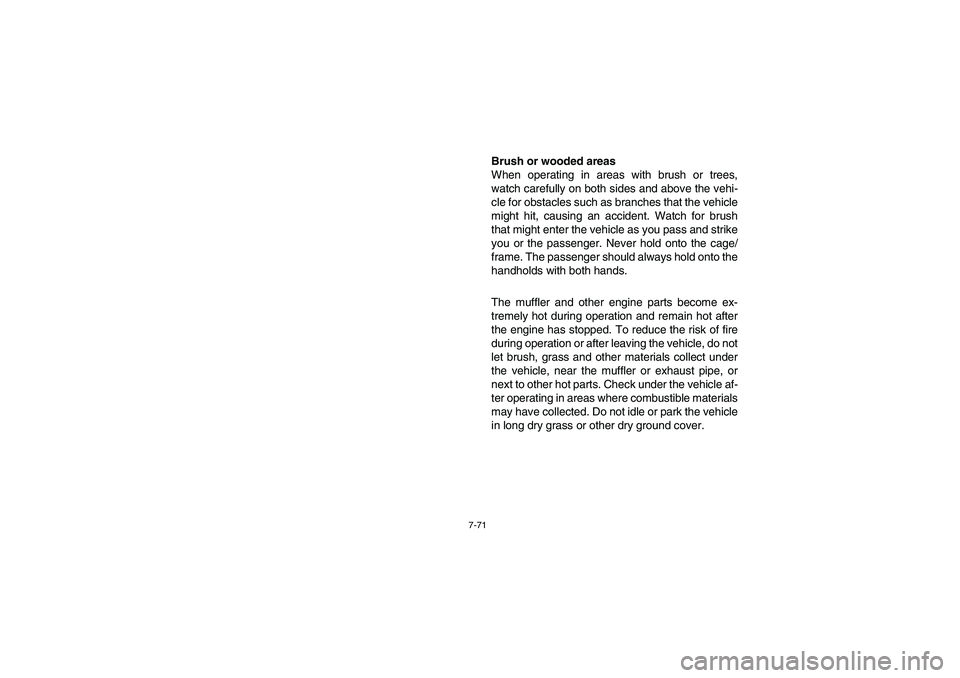

7-71
Brush or wooded areas
When operating in areas with brush or trees,
watch carefully on both sides and above the vehi-
cle for obstacles such as branches that the vehicle
might hit, causing an accident. Watch for brush
that might enter the vehicle as you pass and strike
you or the passenger. Never hold onto the cage/
frame. The passenger should always hold onto the
handholds with both hands.
The muffler and other engine parts become ex-
tremely hot during operation and remain hot after
the engine has stopped. To reduce the risk of fire
during operation or after leaving the vehicle, do not
let brush, grass and other materials collect under
the vehicle, near the muffler or exhaust pipe, or
next to other hot parts. Check under the vehicle af-
ter operating in areas where combustible materials
may have collected. Do not idle or park the vehicle
in long dry grass or other dry ground cover.
EE.book Page 71 Monday, October 8, 2007 4:48 PM

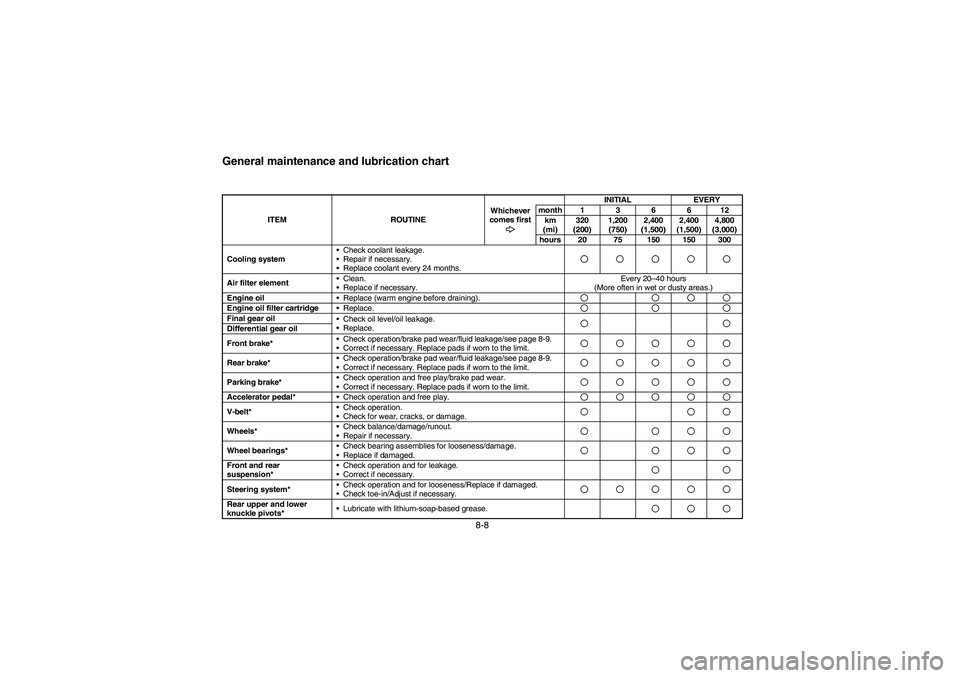

8-8
EVU01650
General maintenance and lubrication chart
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
Cooling systemCheck coolant leakage.
Repair if necessary.
Replace coolant every 24 months.
Air filter elementClean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Engine oilReplace (warm engine before draining).Engine oil filter cartridgeReplace.Final gear oil
Check oil level/oil leakage.
Replace.Differential gear oil
Front brake*Check operation/brake pad wear/fluid leakage/see page 8-9.
Correct if necessary. Replace pads if worn to the limit.Rear brake*Check operation/brake pad wear/fluid leakage/see page 8-9.
Correct if necessary. Replace pads if worn to the limit.Parking brake*Check operation and free play/brake pad wear.
Correct if necessary. Replace pads if worn to the limit.Accelerator pedal*Check operation and free play.V-belt*Check operation.
Check for wear, cracks, or damage.Wheels*Check balance/damage/runout.
Repair if necessary.Wheel bearings*Check bearing assemblies for looseness/damage.
Replace if damaged.Front and rear
suspension*Check operation and for leakage.
Correct if necessary.Steering system*Check operation and for looseness/Replace if damaged.
Check toe-in/Adjust if necessary.Rear upper and lower
knuckle pivots*Lubricate with lithium-soap-based grease.
EE.book Page 8 Monday, October 8, 2007 4:48 PM

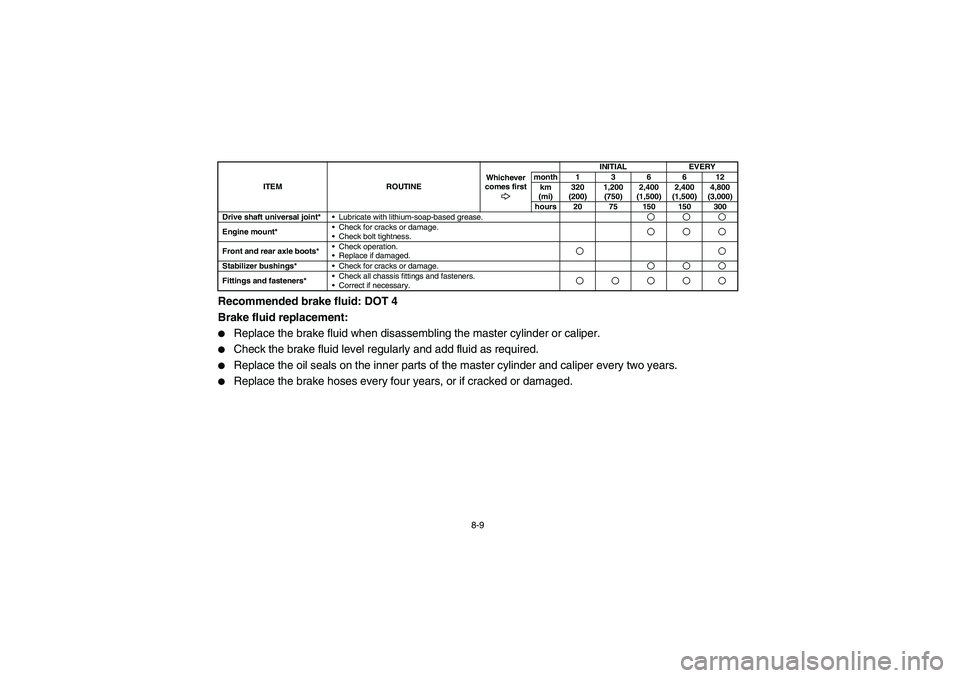

8-9
Recommended brake fluid: DOT 4
Brake fluid replacement:

Replace the brake fluid when disassembling the master cylinder or caliper.


Check the brake fluid level regularly and add fluid as required.


Replace the oil seals on the inner parts of the master cylinder and caliper every two years.


Replace the brake hoses every four years, or if cracked or damaged.
Drive shaft universal joint*Lubricate with lithium-soap-based grease.Engine mount*Check for cracks or damage.
Check bolt tightness.Front and rear axle boots*Check operation.
Replace if damaged.Stabilizer bushings*Check for cracks or damage.Fittings and fasteners*Check all chassis fittings and fasteners.
Correct if necessary.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
EE.book Page 9 Monday, October 8, 2007 4:48 PM

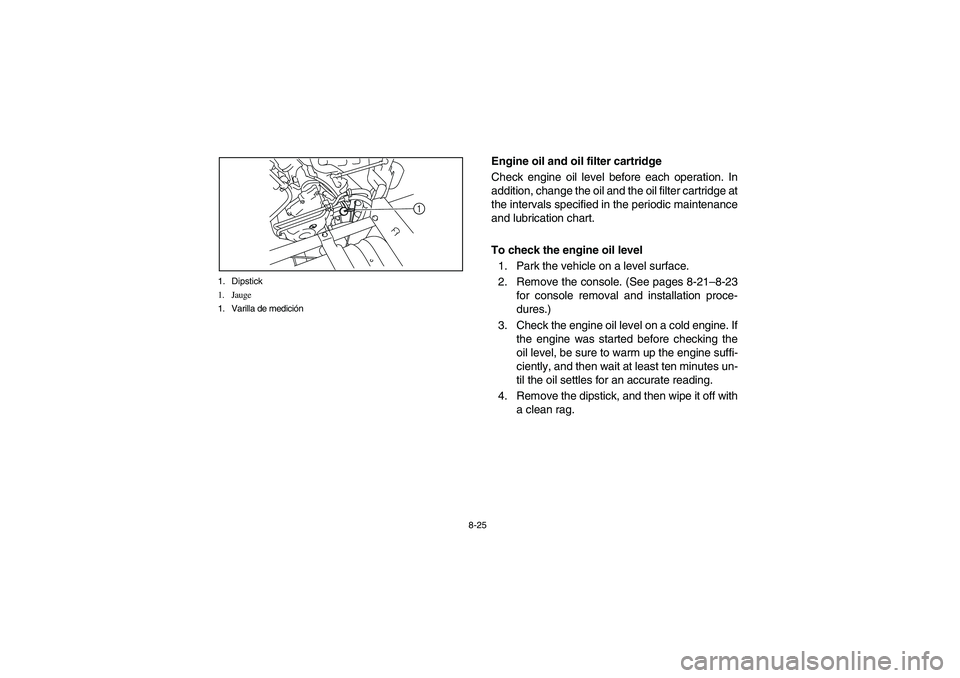

8-25 1. Dipstick
1. Jauge
1. Varilla de medición
1
5B410012
Engine oil and oil filter cartridge
Check engine oil level before each operation. In
addition, change the oil and the oil filter cartridge at
the intervals specified in the periodic maintenance
and lubrication chart.
To check the engine oil level
1. Park the vehicle on a level surface.
2. Remove the console. (See pages 8-21–8-23
for console removal and installation proce-
dures.)
3. Check the engine oil level on a cold engine. If
the engine was started before checking the
oil level, be sure to warm up the engine suffi-
ciently, and then wait at least ten minutes un-
til the oil settles for an accurate reading.
4. Remove the dipstick, and then wipe it off with
a clean rag.
EE.book Page 25 Monday, October 8, 2007 4:48 PM
