2008 YAMAHA RHINO 700 headlights

3-1
EVU00080
1 -DESCRIPTION
1. Headlights
2. Front shock absorber assembly
3. Brake fluid reservoir
4. Air filter element
5. V-belt case
6. Driver seat
7. Driver seat belt
8. Cargo bed
9. Tail/brake lights
10. Rear shock absorber assembly
11. Cargo bed release levers
12. Spark plug
13. Door
CBA 089
14. Spark arrester
15. Passenger seat belt
16. Passenger seat
17. Passenger handhold
18. Engine oil dipstick
19. Battery
20. Fuses
21. Coolant reservoir
22. Radiator cap
23. Oil filter cartridge
24. Fuel tank cap
H G F EIJKL
AC M N D
EE.book Page 1 Wednesday, November 7, 2007 2:40 PM

4-1 1. Main switch a. OFF b. ON c. START
1. Contacteur à cléa. OFF (arrêt)
b. ON (contact) c. START (mise en marche)
1. Interruptor principal a. OFF (desconectado)
b. ON (conectado) c. START (arranque)
OFFONSTART
1a
b
c
EVU00130
1 -INSTRUMENT AND CONTROL
FUNCTIONS
EVU00140
Main switch
Functions of the respective switch positions are as
follows:
ON:
All electrical circuits are supplied with power,
and the headlights and taillights come on
when the light switch is on.
OFF:
All electrical circuits are switched off. The key
can be removed in this position.
START:
The electric starter is engaged by turning and
holding the key in this position. Release the
key when the engine starts.
EE.book Page 1 Wednesday, November 7, 2007 2:40 PM

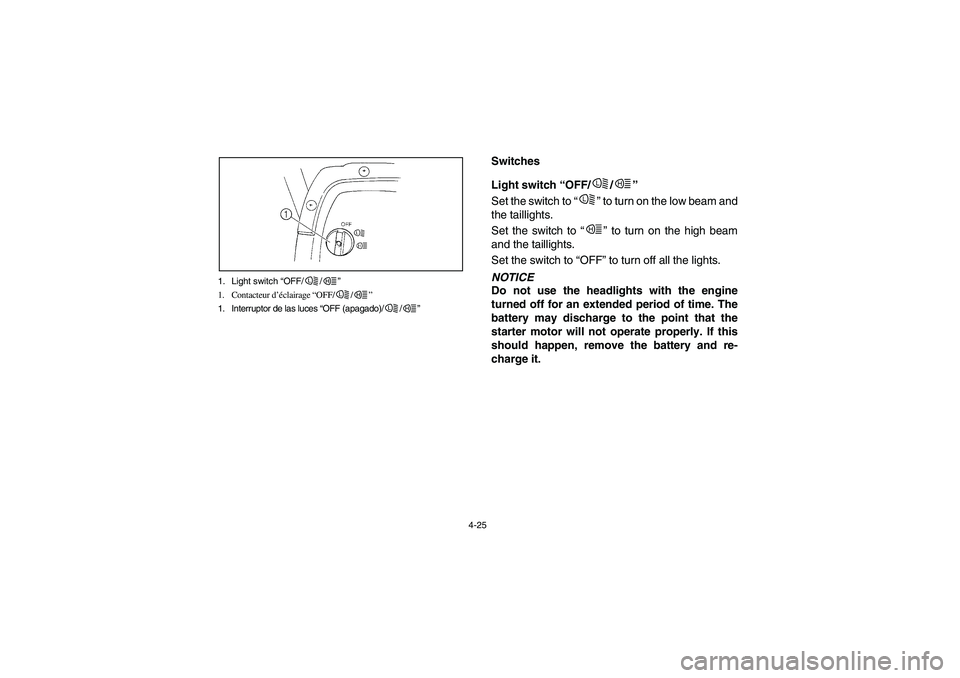

4-25 1. Light switch “OFF/ /”
1. Contacteur d’éclairage “OFF/ /”
1. Interruptor de las luces “OFF (apagado)/ /”
L
H
L
H
L
H
EVU00230
Switches
EVU00240
Light switch “OFF/ /”
Set the switch to “” to turn on the low beam and
the taillights.
Set the switch to “” to turn on the high beam
and the taillights.
Set the switch to “OFF” to turn off all the lights.NOTICE
Do not use the headlights with the engine
turned off for an extended period of time. The
battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-
charge it.
L
H
LH
EE.book Page 25 Wednesday, November 7, 2007 2:40 PM

5-27
EVU01230
Steering
Park on level ground. Turn the steering wheel right
and left. Check for excessive free play, abnormal
noises, or a rough feeling. Have a Yamaha dealer
repair as necessary for proper operation.
EVU00470
Fittings and fasteners
Always check the tightness of chassis fittings and
fasteners before a ride. Take the vehicle to a
Yamaha dealer or refer to the Service Manual for
correct tightening torque.
EVU00480
Lights
Check the headlights and tail/brake lights to make
sure they are in working condition. Repair as nec-
essary for proper operation.
EE.book Page 27 Wednesday, November 7, 2007 2:40 PM
