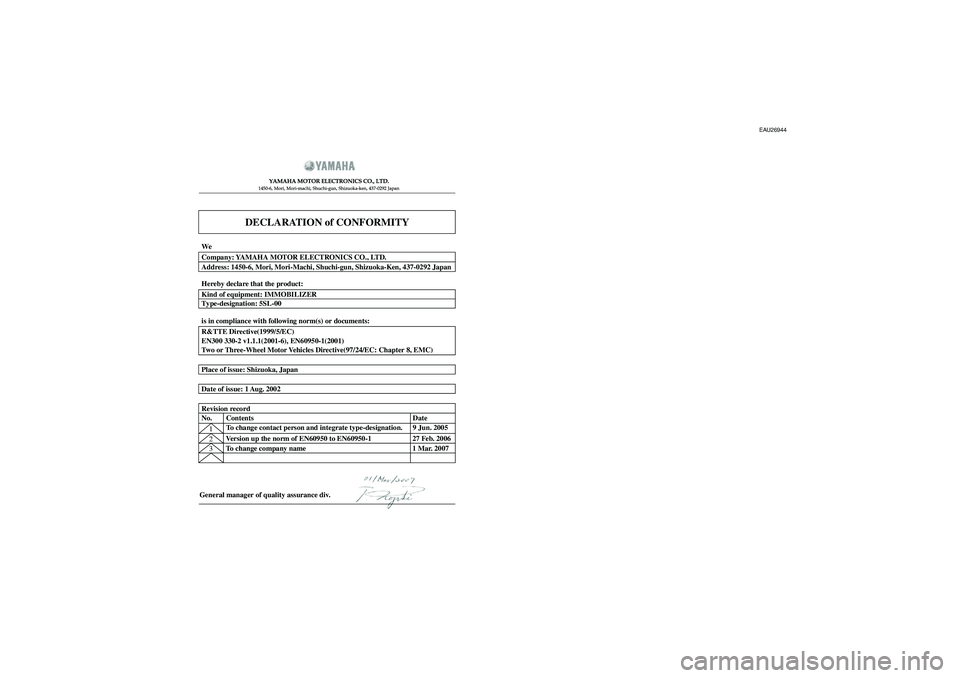

DECLARATION of CONFORMITY
YAMAHA MOTOR ELECTRONICS CO., LTD.1450-6, Mori, Mori-machi, Shuchi-gun, Shizuoka-ken, 437-0292 Japan
General manager of quality assurance div.1
Version up the norm of EN60950 to EN60950-1
To change company name27 Feb. 2006
1 Mar. 2007
2
3Revision record
No. Contents Date
To change contact person and integrate type-designation. 9 Jun. 2005Date of issue: 1 Aug. 2002Place of issue: Shizuoka, JapanR&TTE Directive(1999/5/EC)
EN300 330-2 v1.1.1(2001-6), EN60950-1(2001)
Two or Three-Wheel Motor Vehicles Directive(97/24/EC: Chapter 8, EMC) is in compliance with following norm(s) or documents:Kind of equipment: IMMOBILIZER
Type-designation: 5SL-00 Hereby declare that the product:Company: YAMAHA MOTOR ELECTRONICS CO., LTD.
Address: 1450-6, Mori, Mori-Machi, Shuchi-gun, Shizuoka-Ken, 437-0292 JapanWe

EAU26944

TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
Further safe-riding points .................1-4
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Immobilizer system ..........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Speedometer ...................................3-5
Tachometer .....................................3-5
Multi-function display .......................3-5
Anti-theft alarm (optional) ................3-9
Handlebar switches .........................3-9
Front brake lever ...........................3-11
Rear brake lever ............................3-11
Rear brake lock lever .....................3-11
ABS (for ABS models) ...................3-12
Fuel tank cap .................................3-13
Fuel ................................................3-14
Catalytic converters .......................3-14
Seats .............................................3-15
Adjusting the rider seat ..................3-16
Storage compartments ..................3-17
Adjusting the shock absorber
assemblies .................................3-18
Sidestand .......................................3-19Ignition circuit cut-off system ......... 3-20
PRE-OPERATION CHECKS
.............. 4-1
Pre-operation check list ................... 4-2
OPERATION AND IMPORTANT RIDING
POINTS
............................................... 5-1
Starting the engine .......................... 5-1
Starting off ....................................... 5-2
Acceleration and deceleration ......... 5-2
Braking ............................................ 5-2
Tips for reducing fuel
consumption ................................ 5-3
Engine break-in ............................... 5-4
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND MINOR
REPAIR
............................................... 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and lubrication
chart ............................................. 6-3
Removing and installing cowlings and
panels .......................................... 6-7
Checking the spark plug ................ 6-11
Engine oil and oil filter element ..... 6-13
Final transmission oil ..................... 6-16
Coolant .......................................... 6-17
Air filter elements and check hoses and
V-belt case air filter element ...... 6-19
Checking the throttle cable free
play ............................................ 6-22Valve clearance ............................ 6-22
Tires .............................................. 6-22
Cast wheels .................................. 6-24
Front and rear brake lever free
play ............................................ 6-25
Adjusting the rear brake lock lever
cable .......................................... 6-26
Checking the front and rear brake
pads ........................................... 6-26
Checking the brake fluid level ....... 6-27
Changing the brake fluid ............... 6-28
Checking and lubricating the
cables ........................................ 6-28
Checking and lubricating the throttle
grip and cable ............................ 6-29
Lubricating the front and rear brake
levers ......................................... 6-29
Checking and lubricating the
centerstand and sidestand ........ 6-29
Checking the front fork .................. 6-30
Checking the steering ................... 6-31
Checking the wheel bearings ........ 6-31
Battery ........................................... 6-32
Replacing the fuses ...................... 6-33
Replacing a headlight bulb ........... 6-35
Tail/brake light ............................... 6-36
Replacing a front turn signal light
bulb ............................................ 6-36
Replacing a rear turn signal light
bulb ............................................ 6-37

3-1
2
34
5
6
7
8
9

INSTRUMENT AND CONTROL FUNCTIONS
EAU10974
Immobilizer system
This vehicle is equipped with an immo-
bilizer system to help prevent theft by
re-registering codes in the standard
keys. This system consists of the fol-
lowing.

a code re-registering key (with a
red bow)

two standard keys (with a black
bow) that can be re-registered with
new codes

a transponder (which is installed in
the code re-registering key)

an immobilizer unit

an ECU (Electronic Control Unit)

an immobilizer system indicator
light (See page 3-3.)
The key with the red bow is used to reg-
ister codes in each standard key. Since
re-registering is a difficult process, take
the vehicle along with all three keys to
a Yamaha dealer to have them re-reg-
istered. Do not use the key with the red
bow for driving. It should only be used
for re-registering the standard keys. Al-
ways use a standard key for driving.
CAUTION:

ECA11821

DO NOT LOSE THE CODE
RE-REGISTERING KEY! CON-
TACT YOUR DEALER IMMEDI-
ATELY IF IT IS LOST! If the code
re-registering key is lost, regis-
tering new codes in the stan-
dard keys is impossible. The
standard keys can still be used
to start the vehicle, however if
code re-registering is required
(i.e., if a new standard key is
made or all keys are lost) the en-
tire immobilizer system must be
replaced. Therefore, it is highly
recommended to use either
standard key and keep the codere-registering key in a safe
place.

Do not submerse any key in wa-
ter.

Do not expose any key to exces-
sively high temperatures.

Do not place any key close to
magnets (this includes, but not
limited to, products such as
speakers, etc.).

Do not place items that transmit
electrical signals close to any
key.

Do not place heavy items on any
key.

Do not grind any key or alter its
shape.

Do not disassemble the plastic
part of any key.

Do not put two keys of any im-
mobilizer system on the same
key ring.

Keep the standard keys as well
as keys of other immobilizer
systems away from this vehi-
cle’s code re-registering key.

Keep other immobilizer system
keys away from the main switch
1. Code re-registering key (red bow)
2. Standard keys (black bow)

INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9
To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
WARNING

EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
EAU10941
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary lights
are on. The hazard lights and turn sig-
nal lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “ ”.
CAUTION:

ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “”
This indicator light comes on when the
1. Turn signal indicator lights “ ” and “ ”
2. High beam indicator light “ ”
3. Immobilizer system indicator light
4. Engine trouble warning light “ ”
5. Anti-lock Brake System (ABS) warning
light “ ” (for ABS models)
123
4
5
ABS

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9
high beam of the headlight is switched
on.

EAU11480
Engine trouble warning light “”
This warning light comes on when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU11551
ABS warning light “” (for ABS
models)
CAUTION:

ECA10830
If the ABS warning light comes on or
flashes while riding, the ABS may be
defective. If this occurs, have a
Yamaha dealer check the electrical
circuit.
See page 3-12 for an explanation of the
ABS.The electrical circuit of the warning light
can be checked by setting the engine
stop switch to “” and turning the key
to “ON”. The warning light should come
on for a few seconds, and then go off. If
the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
WARNING

EWA11350
When the ABS warning light comes
on or flashes while riding, the brake
system reverts to conventional brak-
ing. Therefore, be careful not to
cause the wheel to lock during emer-
gency braking.
NOTE:

The ABS warning light may come on
while pushing the start switch and while
accelerating the engine with the scoot-
er on its centerstand, but this does not
indicate a malfunction.
EAU38620
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the keyto “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a
self-diagnosis device for the immobiliz-
er system. (See page 3-5 for an expla-
nation of the self-diagnosis device.)
ABS

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9
procedure.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
2. If the indicator does not come on,
have a Yamaha dealer check the
electrical circuit.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
multi-function display will indicate a
two-digit error code.
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
CAUTION:

ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-
age.
This model is also equipped with a
self-diagnosis device for the immobiliz-er system.
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
multi-function display will indicate a
two-digit error code when the key is
turned to “ON”.
NOTE:

If the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this error
appears, try the following.
1. Use the code re-registering key to
start the engine.
NOTE:

Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take thevehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
Clock mode
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.
Pushing the “SELECT” button for
at least two seconds switches the
clock display to the ambient tem-
perature display.

SPECIFICATIONS
8-3
1
2
3
4
5
6
7
8
9Battery:

Model:
GT9B-4
Voltage, capacity:
12 V, 8.0 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 60 W/55.0 W
×
2
Tail/brake light:
LED
Front turn signal light:
12 V, 21.0 W
×
2
Rear turn signal light:
12 V, 21.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
2
License plate light:
12 V, 5.0 W
×
1
Meter lighting:
12 V, 2.0 W
×
3
High beam indicator light:
12 V, 1.4 W
×
1
Turn signal indicator light:
12 V, 1.4 W
×
2
Engine trouble warning light:
12 V, 1.4 W
×
1
ABS warning light:
YP400A 12 V, 1.4 W
×
1
Immobilizer system indicator light:
LED

Fuses:
Main fuse:
40.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
10.0 A
Hazard fuse:
10.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
YP400A 10.0 A
ABS motor fuse:
YP400A 30.0 A
Backup fuse:
10.0 A

INDEX
A
ABS (for ABS models) .............................3-12
ABS warning light (for ABS models) ..........3-4
Acceleration and deceleration ...................5-2
Air filter elements and check hoses and
V-belt case air filter element ..................6-19
Anti-theft alarm (optional) ..........................3-9
Auxiliary light bulb, replacing ...................6-38
B
Battery .....................................................6-32
Brake fluid, changing ...............................6-28
Brake fluid level, checking .......................6-27
Brake lever, front .....................................3-11
Brake lever, rear ......................................3-11
Brake levers, lubricating ..........................6-29
Braking ......................................................5-2
C
Cables, checking and lubricating .............6-28
Care ...........................................................7-1
Catalytic converters .................................3-14
Centerstand and sidestand, checking and
lubricating ..............................................6-29
Coolant ....................................................6-17
Cowlings and panels, removing and
installing ..................................................6-7
D
Dimmer switch .........................................3-10
E
Engine break-in .........................................5-4
Engine oil and oil filter element ................6-13
Engine stop switch...................................3-10
Engine trouble warning light ......................3-4
F
Final transmission oil ...............................6-16Front and rear brake lever free play ........ 6-25
Front and rear brake pads, checking....... 6-26
Front fork, checking ................................. 6-30
Fuel ......................................................... 3-14
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap ........................................... 3-13
Fuses, replacing ...................................... 6-33
H
Handlebar switches ................................... 3-9
Hazard switch .......................................... 3-10
Headlight bulb, replacing ......................... 6-35
High beam indicator light ........................... 3-3
Horn switch.............................................. 3-10
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-20
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-4
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-38
M
Main switch/steering lock .......................... 3-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-5
P
Parking ...................................................... 5-4
Part locations............................................. 2-1
Pass switch ............................................. 3-10
Periodic maintenance and lubrication
chart ........................................................ 6-3Pre-operation check list............................. 4-2
R
Rear brake lock lever .............................. 3-11
Rear brake lock lever cable, adjusting .... 6-26
Rider seat, adjusting ............................... 3-16
S
Safe-riding points ...................................... 1-4
Safety information ..................................... 1-1
Seats ....................................................... 3-15
Shock absorber assemblies, adjusting.... 3-18
Sidestand ................................................ 3-19
Spark plug, checking ............................... 6-11
Specifications ............................................ 8-1
Speedometer............................................. 3-5
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch.............................................. 3-10
Steering, checking................................... 6-31
Storage...................................................... 7-3
Storage compartments ............................ 3-17
T
Tachometer ............................................... 3-5
Tail/brake light ......................................... 6-36
Throttle cable free play, checking ........... 6-22
Throttle grip and cable, checking and
lubricating ............................................. 6-29
Tires ........................................................ 6-22
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-39
Troubleshooting charts............................ 6-40
Turn signal indicator lights ........................ 3-3
Turn signal light bulb (front), replacing .... 6-36
Turn signal light bulb (rear), replacing..... 6-37
Turn signal switch ................................... 3-10
