5-3
5
EBU19540Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-16.)
WARNING
EWB00520
Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.
Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.
Do not refuel right after the engine has been
running and is still very hot.
Be sure the fuel tank cap is closed securely.EBU19560Engine oil Make sure that the engine oil is at the specified lev-
el. Add oil as necessary. (See page 8-22.)EBU19590Final gear oil Make sure that the final gear oil is at the specified
level. Add oil as necessary. (See page 8-26.)
EBU19600Differential gear oil Make sure that the differential gear oil is at the
specified level. Add oil as necessary. (See page
8-28.)EBU19630Coolant Make sure that the coolant is at the specified level.
Add coolant as necessary. (See page 8-30.)NOTE:The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-ture.
WARNING
EWB00510Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always put a thick rag over the cap
when opening. Allow any remaining pressureto escape before completely removing the cap.
U3B462E0.book Page 3 Tuesday, March 20, 2007 11:46 AM

6-1
6
EBU19880
OPERATION
EBU19900Read the Owner’s Manual carefully before riding
the ATV.
WARNING
EWB00630Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury. If there is a control or func-
tion you do not understand, ask your Yamahadealer.EBU27342Starting the engine
WARNING
EWB00640Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-dent or collision.
CAUTION:ECB00150See the “Engine break-in” section on page 6-4prior to operating the engine for the first time.
1. Turn the main switch to “ON” and the engine
stop switch to “”.CAUTION:ECB00822The coolant temperature warning light and en-
gine trouble warning light should come on,
then go off.
The EPS warning light should come on, then
go off when the engine is started.
If a warning light does not go off, see page 4-2
for the corresponding warning light circuitcheck.
2. Apply the brake pedal, and then shift the drive
select lever into the neutral or park position.
The corresponding indicator light should
come on. If the indicator light does not come
on, have a Yamaha dealer check the electrical
circuit.
U3B462E0.book Page 1 Tuesday, March 20, 2007 11:46 AM

6-4
6
NOTE:
When in reverse, the reverse indicator light
should come on. If the indicator light does not
come on, have a Yamaha dealer check the elec-
trical circuit.
Due to the synchronizing mechanism in the en-
gine, the indicator light may not come on until theATV starts moving.4. Check behind for people or obstacles, and
then release the brake pedal.
5. Open the throttle lever gradually and continue
to watch to the rear while backing.
WARNING
EWB00720Improper operation in reverse could make you
hit an obstacle or even a person behind you,
resulting in serious injury. When you shift into
reverse, make sure there are no people or ob-
stacles behind you. When it is safe to proceed,go slowly.EBU20682Engine break-in NOTE:
For ATVs equipped with an odometer or an hour
meter, follow the figures given in km (mi) or the
figures given in hours.
For ATVs not equipped with an odometer orhour meter, follow the figures given in hours.
There is never a more important period in the life of
your engine than the first 320 km (200 mi) or 20
hours of riding. For this reason, you should read
the following material carefully.
1. Drive select lever
2. L (Low-range)
3. H (High-range)
4. N (Neutral)
5. R (Reverse)
6. P (Park)U3B462E0.book Page 4 Tuesday, March 20, 2007 11:46 AM

6-5
6Since the engine is brand new, do not put an ex-
cessive load on it for the first 320 km (200 mi) or 20
hours. The various parts in the engine wear and
polish themselves to the correct operating clear-
ances. During this period, prolonged full-throttle
operation or any condition that might result in en-
gine overheating must be avoided.
0–160 km (0–100 mi) or 0–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.
160–320 km (100–200 mi) or 10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine freely, but do not use full throttle at any
time.
320 km (200 mi) or 20 hours and beyond
The ATV can now be operated normally.
CAUTION:ECB00220If any engine trouble should occur during the
engine break-in period, immediately have aYamaha dealer check the ATV.
EBU27321Parking When parking the ATV, stop the engine, and shift
the drive select lever into the park position.EBU20820Parking on a slope
WARNING
EWB00860Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, place the ATV transversely across the
incline, stop the engine, shift the drive select
lever to the park position, and then block the
front and rear wheels with rocks or other ob-
jects.
Do not park the ATV at all on hills that are sosteep you could not walk up them easily.
1. Bring the ATV to a stop by applying the
brakes.
2. Stop the engine.
3. With the brake pedal applied, shift the drive
select lever to the park position.
U3B462E0.book Page 5 Tuesday, March 20, 2007 11:46 AM

8-3
8
EBU21742Periodic maintenance chart for the emission control system NOTE:
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,data and technical skills.NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
1*Fuel lineCheck fuel hoses for cracks or other damage, and
replace if necessary.√√√
2 Spark plugCheck condition and clean, regap, or replace if
necessary.√√√√√
3*ValvesCheck valve clearance and adjust if necessary.√ √√√
4*Fuel injectionCheck and adjust engine idle speed.√√√√√
5*Crankcase breather
systemCheck breather hose for cracks or other damage,
and replace if necessary.√√√
6*Exhaust systemCheck for leakage and replace gasket(s) if neces-
sary.
Check for looseness and tighten all screw clamps
and joints if necessary.√√√
7 Spark arresterClean.√√√
U3B462E0.book Page 3 Tuesday, March 20, 2007 11:46 AM

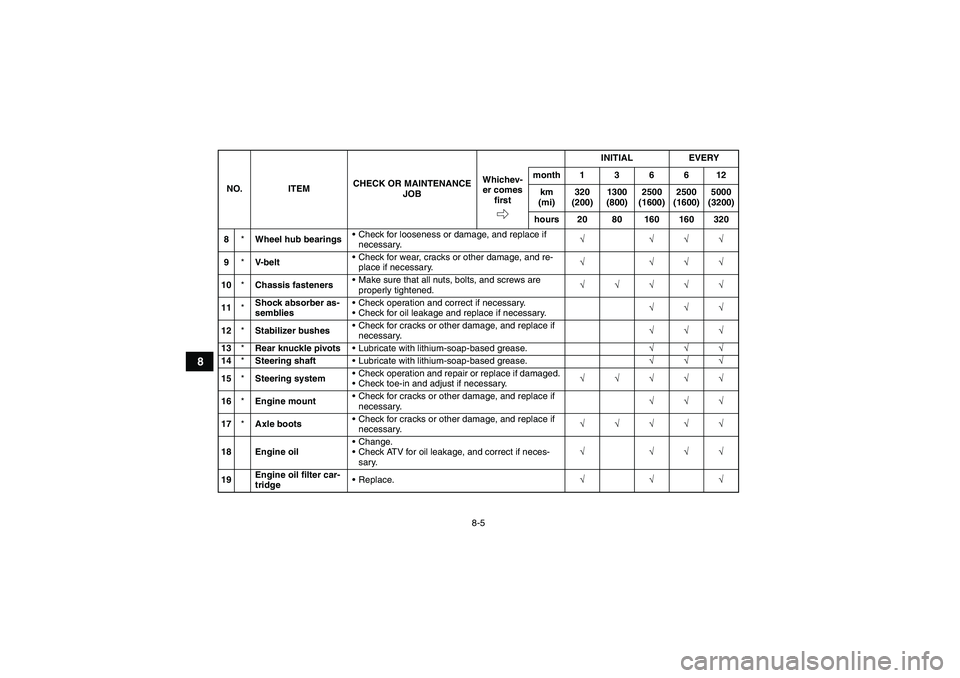

8-5
8
8*Wheel hub bearingsCheck for looseness or damage, and replace if
necessary.√ √√√
9*V- b e l tCheck for wear, cracks or other damage, and re-
place if necessary.√ √√√
10*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√
11*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil leakage and replace if necessary.√√√
12*Stabilizer bushesCheck for cracks or other damage, and replace if
necessary.√√√
13*Rear knuckle pivotsLubricate with lithium-soap-based grease.√√√
14*Steering shaftLubricate with lithium-soap-based grease.√√√
15*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
16*Engine mountCheck for cracks or other damage, and replace if
necessary.√√√
17*Axle bootsCheck for cracks or other damage, and replace if
necessary.√√√√√
18 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
19Engine oil filter car-
tridgeReplace.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U3B462E0.book Page 5 Tuesday, March 20, 2007 11:46 AM

8-20
8
EBU23211Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
NOTE:If the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-stead, have a Yamaha dealer check the ATV.
1. Spark plug cap
1. Spark plug wrench
U3B462E0.book Page 20 Tuesday, March 20, 2007 11:46 AM

8-22
8
NOTE:If a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque assoon as possible.
4. Install the spark plug cap.EBU27461Engine oil and oil filter cartridge The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.NOTE:If the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least 10 minutes until the oil settlesfor an accurate reading.
3. Remove panel F. (See page 8-8.)4. Remove the dipstick, and then wipe it off with
a clean rag.
5. Insert the dipstick completely into the oil filler
hole, and then remove it again to check the oil
level.
1. Dipstick
