INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU11601
Speedometer The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
EAU11872
Tachometer The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.CAUTION:
ECA10031
Do not operate the engine in the ta-
chometer red zone.Red zone: 9000 r/min and above
EAU40532
Multi-function display
WARNING
EWA14430
Be sure to stop the vehicle before
making any setting changes to themulti-function display.
The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)
1. Tachometer
2. Speedometer
3. Multi-function display
1. Tachometer
2. Tachometer red zone
1. Multi-function display
2.“SELECT” button
3.“RESET” button
U2D2E2E0.book Page 7 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a clock


a fuel meter


a coolant temperature meter


a transmission gear display


an ambient temperature display


a fuel consumption display (instan-
taneous and average consumption
functions)


a self-diagnosis device
NOTE:Be sure to turn the key to “ON” before
using the “SELECT” and “RESET” but-tons.Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO → TRIP 1 → TRIP 2 → ODO
NOTE:When selecting “TRIP 1” or “TRIP 2”,the display flashes for five seconds.
When approximately 5.5 L (1.45 US
gal) (1.21 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “F-TRIP” and start counting thedistance traveled from that point. In that
case, pushing the “SELECT” button
switches the display between the vari-
ous tripmeter and odometer modes in
the following order:
F-TRIP → ODO → TRIP 1 → TRIP 2 →
F-TRIP
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “SELECT” button for at least
one second while the display is flash-
ing. If you do not reset the fuel reserve
tripmeter manually, it will reset itself au-
tomatically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).1. Odometer/tripmeter/fuel reserve tripmeter
2.“SELECT” button
3.“RESET” button
U2D2E2E0.book Page 8 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU1770A
Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.


From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*Fuel lineCheck fuel hoses for cracks or
damage.√√√√√
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 40000 km (24000 mi)
4*Air filter elementClean.√√
Replace.√√
5*YCC-S clutchCheck operation, fluid level and
vehicle for fluid leakage.√√√√√
6*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
U2D2E2E0.book Page 2 Thursday, October 11, 2007 9:15 AM

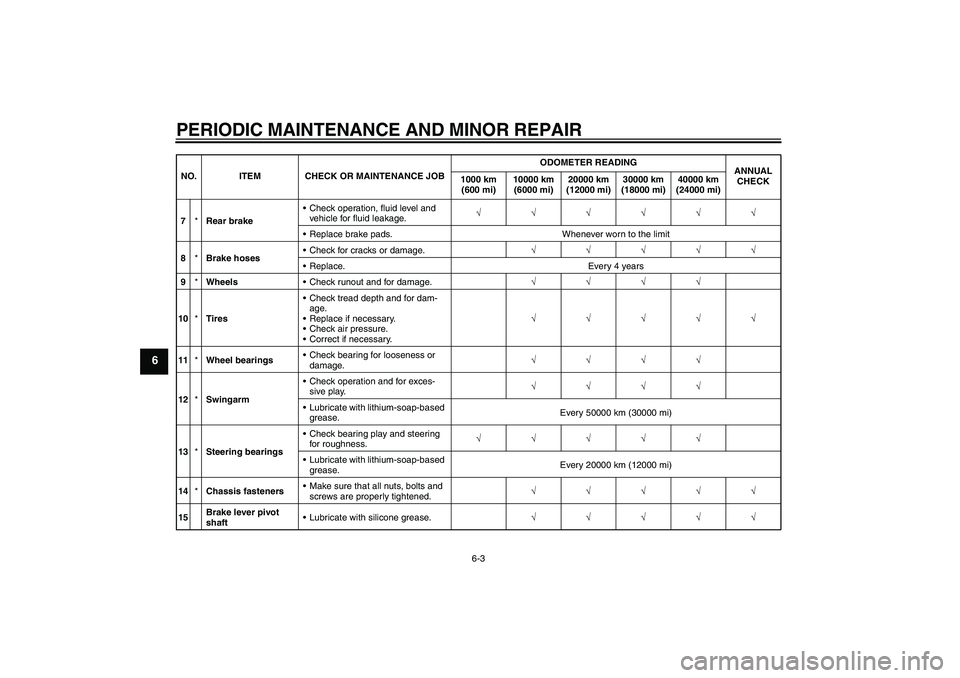

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
7*Rear brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
8*Brake hosesCheck for cracks or damage.√√√√√
Replace. Every 4 years
9*WheelsCheck runout and for damage.√√√√
10*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
11*Wheel bearingsCheck bearing for looseness or
damage.√√√√
12*SwingarmCheck operation and for exces-
sive play.√√√√
Lubricate with lithium-soap-based
grease.Every 50000 km (30000 mi)
13*Steering bearingsCheck bearing play and steering
for roughness.√√√√√
Lubricate with lithium-soap-based
grease.Every 20000 km (12000 mi)
14*Chassis fastenersMake sure that all nuts, bolts and
screws are properly tightened.√√√√√
15Brake lever pivot
shaftLubricate with silicone grease.√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U2D2E2E0.book Page 3 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
16Brake pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
17Shift pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
18Sidestand, center-
standCheck operation.
Lubricate.√√√√√
19*Sidestand switchCheck operation.√√√√√√
20*Front forkCheck operation and for oil leak-
age.√√√√
21*Shock absorber as-
semblyCheck operation and shock ab-
sorber for oil leakage.√√√√
22*Rear suspension re-
lay arm and con-
necting arm
pivoting pointsCheck operation.√√√√
Lubricate with lithium-soap-based
grease.√√
23*Fuel injectionAdjust engine idling speed and
synchronization.√√√√√√
24 Engine oilChange.
Check oil level and vehicle for oil
leakage.√√√√√√
25Engine oil filter car-
tridgeReplace.√√√
26*Cooling systemCheck coolant level and vehicle
for coolant leakage.√√√√√
Change. Every 3 years NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U2D2E2E0.book Page 4 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU40550
NOTE:

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake and YCC-S clutch service
Regularly check and, if necessary, correct the brake and YCC-S clutch fluid levels.
27 Final gear oilCheck oil level and vehicle for oil
leakage.
Change.√√√√√
28*Front and rear brake
switchesCheck operation.√√√√√√
29Moving parts and
cablesLubricate.√√√√√
30*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
31*Air induction sys-
temCheck the air cut-off valve, reed
valve, and hose for damage.
Replace any damaged parts if
necessary.√√√√√
32*Muffler and exhaust
pipeCheck the screw clamp(s) for
looseness.√√√√√
33*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)U2D2E2E0.book Page 5 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Fuse box
2. Right radiator fan fuse
3. Left radiator fan fuse
4. Hazard fuse
5. Backup fuse (for odometer, clock and immo-
bilizer system)
6. ABS solenoid fuse
7. Fuel injection system fuse
8. Headlight fuse
9. Signaling system fuse
10.ABS control unit fuse
11.Ignition fuse
12.Auxiliary DC jack fuse
13.YCC-S motor control fuse
14.Spare fuse
20
0
2
714
8 9
10 11
12 13
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
15.0 A × 2
Backup fuse:
10.0 A
Hazard fuse:
10.0 A
Fuel injection system fuse:
15.0 A
ABS solenoid fuse:
20.0 A
ABS control unit fuse:
10.0 A
Auxiliary DC jack fuse:
3.0 A
ABS motor fuse:
30.0 A
YCC-S motor control fuse:
30.0 A
