2008 YAMAHA FJR1300AS immobilizer

EAU26944
DECLARATION of CONFORMITY
YAMAHA MOTOR ELECTRONICS CO., LTD.1450-6, Mori, Mori-machi, Shuchi-gun, Shizuoka-ken, 437-0292 Japan
General manager of quality assurance div.1
Version up the norm of EN60950 to EN60950-1
To change company name27 Feb. 2006
1 Mar. 2007
2
3Revision record
No. Contents Date
To change contact person and integrate type-designation. 9 Jun. 2005Date of issue: 1 Aug. 2002Place of issue: Shizuoka, JapanR&TTE Directive(1999/5/EC)
EN300 330-2 v1.1.1(2001-6), EN60950-1(2001)
Two or Three-Wheel Motor Vehicles Directive(97/24/EC: Chapter 8, EMC) is in compliance with following norm(s) or documents:Kind of equipment: IMMOBILIZER
Type-designation: 5SL-00 Hereby declare that the product:Company: YAMAHA MOTOR ELECTRONICS CO., LTD.
Address: 1450-6, Mori, Mori-Machi, Shuchi-gun, Shizuoka-Ken, 437-0292 JapanWe
U2D2E2E0.book Page 1 Thursday, October 11, 2007 9:15 AM

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
YCC-S system ................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-3
Indicator and warning lights ............3-4
Speedometer ..................................3-7
Tachometer ....................................3-7
Multi-function display ......................3-7
Anti-theft alarm (optional) .............3-14
Handlebar switches ......................3-15
Shift pedal .....................................3-17
Hand shift lever .............................3-18
Brake lever ...................................3-18
Brake pedal ..................................3-18
ABS ..............................................3-19
Fuel tank cap ................................3-20
Fuel ...............................................3-20
Fuel tank breather/overflow
hose ..........................................3-21
Catalytic converters ......................3-22
Seats ............................................3-22
Adjusting the rider seat height ......3-23
Storage compartment ...................3-25Accessory box .............................. 3-26
Adjusting the headlight beams ..... 3-27
Handlebar position ....................... 3-27
Opening and closing the
cowlings .................................... 3-27
Rear view mirrors ......................... 3-28
Adjusting the front fork ................. 3-29
Adjusting the shock absorber
assembly ................................... 3-30
Grip warmer adjusting knob ......... 3-32
Sidestand ..................................... 3-32
Ignition circuit cut-off system ........ 3-33
Auxiliary DC jack .......................... 3-35
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2Removing and installing panels ..... 6-7
Checking the spark plugs .............. 6-8
Engine oil and oil filter cartridge ..... 6-9
Final gear oil ................................ 6-12
Coolant ........................................ 6-14
Air filter element ........................... 6-15
Checking the engine idling
speed ........................................ 6-16
Checking the throttle cable free
play ........................................... 6-16
Valve clearance ........................... 6-16
Tires ............................................. 6-17
Cast wheels ................................. 6-19
YCC-S clutch ............................... 6-20
Rear brake light switch ................ 6-20
Checking the front and rear
brake pads ................................ 6-20
Checking the brake and YCC-S
clutch fluid levels ...................... 6-21
Changing the brake and YCC-S
clutch fluids ............................... 6-22
Checking and lubricating the
cables ....................................... 6-23
Checking and lubricating the
throttle grip and cable ............... 6-23
Checking and lubricating the
brake and shift pedals .............. 6-23
Checking and lubricating the
brake lever ................................ 6-24
Checking and lubricating the
centerstand and sidestand ....... 6-24U2D2E2E0.book Page 1 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU40472
YCC-S system This vehicle features the YCC-S
(Yamaha Chip Controlled-Shift) sys-
tem.
The basic function of this system allows
the rider to shift gears without the use of
a clutch lever. Furthermore, a shift lever
is equipped on the handlebar, allowing
the rider to choose to shift gears either
with the shift pedal or by hand.
When the engine is started and the shift
pedal or the shift lever is moved, a sig-
nal is sent to the MCU (Motor Control
Unit) which disengages the clutch, then
the shift is made. The MCU engages
the clutch once the engine is running at
the proper speed. Clutch engagement
is controlled optimally by the MCU ac-
cording to engine r/min, engine require-
ments, and riding conditions. See
“Handlebar switches” (page 3-15) and
OPERATION AND IMPORTANT
RIDING POINTS (page 5-1) for further
explanation of this system.
NOTE:This is not an automatic transmission,
only the clutch system is automatic.The gears must be shifted by the rider.
EAU10974
Immobilizer system This vehicle is equipped with an immo-
bilizer system to help prevent theft by
re-registering codes in the standard
keys. This system consists of the fol-
lowing.

a code re-registering key (with a
red bow)


two standard keys (with a black
bow) that can be re-registered with
new codes


a transponder (which is installed in
the code re-registering key)


an immobilizer unit


an ECU (Electronic Control Unit)
1. Code re-registering key (red bow)
2. Standard keys (black bow)
U2D2E2E0.book Page 1 Thursday, October 11, 2007 9:15 AM

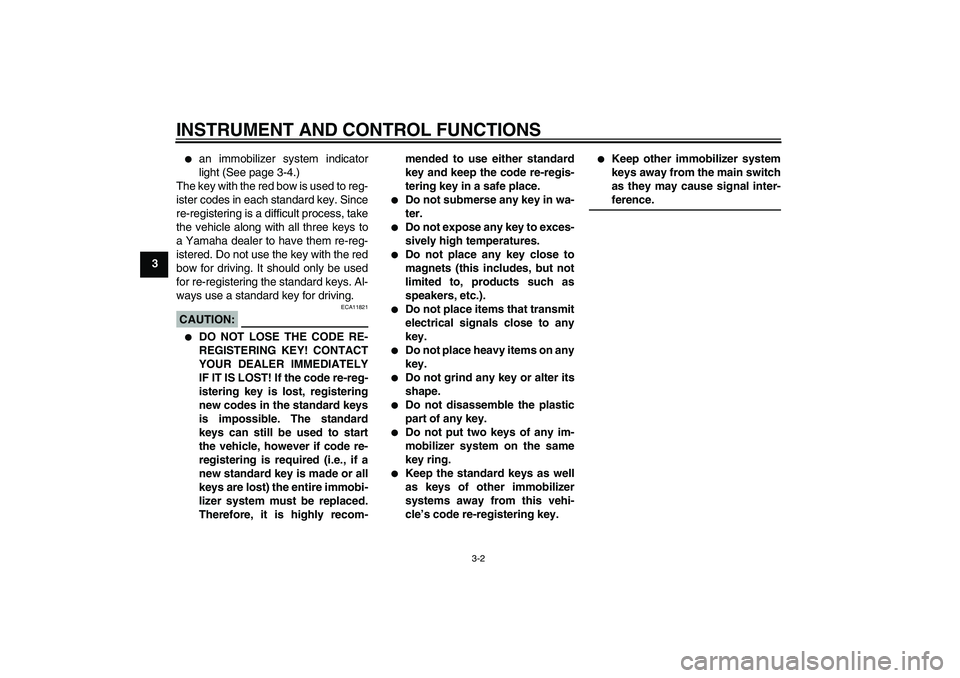

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3


an immobilizer system indicator
light (See page 3-4.)
The key with the red bow is used to reg-
ister codes in each standard key. Since
re-registering is a difficult process, take
the vehicle along with all three keys to
a Yamaha dealer to have them re-reg-
istered. Do not use the key with the red
bow for driving. It should only be used
for re-registering the standard keys. Al-
ways use a standard key for driving.
CAUTION:
ECA11821


DO NOT LOSE THE CODE RE-
REGISTERING KEY! CONTACT
YOUR DEALER IMMEDIATELY
IF IT IS LOST! If the code re-reg-
istering key is lost, registering
new codes in the standard keys
is impossible. The standard
keys can still be used to start
the vehicle, however if code re-
registering is required (i.e., if a
new standard key is made or all
keys are lost) the entire immobi-
lizer system must be replaced.
Therefore, it is highly recom-mended to use either standard
key and keep the code re-regis-
tering key in a safe place.


Do not submerse any key in wa-
ter.


Do not expose any key to exces-
sively high temperatures.


Do not place any key close to
magnets (this includes, but not
limited to, products such as
speakers, etc.).


Do not place items that transmit
electrical signals close to any
key.


Do not place heavy items on any
key.


Do not grind any key or alter its
shape.


Do not disassemble the plastic
part of any key.


Do not put two keys of any im-
mobilizer system on the same
key ring.


Keep the standard keys as well
as keys of other immobilizer
systems away from this vehi-
cle’s code re-registering key.


Keep other immobilizer system
keys away from the main switch
as they may cause signal inter-ference.
U2D2E2E0.book Page 2 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3To unlock the steering
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
WARNING
EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or“LOCK”.
EAU39460
(Parking)
The steering is locked, and the tail-
lights, license plate light and auxiliary
lights are on. The hazard lights and turn
signal lights can be turned on, but all
other electrical systems are off. The
key can be removed.
The steering must be locked before the
key can be turned to“”.
CAUTION:
ECA11020
Do not use the parking position for
an extended length of time, other-wise the battery may discharge.
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights“”
and“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
1. Push.
2. Turn.
1. Left turn signal indicator light“”
2. Right turn signal indicator light“”
3. Engine trouble“”/YCC-S“” indi-
cators and warning light
4. Anti-lock Brake System (ABS) warning
light“”
5. Neutral indicator light“”
6. High beam indicator light“”
7. Oil level warning light“”
8. Immobilizer system indicator light
SHIFT
ABS
U2D2E2E0.book Page 4 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
NOTE:In order to be able to move the vehicle
after it has stopped, if shifting is impos-
sible using the hand shift lever and shift
pedal, proceed as follows:
Place the vehicle on the centerstand,
then while rotating the rear wheel, push
the shift pedal rod and pivot forward un-
til the transmission is in the neutral po-sition.
The electrical circuit of the indicators
and warning light can be checked by
turning the key to “ON”. If the indicators
and warning light do not come on for afew seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuits.
EAU39500
ABS warning light“”
If this warning light comes on or flashes
while riding, the ABS may be defective.
If this occurs, have a Yamaha dealer
check the system as soon as possible.
(See page 3-19.)
WARNING
EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to cause
the wheels to lock during emergen-
cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check thebrake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU38620
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a self-
diagnosis device for the immobilizer
system. (See page 3-13 for an explana-
tion of the self-diagnosis device.)
1. Shift pedal rod pivot
2. Shift pedal rod
ABS
U2D2E2E0.book Page 6 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
NOTE:If traveling at speeds under 10 km/h(6.0 mi/h), “_ _._” will be displayed.
Average fuel consumption modeThis display shows the average fuel
consumption since it was last reset.
When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then “AV_ _._
MPG” (average distance that can be
traveled using 1.0 Imp.gal of fuel) is dis-
played.
NOTE:

To reset the average fuel con-
sumption display, push the “RE-
SET” button to select the mode
again, and then push the “RESET”
button for 1 second while the dis-
play is flashing.


After resetting the average fuel
consumption display, “_ _._” will
be shown for that display until thevehicle has traveled 1 km (0.6 mi).
CAUTION:
ECA15472
If there is a malfunction, “– –.–” will
be displayed. Have a Yamaha dealercheck the vehicle.Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
multi-function display will indicate a
two-digit error code.
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
1. Average fuel consumption
1. Error code display
2. Immobilizer system indicator light
U2D2E2E0.book Page 13 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
CAUTION:
ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-age.
This model is also equipped with a self-
diagnosis device for the immobilizer
system.
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
multi-function display will indicate a
two-digit error code when the key is
turned to “ON”.NOTE:If the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this errorappears, try the following.
1. Use the code re-registering key to
start the engine.NOTE:Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizerkey on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
U2D2E2E0.book Page 14 Thursday, October 11, 2007 9:15 AM
