2008 YAMAHA FJR1300AS brake fluid
[x] Cancel search: brake fluidPage 6 of 104
TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
YCC-S system ................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-3
Indicator and warning lights ............3-4
Speedometer ..................................3-7
Tachometer ....................................3-7
Multi-function display ......................3-7
Anti-theft alarm (optional) .............3-14
Handlebar switches ......................3-15
Shift pedal .....................................3-17
Hand shift lever .............................3-18
Brake lever ...................................3-18
Brake pedal ..................................3-18
ABS ..............................................3-19
Fuel tank cap ................................3-20
Fuel ...............................................3-20
Fuel tank breather/overflow
hose ..........................................3-21
Catalytic converters ......................3-22
Seats ............................................3-22
Adjusting the rider seat height ......3-23
Storage compartment ...................3-25Accessory box .............................. 3-26
Adjusting the headlight beams ..... 3-27
Handlebar position ....................... 3-27
Opening and closing the
cowlings .................................... 3-27
Rear view mirrors ......................... 3-28
Adjusting the front fork ................. 3-29
Adjusting the shock absorber
assembly ................................... 3-30
Grip warmer adjusting knob ......... 3-32
Sidestand ..................................... 3-32
Ignition circuit cut-off system ........ 3-33
Auxiliary DC jack .......................... 3-35
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2Removing and installing panels ..... 6-7
Checking the spark plugs .............. 6-8
Engine oil and oil filter cartridge ..... 6-9
Final gear oil ................................ 6-12
Coolant ........................................ 6-14
Air filter element ........................... 6-15
Checking the engine idling
speed ........................................ 6-16
Checking the throttle cable free
play ........................................... 6-16
Valve clearance ........................... 6-16
Tires ............................................. 6-17
Cast wheels ................................. 6-19
YCC-S clutch ............................... 6-20
Rear brake light switch ................ 6-20
Checking the front and rear
brake pads ................................ 6-20
Checking the brake and YCC-S
clutch fluid levels ...................... 6-21
Changing the brake and YCC-S
clutch fluids ............................... 6-22
Checking and lubricating the
cables ....................................... 6-23
Checking and lubricating the
throttle grip and cable ............... 6-23
Checking and lubricating the
brake and shift pedals .............. 6-23
Checking and lubricating the
brake lever ................................ 6-24
Checking and lubricating the
centerstand and sidestand ....... 6-24U2D2E2E0.book Page 1 Thursday, October 11, 2007 9:15 AM
Page 13 of 104
DESCRIPTION
2-2
2
EAU10420
Right view1. Storage compartment (page 3-25)
2. Fuel tank cap (page 3-20)
3. Fuse box (page 6-28)
4. Windshield (page 3-15)
5. Battery (page 6-27)
6. Main fuse (page 6-28)
7. Front fork compression damping force adjusting screw (page 3-29)
8. Brake pedal (page 3-18)9. Shock absorber assembly rebound damping force adjusting knob
(page 3-30)
10.Rear brake fluid reservoir (page 6-21)
U2D2E2E0.book Page 2 Thursday, October 11, 2007 9:15 AM
Page 14 of 104
DESCRIPTION
2-3
2
EAU10430
Controls and instruments1. Rear view mirror (page 3-28)
2. Left handlebar switches (page 3-15)
3. Tachometer (page 3-7)
4. Speedometer (page 3-7)
5. Multi-function display (page 3-7)
6. Front brake fluid reservoir (page 6-21)
7. Right handlebar switches (page 3-15)
8. Brake lever (page 3-18)9. Throttle grip (page 6-16)
10.Main switch/steering lock (page 3-3)
11.Headlight beam adjusting knob (page 3-27)
12.Grip warmer adjusting knob (page 3-32)
13.Hand shift lever (page 3-18)U2D2E2E0.book Page 3 Thursday, October 11, 2007 9:15 AM
Page 51 of 104
PRE-OPERATION CHECKS
4-2
4
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-20
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-9
Final gear oilCheck vehicle for oil leakage. 6-12
CoolantCheck coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.6-14
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-20, 6-21
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-20, 6-21
YCC-S clutchCheck operation.
Check fluid level in reservoir.
If necessary, add recommended fluid to specified level.
Check hydraulic system for leakage.6-20, 6-21
U2D2E2E0.book Page 2 Thursday, October 11, 2007 9:15 AM
Page 59 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU1770A
Periodic maintenance and lubrication chart NOTE:
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.
From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*Fuel lineCheck fuel hoses for cracks or
damage.√√√√√
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 40000 km (24000 mi)
4*Air filter elementClean.√√
Replace.√√
5*YCC-S clutchCheck operation, fluid level and
vehicle for fluid leakage.√√√√√
6*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
U2D2E2E0.book Page 2 Thursday, October 11, 2007 9:15 AM
Page 60 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
7*Rear brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
8*Brake hosesCheck for cracks or damage.√√√√√
Replace. Every 4 years
9*WheelsCheck runout and for damage.√√√√
10*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
11*Wheel bearingsCheck bearing for looseness or
damage.√√√√
12*SwingarmCheck operation and for exces-
sive play.√√√√
Lubricate with lithium-soap-based
grease.Every 50000 km (30000 mi)
13*Steering bearingsCheck bearing play and steering
for roughness.√√√√√
Lubricate with lithium-soap-based
grease.Every 20000 km (12000 mi)
14*Chassis fastenersMake sure that all nuts, bolts and
screws are properly tightened.√√√√√
15Brake lever pivot
shaftLubricate with silicone grease.√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U2D2E2E0.book Page 3 Thursday, October 11, 2007 9:15 AM
Page 62 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU40550
NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake and YCC-S clutch service
Regularly check and, if necessary, correct the brake and YCC-S clutch fluid levels.
27 Final gear oilCheck oil level and vehicle for oil
leakage.
Change.√√√√√
28*Front and rear brake
switchesCheck operation.√√√√√√
29Moving parts and
cablesLubricate.√√√√√
30*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
31*Air induction sys-
temCheck the air cut-off valve, reed
valve, and hose for damage.
Replace any damaged parts if
necessary.√√√√√
32*Muffler and exhaust
pipeCheck the screw clamp(s) for
looseness.√√√√√
33*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)U2D2E2E0.book Page 5 Thursday, October 11, 2007 9:15 AM
Page 63 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-6

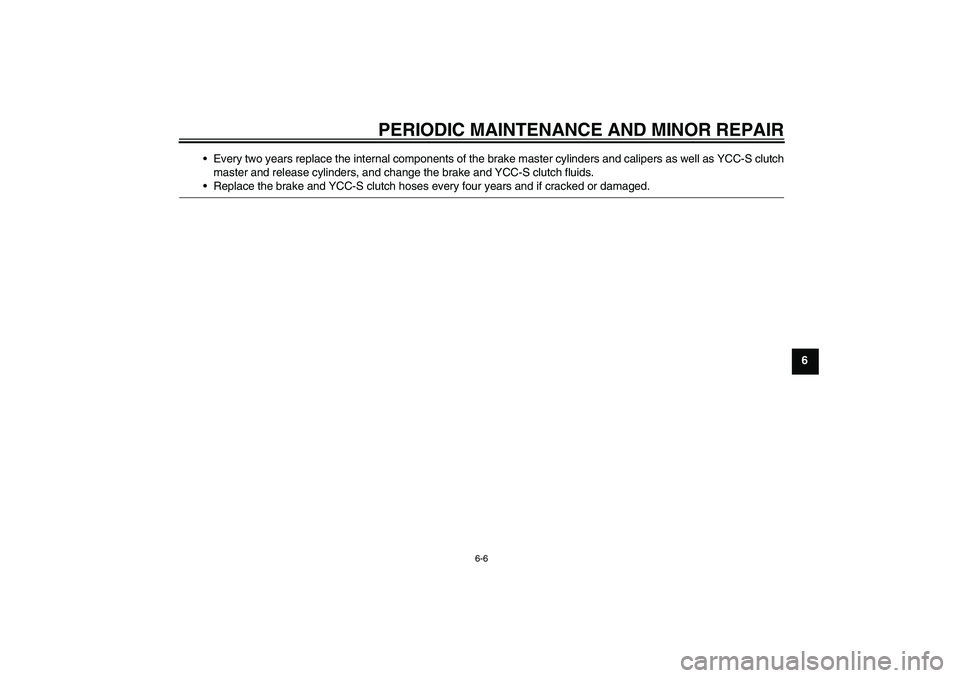

6 Every two years replace the internal components of the brake master cylinders and calipers as well as YCC-S clutch
master and release cylinders, and change the brake and YCC-S clutch fluids.
Replace the brake and YCC-S clutch hoses every four years and if cracked or damaged.
U2D2E2E0.book Page 6 Thursday, October 11, 2007 9:15 AM
