2008 VOLVO C30 Owners Manual

2. Press down the rear edge of the cup holder.
To close the sliding cover, grasp the underside of the front edge and pull.
107 04 Interior
Storage compartments
Storage compartment behind the gear lever
If the buttons for optional equipment are not installed, the recess behind the gear lever can be used as a storage
compartment.
108 04 Interior
Rear seat
Folding down the rear seat backrests
Both sections of the rear seat backrest can be folded down, together or separately, to enable you to transport long
objects.
To fold down one or both sections:

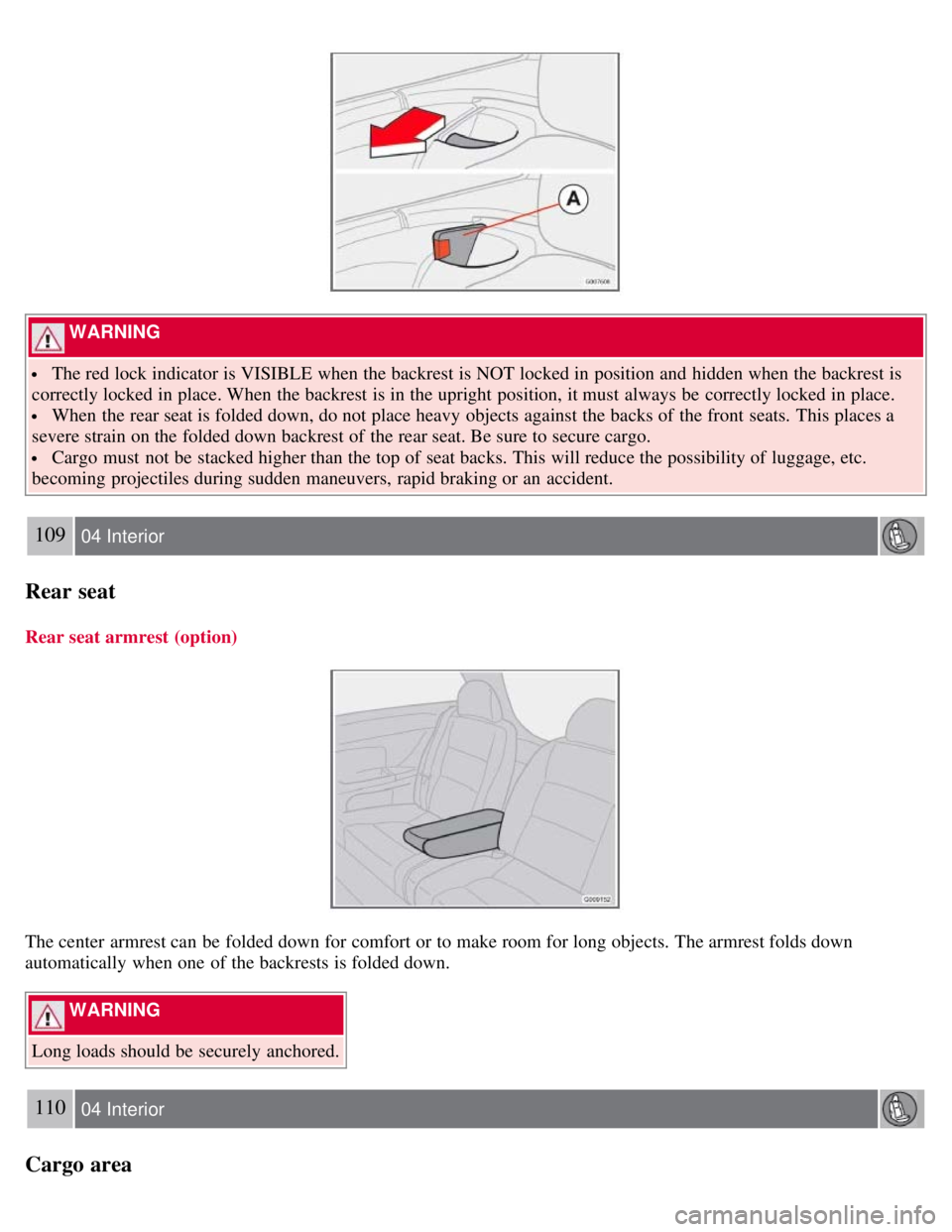

1. Pull the catch on the upper outboard edge of the backrest upward and forward to release the backrest lock. A red
lock indicator (A) is visible when the backrest is not locked in the upright position.
2. Fold the backrest down.

WARNING
The red lock indicator is VISIBLE when the backrest is NOT locked in position and hidden when the backrest is
correctly locked in place. When the backrest is in the upright position, it must always be correctly locked in place.
When the rear seat is folded down, do not place heavy objects against the backs of the front seats. This places a
severe strain on the folded down backrest of the rear seat. Be sure to secure cargo.
Cargo must not be stacked higher than the top of seat backs. This will reduce the possibility of luggage, etc.
becoming projectiles during sudden maneuvers, rapid braking or an accident.
109 04 Interior
Rear seat
Rear seat armrest (option)
The center armrest can be folded down for comfort or to make room for long objects. The armrest folds down
automatically when one of the backrests is folded down.
WARNING
Long loads should be securely anchored.
110 04 Interior
Cargo area

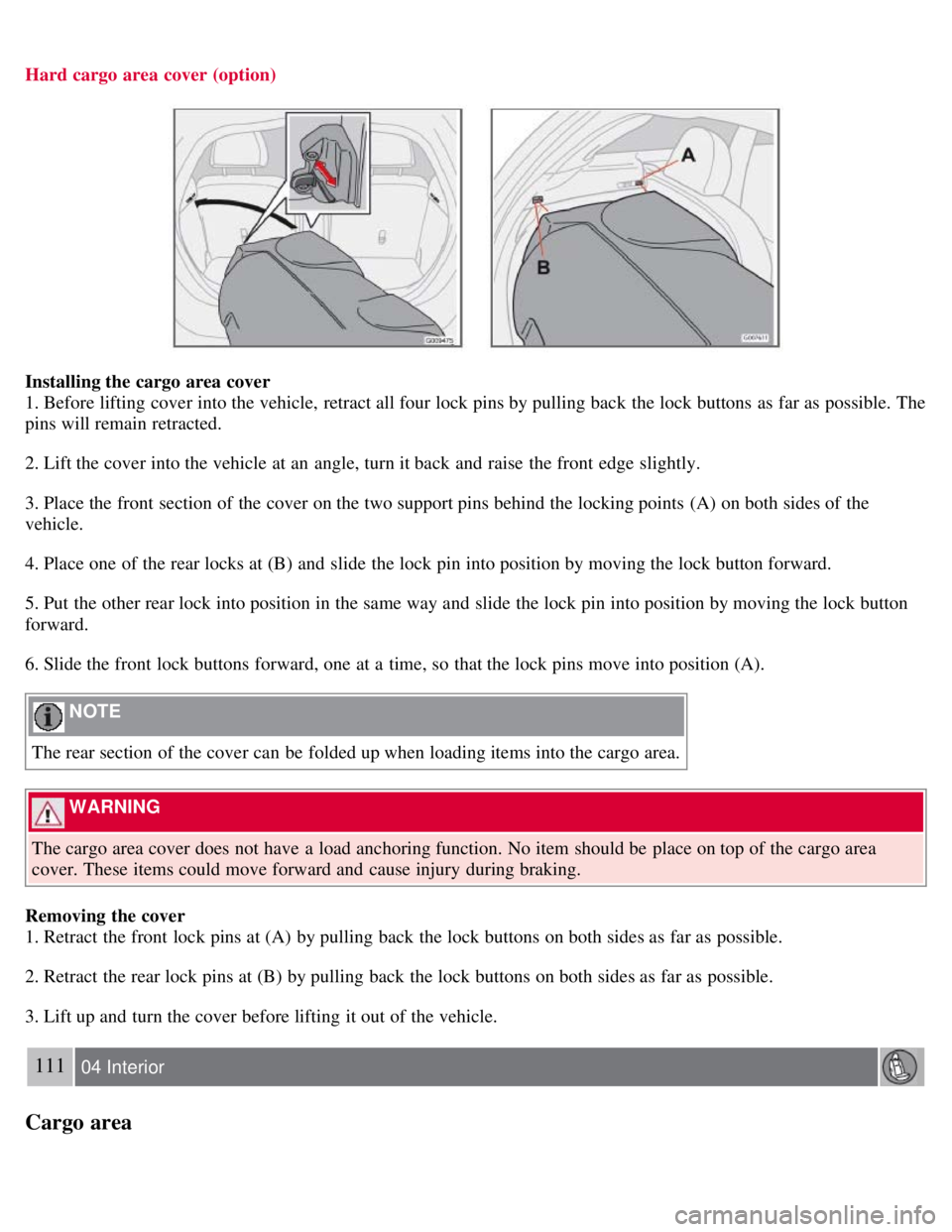

Hard cargo area cover (option)
Installing the cargo area cover
1. Before lifting cover into the vehicle, retract all four lock pins by pulling back the lock buttons as far as possible. The
pins will remain retracted.
2. Lift the cover into the vehicle at an angle, turn it back and raise the front edge slightly.
3. Place the front section of the cover on the two support pins behind the locking points (A) on both sides of the
vehicle.
4. Place one of the rear locks at (B) and slide the lock pin into position by moving the lock button forward.
5. Put the other rear lock into position in the same way and slide the lock pin into position by moving the lock button
forward.
6. Slide the front lock buttons forward, one at a time, so that the lock pins move into position (A).
NOTE
The rear section of the cover can be folded up when loading items into the cargo area.
WARNING
The cargo area cover does not have a load anchoring function. No item should be place on top of the cargo area
cover. These items could move forward and cause injury during braking.
Removing the cover
1. Retract the front lock pins at (A) by pulling back the lock buttons on both sides as far as possible.
2. Retract the rear lock pins at (B) by pulling back the lock buttons on both sides as far as possible.
3. Lift up and turn the cover before lifting it out of the vehicle.
111 04 Interior
Cargo area

Soft cargo area cover (option)
The cargo area cover is pulled over the cargo area and fastened to the eyelets with the hooks on the corners of the
cover.
Installing the cover
1. Attach the front lower hooks on the cover to the lower eyelets (A) on opposite sides of the vehicle.
2. Insert the front upper attachments (B) by pressing together the spring-loaded rails and pressing them into place on
opposite sides of the vehicle.
3. Insert the upper rear rails (C) in the same way.
4. Attach the rear lower hooks on the cover to the lower eyelets (D) on opposite sides of the vehicle.
Hanging the cover when it is not in use
1. Remove the rear hooks (D) from the eyelets.
2. Press together the rear rails (C) and remove them from their attachments. Place them at the front of the cargo area
floor.
3. Attach the hooks in the rail next to the attachments (B).
The cargo area cover is now hanging near the rear seat backrests until it is needed again.
Removing the cargo area cover
1. Remove the hooks and remove the rails one at a time by pressing them together and removing them from their
attachments.
2. When all attachments have been removed, the cover can be rolled up and placed on the rear part of the cargo area
floor to make room for cargo.
WARNING
The cargo area cover does not have a load anchoring function. No item should be place on top of the cargo area
cover. These items could move forward and cause injury during braking.
112 04 Interior
Cargo area

Cargo area net (option)
The cargo area net can be placed behind the front seat backrests.This net is only intended to be used when the rear seat
backrests are folded down.
Installing the net
1. Fold down the rear seat backrests (see page 108
).
2. Attach the cargo net to the upper mounting brackets near the ceiling.
3. Attach the cargo net's hooks in the eyelets near the seat belts floor anchorages on opposite sides of the vehicle.
4. Pull the cargo net's bands taut if necessary.
WARNING
Be sure that the net is securely attached in the mounting brackets and eyelets.
Cargo should be properly secured even when the net is in use.
Removing the cargo net
1. Release the pressure on the bands.
2. Remove the hooks from the eyelets near the floor.
3. Remove the net from the ceiling mounting brackets.
4. Fold the net and keep it in its storage bag.
Load anchoring eyelets

The eyelets in the cargo area can be used to fasten accessory load nets and lashing straps, load nets, and other load
anchors.
113 04 Interior
This page left intentionally blank.

Contents | Top of Page

2 0 0 8
VOLVO C30
114 05 Locks and alarm
Remote control and key blade 116
Keyless drive (option as available)122
Locking and unlocking126
Glove compartment127
Alarm (option)128
115 05 Locks and alarm
116 05 Locks and alarm
Remote control and key blade
Remote controls
Two remote controls that also function as ignition keys are provided with your car. The remote controls contain
detachable metal key blades for manually locking or unlocking the driver's door and the glove compartment.
USA - FCC ID: LTQVO315TX
This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Canada - IC: 3659AVO315TX
Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Loss of a remote control
If either of the remote controls is lost, the other must be taken with the vehicle to a Volvo retailer. As an anti-theft

measure, the code of the lost remote control must be erased from the system.
Each key blade has a unique code, which is used if new key blades are required. A maximum of six remote
controls/key blades can be programmed and used for one car.
Immobilizer (start inhibitor)
Each of the keys supplied with your vehicle contains a coded transponder. The code in the key is transmitted to an
antenna in the ignition switch where it is compared to the code stored in the start inhibitor module. The vehicle will
start only with a properly coded key. If you misplace a key, take the other keys to an authorized Volvo retailer for
reprogramming as an antitheft measure.USA - FCC ID: LTQWFS 125VO
This device complies with part 15 of the FCC rules. Operation is subject to the following condition: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Canada - IC: 3659A-WFS125VO
Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
CAUTION
Never use force on the narrow section of the remote control - this is where the transponder is located. The vehicle
cannot be started if the transponder is damaged.
117 05 Locks and alarm
Remote control and key blade
Remote control functions
1. Lock - Press the Lock button on the remote once to lock all doors and the rear liftgate. The turn signals will flash
once to confirm locking.
NOTE
The vehicle can also be locked if a door is open (does not apply to vehicles with the optional keyless drive.
