2008 TOYOTA xB Owners Manual (in English)

137
Ventilation
For best results, set controls to:Fan speed— Any setting except “0”
Temperature— Towards blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging
The inside of the windshield
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— Towards red zone to
heat; blue zone to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the front view.
When turning the air flow selector to wind-
shield or floor/windshield position, air in-
take selector mode changes to FRESH
automatically to clean up the front view
quickly. It is not possible to return to RE-
CIRCULATE in this position. Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
Defrosting
The outside of the windshield
For best results, set controls to: Fan speed— Any setting except “0”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the front view. When turning the air flow selector to wind-
shield or floor/windshield position, air in-
take selector mode changes to FRESH
automatically to clean up the front view
quickly. It is not possible to return to RE-
CIRCULATE in this position.
Press the “A/C” button for dehumidified
heating. This setting clears the front view
more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

13818XB004
Open
Close

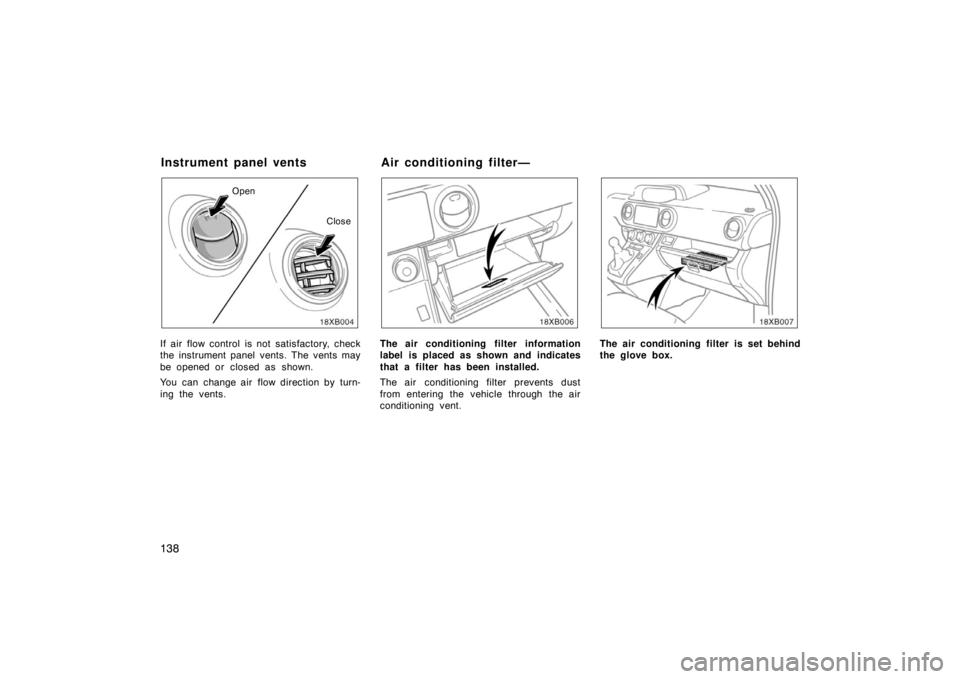

If air flow control is not satisfactory, check
the instrument panel vents. The vents may
be opened or closed as shown.
You can change air flow direction by turn-
ing the vents.
18XB006
The air conditioning filter information
label is placed as shown and indicates
that a filter has been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.The air conditioning filter is set behind
the glove box.
Instrument panel vents Air conditioning filter—

139
The air conditioning filter may clog af-
ter long use. The filter may need to be
cleaned or replaced if the air flow of
the air conditioner and heater experi-
ences extreme reductions in operating
efficiency, or if the windows begin to
fog up easily.
To maintain the air conditioning efficiency,
inspect, clean and replace the air condi-
tioning filter according to the maintenance
schedule. In dusty areas or areas with
heavy traffic flow, such as inner city or
desert areas, more frequent cleaning or
early replacement may be required. (For
scheduled maintenance information, please
refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supplement”.)
REMOVAL METHOD:1. Open the glove box, and slide off the damper as shown.2. Push in each side of the glove boxto disconnect the claws.
—Checking, cleaning and
replacing the air conditioning
filter

140
3. Remove the filter cover as shown inthe illustration.4. Pull the filter out of the filter outlet.
If it is dirty, it should be cleaned or re-
placed.CLEANING METHOD:
If the filter is dirty, clean by blowing
compressed air through the filter from
the downward side.
Hold the air gun 5 cm (2 in.) from the
filter and blow for approximately 2 minutes
at 500 kPa (5.0 kgf/cm
2 or bar, 72 psi).
If it is not available, have the filter
cleaned by your Scion dealer.
NOTICE
When cleaning the filter, do not clean
the filter with water.

141
REPLACEMENT METHOD:
When inserting the filter in the filter
outlet, keep the “↑ UP” mark pointing
up.
NOTICE
To prevent damage to the air condi-
tioning system, do the following.
 When using the air conditioning
system, make sure that a filter is
always installed.
 When cleaning the filter, do not
clean the filter with water.

142

143
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information display 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio remote controls (steering switches) 147
. . . . . . . . . . . . . . . . . . . . .
AUX adapter 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
iPod jack 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Glove box 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Rear console box 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Cup holders 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Tie −down hooks 151
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Luggage storage box 151
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Floor mat 151
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

144
The following information is displayed
on the multiinformation display when
you push the “DISP” switch (on the
instrument cluster) with the ignition
switch turned on.
Each time you push the “DISP” switch,
the display changes to the next display
setting.1. Clock
2. Outside temperature
3. Instantaneous fuel consumption
4. Average fuel consumption
5. Driving range
6. Average vehicle speed
7. Elapsed time
Multiinformation display
