2008 TOYOTA SOLARA Accessories, Audio & Navigation (in English)

Interface Kit for iPod
December 2007
Owner’s
Manual

-2-

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
WARNING
• Handling the cord on this product or cords associated with
accessories sold with the product will expose you to lead, a
chemical known to the State of California and other govern-
mental entities to cause cancer and birth defects or other re-
productive harm. Wash hands after handling.
• After using, be careful when removing or attaching the radio,
as the side(s) may be quite hot.
NOTICE
This is a warning against anything which may cause damage to
the vehicle or its equipment if the warning is ignored. You are
informed about what you must or must not do in order to avoid
or reduce the risk of damage to your vehicle and its
equipment.
Important information about this
manual
For safety reasons, this manual indicates items requiring particular
attention with the following marks.
Information to User
A l t e r n a t i o n o r m o d i f i c a t i o n s c a r r i e d o u t w i t h o u t
a p p r o p r i a t e a u t h o r i z a t i o n m a y i n v a l i d a t e t h e u s e r ’ s
r i g h t t o o p e r a t e t h e e q u i p m e n t .

--

TABLE OF CONTENTS
INTrOduCTION ............................................4
iPod COmPATIBILITy .................................5
BASIC FuNCTIONS
.......................................6
resume Play .............................................
6
music Play ................................................
6
music
Search ............................................6
Text
display..............................................6
Connecting/disconnecting iPod ..............
6
SySTEm OPErATION
. .................................7
music Plays ...............................................
7
Audio Stops ..............................................
7
iPod CONTrOL - BASIC ...............................8
Song uP/dOWN ......................................
8
Fast-Forward/rewind .............................
8
Random Play [Shuffle ON/OFF] ............
8
Shuffle All .................................................
8
SCAN ........................................................
9 muSIC SEArCh
..............................................9
method 1 (Category Search) ...................
9
method 2 (Quick Search) ......................
11
rEmOTE CONTrOL
(Steering Wheel Switches) .............................12
dISPLAy ANd mESSAgES
........................13
Song Number
..........................................13
Track Name ............................................
13
Artist Name ............................................
13
iPod Status messages .............................
14

--

IntroductIon
The Interface Kit allows you to play music from an iPod®
through your vehicle’s radio system. Reading this Owner’s
Manual ensures that you will get the most out of your audio
experience. This manual explains how to integrate the radio
with your iPod using the Interface Kit. Button locations and
labeling will differ depending upon your vehicle’s make and
model.
For new iPods, follow the iPod instructions for loading songs
into it before connecting to the radio. The Interface Kit uti-
lizes the Satellite Radio (SAT) controls of your radio’s. There-
fore, Satellite Radio controls are used to search for and play
music from the iPod.
NOTE: With the Interface Kit installed, satellite radio use
is not possible.
What’s Included
The Interface Kit includes cable located in your vehicle’s
glove box.
Apple and iPod are registered trademarks of Apple Inc.

--

iPod CO m PATIBILIT y
Due to the frequency of iPod software updates for the iPod,
only the latest versions are fully supported. Check the Ap-
ple® website for current software version numbers (http://
www.apple.com/). Software older than what is listed is not
supported. iPods with older software versions than what is
listed, is not supported by the Interface Kit. To see if your
iPod is compatible, see the following list.
Made for:
iPod mini
iPod 4th generation
iPod 4th generation (color display)
iPod nano 1st generation
iPod 5th generation (video)
iPod nano 2nd generation (aluminum)
iPod classic
iPod nano 3rd generation (video)
iPod touch

--

BASIC FuNCTIONS
resume Play
The “Resume Play” feature allows the iPod to play the cur-
rent musical selection (Play queue) when connecting to the
Interface Kit. If the play queue was empty, the Interface Kit
plays the entire iPod.
music Play
Select songs in the play queue and continue to play repeat-
edly until another selection is made.
music Search
The user can make media selections from the iPod from a
preselected list of categories (Playlist, Artist, Album, Genre,
Podcast and Audiobook). The radio SAT controls coincide
with similar functions on the iPod.
Text display

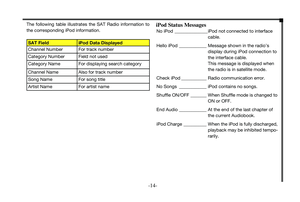

The interface utilizes the same text fields provided for the
satellite radio. For each song, the radio displays a track num-
ber, artist name and song title information. This corresponds
to the SAT channel number, artist name and song title re-
spectively.
Connecting/disconnecting iPod
When the iPod is properly connected to the interface:
• iPod synchronized: On establishing connection with
the iPod, an “accessory attached” symbol will appear
as illustrated below.
• “Hello iPod” is shown in the radio’s display.
• Radio controlled: The iPod can only be operated us-
ing your vehicle’s SAT system controls. Once connect-
ed to the interface, the iPod’s controls (click wheel,
etc.) no longer function.
• Charging iPod: The vehicle charges the iPod battery
when the ignition switch is in the ON or ACC position.
• iPod battery is discharged: If the iPod is in a fully
discharged state, it may not be playable for a short
period. “iPod Charge” is displayed on the radio if the
iPod is in a low battery state.
When the iPod is disconnected from the interface:
• “No iPod” is shown in the radio’s display.
• The radio remains in the SAT mode.
NOTE: It is highly recommended to turn the vehicle’s igni-
tion switch (or radio’s power) OFF before disconnecting
the iPod from the radio.
All of these displays are subject to change. These are only examples.

-7-

SySTE m O PErATION
music Plays
Under the following conditions, the iPod begins playback
automatically.
• The ignition switch is in ACC or IGN position. The radio
is in SAT mode.
• Reconnect the iPod (whether in Play, Pause, Stop or
Sleep condition) with ACC ON and in SAT mode.
The interface begins playback with the last song played on
the iPod. The radio mode does not change, even if the iPod
contains no media. However, the radio displays the message:
“No Songs”.
Audio Stops
Under the following conditions, the iPod playback stops
automatically.
• The radio was changed to non-SAT mode (AM, FM, CD
etc).
• The iPod was disconnected from the interface cable
during playback.
• The radio system is turned OFF or ACC or IGN is turned
OFF.
• At the end of the last Chapter of an Audiobook.
May need to make a new selection to begin playback.
• Push the PWR•VOL knob to turn the
radio OFF.

--

iPod CONT rOL - B ASIC
Song uP/dOWN
• TUNE•FILE KNOB
Use the TUNe•FILe knob to skip to the
next or previous song.
Rotate the knob 1 click to the right or left
to skip to the next song or previous one
respectively. Rotate the knob “N” steps to
the right or left to skip skips to next “Nth”
song or previous “Nth” song (including the
current song).
• REMOTE CONTROL

(Steering Wheel Switches)
Use the Track UP/DOWN button to skip to
the next or previous song.
Press and release
button to skip to the
next song.
Press and release button to skip to the
previous song.
Fast-Forward/rewind
Move quickly through a song by pressing the
or button during playback.
* The Fast-Forward/Rewind operation has
the same behavior as the iPod ‘click wheel’.
Press to fast-forward through a song.
Press again to stop.
Press to rewind a song.
Press again to stop.
random Play [Shuffle ON/OFF]
Shuffle songs within the “Now Playing”
list of the iPod: Play songs on the iPod
in random order within the current “Now
Playing” list using the SCAN button. Af-
ter playing the last song in the Playlist
randomly, Shuffle begins playing back in a
new random order.
Press and hold the SCAN button (more than
1 second) to turn shuffle ON. Press and hold
the SCAN button (more than 1 second) again
to turn shuffle OFF.
Shuffle All
Press the Preset 5 to shuffle all the songs on
the iPod. Press and hold the SCAN button to
cancel.
