If either the left or right front fog light
bulbs burns out, contact your Toyota
dealer.
NOTICE

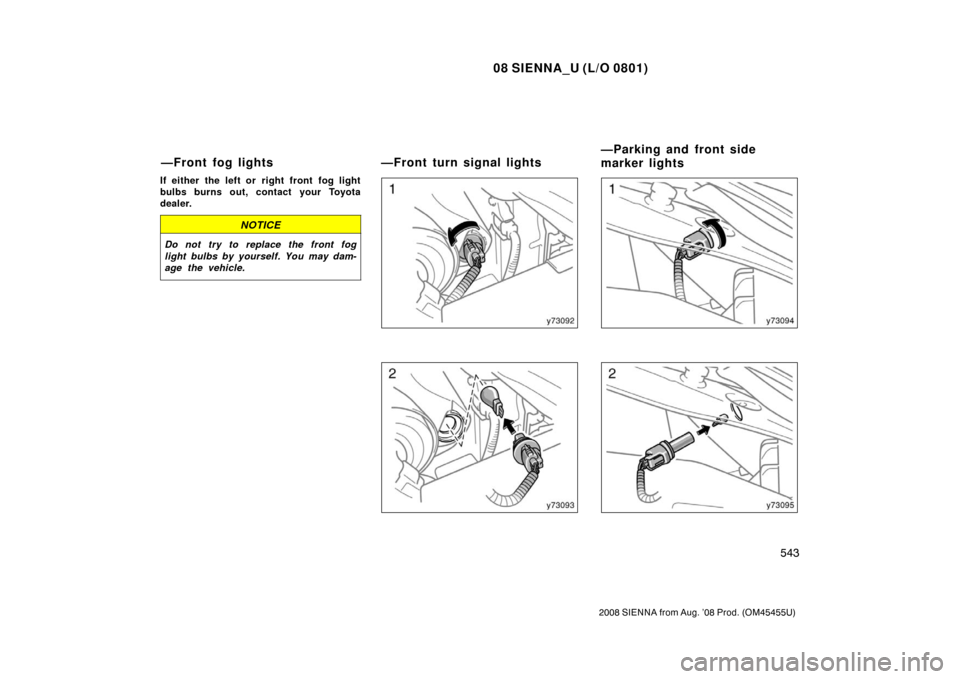

Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.
—Front fog lights—Front turn signal lights—Parking and front side
marker lights

08 SIENNA_U (L/O 0801)
544
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

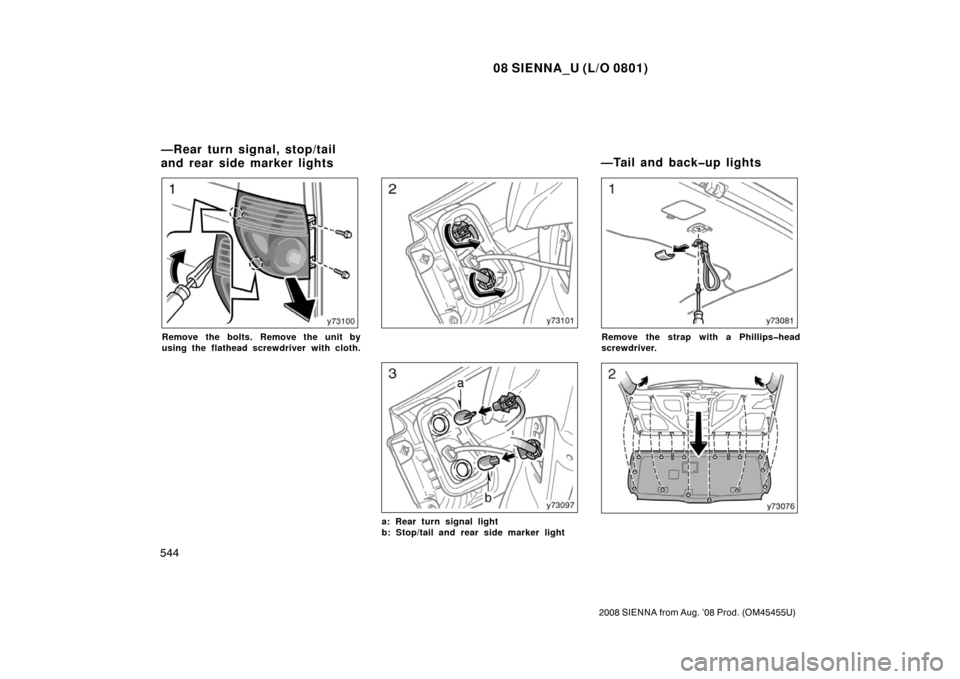

Remove the bolts. Remove the unit by
using the flathead screwdriver with cloth.
a: Rear turn signal light
b: Stop/tail and rear side marker light
Remove the strap with a Phillipshead
screwdriver.
—Rear turn signal, stop/tail
and rear side marker lights—Tail and backup lights

08 SIENNA_U (L/O 0801)
554
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Engine compartment
Instrument panel (driver’s side)
Fuses (type A)1. ETCS 10 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system
2. EFI NO. 1 20 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system, “EFI NO. 2” fuse
3. HLP RL 15 A: Right−hand headlight
(low beam)
4. DRL 20 A: Daytime running light sys-
tem, “H −LP RH” and “H −LP LH” fuses
5. ALTS 7.5 A: Charging system
6. HLP LL 15 A: Left−hand headlight
(low beam), front fog lights
Instrument panel (passenger’s side)
7. DOOR NO. 2 25 A: Power door lock
system
8. HAZ 15 A: Turn signal lights, emergen-
cy flashers
9. RAD NO. 3 30 A: Audio system
10. A/F 25 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
11. HORN 10 A: Horns
12. EFI NO. 2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
Fuses

08 SIENNA_U (L/O 0801)
555
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
13. DOME 10 A: Personal lights, vanity
lights, door courtesy lights, luggage
compartment light, engine switch light,
multi −information display
14. ECUB 10 A: Power sliding door, air
conditioning system, power windows,
multiplex communication system, meter
and gauge, wireless remote control
system
15. RAD NO. 1 15 A: Audio system
16. SPARE 15 A: Spare fuse
17. SPARE 20 A: Spare fuse
18. SPARE 30 A: Spare fuse
19. SPARE 30 A: Spare fuse
20. SPARE 7.5 A: Spare fuse
21. HLP RH 10 A: Right−hand headlight
22. HLP LH 10 A: Left−hand headlight
23. RSE 7.5 A: Rear seat entertainment
system
24. INJ 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
25. MIR HTR 10 A: Outside rear view mir-
ror heaters 26. RAD2 7.5 A:
Audio system, navigation
system, rear seat entertainment system
27. PWR OUTLET 15 A: Power outlets
28. CIG 15 A: Cigarette lighter
29. ECU ACC 7.5 A: Shift lock control
system, air c onditioning system, power
rear view mirror control
30. GAUGE2 7.5 A: Meter and gauge
31. IGN 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, SRS airbag system, multiplex
communication system
32. IG2 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
33. RR WIP 15 A: Rear window wiper
34. WIP 30 A: Windshield wiper and rear
window wiper
35. GAUGE1 10 A: Back−up lights, turn
signal lights, emergency flashers
36. SHTR 15 A: Seat heaters
37. WSH 20 A: Windshield washer and
rear window washer
38. HTR 10 A: Air conditioning system 39. ECUIG 10 A:
Toyota park assist sys-
tem, rear view monitor system, multi-
plex communication system, multiport
fuel injection system/sequential multi-
port fuel injection system, anti −lock
brake system, traction control system,
vehicle stability control system, shift
lock control system, dynamic laser
cruise control system, seat heaters,
power back door, electronic moon roof,
multi −information display, auto anti−
glare inside rear view mirror, power
windows, power outlets (115 V), power
third seat, driving position memory sys-
tem
40. PANEL 10 A: Air conditioning system,
seat heaters, audio system, navigation
system, power sliding door, power back
door

, multi −information display, rear
window defogger, emergency flashers,
instrument panel lights, steering switch
lights
41. TAIL 10 A: Stop/tail lights, license
plate lights, parking lights, side marker
lights
42. S/ROOF 25 A: Electronic moon roof
43. AC INV 15 A: Power outlets (115 V)
44. FR DEF 15 A: Windshield wiper de−
icer
