08 SIENNA_U (L/O 0801)
262
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
MP3/WMA player
To file up or down to a different file:
Push either side of the “SEEK/TRACK”
several times until the file you want to
listen to appears on the display. If you
want to return to the beginning of the
current file, push the “” side of the but-
ton one time, quickly.
To fast forward or reverse the disc:
If you want to fast forward or reverse the
disc, push and hold it until you hear a
beep. When you release the button, the
player will resume playing.
Vehicles with rear seat entertainment sys-
tem—
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the “ ” or “ ” side of the
“SEEK/TRACK” button.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion. TEXT
XM
 Satellite Radio
∗
1—
When you push the “TEXT” button, the
display changes as follows:
CH NAME → TITLE (SONG/PROGRAM
TITLE) → NAME (ARTIST NAME/FEA-
TURE) → CH NUMBER → CH NAME
Up to 10 alphanumeric characters can be
displayed. (Some information will not be
fully displayed.)
The message display will be canceled if
any button that affects the display is
pushed.
If there is no song/program title or artist
name/feature associated with the channel
at that time, “ −−−−−” will appear on the
display.
This XM  tuner supports “Audio Services”
(Music and Talk) of only XM  Satellite
Radio and “Text Information”
∗ 2 linked to
the respective audio services.
∗ 1: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details.
∗ 2: Text Information includes, Channel
Name, (Artist) Name, (Song) Title and
Category Name. Compact disc player
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, “NO TITLE” will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear.

08 SIENNA_U (L/O 0801)
269
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The rear seat entertainment system is de-
signed for the rear passengers to enjoy
audio and DVD video separately from the
front audio system.
The rear seat entertainment system can
be operated when the engine switch is in
the “ACC” or “ON” position.
The rear passengers can enjoy DVD vid-
eo, audio CD, video CD, CD text, dts−CD
and MP3.
The rear seat entertainment system can
play DVD video, audio CD, video CD, CD
text, dts −CD or MP3 only when a disc is
loaded in the DVD player.
You can enjoy videos and sound when
your personal audio system is connected
to the input terminal adapter. For details,
refer to the manufacturer ’s instructions.
You can enjoy the rear seat entertainment
system with commercial h eadphone. See
“—Headphone ja cks” on page 308 in this
Section for details.
You can also enjoy the rear seat enter-
tainment system with a wireless head-
phone. The wireless headphone can be
used within rear seat. If the signal be-
comes weak, the headphone will mute.
For details, refer to the manufacturer ’s
instructions. With some wireless headphone generally
available in the market, it may be difficult
to catch sound properly. Toyota recom-
mends the use of Toyota genuine wireless
headphone.
You can purchase a wireless headphone
at a Toyota dealer.CAUTION
Do not operate a motor vehicle
while using headphones. Doing so
may cause an accident, resulting in
death or serious injury.
With DVD player:
Conversational speech on some
DVDs is recorded at a low volume
to emphasize the impact of sound
effects. If you adjust the volume
assuming that the conversations
represent the maximum volume lev-
el that the DVD will play, you may
be startled by louder sound effects
or when you change to a different
audio source. Be sure to adjust the
volume with this in mind.
Make sure the volume is not in-
creased, before you turn on the
headphone.

08 SIENNA_U (L/O 0801)
274
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
1. “DVD” buttonThis button turns on the DVD mode.
2. “VIDEO” button This button causes the display to use
the video signal from an external video
device.
3. “OFF” button
This button turns off the rear seat en-
tertainment system.
4. Joystick This joystick selects a control switch,
mode switch on the screen or the
menu for the disc.
5. “ENT” button
This button inputs the selected switch
or the selected menu for the disc.
6. “FOLDER
” button
This button selects a desired folder.
7. “FOLDER
” button
This button selects a desired folder.
8. “
” button
This button fast forwards a screen
when the DVD player is operated.
—Control buttons

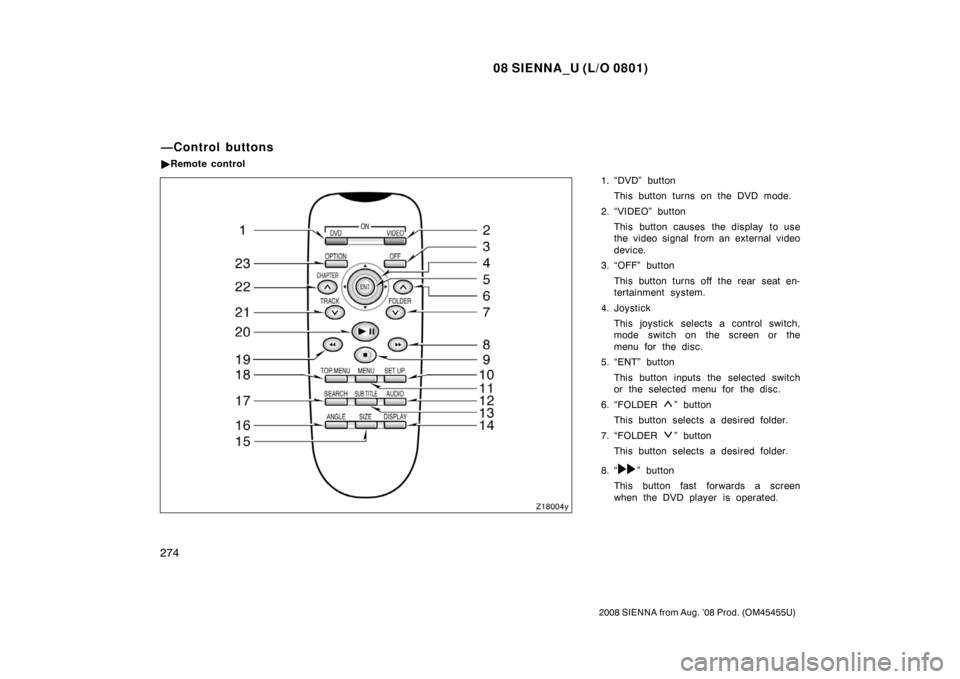

 Remote control

08 SIENNA_U (L/O 0801)
277
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
1. “DVD” buttonThis button turns on the rear seat en-
tertainment system and selects the
mode.
2. “VIDEO” button
This button causes the display to use
the video signal from an external video
device.
3. “
TRACK· CHAPTER” button
This button skips directly to a desired
track or chapter.
4. “
” button
This button plays or pauses a screen
when the DVD player is operated.
5. “OPTION” button
This button indicates the control
switches on the screen when the DVD
player is operated.
6. Joystick/“ENT” button
The joystick selects a control switch,
mode switch on the screen or the
menu for the disc.
The “ENT” button inputs the selected
switch or the selected menu for the
disc.

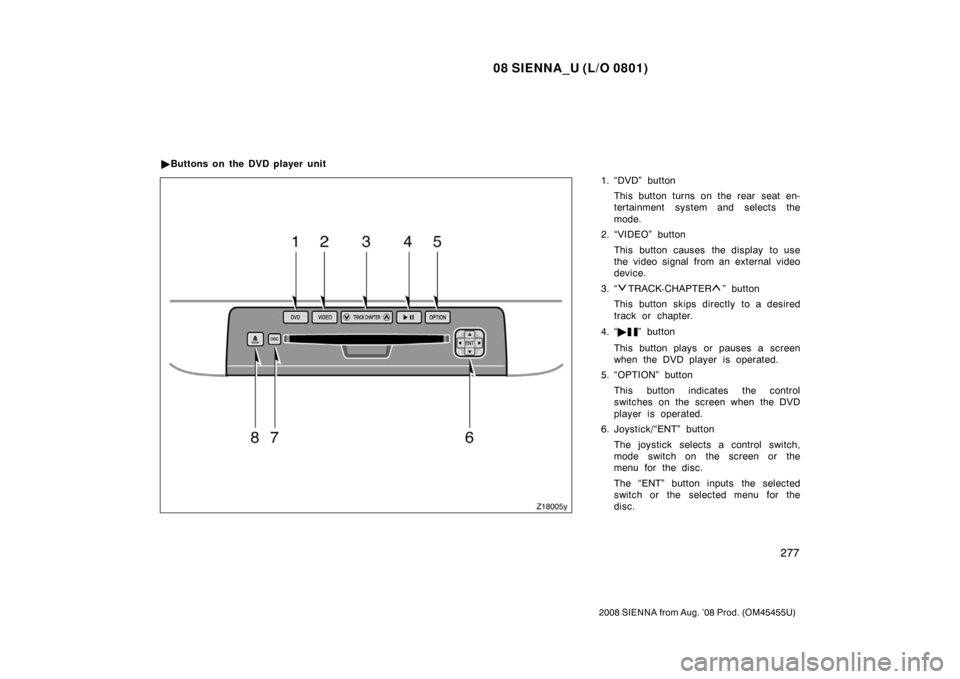

Buttons on the DVD player unit

08 SIENNA_U (L/O 0801)
460
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
A safety chain must always be used
between the towing vehicle and the
trailer. Leave sufficient slack in the
chain for turns. The chain should
cross under the trailer tongue to
prevent the tongue from dropping to
the ground in case it becomes dam-
aged or separated. For correct safety
chain procedures, follow the hitch or
trailer manufacturer ’s recommenda-
tions.
CAUTION
If the total trailer weight exceeds
453 kg (1000 lb.), trailer brakes are
required.
Never tap into your vehicle’s hy-
draulic system as it would lower its
braking effectiveness.
Never tow a trailer without using a
safety chain securely attached to
both the trailer and the vehicle. If
damage occurs to the coupling unit
or hitch ball, there is danger of the
trailer wandering over into another
lane.
TIRES
Ensure that your vehicle’s tires are
properly inflated. See page 523 in Sec-
tion 7−2 and page 553 in Section 8 for
instructions.
The trailer tires should be inflated to
the pressure recommended by the trail-
er manufacturer in respect to the total
trailer weight.
TRAILER LIGHTS
Trailer lights must comply with federal,
state/provincial and local regulations.
See your local recreational vehicle
dealer or rental agency for the correct
type of wiring and relays for your trail-
er. Check for correct operation of the
turn signals and stop lights each time
you hitch up. Direct splicing may dam-
age your vehicle’s electrical system
and cause a malfunction of your lights.
BREAKIN SCHEDULE
Toyota recommends that you do not
tow a trailer with a new vehicle or a
vehicle with any new power train com-
ponent (engine, transmission, differen-
tial, wheel bearing, etc.) for the first
800 km (500 miles) of driving. MAINTENANCE
If you tow a trailer, your vehicle will
require more frequent maintenance due
to the additional load. For this
information, please refer to the
scheduled maintenance information in
the “Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.
Retighten all fixing bolts of the towing
ball and bracket after approximately
1000 km (600 miles) of trailer driving.
PRETOWING SAFETY CHECK
Check that your vehicle remains level
when a loaded or unloaded trailer is
hitched. Do not drive if the vehicle has
an abnormal nose −up or nose −down
condition, and check for improper
tongue load, overload, worn suspension
or other possible causes.
Make sure the trailer cargo is securely
loaded so that it cannot shift.
Check that your rear view mirrors con-
form to any applicable federal, state/
provincial or local regulations. If not,
install the rear view mirrors required
for towing purpose.

08 SIENNA_U (L/O 0801)
463
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Improving fuel economy is easy—just take
it easy. It will help make your vehicle last
longer, too. Here are some specific tips
on how to save money on both fuel and
repairs:
Keep your tires inflated at the cor-
rect pressure. Underinflation causes
tire wear and wastes fuel. See page
523 in Section 7 −2 for instructions.
Do not carry unneeded weight in
your vehicle. Excess weight puts a
heavier load on the engine, causing
greater fuel consumption.
Avoid lengthy warmup idling. Once
the engine is running smoothly, begin
driving—but gently. Remember, howev-
er, that on cold winter days this may
take a little longer.
Put the selector lever into the “D”
when engine braking is not required.
Driving with the selector lever in “4”
will reduce the fuel economy. (For de-
tails, see “Automatic transmission” on
page 205 in Section 1 −7.)
Accelerate slowly and smoothly.
Avoid jackrabbit starts. Get into high
gear as quickly as possible.
Avoid long engine idling. If you have
a long wait and you are not in traffic,
it is better to turn off the engine and
start again later.
Avoid engine lugging or overrev-
ving. Use a gear position suitable for
the road on which you are travelling.
Avoid continuous speeding up and
slowing down. Stop−and− go driving
wastes fuel.
Avoid unnecessary stopping and
braking. Maintain a steady pace. Try
to time the traffic signals so you only
need to stop as little as possible or
take advantage of through streets to
avoid traffic lights. Keep a proper dis-
tance from other vehicles to avoid sud-
den braking. This will also reduce wear
on your brakes.
Avoid heavy traffic or traffic jams
whenever possible.
Do not rest your foot on the brake
pedal. This causes premature wear,
overheating and poor fuel economy.
Maintain a moderate speed on high-
ways. The faster you drive, the greater
the fuel consumption. By reducing your
speed, you will cut down on fuel con-
sumption.
Keep the front wheels in proper
alignment. Avoid hitting the curb and
slow down on rough roads. Improper
alignment not only causes faster tire
wear but also puts an extra load on
the engine, which, in turn, wastes fuel.
Keep the bottom of your vehicle free
from mud, etc. This not only lessens
weight but also helps prevent corro-
sion.
Keep your vehicle tunedup and in
top shape. A dirty air cleaner, improp-
er valve clearance, dirty plugs, dirty oil
and grease, brakes not adjusted, etc.
all lower engine performance and con-
tribute to poor fuel economy. For longer
life of all parts and lower operating
costs, keep all maintenance work on
schedule, and if you often drive under
severe conditions, see that your vehicle
receives more frequent maintenance.
(For scheduled maintenance informa-
tion, please refer to the “Scheduled
Maintenance Guide” or “Owner ’s Manu-
al Supplement”.)
How to save fuel and make
your vehicle last longer

08 SIENNA_U (L/O 0801)
506
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Power steering fluid level
Check the level through the reservoir. The
level should be in the “HOT” or “COLD”
range depending on the fluid temperature.
See page 522 in Section 7−2 for addition-
al information.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See “Engine exhaust cautions” on
page 424 in Section 2.)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise. Seats
Check that all seat controls such as seat
adjusters, seatback recliner, etc. operate
smoothly and that all latches lock securely
in any position. Check that the head re-
straints move up and down smoothly and
that the locks hold securely in any latched
position. For folding
−down rear seatbacks
and detachable second seats, check that
the latches lock securely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam-
aged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
In a safe place, check that the brakes do
not pull to one side when applied. Parking brake
Check that the pedal has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission “Park” mecha-
nism
On a safe incline, check that your vehicle
is held securely with the selector lever in
“P” position and all brakes released.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all the doors including back
door operate smoothly and all latches lock
securely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.

08 SIENNA_U (L/O 0801)
541
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
A: D2R discharge bulbs
B: HB4 halogen bulbs
C: HB3 halogen bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)
F: Single end bulbs
G: Double end bulbsTy p e
W
Bulb No.
35
51
Light bulbs
Headlights (low beam) With discharge headlights
Without discharge headlights
Headlights (high beam) —
9006 A
B
Front fog lights
Parking and front side marker lights Front turn signal lights
Rear turn signal lights
Stop/tail and rear side marker lights
Back −up lights
License plate lights
Luggage compartment light 60
9005 C
51
—B
5
—E 30
3457A E
21
—D
21/5
—D
18
921 D
5
—D
5
—G
Tail lights 3.8
194 D
Front personal lights 4.9
—F
Rear personal lights 4.9
—F
Vanity lights 3
—G
Door courtesy lights 3.8
—F
