2008 TOYOTA HIGHLANDER HYBRID turn signal bulb

182
2-1. Driving procedures

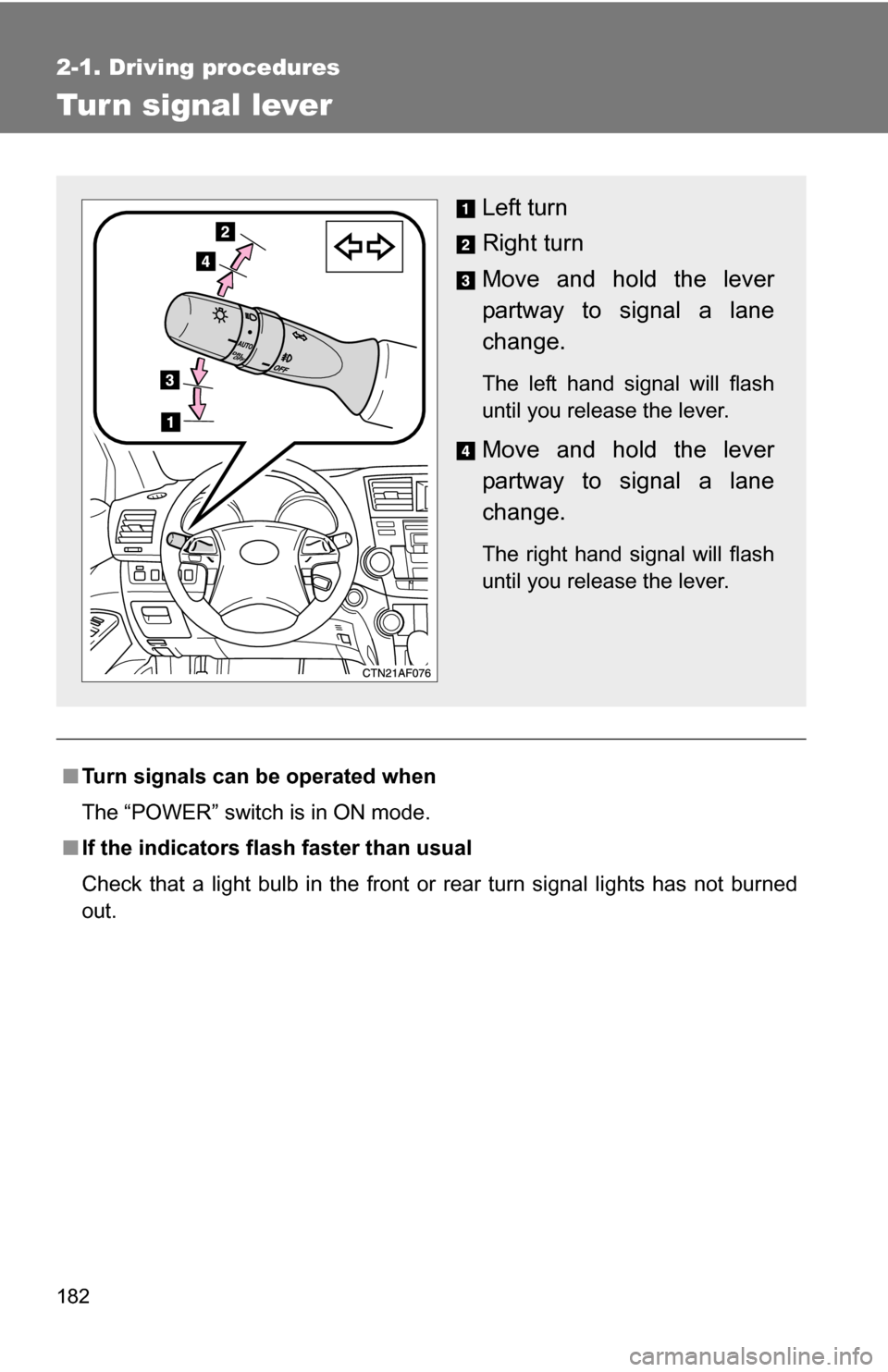

Tur n signal lever
■Turn signals can be operated when
The “POWER” switch is in ON mode.
■ If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Left turn
Right turn
Move and hold the lever
partway to signal a lane
change.
The left hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change.
The right hand signal will flash
until you release the lever.

470
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 543)
■ Front bulb locations
Headlights
Parking and front side marker lights
Front fog lights (if equipped)
Front turn signal lights

471
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
■ Headlights
Right side only: Lift up the filler
tube for the washer fluid tank
and move it to the side.
Unplug the connector.
■Rear bulb locations
Back-up lights
Rear turn signal lights Stop/tail and rear
side
marker
lights
License plate lights
STEP1
STEP2

476 4-3. Do-it-yourself maintenance

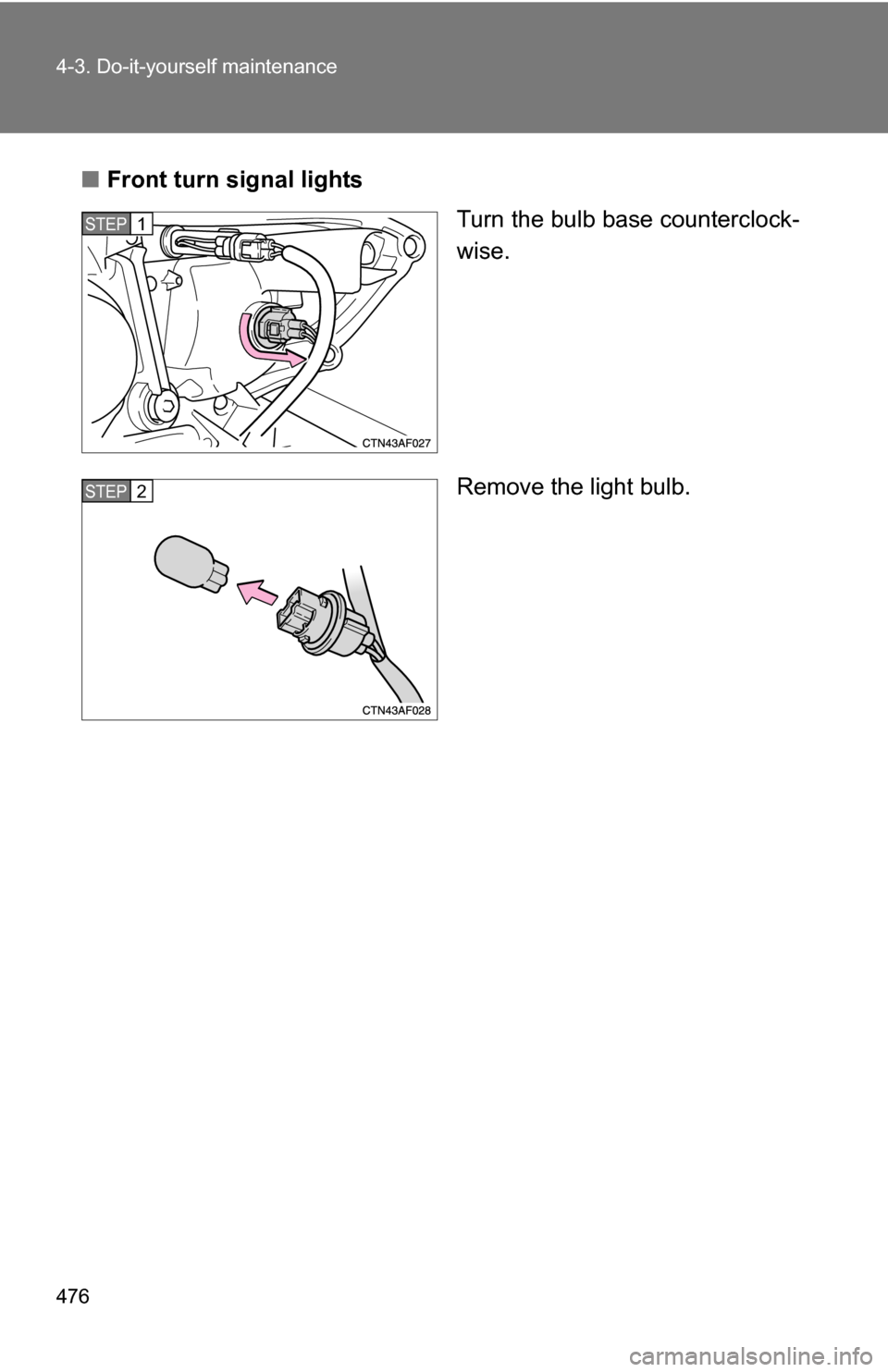

■Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2

477
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

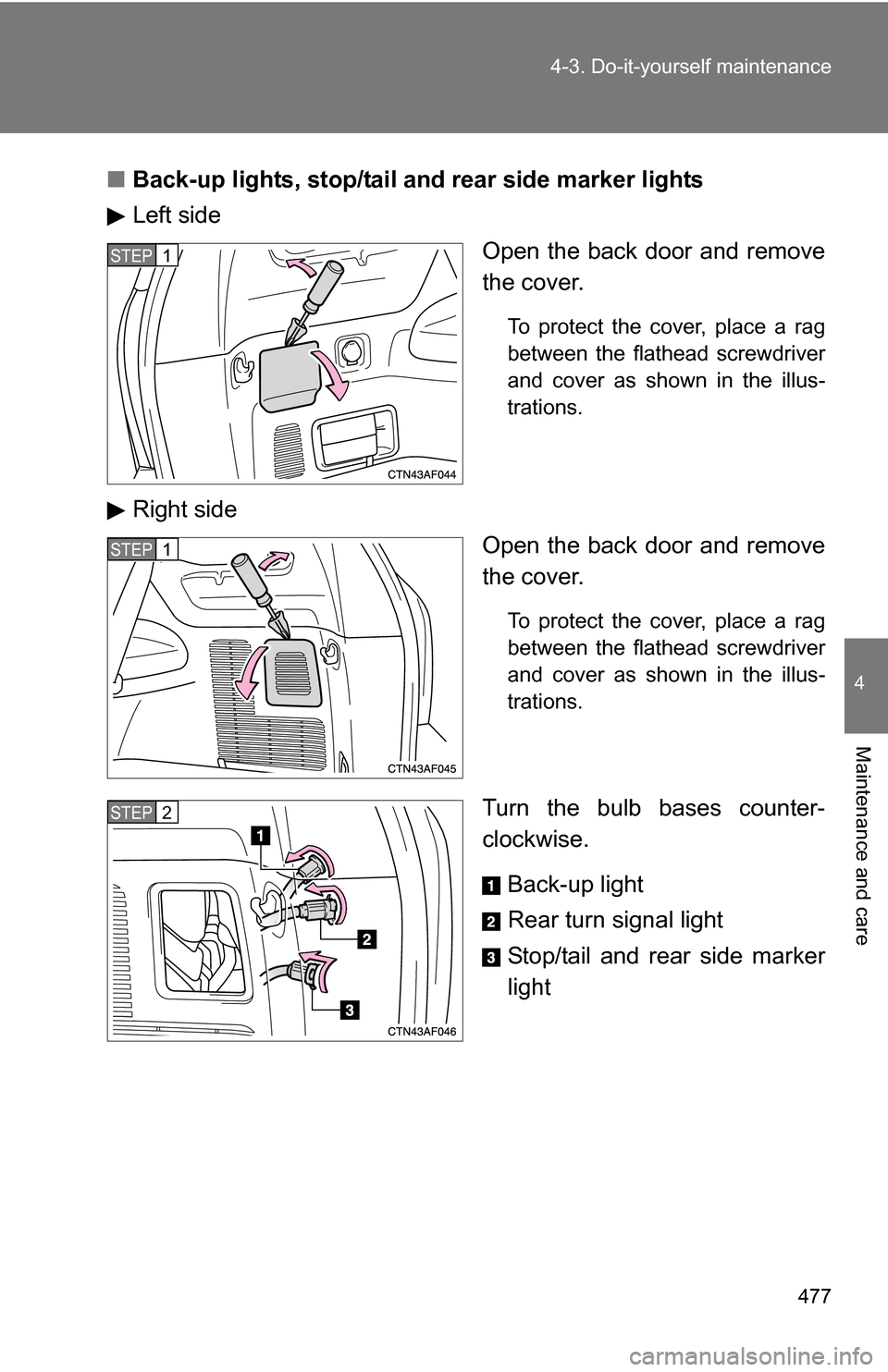

Back-up lights, stop/tail and rear side marker lights
Left side
Open the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
trations.
Right sideOpen the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
trations.
Turn the bulb bases counter-
clockwise.
Back-up light
Rear turn signal light
Stop/tail and rear side marker
light
STEP1
STEP1
STEP2

478 4-3. Do-it-yourself maintenance

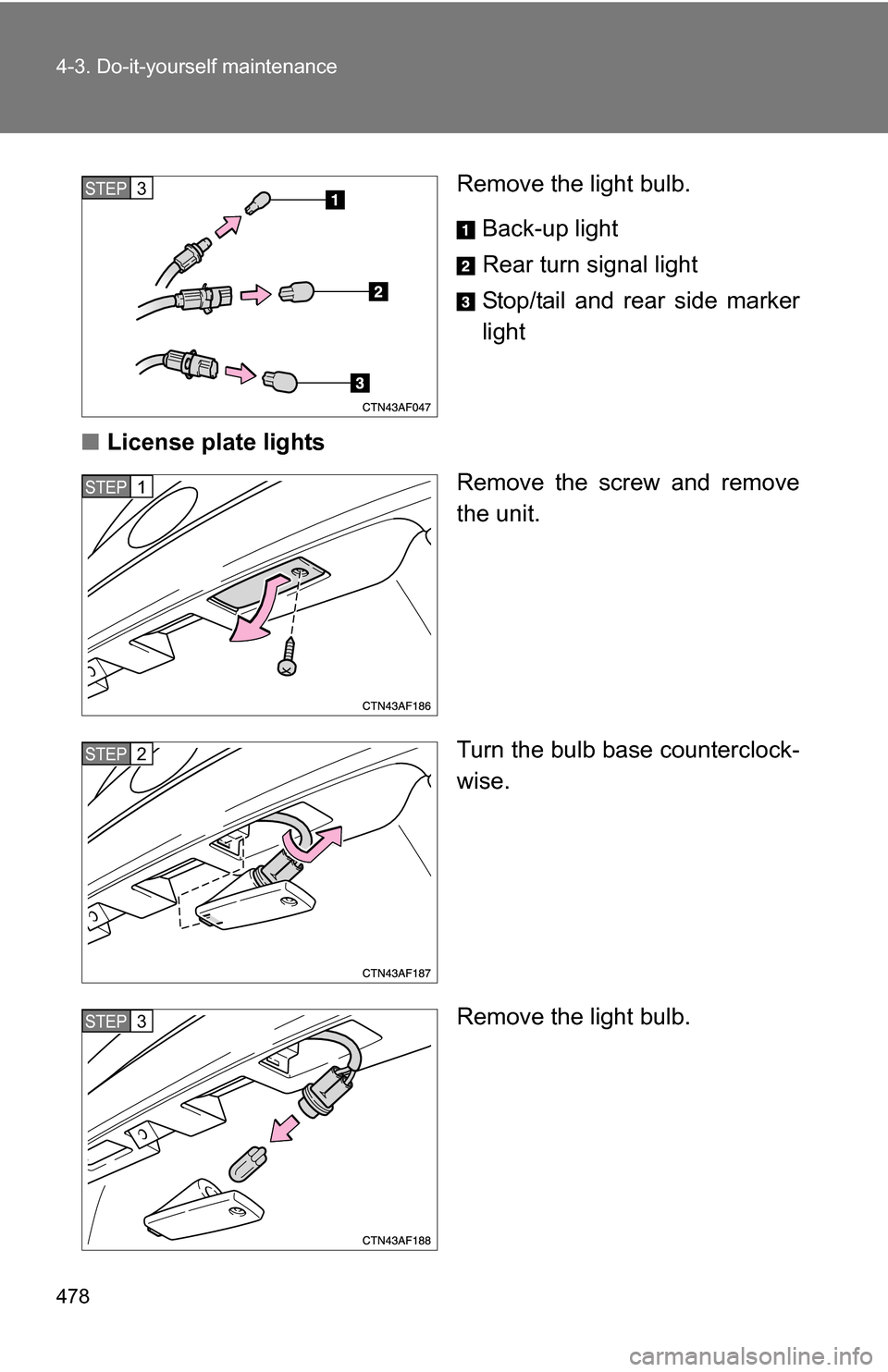

Remove the light bulb.Back-up light
Rear turn signal light
Stop/tail and rear side marker
light
■ License plate lights
Remove the screw and remove
the unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP3
STEP1
STEP2
STEP3

543
6-1. Specifications
6
Vehicle specifications
Light bulbs
A: H11 halogen bulbs
B: Wedge base bulbs (amber)
C: HB2 halogen bulbs D: Wedge base bulbs (clear)
*: If equipped
Light BulbsBulb No.WTy p e
ExteriorHeadlights
60/55 C
Front turn signal lights 21 B
Parking/front side marker lights 5B
Front fog lights* 55 A
Rear turn signal lights 21 B
Back-up lights 16 D
Stop/tail and rear side marker
lights 
21/5 D
License plate lights 5D
Outer foot lights* 5D
Interior Vanity lights
8D
Personal/interior lights (front) 5D
Personal/interior lights (center)* 5D
Interior light 8D
Door courtesy lights 5D
