2008 TOYOTA HIGHLANDER HYBRID headlight bulb

470
4-3. Do-it-yourself maintenance

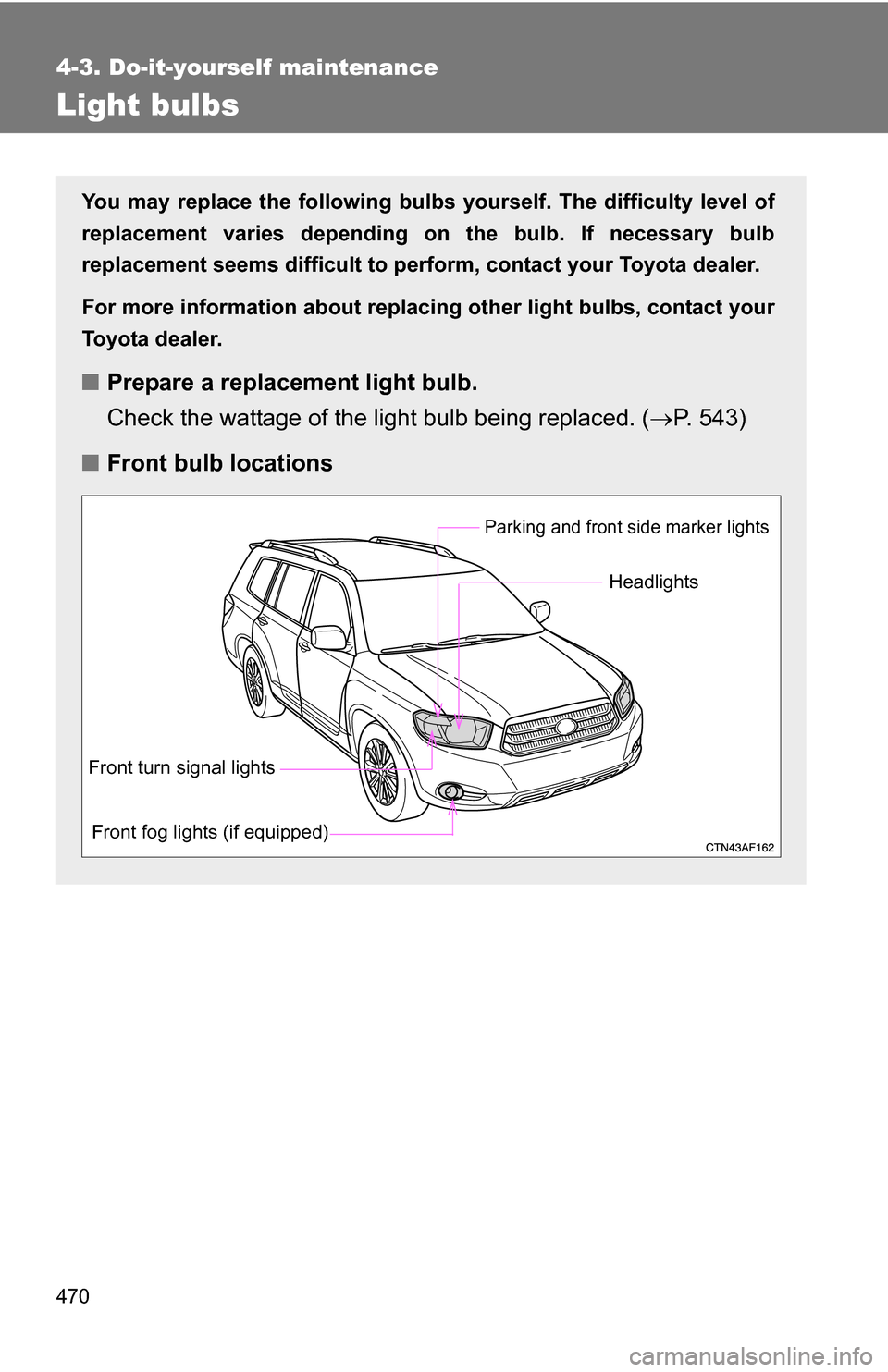

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 543)
■ Front bulb locations
Headlights
Parking and front side marker lights
Front fog lights (if equipped)
Front turn signal lights

471
4-3. Do-it-yourself maintenance
4
Maintenance and care

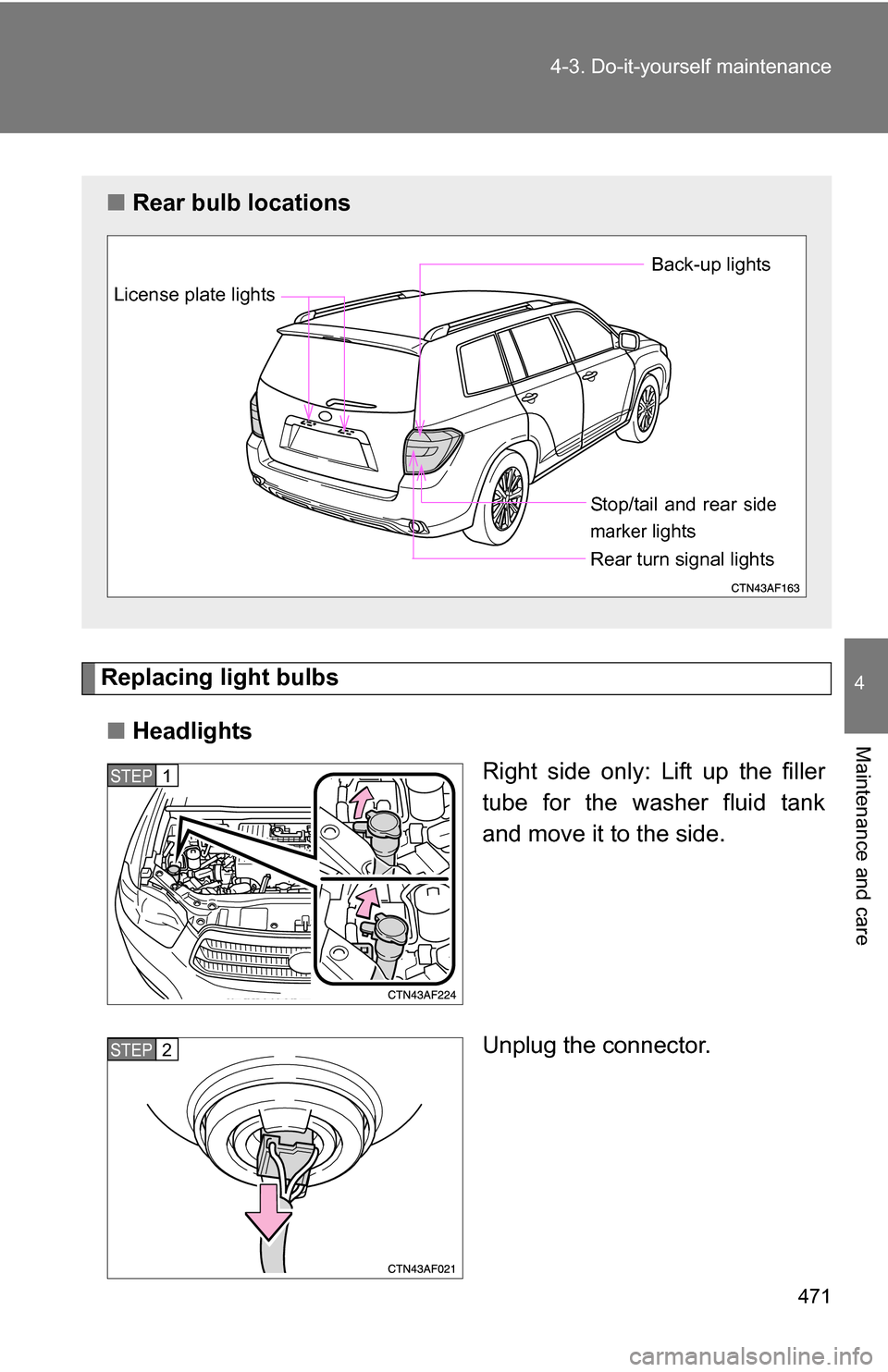

Replacing light bulbs
■ Headlights
Right side only: Lift up the filler
tube for the washer fluid tank
and move it to the side.
Unplug the connector.
■Rear bulb locations
Back-up lights
Rear turn signal lights Stop/tail and rear
side
marker
lights
License plate lights
STEP1
STEP2

480 4-3. Do-it-yourself maintenance

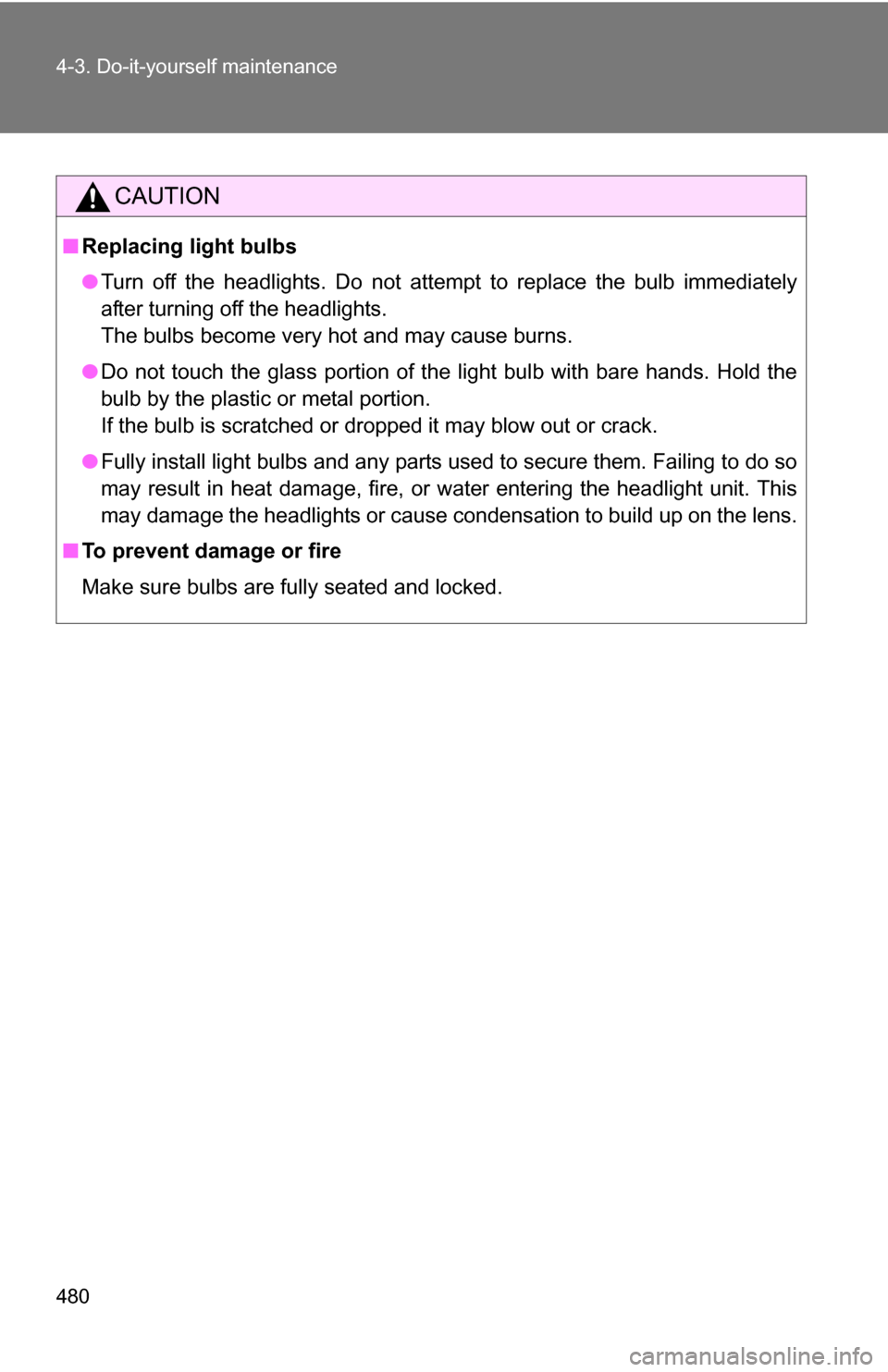

CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

543
6-1. Specifications
6
Vehicle specifications

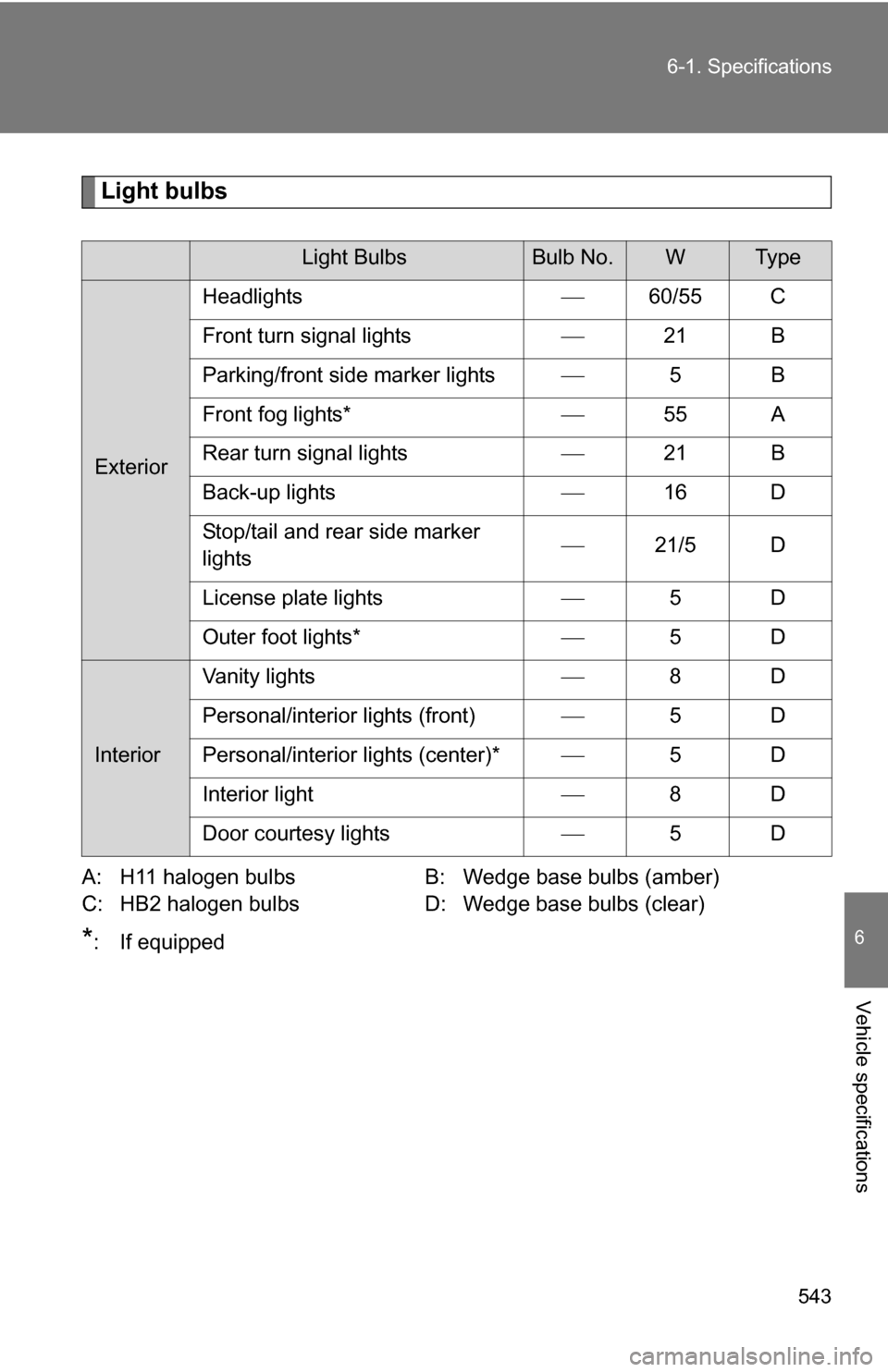

Light bulbs
A: H11 halogen bulbs
B: Wedge base bulbs (amber)
C: HB2 halogen bulbs D: Wedge base bulbs (clear)
*: If equipped
Light BulbsBulb No.WTy p e
ExteriorHeadlights
60/55 C
Front turn signal lights 21 B
Parking/front side marker lights 5B
Front fog lights* 55 A
Rear turn signal lights 21 B
Back-up lights 16 D
Stop/tail and rear side marker
lights 
21/5 D
License plate lights 5D
Outer foot lights* 5D
Interior Vanity lights
8D
Personal/interior lights (front) 5D
Personal/interior lights (center)* 5D
Interior light 8D
Door courtesy lights 5D
