467
4-3. Do-it-yourself maintenance
4
Maintenance and care
12 FUEL OPN 7.5 A Fuel filler door opener
13 S/ROOF 30 A Electric moon roof
14 TAIL 15 A
Parking lights, tail lights, license
plate lights, front fog lights, trailer
lights
15 PANEL 7.5 A Glove box light, emergency flash-
ers, audio system, outside rear
view mirror defoggers, power door
lock system, seat heaters, rear
seat entertainment system, instru-
ment panel light control dial, elec-
tronic controlled transmission
switch, transmission, steering
switches
16 ECU IG NO.1 10 A Multiplex communication system,
electric moon roof, electronically
controlled transmission system,
power back door, seat heaters, tire
pressure warning system, elec-
tronic power steering, transmission
17 ECU IG NO.2 7.5 A VDIM
18 A/C NO.2 10 A Air conditioning system, FAN NO.1,
FAN NO.2
19 WASH 20 A Windshield wipers and washer
20 S-HTR 20 A Seat heaters
21 GAUGE NO.1 10 A Audio system, outside rear view
mirror defoggers, back-up lights,
charging system, emergency flash-
ers, traction control system, instru-
ment panel light control dial,
windshield wiper deicer
22 FR WIP 30 A Windshield wipers and washer
23 RR WIP 15 A Rear window wiper and washer
FuseAmpereCircuit

468 4-3. Do-it-yourself maintenance
24 IGN10 AMultiport fuel injection system/
sequential multiport fuel injection
system, steering lock system,
smart key system, SRS airbag sys-
tem
25 GAUGE NO.2 7.5 A Gauges and meters, rear view
monitor
26 ECU-ACCES-
SORY 7.5 APower rear view mirror, shift lock
system, smart key system
27 ACCESSORY
SOCK NO.1 10 A Power outlet
28 ACCESSORY
SOCK NO.2 20 A Power outlet
29 RADIO NO.2 7.5 A Audio system, rear seat entertain-
ment system, charging system,
interior lights, personal lights
30 MIR HTR 15 A Outside rear view mirror defoggers
FuseAmpereCircuit

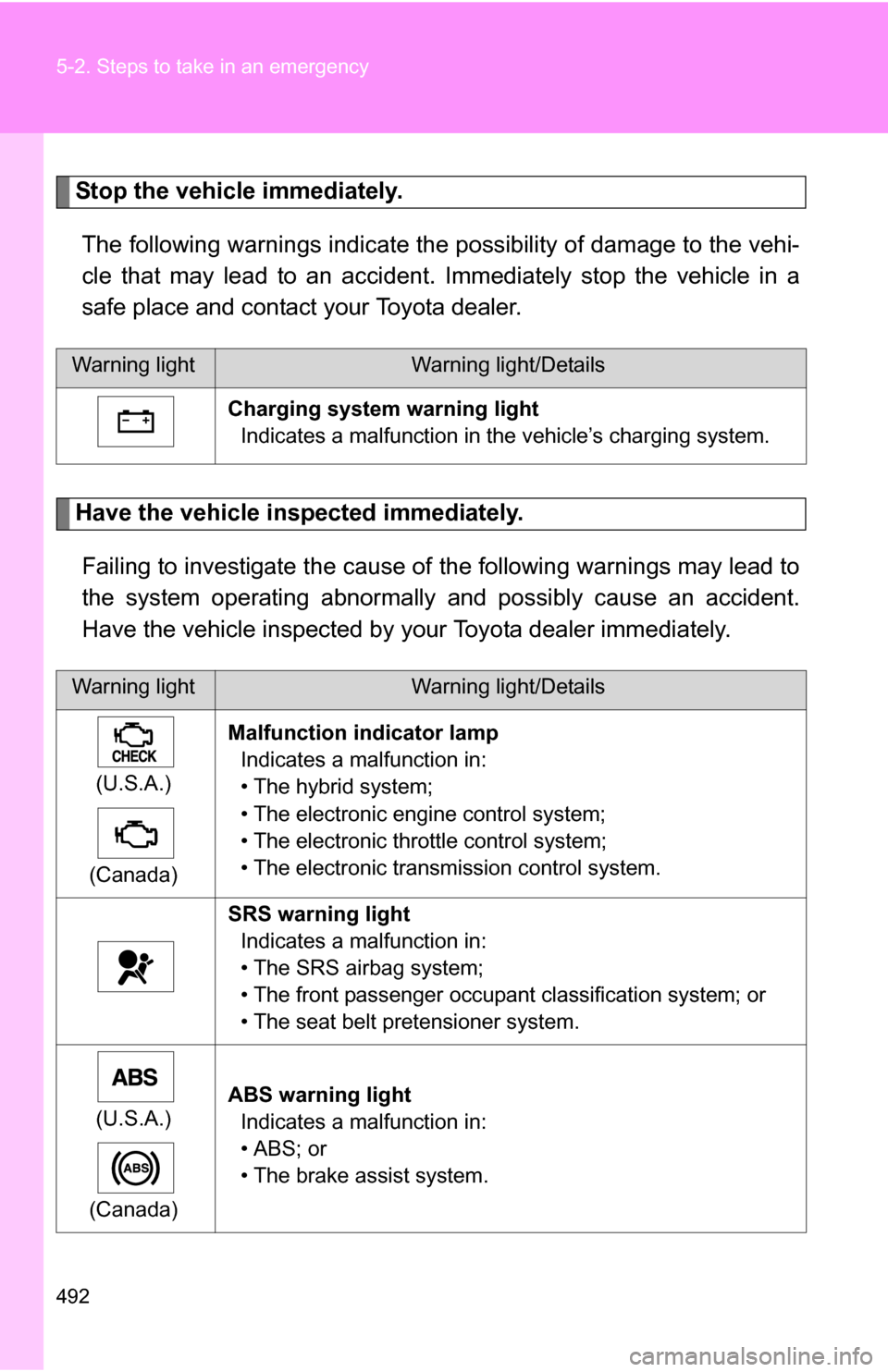

492 5-2. Steps to take in an emergency
Stop the vehicle immediately.The following warnings indicate the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Toyota dealer.
Have the vehicle inspected immediately.Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning lightWarning light/Details
Charging system warning light Indicates a malfunction in the vehicle’s charging system.
Warning lightWarning light/Details
(U.S.A.)
(Canada) Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system;
• The electronic throttle control system;
• The electronic transmission control system.
SRS warning light Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system.
(U.S.A.)
(Canada) ABS warning light
Indicates a malfunction in:
•ABS; or
• The brake assist system.

536 6-1. Specifications
Ignition system
Electrical system
Spark plug
Make
GapDENSO SK20R11
NGK IFR6A11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.
12-volt battery
Open voltage* at
68 F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(*: Voltage is checked 20 minutes
after the hybrid system and all the
lights are turned off)
Charging rates 5 A max.

575
Alphabetical index
Tires
Chains .................................. 230
Checking .............................. 439
If you have a flat tire ............. 501
Inflation pressure .................. 447
Information ........................... 547
Replacing ............................. 501
Rotating tires ........................ 439
Size ...................................... 539
Snow tires............................. 230
Tire pressure warning
system........................ 439, 494
Tools......................................... 501
Total load capacity .................. 229
Towing Dinghy towing ....................... 244
Emergency towing ................ 483
Trailer towing ........................ 234
Traction control ....................... 215
TRAC ........................................ 215
Transmission ........................... 180
Trip information....................... 190
Trip meter................................. 184
Turn signal lights Replacing light bulbs ............ 470
Switch ................................... 182
Wattage ................................ 543
Vanity lights Vanity lights .......................... 379
Wattage ................................ 543
Vanity mirrors .......................... 379
VDIM ......................................... 215
Vehicle dynamics integrated management.......................... 215
Vehicle identification number................................... 531
Vehicle stability control .......... 215
VSC ........................................... 215 Warning buzzers
Brake system ........................491
Moon roof ..............................495
Open door .............................494
Seat belt reminder .................494
Warning lights Anti-lock brake system ..........492
Brake assist system ..............492
Brake system ........................491
Charging system .... ...............492
Electric power steering
system ................................492
Electronic engine control system ................................492
Engine oil pressure ...............492
Malfunction indicator lamp ....492
Master warning light ..............494
Open door .............................494
Pretensioners ........................492
Seat belt reminder light .........494
SRS airbags ..........................492
Tire pressure warning light ....494
Warning messages ..................500
Washer
Checking ...............................438
Preparing and checking before winter .......................230
Switch............................205, 207
Washing and waxing ...............404
Weight
Cargo capacity ......................225
Load limits .............................229
Weight ...................................530
Wheels ......................................451
Window glasses ......................110
Window lock switch .................110
Windows Power windows .....................110
Rear window defogger ..........267
Washer ..........................205, 207
Windshield wiper de-icer.........269
Windshield wipers ...................205
V
W

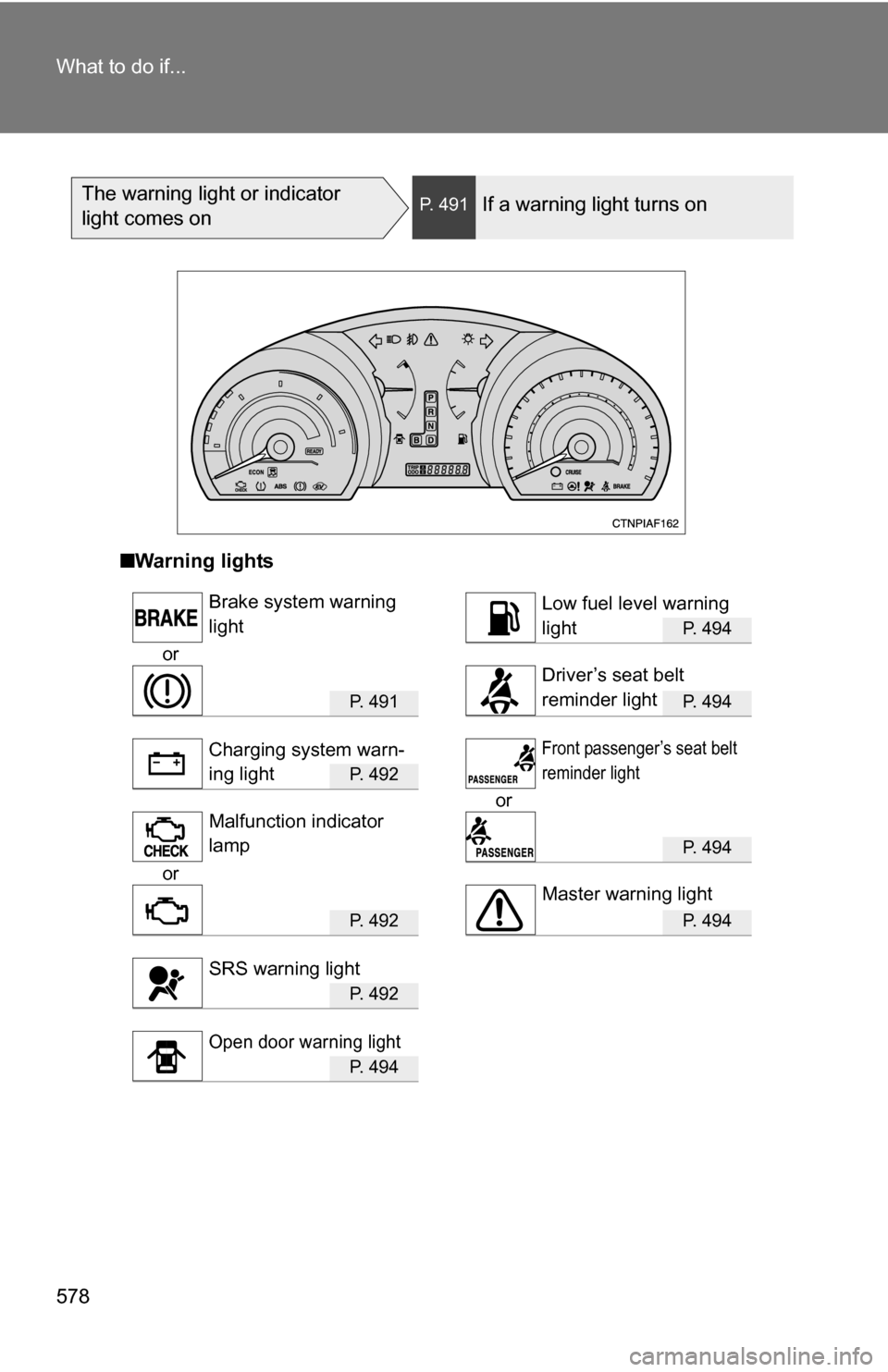

578 What to do if...
The warning light or indicator
light comes onP. 491If a warning light turns on
■Warning lights
P. 494
or
P. 4 9 1P. 494
P. 4 9 2
or
P. 494
or
P. 4 9 2P. 494
P. 4 9 2
P. 4 9 4
Brake system warning
lightLow fuel level warning
light
Driver’s seat belt
reminder light
Charging system warn-
ing lightFront passenger’s seat belt
reminder light
Malfunction indicator
lamp
Master warning light
SRS warning light
Open door warning light
