2008 TOYOTA CAMRY Owners Manual

145
2-2. Instrument cluster
2
When driving

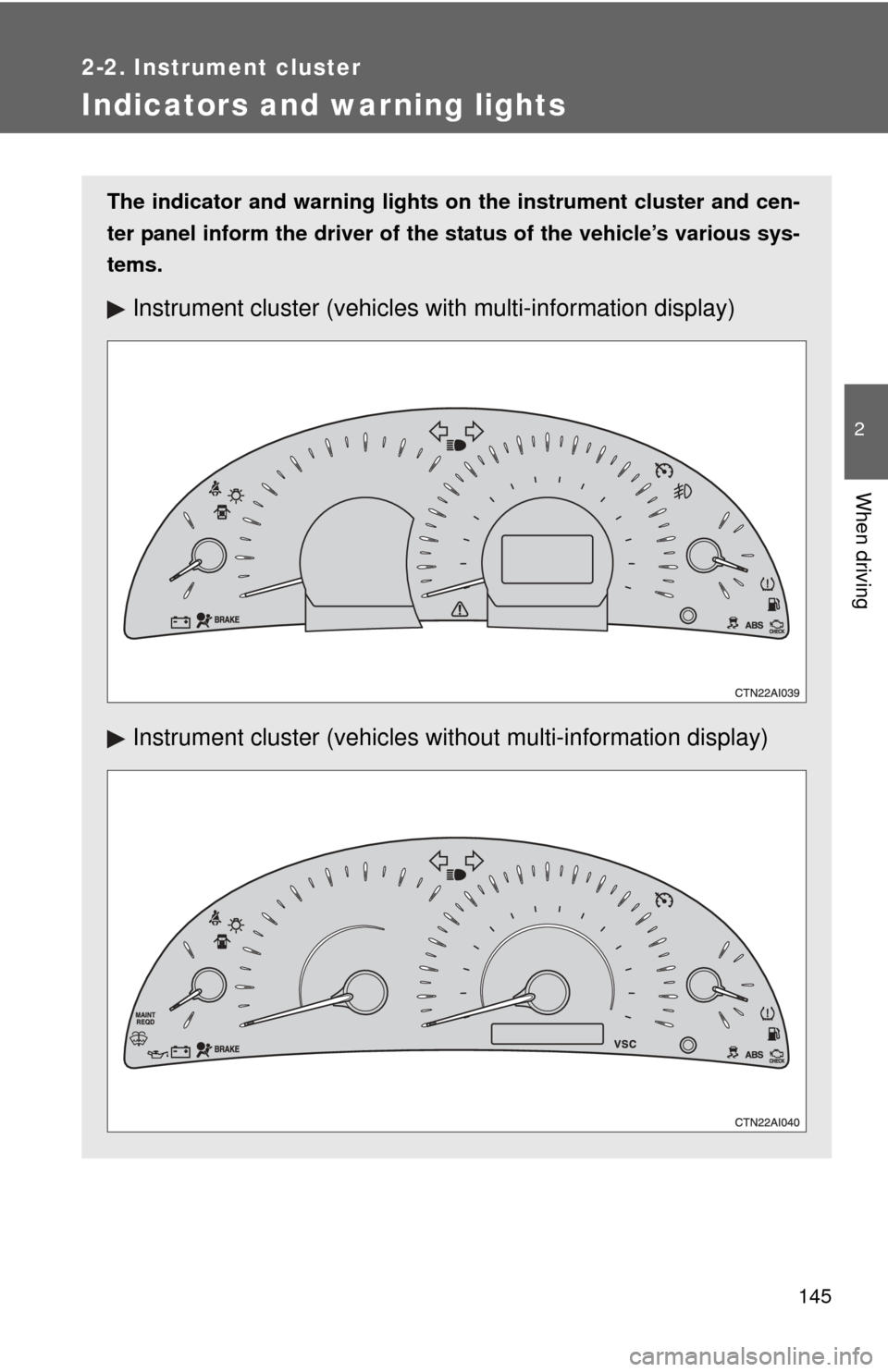

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster (vehicles with multi-information display)
Instrument cluster (vehicles without multi-information display)

146 2-2. Instrument cluster

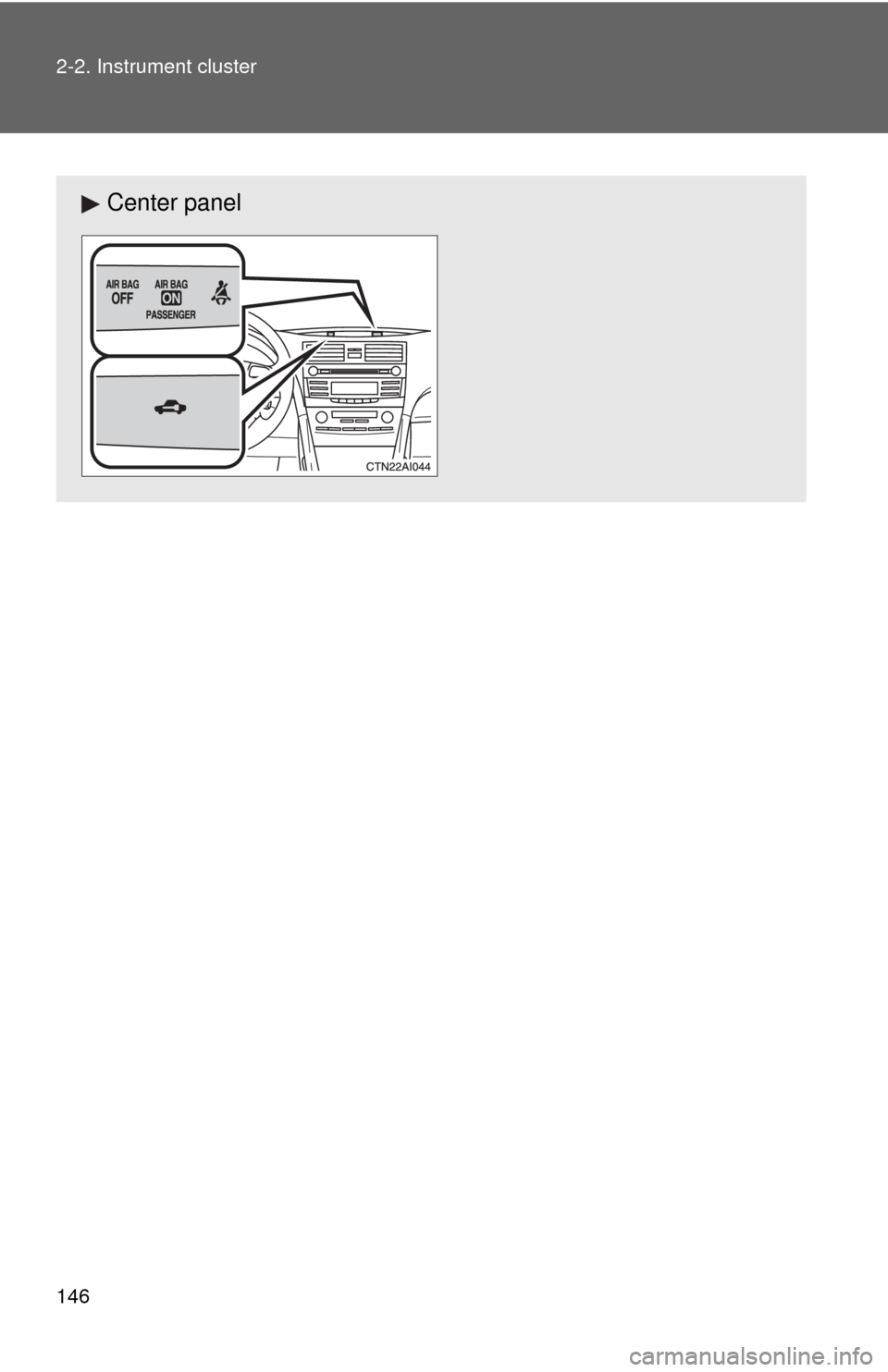

Center panel

147
2-2. Instrument cluster
2
When driving
■
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 138)
(U.S.A.)
Headlight indicator
( P. 152)
Headlight high beam
indicator ( P. 153)
(CANADA)
Tail light indicator
(P. 152)
Slip indicator
(P. 162)
(if equipped)
Front fog light indicator
( P. 156)
(if equipped)
Engine immobilizer/theft
deterrent system indica-
tor ( P. 77, 79)SRS airbag on-off indi-
cator (P. 96)
Cruise control indicator
(P. 159)
*
*

148 2-2. Instrument cluster
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS or the SRS airbag warning
light not come on when you start the engine, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.
■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( P. 381)
*: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with smart key system) or
the engine switch is turned to “ON” position (vehicles without smart
key system) to indicate that a system check is being performed.
They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by your
Toyota dealer for details.
(CANADA)(U.S.A.)(if equipped)(CANADA)(U.S.A.)(CANADA)
(U.S.A.)(U.S.A.)(U.S.A.)(if equipped)(if equipped)
(if equipped)
********
*****

149
2-2. Instrument cluster
2
When driving
Multi-information display (if equipped)
The multi-information display presents the driver with a variety of
driving-related data, includ ing the outside temperature.
●Outside temperature dis-
play ( P. 150)
Indicates the outside tempera-
ture.
● Trip information
( P. 150)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
● Warning messages
( P. 391)
Automatically displayed when
a malfunction occurs in one of
the vehicle’s systems.
● Odometer and trip meter
display
Odometer: Displays the total
distance the vehicle has been
driven.
Trip meter: Displays the dis-
tance the vehicle has been
driven since the meter was last
reset. Trip meters A and B can
be used to record and display
different distances indepen-
dently.

150 2-2. Instrument cluster
Switch the displayDisplay items can be switched
by pressing the “DISP” button.
The display will return to the out-
side temperature display when
the “DISP” button is pressed and
held.
●Outside temperature
● Cruising range
● Average fuel consumption after refueling
Displays the outside air temperature.
The temperature range that can be displayed is from
-40 F (-40 C) to 122 F (50 C).
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining.
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
Displays the average fuel consumption since the
vehicles was last refueled.

151
2-2. Instrument cluster
2
When driving
●
Driving distance
● Average vehicle speed
● Cruise information off
● Zoom display of odometer and trip meter Displays the driving distance since the engine was
started.
Displays the average vehicle speed since the
engine was started.
Displays the odometer and trip meters only.
Displays the odometer and one of the trip meters
simultaneously.
NOTICE
■
The multi-information disp lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

152
2-3. Operating the lights and wipers
Headlight switch
The headlights can be operated manually or automatically.
For U.S.A.
The headlights and
parking lights turn on
and off automatically.
The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
lights listed above turn
on.
Daytime running light
system is off.
For Canada
The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
lights listed above turn
on.
The headlights and
parking lights turn on
and off automatically.
