2008 TOYOTA CAMRY HYBRID Quick Reference Guide

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Smart Key system*
Start function
Accessories such as the radio will operate.
Power ON; the Hybrid System not running.
All systems OFF.
ACC
ON
OFF
NOTE:Gear shift lever must be in “Park” and brake pedal depressed.
Push Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “POWER” switch will
change the operation mode in succession from:
Locking/Unlocking operation
Carry remote
to lock/unlock
Push
Front door unlock*
GraspFront door lock
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting Hybrid System)
Push
Trunk open

8
Fuel tank door release and cap
* It may take up to 10 seconds after
pushing button for the door to
open if the internal tank pressure
is high.
Push*
Light control-Instrument panel
Brightness
control-
+
Store
Tu r n
OVERVIEW
(1)
(3)
(5)(2)
(4)
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
This is also the trip
meter reset button.

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Hood release
Pull up latch and
raise hoodPull
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoir
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance

10
FEATURES/OPERATIONS
Put the selector lever in “P.”
Depress the brake pedal, and press the “POWER” switch briefly and
firmly.
The “READY” light will blink. After a few seconds, when the light
remains steady and a beep sounds, you may begin driving.
Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off
when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
Note: Fuel consumption and energy information of the Hybrid System
are shown on the multi-information display and/or navigation
system screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s
Manual.
2. Link trips, if possible, to reduce engine cold starts.
3. Avoid driving at speeds that are higher than necessary, especially on the
highway.
4. When possible, avoid sudden stops to maximize regenerative braking
energy.
5. Minimi
ze use of the Air Conditioning.
Hybrid Synergy Drive System

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Transmission
1 The “POWER” switch must be set at ON, and the brake pedal depressed
to shift from “Park.”
2 The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park1
Reverse
Neutral
Drive
BEngine braking2
Steering lock release
Tu r n
Push
Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from “Park.”
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into “Park.”
-Doors unlock when the “POWER” switch is set from ON to
ACC or OFF
and driver’s door is opened.
Refer to the Owner’s Manualfor more details.

12
FEATURES/OPERATIONS
Windows-Power
Up
Down
Driver sideWindow lock switch
Automatic down operation (driver side only) Push the switch completely
down and release to fully open. To stop window midway, lightly pull the
switch up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Parking brake
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
Angle
Length
Lock release lever
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

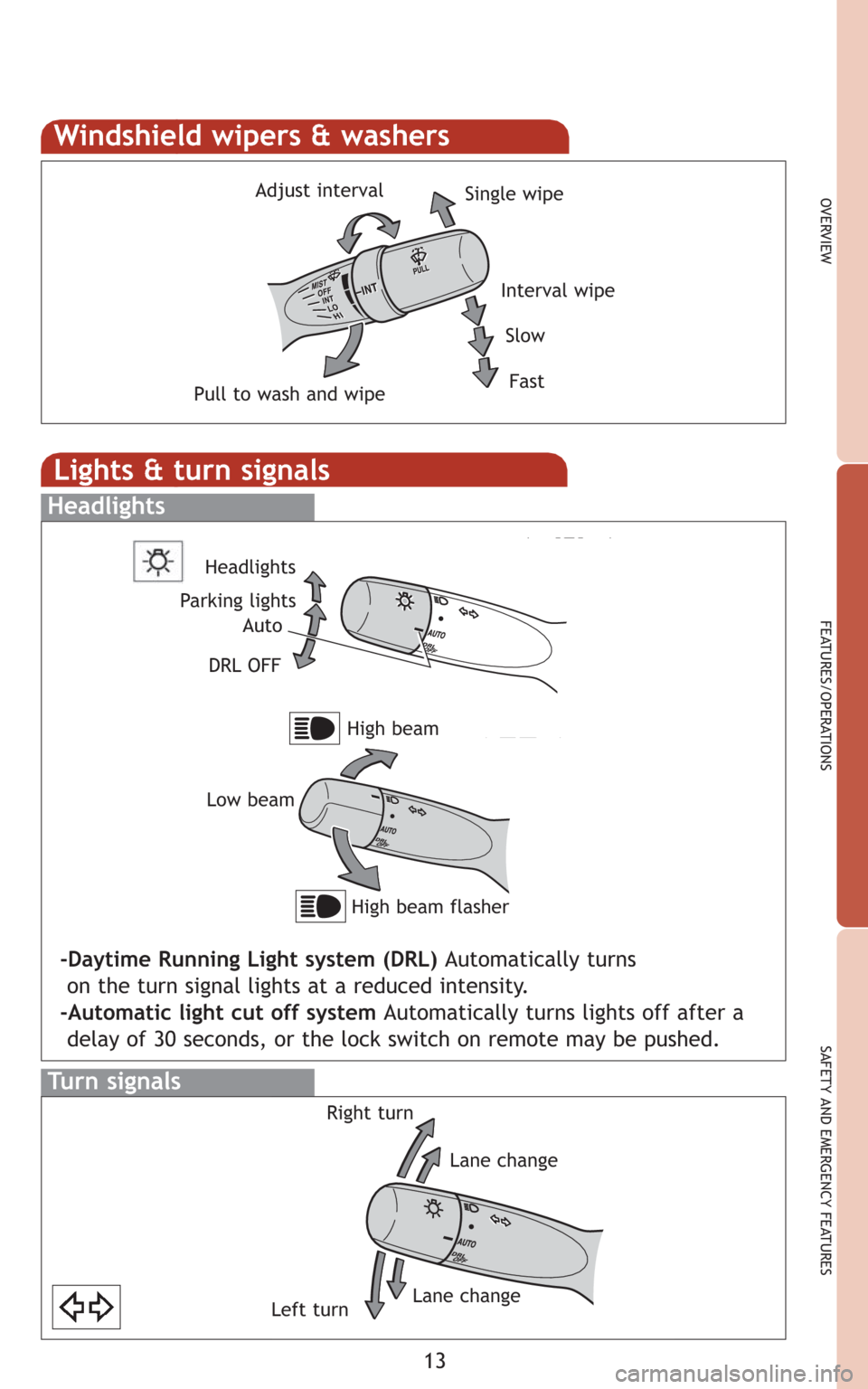

Windshield wipers & washers
Interval wipe
Single wipe
Slow
FastPull to wash and wipe
Adjust interval
Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam Headlights
-Daytime Running Light system (DRL) Automatically turns
on the turn signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed.
Parking lights
Right turn
Lane change
Lane change
Left turnHigh beam
Auto
DRL OFF

14
FEATURES/OPERATIONS
Seat adjustments-Front
Seatback angle
Position
Lumbar support (driver side only)
Position, cushion angle and height (driver side only)
Manual seatPower seat
Seats-Head restraints
Lock release button
Fold down Pull
Seats-Folding rear seats
