2008 TOYOTA 4RUNNER remove seats

46
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
3. SEAT LUMBAR SUPPORTADJUSTING SWITCH (driver’s seat
only)
Push the control switch on either side.
The amount of lumbar support will change
while the switch is pushed.

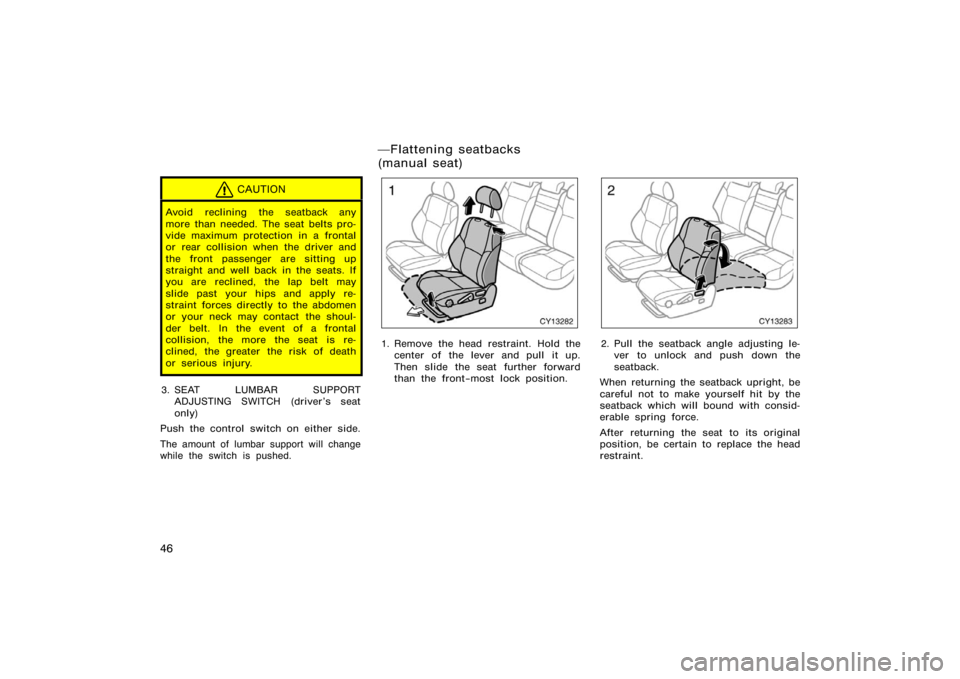

CY13282
1. Remove the head restraint. Hold the center of the lever and pull it up.
Then slide the seat further forward
than the front−most lock position.
CY13283
2. Pull the seatback angle adjusting le-ver to unlock and push down the
seatback.
When returning the seatback upright, be
careful not to make yourself hit by the
seatback which will bound with consid-
erable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
Flattening seatbacks
(manual seat)

56
CY13230
2. Make sure the shoulder belt passesthrough the hanger.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
CY13206
FOLDING UP THIRD SEATS 1. Lower the head restraint to the low- est position. Fold down the seatback
while pushing the seatback angle ad-
justing lever.
Folding up the third seats will enlarge the
luggage compartment. See Stowage
precautions" on page 365 in Section 2 for
precautions when loading luggage.
CY13207
2. Unlock the seat leg by pulling the handle behind the seat, and swing
the whole seat up and sideward.

57

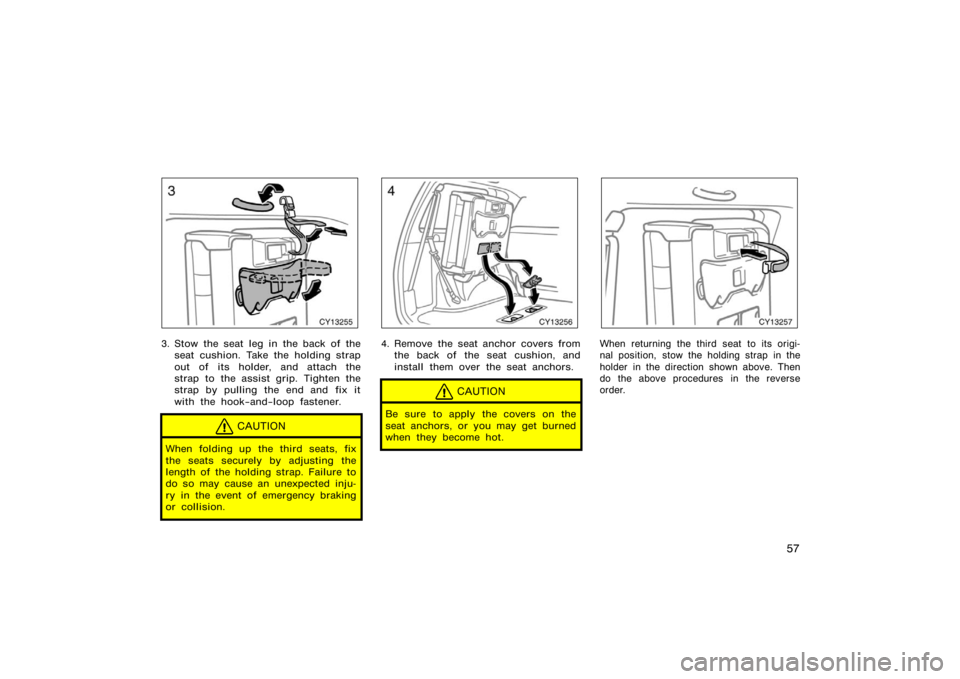

CY13255
3. Stow the seat leg in the back of theseat cushion. Take the holding strap
out of its holder, and attach the
strap to the assist grip. Tighten the
strap by pulling the end and fix it
with the hook−and−loop fastener.
CAUTION
When folding up the third seats, fix
the seats securely by adjusting the
length of the holding strap. Failure to
do so may cause an unexpected inju-
ry in the event of emergency braking
or collision.
CY13256
4. Remove the seat anchor covers fromthe back of the seat cushion, and
install them over the seat anchors.
CAUTION
Be sure to apply the covers on the
seat anchors, or you may get burned
when they become hot.
CY13257
When returning the third seat to its origi-
nal position, stow the holding strap in the
holder in the direction shown above. Then
do the above procedures in the reverse
order.

58
CAUTION
When folding up seats or returning
seats to their original positions, ob-
serve the following to prevent death
or serious injury:
Do not fold up or return the seat
while the vehicle is moving.
Be careful not to hit the seat
against a person or drop it on your-
self.
To prevent death or serious injury in
a collision or s udden stop:
Do not sit on or place anything on
the folded seatback while driving.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
CY13248
BEFORE REMOVING THIRD SEATS
1. Stow the third seat belt buckles as shown in the illustration.
This prevents the buckles from falling out
when you remove the third seats.
NOTICE
The seat belt buckles must be stowed
before you remove the third seats.
CY13230
2. Make sure the shoulder belt passes through the hanger.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
Removing third seats

59

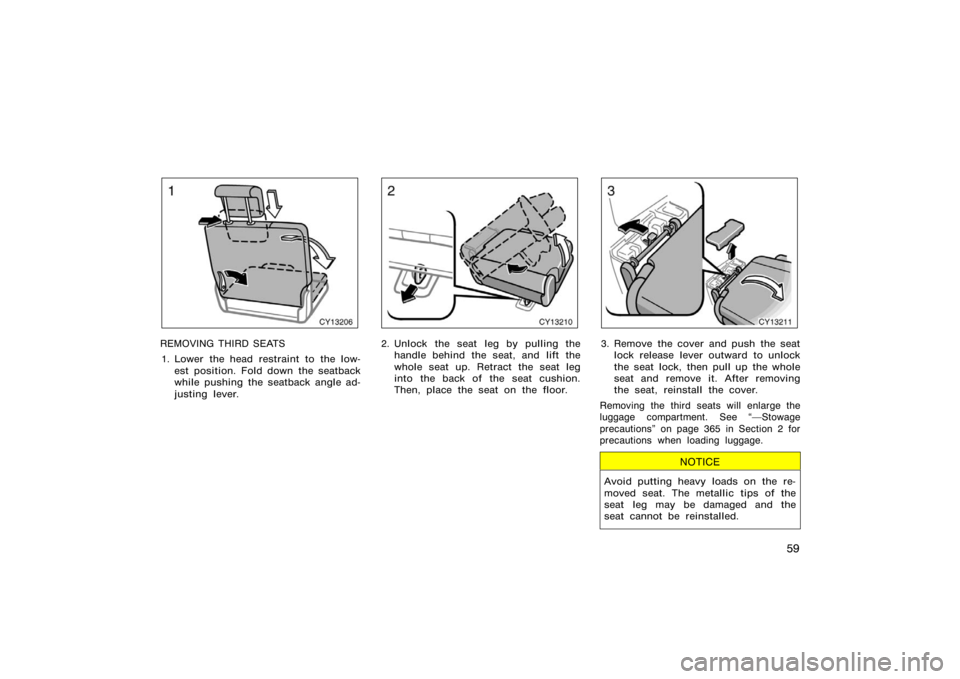

CY13206
REMOVING THIRD SEATS1. Lower the head restraint to the low- est position. Fold down the seatback
while pushing the seatback angle ad-
justing lever.
CY13210
2. Unlock the seat leg by pulling thehandle behind the seat, and lift the
whole seat up. Retract the seat leg
into the back of the seat cushion.
Then, place the seat on the floor.
CY13211
3. Remove the cover and push the seatlock release lever outward to unlock
the seat lock, then pull up the whole
seat and remove it. After removing
the seat, reinstall the cover.
Removing the third seats will enlarge the
luggage compartment. See Stowage
precautions" on page 365 in Section 2 for
precautions when loading luggage.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat leg may be damaged and the
seat cannot be reinstalled.

60

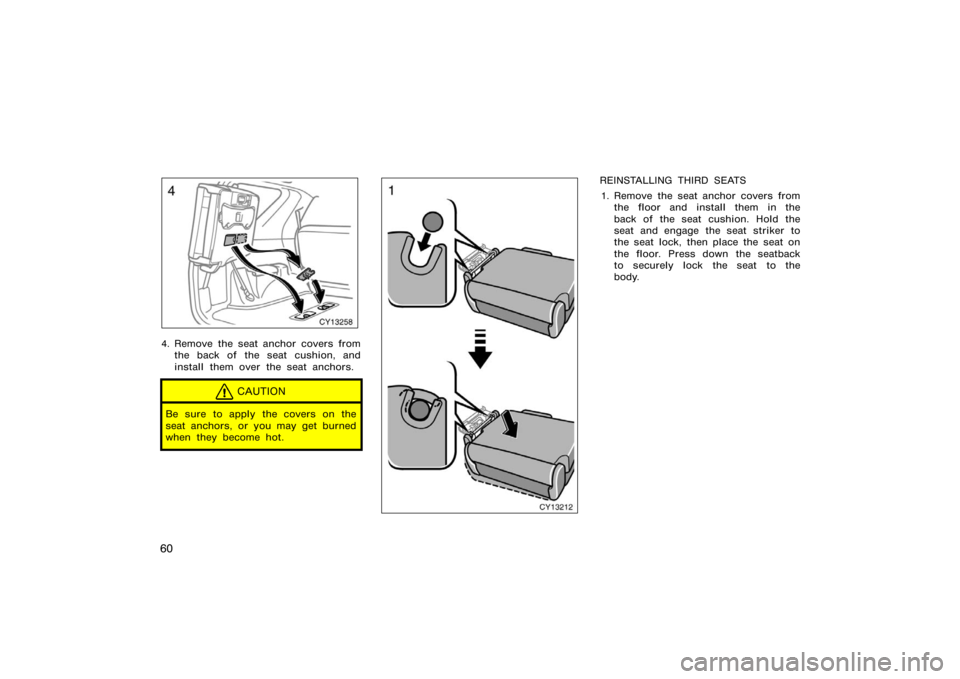

CY13258
4. Remove the seat anchor covers fromthe back of the seat cushion, and
install them over the seat anchors.
CAUTION
Be sure to apply the covers on the
seat anchors, or you may get burned
when they become hot.
CY13212
REINSTALLING THIRD SEATS
1. Remove the seat anchor covers from the floor and install them in the
back of the seat cushion. Hold the
seat and engage the seat striker to
the seat lock, then place the seat on
the floor. Press down the seatback
to securely lock the seat to the
body.

95
When it is unavoidable to install the
forward−facing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see Installation with seat
belt" on page 99 in this Section.)
Do not remove the front seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The front passenger occupant classifica-
tion indicator light may indicate ON" (the
front passenger airbag and side airbag on
the front passenger seat may deploy)
even if observing the above cautions,
when a child sits in, or a forward−facing
child restraint system is installed on the
front passenger seat. Refer to all the cau-
tions in SRS airbags" on page 74 and
Child restraint" on page 96 in this Sec-
tion.

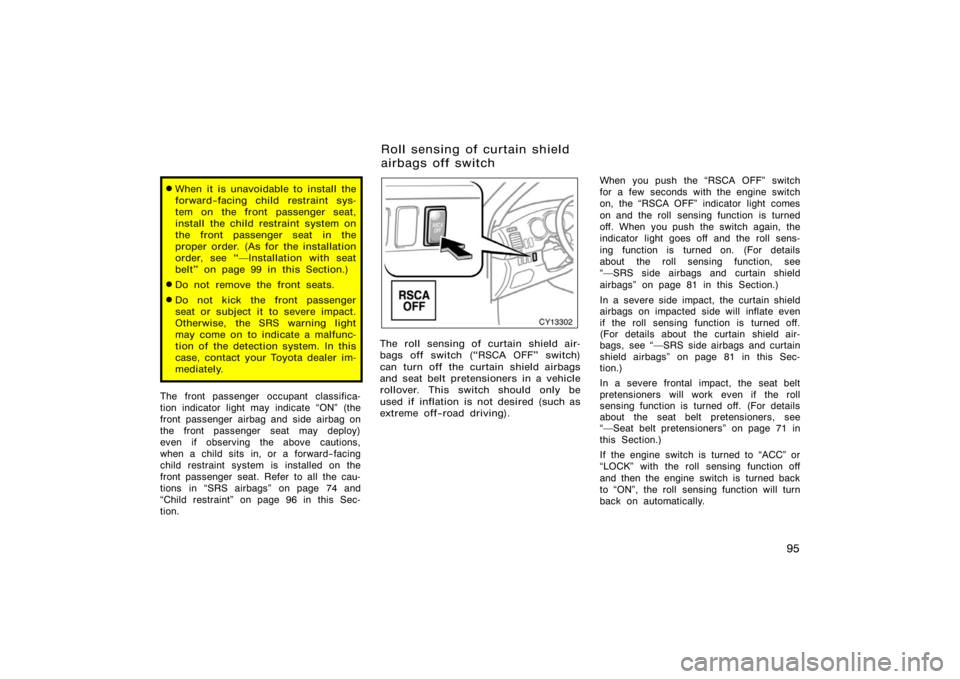

CY13302
The roll sensing of curtain shield air-
bags off switch (RSCA OFF" switch)
can turn off the curtain shield airbags
and seat belt pretensioners in a vehicle
rollover. This switch should only be
used if inflation is not desired (such as
extreme off−road driving).When you push the RSCA OFF" switch
for a few seconds with the engine switch
on, the RSCA OFF" indicator light comes
on and the roll sensing function is turned
off. When you push the switch again, the
indicator light goes off and the roll sens-
ing function is turned on. (For details
about the roll sensing function, see
SRS side airbags and curtain shield
airbags" on page 81 in this Section.)
In a severe side impact, the curtain shield
airbags on impacted side will inflate even
if the roll sensing function is turned off.
(For details about the curtain shield air-
bags, see SRS side airbags and curtain
shield airbags" on page 81 in this Sec-
tion.)
In a severe frontal impact, the seat belt
pretensioners will work even if the roll
sensing function is turned off. (For details
about the seat belt pretensioners, see
Seat belt pretensioners" on page 71 in
this Section.)
If the engine switch is turned to ACC" or
LOCK" with the roll sensing function off
and then the engine switch is turned back
to ON", the roll sensing function will turn
back on automatically.
Roll sensing of curtain shield
airbags off switch

109
CY13118
To remove the booster seat:
Press the buckle release button and allow
the belt to retract.
CY13306
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
CY13307
Symbol
Anchor brackets
Use the anchor brackets behind the rear
seatbacks to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of the
anchor brackets.
 U sin g a to p st rap
(vehicles without third seats)
