2008 SUZUKI GRAND VITARA change time

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
The following table shows the times when
you should perform regular maintena.nce on your vehicle. This table shows In miles,
kilometers and months when you should perform inspections, adjustments, lubrica­tion and other services. These intervals
should be shortened if driving is usually done under severe conditions (refer to "Maintenance Recommended under Severe Driving Conditions").
A WARNING
SUZUKI recommends that mainte­
nance on items marked with an aster­
isk (*) be performed by your authorized SUZUKI dealer or a quali­fied service technician. If you are qualified, you may perform mainte­
nance on the unmarked items by
referring
to the instructions in this section. If you are not sure whether
you can successfully complete any of the unmarked maintenance jobs, ask your authorized SUZUKI dealer to do the maintenance for you.
CAUTION
Whenever it becomes necessary to replace parts on your vehicle, it is
recommended that you use genuine SUZUKI replacement parts or their equivalent.
Periodic Maintenance
Schedule
"R" : Replace or Change "I" : Inspect, clean, adjust, lubricate or replace as necessary "L" : Lubricate
NOTE:
• Class 1: Gasoline engine with air fuel ratio sensor and/or oxygen sensor
• Class 2: F9Q diesel engine
(1)
(2)
(1) Air fuel ratio sensor (2) Oxygen sensor
EXAMPLE
64J150
INSPECTION AND MAINTENANCE
NOTE: This table includes services as scheduled up to 90000 km (54000 miles) mileage.
Beyond 90000 km (54000 miles), carry out the same services at the same intervals
respectively.
7-2

Downloaded from www.Manualslib.com manuals search engine Severe Condition Code Maintenance
Air
cleaner filter element --C -- -- -(Inspect or replace more frequently if necessary.)
- - - - --G -Fuel filter (Diesel engine)
(Change each time water is detected.)
-B - -E - -H Automatic transmission fluid change
-B - - - - - -Suspension bolts and ·nuts
-B C D - - -H Wheel bearings
-B -D E - -H Drive shafts and Propeller shafts
B E H Manual transmission oilfTransfer oil - - - - -Differential oil
Air conditioner filter element (if equipped) . - -C D -
-- -(Clean more frequently if the air flow from the air
conditioner decreases.)
NOTE: I - Inspect, clean, adjust, lubricate or replace as necessary
R - Replace or change
T - Tighten to the specified torque
INSPECTION AND MAINTENANCE
Maintenance
Operation Maintenance Interval
I
Every 2500 km (1500 miles)
R Every 30000 km (18000 miles)
. or 24 months
R Every 5000 km (3000 miles)
R Every 30000 km (18000 miles) or 24 months
T Every 15000 km (9000 miles) or 12 months
I Every 15000 km (9000 miles) or 12 months
I Every ~ 5000 km (9000 miles) or 12 months
Firsttime only:
15000 km (9000 miles) or 12 months .
R Second time and after:
Every 30000 km (18000 miles) or 24 months reckoning from 0 km (0 mile) or 0 month
I Every 15000 km (9000 miles) or 12 months .
R Every 45000 km (27000 miles) or 36 months
7-6

Downloaded from www.Manualslib.com manuals search engine INSPECTION AND MAINTENANCE
the oil level reaches the bottom of the Clutch Pedal filler hole, then reinstall the plug.
.A WARNING
After driving the vehicle, the gear oil
temperature may be high enough to
burn you. Wait until the oil filler
plug is cool enough to touch with your W\\N bare hands before inspecting gear
oil.
CAUTION
When tightening the plug, apply seal­ing compound "SUZUKI Bond No. 1215" or equivalent to the plug threads to prevent oil leakage.
Gear Oil Change To change the gear oil in the manual trans­mission, transfer case or differential(s), use
the following procedure:
1) Remove the oil filler plug (1). 2) Remove the drain plug (2), drain the oil, and reinstall the drain plug. 3) Pour new gear oil of the specified 'type
through the filler hole until the oil level reaches the bottom of the filler hole. 4) Reinstall the filler plug.
7-21
64J154
Check the clutch pedal for smooth opera­tion and clutch fluid level from time to time. If clutch dragging is felt with the pedal fully depressed, have the clutch inspected by
your SUZUKI dealer. If the clutch fluid level is near the "MIN" line, fill it up to the "MAX"
line with SAE J1703 or DOT-3 brake fluid.
Automatic Transmission (AT)
Fluid
Specified Fluid Use an automatic transmission fluid
SUZUKI ATF 3317 or Mobil ATF 3309.
Fluid Level Check
CAUTION
Driving with too much or too little
fluid can damage the transmission.
You must check the fluid level with the
automatic transmission fluid at normal operating temperature.
To check the fluid level: 1) To warm up the transmission fluid, drive
the vehicle or idle the engine until the
temperature gauge indicates normal operating temperature. 2) Then drive for ten more minutes.
CAUTION
Be sure to use the specified auto­matic transmission fluid. Using auto­matic transmission fluid other than SUZUKI ATF 3317 or Mobil ATF 3309 may damage the automatic transmis­sion of your vehicle.

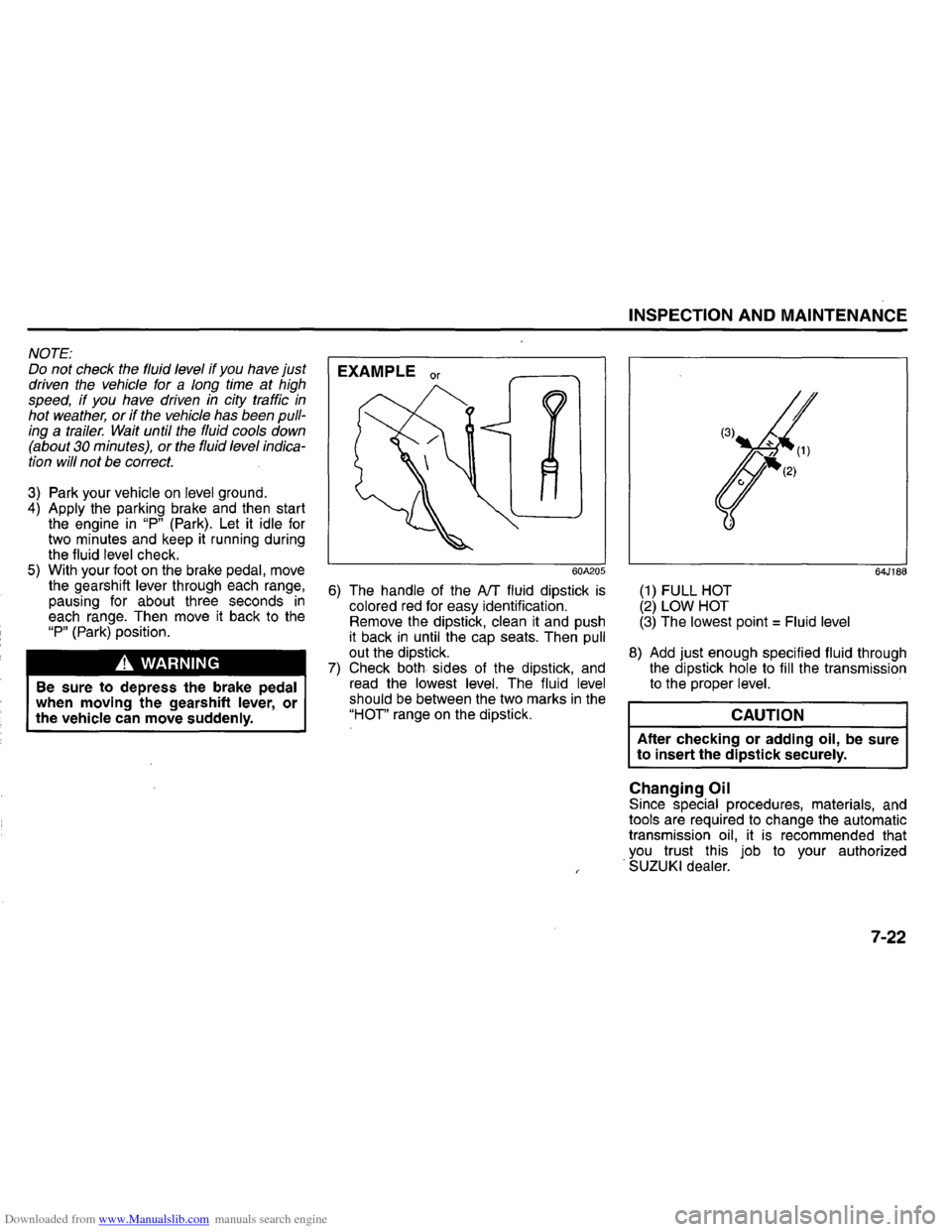

Downloaded from www.Manualslib.com manuals search engine NOTE: Do not check the fluid level if you have just driven the vehicle for a long time at high
speed, if you have driven in city traffic in hot weather, or if the vehicle has been pull­
ing a trailer. Wait until the fluid cools down
(about
30 minutes), or the fluid level indica­
tion will not be correct.
3} Park your vehicle on level ground. 4} Apply the parking brake and then start
the engine in "P" (Park). Let it idle for two minutes and keep it running during
the fluid level check. . 5} With your foot on the brake pedal, move the gearshift lever through each range,
pausing for about three seconds in each range. Then move it back to the "P" (Park) position.
A. WARNING
Be sure to depress the brake pedal
when moving the gearshift lever, or the vehicle can move suddenly.
EXAMPLE or
60A205
6} The handle of the AfT fluid dipstick is colored red for easy identification.
Remove the dipstick, clean it and push it back in until the cap seats. Then pull out the dipstick. 7} Check both sides of the dipstick, and read the lowest level. The fluid level should be between the two marks in the "HOT' range on the dipstick.
INSPECTION AND MAINTENANCE
(3)
I?
~ (1)
(2) Co
(1) FULL HOT (2) LOW HOT (3) The lowest point = Fluid level
64J188
8} Add just enough specified fluid through the dipstick hole to fill the transmission to the proper level.
CAUTION
After checking or adding oil, be sure to insert the dipstick securely.
Changing Oil Since special procedures, materials, and tools are required to change the automatic
transmission oil, it is recommended that you trust this job to your authorized . SUZUKI dealer.
7-22
