2008 SUBARU TRIBECA light

11-50
Maintenance and service
2. Pull the bulb out of the socket. Install a
new bulb.
3. Reinstall the lens.&Door step lightIt may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.

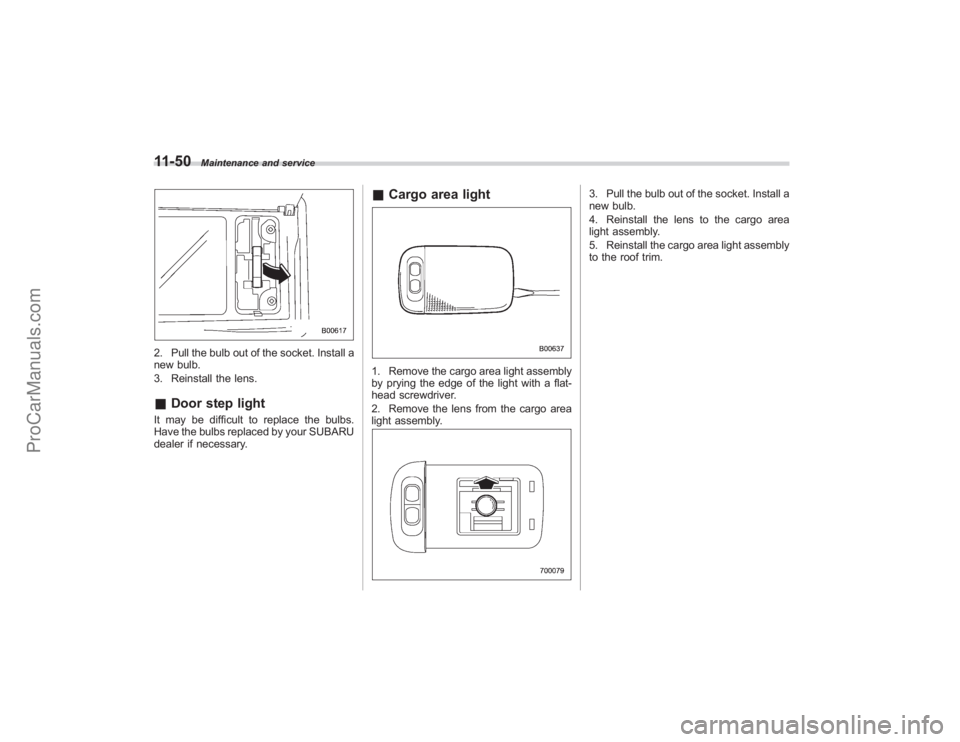

&Cargo area light1. Remove the cargo area light assembly
by prying the edge of the light with a flat-
head screwdriver.
2. Remove the lens from the cargo area
light assembly.
3. Pull the bulb out of the socket. Install a
new bulb.
4. Reinstall the lens to the cargo area
light assembly.
5. Reinstall the cargo area light assembly
to the roof trim.
ProCarManuals.com

Fuses and circuits&Fuse panel located in the passenger compartment

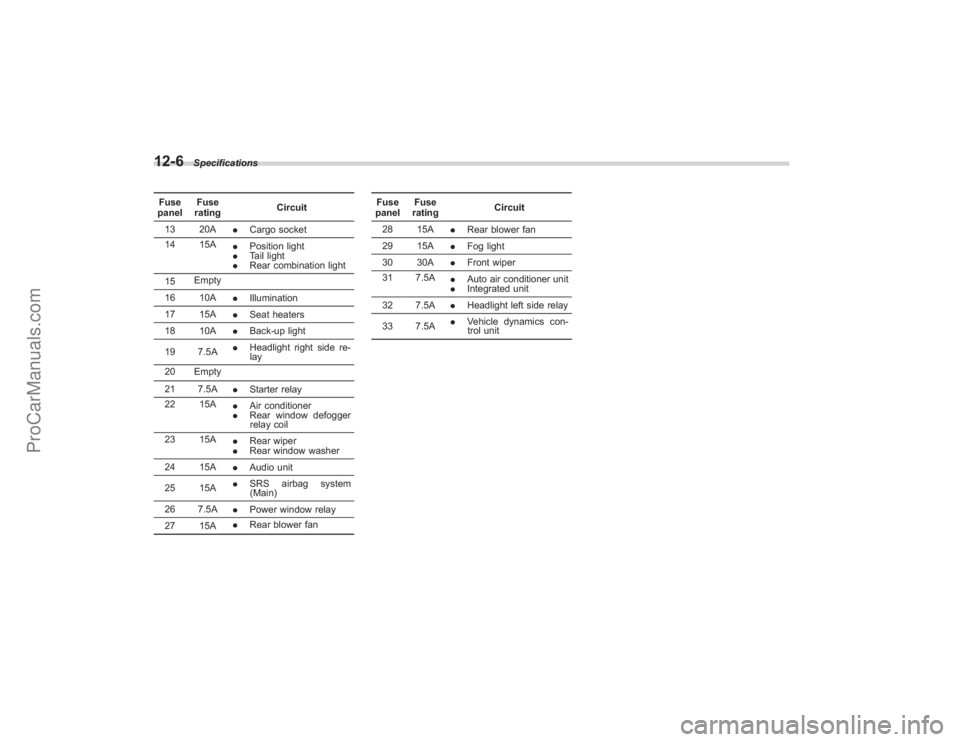

Fuse
panel Fuse
rating Circuit
1 20A .Trailer hitch connector
2 Empty
3 15A .Door locking
4 7.5A .Front wiper deicer relay
. Moonroof
5 7.5A .Combination meter
6 7.5A .Remote control rear
view mirrors
. Seat heater relay
7 15A .Combination meter
. Integrated unit
8 15A .Stop light
9 20A .Mirror heater
. Front wiper deicer
10 7.5A .Power supply (Battery)
11 7.5A .Turn signal unit
12 15A .Automatic transmission
unit
. SRS airbag system
(Sub)
. Engine control unit
. Integrated unitSpecifications
12-5
–
CONTINUED –
ProCarManuals.com

12-6
Specifications
Fuse
panel Fuse
rating Circuit
13 20A .Cargo socket
14 15A .Position light
. Tail light
. Rear combination light
15 Empty
16 10A .Illumination
17 15A .Seat heaters
18 10A .Back-up light
19 7.5A .
Headlight right side re-
lay
20 Empty
21 7.5A .Starter relay
22 15A .Air conditioner
. Rear window defogger
relay coil
23 15A .Rear wiper
. Rear window washer
24 15A .Audio unit
25 15A .
SRS airbag system
(Main)
26 7.5A .Power window relay
27 15A .
Rear blower fan Fuse
panel Fuse
rating Circuit
28 15A .Rear blower fan
29 15A .Fog light
30 30A .Front wiper
31 7.5A .Auto air conditioner unit
. Integrated unit
32 7.5A .Headlight left side relay
33 7.5A .
Vehicle dynamics con-
trol unit
ProCarManuals.com

&Fuse panel located in the engine compartment
Fuse
panel Fuse
rating Circuit
1 30A .
Vehicle dynamics control
unit
2 20A .Console socket
3 15A .Headlight (right side)
4 15A .Headlight (left side)
5 20A .Backup
6 15A .Horn
7 25A .Rear window defogger
8 15A .Fuel pump
9 15A .
Automatic transmission
control unit
10 7.5A .Engine control unit
11 15A .
Turn and hazard warning
flasher
12 20A .Parking switch
13 7.5A .
AlternatorSpecifications
12-7
ProCarManuals.com

12-8
Specifications
Bulb chartDescriptionWattageBulb No.
High beam headlight 12V-65WHB3
Low beam headlight
Vehicles with HID light 12V-35WD1S
Vehicles without HID light 12V-55WH7
Fog light 12V-55WH3
Front turn signal/Parking light 12V-28/8W
2357NA
Parking/Front side marker light 12V-5W
168(W5W)
Rear combination light Rear turn signal light 12V-27W1156(W27W)
Brake/tail 12V-27/8W1157(W27/8W)
Tail light 12V-5W
168
Back-up light 12V-16W
921
License plate light 12V-5W
168(W5W)
Cargo area light 12V-13W
912
Dome light Vehicles with Rear Seat Entertainment 12V-5W
–
Vehicles without Rear Seat Entertainment 12V-8W
–
Map light 12V-8W
–
Vanity mirror light 12V-3W
–
Door step light 12V-3W
–
Rear gate light 12V-5W
(W5W)
ProCarManuals.com

13-2
Consumer information and Reporting safety defects
For U.S.A.The following information has been
compiled according to Code of
Federal Regulations“Title 49, Part
575 ”.
Tire information& Tire labelingMany markings (e.g. Tire size, Tire
Identification Number or TIN) are
placed on the sidewall of a tire by
tire manufacturers. These markings
can provide you with useful infor-
mation on the tire.! Tire sizeYour vehicle comes equipped with
P-Metric tire size. It is important to
understand the sizing system in
selecting the proper tire for your
vehicle. Here is a brief review of the
tire sizing system with a breakdown
of its individual elements.!P MetricWith the P-Metric system, Section
Width is measured in millimeters.
To convert millimeters into inches,
divide by 25.4. The Aspect Ratio
(Section Height divided by Section
Width) helps provide more dimen-
sional information about the tire
size.
Example:(1) P = Certain tire type used on
light duty vehicles such as passen-
ger cars
(2) Section Width in millimeters
(3) Aspect Ratio (= section height
7 section width).
(4) R = Radial Construction
(5) Rim diameter in inches! Load and Speed Rating Descrip-
tionsThe load and speed rating descrip-
tions will appear following the size
designation.
They provide two important facts
about the tire. First, the number
designation is its load index. Sec-
ond, the letter designation indicates
the tire ’s speed rating.
ProCarManuals.com
