Instruments and Indicator/Warning Lights10
Avoid high engine speeds during the driving time and always if the engine has not yet reached its operating temperature ⇒page 159.
Caution
The needle of the revolutions counter must on no account move into the red zone of the scale - risk of engine damage!
For the sake of the environment
Shifting to a higher gear in good time helps to reduce the fuel consumption, mini-mises operating noise levels, protects the environment and contributes to a longer life and reliability of the engine.
Coolant temperature gauge*
The coolant temperature gauge ⇒page 9, fig. 2 operates only when the ignition is switched on.
In order to avoid any damage to the engine, please pay attention to the following notes regarding the temperature ranges:
Cold range
If the pointer is in the left-hand area of the scale* it means that the engine has not yet reached its operating temperature. Avoid running at high engine speeds, at full throttle and at severe engine loads.
The operating range
The engine has reached its operating temperature as soon as the pointer moves into the mid-range of the scale*. The pointer may also move further to the right at high engine loads and high outside temperatures. This is not critical provided the warning symbol  in the instrument cluster does not flash.
If the symbol  in the instrument cluster flashes it means that either the coolant temperature is too high or the coolant level is too low. Observe the guidelines ⇒page 24, “Coolant temperature/coolant level ”.
WARNING
Pay attention to the warning notes ⇒page 181, “Working in the engine compartment” before opening the bonnet and inspecting the coolant level.
Caution
Additional headlights and other attached components in front of the fresh air inlet impair the cooling efficiency of the coolant. There is then a risk of the engine over-heating at high outside temperatures and high engine loads!
Fuel gauge
The fuel gauge ⇒page 9, fig. 2 only operates when the ignition is switched on.
The fuel tank has a capacity of about 45 litres. The warning symbol  in the instru-ment cluster lights up when the pointer reaches the reserve marking. There are now about 7 litres of fuel remaining in the tank. This symbol is a reminder for you, that you must refuel.
The following will be displayed in the information display*:
PLEASE REFUEL
A peep sounds as an additional warning signal.
Caution
Never run the fuel tank completely empty! An irregular fuel supply can result in poor ignition or misfiring. Unburnt fuel may get into the exhaust system and damage the catalytic converter.
A4
A7
NKO A05F 20.book Page 10 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage74
Attachment points
Fitting
– Insert the attachment points of the roof rack into the mounts of the
body so that the pins of the attachment points grasp into the holes of
the body.
Note
•Pay attention to the information regarding assembly and disassembly in the attached instructions.
•If you have any questions, please contact a specialist garage.
Roof load
Distribute weight evenly over the roof luggage rack system. The maximum permis-sible roof load (including roof rack system) of 75 kg and the maximum permissible total weight of the vehicle should not be exceeded.
You cannot make full use of the permissible roof load if you use a roof luggage rack system with a lower load carrying capacity. The load transported on the roof luggage rack system must not exceed the weight limit which is stated in the fitting instructions.
WARNING
•The items which you transport on the roof bar system must be reliably attached - risk of accident!
•You must on no account exceed the permissible roof load, the permis-sible axle loads and the permissible gross weight of your vehicle - risk of accident!
•Please note that the handling properties of your vehicle change when you transport heavy or bulky items on the roof bar system as a result of the displacement of the centre of gravity and the increased wind attack area - risk of accident! You must absolutely adapt your style of driving and the speed of the vehicle to the specific circumstances.
Front cup holder
You can place two cups or beverage cans into the recesses ⇒fig. 86.
WARNING
•Do not place any hot beverages into the cup holder. If the vehicle moves, the hot beverages may spill - risk of scalding!
Fig. 85 Attachment points for base roof carrier
Fig. 86 Front centre console: Cup holder
NKO A05F 20.book Page 74 Wednesday, April 2, 2008 1:02 PM

Technical Data223
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Technical Data
Technical Data
General information
The details given in the official vehicle registration documents always take prece-dence over the details in the Owner's Manual. Please refer to the official vehicle registration documents or consult your Škoda Service Partner concerning the engine with which your vehicle is equipped.
Used abbreviations
Performances
The listed performance values were determined without performance-reducing equipment, e.g. air conditioning system.
Weight
The loading capacity is reduced in line with the range of the special equipment. The unloaden weight contains a fuel tank topped up to 90%. A driver with a weight of 75 kg is also included in the value.
Identification details
Vehicle data sticker
The vehicle data sticker ⇒fig. 209 is located on the floor of the luggage compart-ment and is also stated in the Service schedule.
The vehicle data sticker contains the following data:
Vehicle identification number (VIN)
Vehicle type
AbbreviationImportance
kWKilowatt, measuring unit for the engine output
rpmEngine revolutions per minute
NmNewton meter, measuring unit for the engine torque
CO2 in g/kmdischarged quantity of carbon dioxide in grams per driven kilom-eter
RONResearch octane number, measuring unit for the knocking resist-ance of petrol
DPFDiesel particle filter
M55-speed manual gearbox
AG66-speed automatic gearbox
Fig. 209 Vehicle data sticker
A1
A2
NKO A05F 20.book Page 223 Wednesday, April 2, 2008 1:02 PM

Technical Data227
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare45/7
Reservoir for windscreen washer system/ with headlight cleaning system2/4,5
Engine oila)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 184.
3,0
Cooling system of the vehicle5,5
FA B I ACOMBI
Permissible gross weight15551580
Unloaden weight ready for work10401065
Loading capacity515515
Loading capacity when using the TLC465465
Permissible front axle load820920
Permissible rear axle load840840
Permissible trailer load, trailer braked/unbraked800/500a)
900/500b)
a)Uphills up to 12%b)Uphills up to 8%
775/450a)
875/450b)
NKO A05F 20.book Page 227 Wednesday, April 2, 2008 1:02 PM

Technical Data229
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare45/7
Reservoir for windscreen washer system/ with headlight cleaning system2/4,5
Engine oila)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 184.
3,0
Cooling system of the vehicle5,5
FA B I ACOMBI
Permissible gross weight15651585
Unloaden weight ready for work10501070
Loading capacity515515
Loading capacity when using the TLC465465
Permissible front axle load920920
Permissible rear axle load840840
Permissible trailer load, trailer braked/unbraked(800/500)a)
(900/500)b)
a)Uphills up to 12%b)Uphills up to 8%
(800/450)a)
(900/450)b)
NKO A05F 20.book Page 229 Wednesday, April 2, 2008 1:02 PM

Technical Data231
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare45/7
Reservoir for windscreen washer system/ with headlight cleaning system2/4,5
Engine oila)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 184.
3,2
Cooling system of the vehicle5,5
FA B I ACOMBI
Permissible gross weight15751590
Unloaden weight ready for work10601075
Loading capacity515515
Loading capacity when using the TLC465465
Permissible front axle load920920
Permissible rear axle load840840
Permissible trailer load, trailer braked/unbraked(1000/500)a)
(1200/500)b)
a)Uphills up to 12%b)Uphills up to 8%
(1000/450)a)
(1200/450)b)
NKO A05F 20.book Page 231 Wednesday, April 2, 2008 1:02 PM

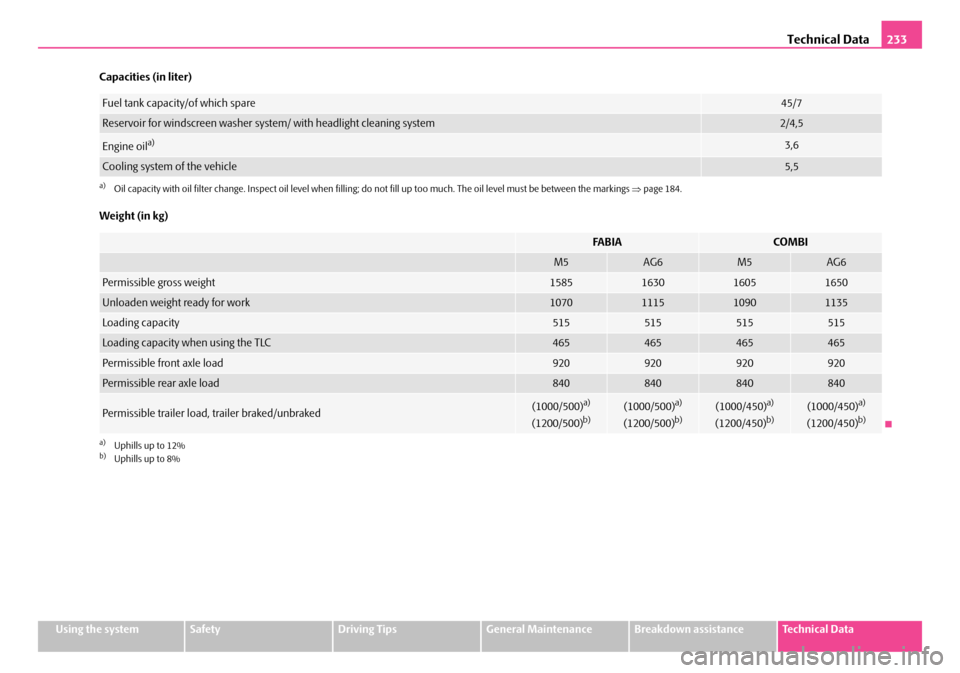

Technical Data233
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare45/7
Reservoir for windscreen washer system/ with headlight cleaning system2/4,5
Engine oila)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 184.
3,6
Cooling system of the vehicle5,5
FA B I ACOMBI
M5AG6M5AG6
Permissible gross weight1585163016051650
Unloaden weight ready for work1070111510901135
Loading capacity515515515515
Loading capacity when using the TLC465465465465
Permissible front axle load920920920920
Permissible rear axle load840840840840
Permissible trailer load, trailer braked/unbraked(1000/500)a)
(1200/500)b)
a)Uphills up to 12%b)Uphills up to 8%
(1000/500)a)
(1200/500)b)(1000/450)a)
(1200/450)b)(1000/450)a)
(1200/450)b)
NKO A05F 20.book Page 233 Wednesday, April 2, 2008 1:02 PM

Technical Data235
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare45/7
Reservoir for windscreen washer system/ with headlight cleaning system2/4,5
Engine oila)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 184.
3,8
Cooling system of the vehicle6,2
FA B I ACOMBI
Permissible gross weight16401660
Unloaden weight ready for work11251145
Loading capacity515515
Loading capacity when using the TLC465465
Permissible front axle load920920
Permissible rear axle load840840
Permissible trailer load, trailer braked/unbraked(900/500)a)
(1100/500)b)
a)Uphills up to 12%b)Uphills up to 8%
(900/450)a)
(1100/450)b)
