2008 SKODA FABIA warning

Transporting children safely144
If this is not done, there is a risk of the child suffering severe or even fatal injuries if the front passenger airbag is deployed. In certain countries national legal provisions also require that the side or head passenger airbags be deactivated. When transporting a child on the front passenger seat, please comply with the appropriate national regulations regarding the use of child safety seats.
•If the front passenger airbag has been switched off by a specialist garage using the vehicle system tester, the side passenger airbag* remains switched on. In certain countries national legal provisions require that besides the front passenger airbag also the side or head passenger airbags are deacti-vated. Please comply with any differing national legal regulations regarding the use of child safety seats.
•If a child safety seat in which the child faces in the direction of travel is used on the front passenger seat, the front passenger seat must be moved back and to the top fully. Adjust the backrest to the vertical position.
•As soon as you no longer use the child safety seat on the front passenger seat, you should again have the front or the side passenger airbag activated.
Child safety and side airbag*
Children must never be seated in the deployment area of the side
airbags and head airbags.
Side airbags* offer the vehicle occupants enhanced protection in the event of a collision from the side.
The side airbags are inflated in fractions of a second in order to be able to provide this protection ⇒page 136, “Function of the side airbags”.
An airbag inflating develops such a strong force that an occupant who has not adopted a correct seated position may suffer injuries. Also exposed objects which are located within the area of the side airbag can cause injuries.
This applies particularly to children if they are not transported in accordance with legal requirements.
The child is protected when seated in a child safety seat matching its age. Adequate room is available between the child and the deployment area of the side airbag and head airbag. The airbag offers optimal protection.
WARNING
•It is essential to always switch off ⇒page 139 the front passenger airbag when attaching a child safety seat on the front passenger seat where the child is seated with its back facing in direction of travel (in some countries also when the child is facing the direction of travel). If this is not done, there is a risk of the child suffering severe or even fatal injuries if the front passenger airbag is deployed. In certain countries national legal provisions also require that the side or head passenger airbags be deactivated. When
WARNING (continued)
Fig. 148 Seated position of an unprotected child at risk from side airbag
Fig. 149 Child properly protected by safety seat
NKO A05F 20.book Page 144 Wednesday, April 2, 2008 1:02 PM

Transporting children safely145
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
transporting a child on the front passenger seat, please comply with the appropriate national regulations regarding the use of child safety seats.
•When transporting a child on the front passenger seat, please comply with the appropriate national regulations regarding the use of child safety seats.
•Children must never be seated with their head in the deployment area of the side airbag - risk of injury!
•Do not place any objects within the deployment area of the side airbag - risk of injury!
Child seat
Classification of child seats into groups
Only child safety seats which have an official approval and are suit-
able for the child, may be used.
ECE-R 44 standard applies to child safety seats. ECE-R means: Economic Commis-sion of Europe - Regulation.
Child safety seats which have been tested for conformity with ECE-R 44 have a non-detachable test seal (a large E within a circle and below this the test number) attached to the seat.
Child safety seats are classified in 5 groups:
Children of more than 150 cm in height may use the seat belts fitted to the vehicle without a seat bolster.
Use of child seats
An overview of the usefulness of child seats on each of the seats according to the EG guidelines 77/541 and ECE 44 standard:
Universal category - seat is suitable for all approved types of child safety seats.
The seat can be fitted with fixing eyes for the “ISOFIX*”system.
The seat is equipped as standard with the fixing system “To p Te t h e r”.
Child seats of group 0/0+
GroupWeight
00 - 10 kg⇒page 145
0+up to 13 kg⇒page 145
19 - 18 kg⇒page 146
215 - 25 kg⇒page 147
322 - 36 kg⇒page 147
WARNING (continued)
Child seat groupsFront passenger seatRear seat outsideRear seat middle
0
0+
1
2 and 3
AUAUA+ATAU
AUAUA+ATAU
AUAUA+ATAU
AUAUAU
AU
A+
AT
Fig. 150 Child seats of group 0/0+
NKO A05F 20.book Page 145 Wednesday, April 2, 2008 1:02 PM

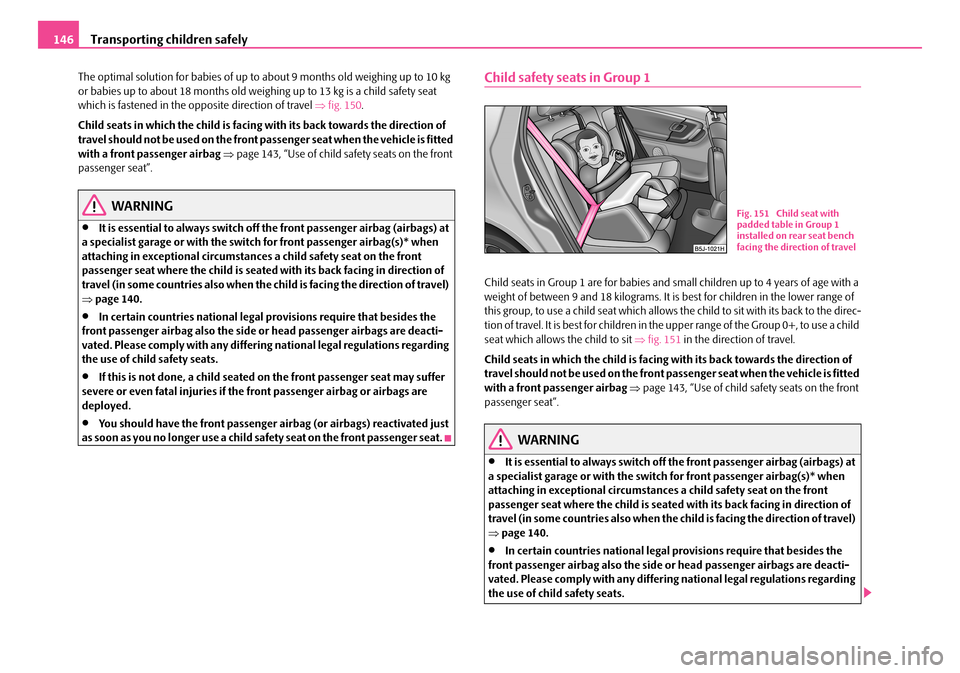

Transporting children safely146
The optimal solution for babies of up to about 9 months old weighing up to 10 kg or babies up to about 18 months old weighing up to 13 kg is a child safety seat which is fastened in the opposite direction of travel ⇒fig. 150.
Child seats in which the child is facing with its back towards the direction of travel should not be used on the front passenger seat when the vehicle is fitted with a front passenger airbag ⇒page 143, “Use of child safety seats on the front passenger seat”.
WARNING
•It is essential to always switch off the front passenger airbag (airbags) at a specialist garage or with the switch for front passenger airbag(s)* when attaching in exceptional circumstances a child safety seat on the front passenger seat where the child is seated with its back facing in direction of travel (in some countries also when the child is facing the direction of travel) ⇒page 140.
•In certain countries national legal provisions require that besides the front passenger airbag also the side or head passenger airbags are deacti-vated. Please comply with any differing national legal regulations regarding the use of child safety seats.
•If this is not done, a child seated on the front passenger seat may suffer severe or even fatal injuries if the front passenger airbag or airbags are deployed.
•You should have the front passenger airbag (or airbags) reactivated just as soon as you no longer use a child safety seat on the front passenger seat.
Child safety seats in Group 1
Child seats in Group 1 are for babies and small children up to 4 years of age with a weight of between 9 and 18 kilograms. It is best for children in the lower range of this group, to use a child seat which allows the child to sit with its back to the direc-tion of travel. It is best for children in the upper range of the Group 0+, to use a child seat which allows the child to sit ⇒fig. 151 in the direction of travel.
Child seats in which the child is facing with its back towards the direction of travel should not be used on the front passenger seat when the vehicle is fitted with a front passenger airbag ⇒page 143, “Use of child safety seats on the front passenger seat”.
WARNING
•It is essential to always switch off the front passenger airbag (airbags) at a specialist garage or with the switch for front passenger airbag(s)* when attaching in exceptional circumstances a child safety seat on the front passenger seat where the child is seated with its back facing in direction of travel (in some countries also when the child is facing the direction of travel) ⇒page 140.
•In certain countries national legal provisions require that besides the front passenger airbag also the side or head passenger airbags are deacti-vated. Please comply with any differing national legal regulations regarding the use of child safety seats.
Fig. 151 Child seat with padded table in Group 1 installed on rear seat bench facing the direction of travel
NKO A05F 20.book Page 146 Wednesday, April 2, 2008 1:02 PM

Transporting children safely147
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•If this is not done, a child seated on the front passenger seat may suffer severe or even fatal injuries if the front passenger airbag or airbags are deployed.
•You should have the front passenger airbag (or airbags) reactivated just as soon as you no longer use a child safety seat on the front passenger seat.
Child safety seats in Group 2
For children up to about 7 years of age weighing between 15 and 25 kg the optimal solution is a child safety seat in combination with the three-point seat belt ⇒fig. 152.
WARNING
•When transporting a child on the front passenger seat, please comply with the appropriate national regulations regarding the use of child safety seats. Switch off the front passenger airbag if necessary at a specialist garage or switch it off with the switch for front passenger airbag* ⇒page 140.
•The shoulder part of the seat belt must run approximately across the middle of the shoulder and fit snugly against the chest. It must on no account run across the neck. The lap part of the seat belt must run across the pelvis
and fits snugly; it must not run over the belly. Tighten the belt webbing over your hip if necessary.
•Please comply with any differing national legal regulations regarding the use of child safety seats.
Child safety seats in Group 3
For children of about 7 years of age weighing between 22 and 36 kg and of a height of less than 150 cm, the optimal solution is a child safety seat (seat bolster) in combination with the three-point seat belt ⇒fig. 153.
Children of more than 150 cm in height may use the seat belts fitted to the vehicle without a seat bolster.
WARNING
•When transporting a child on the front passenger seat, please comply with the appropriate national regulations regarding the use of child safety seats. Switch off the front passenger airbag if necessary at a specialist garage or switch it off with the switch for front passenger airbag* ⇒page 140.
•The shoulder part of the seat belt must run approximately across the middle of the shoulder and fit snugly against the chest. It must on no account
WARNING (continued)
Fig. 152 Child seat in Group 2 installed on the rear seat facing the direction of travel
WARNING (continued)
Fig. 153 Child seat in Group 3 installed on the rear seat facing the direction of travel
NKO A05F 20.book Page 147 Wednesday, April 2, 2008 1:02 PM

Transporting children safely148
run across the neck. The lap part of the seat belt must run across the pelvis and fits snugly; it must not run over the belly. Tighten the belt webbing over your hip if necessary.
•Please comply with any differing national legal regulations regarding the use of child safety seats.
Attaching a child seat using the “ISOFIX” system*
There are two fixing eyes between the backrest and the seat itself on both
of the outer rear seats for fixing the “ISOFIX” system child seat in place.
– Insert the mounting funnels onto the locking eyes between the
backrest and seat cushion ⇒fig. 154.
– Push the notched arms of the child seat over the mounting funnels
into the locking eyes, until it is heard to lock ⇒fig. 155.
–Pull on both sides of the child seat!
One can mount a child safety seat using the “ISOFIX” system quickly, easily and reli-ably. Please pay close attention to instructions from the manufacturer of the child safety seat when installing and removing the seat.
Child seats fitted with the “ISOFIX” clamping system can only be mounted and fixed in a vehicle fitted with an “ISOFIX system” when these child seats have been released for your type of vehicle according to the ECE-R 44 standard.
You can purchase child seats with the “ISOFIX” attachment system from Škoda Service Partners who will install it as well.
Complete installation instructions are enclosed with the child safety seat.
WARNING
•The locking eyes have just been developed for child safety seats which use the “ISOFIX” system. You should therefore never attach other child safety seats, seat belts or objects to the locking eyes - hazard!
•Ask a Škoda Service Partner whether a child seat which you bought for another vehicle is recommended for use in a Škoda before using an “ISOFIX” system.
•Certain child seats which use the “ISOFIX” system can be attached with standard three-point seat belts. Please pay close attention to instructions from the manufacturer of the child safety seat when installing and removing the seat.
Note
•Child seats which use the “ISOFIX” system are currently available for children weighing up to about 18 kg. This corresponds to an age range up to 4 years.
•The child seats can also be fitted with the “Top Tether” system ⇒page 149.
WARNING (continued)
B5J-1024HFig. 154 Locking eyes (ISOFIX system)
Fig. 155 The ISOFIX child seat is pushed into the mounting funnels
AAAB
NKO A05F 20.book Page 148 Wednesday, April 2, 2008 1:02 PM

Transporting children safely149
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Attaching child seat using the “Top Tether” system
On vehicles with divided rear seats* the seats are equipped with the attachment system “Top Tether” for enhancing the safety of the children when being trans-ported ⇒fig. 156.
On vehicles with non divided rear seats* the lashing eyes in the luggage compart-ment are used to fasten the child seats with the system “Top Tether” ⇒fig. 157.
Always perform the installation and removal as stated in the instructions from the manufacturer of the child seat.
WARNING
•Attach the child seats with the “Top Tether” system only to the points provided for this purpose ⇒fig. 156.
•On no account should you equip your vehicle, e.g. mount screws or other anchorage points.
•Pay attention to the important safety information regarding the use of child seats ⇒page 142.
Note
Store the remaining part of the belt for the “Top Tether” system in a textile pocket, which is located at the child seat.
Fig. 156 Rear seat: Top Te t h e r
Fig. 157 Fixing eyes in the luggage compartment
NKO A05F 20.book Page 149 Wednesday, April 2, 2008 1:02 PM

Intelligent Technology151
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Driving Tips
Intelligent Technology
Electronic stability programme (ESP)*
General
General
The ESP aids you maintain control of your vehicle in situations in borderline driving situations such as when negotiating a curve too fast. The risk of skidding is reduced and your car thus offers greater driving stability depending on the conditions of the road surface. This occurs at all speeds.
The following systems are integrated into the electronic stability programme:
•Electronic Differential Lock (EDL),
•Traction control system (TCS),
•Antilock brake system (ABS),
•Brake Assist.
Operating principle
The ESP switches on automatically when the engine is started and then conducts a self-test. The ESP control unit processes data from the individual systems. It also processes additional measurement data which are supplied by highly sensitive sensors: the rotational velocity of the vehicle about its vertical axis, the lateral accel-eration of the vehicle, the braking pressure and the steering angle.
The direction which the driver wishes to take is determined based on the steering angle and the speed of the vehicle and is constantly compared with the actual behaviour of the vehicle. If differences exist, such as the car beginning to skid, the ESP will automatically brake the appropriate wheel.
The car is stabilised again by the forces which take effect when the wheel is braked. Intervention into the brake system takes place primarily on the outer front wheel of a vehicle which tends to oversteer (tendency for the rear of the vehicle to break away) while occurs this is on the inner rear wheel of a vehicle which tends to under-steer (tendency to shift out of the curve). This braking control cycle is accompanied by noises.
The ESP operates in combination with the ABS ⇒page 155, “Antilock brake system (ABS)*”. If there is a fault in the ABS system, the ESP also does not operate.
The ESP warning light ⇒page 27 lights up in the instrument cluster when there is a fault on the ESP.
Switching off
You can switch the ESP off and on again as you wish, by pressing the button ⇒fig. 158. The ESP warning light ⇒page 27 lights up in the instrument cluster when the ESP is switched off.
The ESP should normally always be switched on. It may be good practice in certain exceptional cases, such as when you wish to have wheel slip, to switch off the system.
Examples:
Fig. 158 ESP switch
NKO A05F 20.book Page 151 Wednesday, April 2, 2008 1:02 PM

Intelligent Technology152
•when driving with snow chains,
•when driving in deep snow or on a loose surface,
•when it is necessary to rock a car free when it has become stuck.
then you should switch on the ESP again.
WARNING
It is also not possible for the ESP to overcome the physical limits of the vehicle. Even if a vehicle fitted with ESP you should still always adapt your style of driving to the condition of the road surface and the traffic situation. This particularly applies when driving on slippery and wet roads. The increased safety offered must not tempt you to take greater risks than other-wise - risk of an accident!
Note
•All four wheels must be fitted with the same tyres in order to achieve problem-free operation of the ESP. Differing rolling circumferences of the tyres can lead to an undesirable reduction in the engine output.
•Changes to vehicle (e.g. on engine, on the brakes, on chassis or other assign-ment of tyres and wheels) can influence the function of the ESP ⇒page 200, “Accessories, changes and replacement of parts”.
Traction control system (TCS)*
The traction control system prevents the driven wheels from spinning
when accelerating.
General
The TCS makes it much easier, and sometimes at all possible, to start off, accelerate and climb a steep hill when the conditions of the road surface are unfavourable.
Operating principle
The TCS switches on automatically when the engine is started and then conducts a self-test. The system monitors the speeds of the driven wheels with the aid of the ABS sensors. If the wheels are spinning, the force transmitted to the road surface is automatically adapted by reducing the engine speed. This occurs at all speeds.
The TCS operates in combination with the ABS ⇒page 155, “Antilock brake system (ABS)*”. The TCS will not function if a fault exists in the ABS system.
The TCS warning light ⇒page 26 lights up in the instrument cluster when there is a fault on the TCS.
Switching off
You can switch the TCS off and on again as you wish by pressing the button ⇒fig. 159. The TCS warning light ⇒page 26 lights up in the instrument cluster when the TCS is switched off.
Fig. 159 TCS switch
NKO A05F 20.book Page 152 Wednesday, April 2, 2008 1:02 PM
