Lights and visibility
114•
If you have to attach any type of sticker on the windscreen, do not do so
in front of the sensors. Doing so c ould prevent the automatic headlight or
anti-dazzle function from working correctly or even from working at all.
•
The warning symbol
 will appear on the inst rument panel if a malfunc-
tion occurs ⇒page 79.
•
Observe all relevant legal requirements when using the signalling and
lighting systems described here.
Front fog lights

The light switch can also be used to turn on the front fog
lights.Switching on the front fog lights

–Do
 ⇒ page 112, fig. 83 not turn the light switch to the symbol
.
– First turn the light switch to the position

or

.
– Then pull the light switch out to the first stop .
The front fog light symbol
 next to the switch will light up when the front fog
lights are on.
Rear fog light

The light switch can also be used to turn on the rear fog light.–Do
 ⇒ page 112, fig. 83 not turn the light switch to the symbol
. – First turn the light switch

⇒ page 112, fig. 83 to the position

or

.
– Then pull out the light switch to the second stop to switch on the rear fog light.
The symbols
 and
 next to the switch will light up when the rear fog light
is switched on.
If you are towing a trailer or caravan equipped with a rear fog light on a vehicle
with a factory-fitted towing bracket*, only the rear fog light on the trailer or
caravan will light up.
Caution
To avoid dazzling the traffic behind you, the rear fog light should only be used
in accordance with legal regulations.
A1
A2
Exeo_EN.book Seite 114 Freitag, 17. Oktober 2008 11:24 11

Lights and visibility115
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Coming home and leaving home functions*
The coming home and leaving home functions are used to
light up the surroundings in th e dark. The front fog lights, the
rear side lights and the number plate light switch on.Enabling the functions
– Briefly press the knob ⇒fig. 85 to release it from its set position.
– Turn the knob to position 1.
– Press the knob in again to prevent the setting from being changed unintentionally.
Disabling the functions
– Briefly press the knob ⇒fig. 85 to release it from its set position.
– Turn the knob to position 0. – Press the knob in again to prevent the setting from being
changed unintentionally.
The coming home and leaving home functions are controlled by light sensors
in the rear view mirror housing. The sy stem will function when the following
requirements are met:•
The knob is set to position 1.
•
The headlights and the ignition are switched off.
•
Dark conditions; the sensors register little or no light.
Coming home
When the system is enabled and it is dark, the corresponding exterior lights
switch on as soon as the driver's door is opened.
The exterior lights will stay on for up to a maximum of 2 minutes as long as
one of the doors or the tailgate is open.
The exterior lights stay on for about 30 seconds to light up the area in front of
the car after all the doors and the tailgate have been closed.
This time interval is factory-set, but you can have it changed by a specialist
garage to suit your own requirements (max. setting is 60 seconds).
Leaving home
The exterior lights are switched on wh en the vehicle is unlocked with the
button on the remote control key.
The exterior lights go out when the dr iver's door is opened or after 60
seconds when the vehicle locks itself again automatically ⇒page 102.
WARNING
Before leaving the vehicle, remove the key from the ignition, as the lights
will not go out if the coming home is enabled. This will lead to battery
discharge and vehicle breakdown.
Fig. 85 Detailed view of
the instrument panel:
Coming home and leaving
home functions

Exeo_EN.book Seite 115 Freitag, 17. Oktober 2008 11:24 11

Lights and visibility
118
– Press the knob in again to prevent the setting from being changed unintentionally.This function enables or disables the switch for daytime running lights When
the function is enabled, the daytime ru nning lights are switched on automat-
ically when the ignition is switched on.
Note
Please observe any relevant legal requirements which may apply in your
country.Self-directing headlights*
When driving around bends, the headlights will light the
most important areas of the road.
The cornering light gives better illumination of the side of the road when
driving around a bend or taking a turn-off ⇒fig. 89 . The dynamic cornering
light is controlled automatically depending on the speed and the steering
wheel angle.
The headlights are regulated automatically when you drive around a bend,
depending on how far you turn the steering wheel. The two main headlights
move at different angles to avoid that the front of the vehicle is left completely
in the dark.
Note
The system operates from a speed of about 10 km/h.Hazard warning lights

The hazard warning lights are used to draw the attention of
other road users to your vehicle in emergencies.
Fig. 89 Self-directing
headlights when driving
Fig. 90 Centre console:
Switch for hazard warning
lights
Exeo_EN.book Seite 118 Freitag, 17. Oktober 2008 11:24 11

Lights and visibility119
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
–Press the switch
 ⇒ page 118, fig. 90 to switch the hazard
warning lights on or off.
All four indicators flash simultaneously when the hazard warning lights are
switched on. The hazard warning light indication lamps
  and the turn
signal indication lamp itself
 flash at the same time. The hazard warning
lights also work when the ignition is switched off.
In an accident in which the airbags ar e triggered, the hazard warning lights
are switched on automatically.
Note
You should switch on the hazard warning lights to warn other road users, e.g.•
When reaching the tail end of a traffic jam
•
If your vehicle breaks down or there is an emergency
•
If your vehicle is being towed away or if you are towing another vehicle

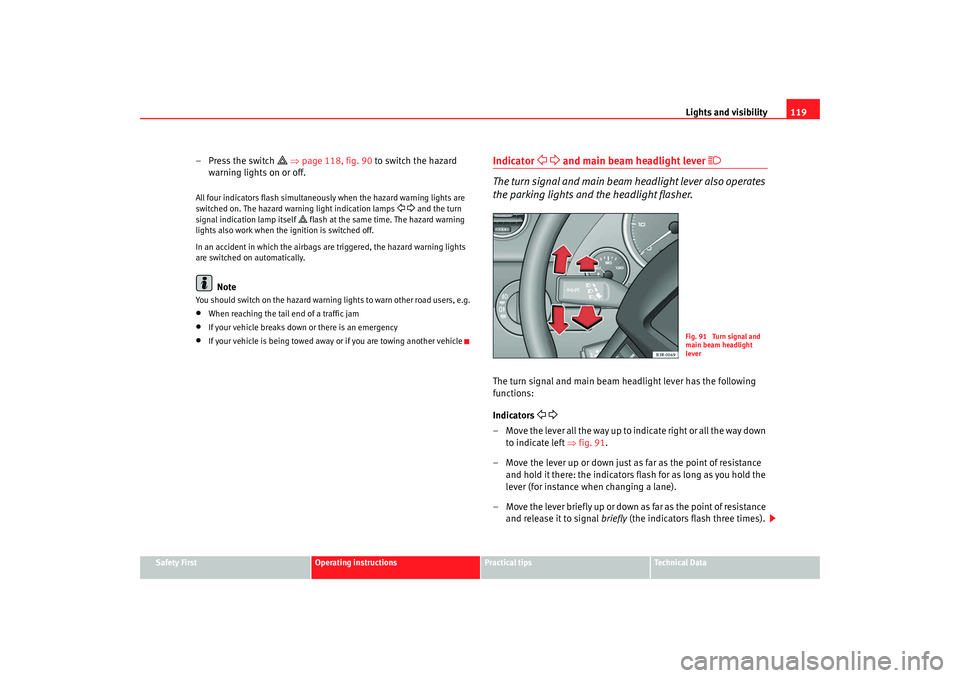

Indicator
  and main beam headlight lever

The turn signal and main beam headlight lever also operates
the parking lights and the headlight flasher.The turn signal and main beam headlight lever has the following
functions:
Indicators
 
– Move the lever all the way up to indicate right or all the way down to indicate left ⇒fig. 91 .
–Move the lever up or down just as far as the point of resistance
and hold it there: the indicators flash for as long as you hold the
lever (for instance when changing a lane).
– Move the lever briefly up or down as far as the point of resistance and release it to signal briefly (the indicators flash three times).
Fig. 91 Turn signal and
main beam headlight
lever
Exeo_EN.book Seite 119 Freitag, 17. Oktober 2008 11:24 11

Lights and visibility
126Rain sensor
The rain sensor* will only function in the intermittent wipe position. The inter-
mittent wipe function is enabled automatically when it starts to rain.
Before you reach a road speed of 6 km/h ,you will have to enable the rain
sensor manually by switching it off and back on again.
Use control to set the sensitivity of the rain sensor*.
If you have selected a high sensitivity level for the rain sensor the windscreen
wipers will react sooner to any moisture on the windscreen.
The wiper intervals in the intermittent wipe setting are also varied automati-
cally according to the road speed (in addition to the sensitivity setting).
WARNING
•
For correct visibility and safe driving, the wiper must be in perfect
condition ⇒page 201. Failure to do so could result in an accident.
•
The rain sensor* is only intended to a ssist the driver. The driver is still
obliged to manually operate the windscreen wipers as required depending
on visibility.
•
Do not use water-repellent coatings on the windscreen. In bad visibility
conditions such as light rain, low sun or when driving at night, these coat-
ings can cause increased dazzle, whic h is a serious safety hazard. Such
coatings can also cause the wiper blades to judder.Caution
•
In the event of frost, check that the wiper blade has not frozen before
enabling the windscreen wipers. Should the windscreen wiper system be
enabled when the blade is frozen, this could damage it or even the wind-
screen wiper system motor.
•
Make sure you switch off the windscreen wiper system (lever in position
0) before you use an automatic car wash. This will avoid inadvertent trig-
gering of the wipers and possible damage to the wiper system.
Note
•
Check that the washer fluid reservoir is full before starting a long journey.
Fill the reservoir ⇒page 220.
•
Worn or dirty wiper blades can cause smearing on the glass which can
also impair the effectiveness of the ra in sensor*. Check the condition of wind-
screen wiper blades at regular intervals.
Headlight washer systemWith the lights switched on, operate the automatic wash and wipe
⇒ page 125, fig. 100 , and keep the lever pulled towards you for
at least 1 second.The headlight washer jets come out of the bumper automatically (under water
pressure) ⇒fig. 101 .
AA
Fig. 101 Headlight with
extended washer jet
A5
Exeo_EN.book Seite 126 Freitag, 17. Oktober 2008 11:24 11

Lights and visibility127
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Clean off stubborn dirt (insects, etc.) from the lenses at regular intervals, for
instance when filling the tank.
To ensure that the system works properly in winter, keep the nozzle holders
free of snow and remove any ice with a de-icer spray.
Rear-view mirrorsInterior rear view mirror with manual anti-dazzle settingNormal setting
– Point the lever at the bottom of the mirror forwards.
Anti-dazzle setting for the rear view mirror
– Point the lever at the bottom of the mirror to the rear.
Anti-dazzle interior rear-view mirror with automatic adjustment*
The automatic anti-da
zzle function can be switched on and off
as desired.Switching off anti-dazzle function
– Press button ⇒ fig. 102. Warning lamp goes out:
Switching on anti-dazzle function
– Press button ⇒ fig. 102. The indicator lamp will light up.Anti-dazzle function
The anti-dazzle function is activated every time the ignition is switched on.
The green indicator lamp ligh ts up in the mirror housing.
When the anti-dazzle function is enabled, the interior rear view mirror will
darken automatically according to the amount of light it receives. The anti-
dazzle function is disabled if:
Fig. 102 Interior rear
view mirror with anti-
dazzle setting: Indicator
lamp and on/off switch
AA
AB
AA
AB
Exeo_EN.book Seite 127 Freitag, 17. Oktober 2008 11:24 11

Lights and visibility
128•
the interior lighting is switched on
•
reverse gear is engaged
Sensors for automatic headlights*
When the light switch is set to the AUTO position, the dipped beam head-
lights are switched on and off automatically according to the ambient light
level with the aid of the sensors located in the interior rear view mirror
⇒ page 113.
WARNING
Electrolyte fluid can leak from a broken mirror. This fluid can cause irrita-
tion to the skin, eyes and respiratory organs. Wash thoroughly with clean
water should you come into contact with this fluid. Seek medical assist-
ance if needed!
Caution
Electrolyte fluid leaking from a broken mirror can cause damage to plastic
surfaces. Use a sponge or similar to remove the fluid as soon as possible.
Note
•
The rear-view mirrors automatic anti-dazzle function* will only work prop-
erly if the sun blind* for the rear window is rolled down and if there are no
other objects preventing light fr om reaching the interior mirror.
•
If you have to stick any type of sticker on the windscreen, do not do so in
front of the sensors. Doing so could pr event the automatic headlight or anti-
dazzle function from working correctly or even from working at all.
Exterior mirrors
The exterior mirrors are adjusted electrically.Adjusting the exterior mirrors
– Turn the adjuster knob to position ⇒fig. 103 (left exterior
mirror) or position (right exterior mirror).
– Move the knob as required to adjust the exterior mirror for a good view behind you.
Retracting both exterior mirrors
– Turn the knob to position .It is advisable to fold the exterior mirrors, for example when parking or when
driving along narrow spaces.
Fig. 103 Detailed view of
the armrest: Adjuster
knobAL
AR
AA
Exeo_EN.book Seite 128 Freitag, 17. Oktober 2008 11:24 11

Seats and stowage141
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Stretch net
– Secure the stretch net in the four fastening rings ⇒page 140,
fig. 116.
Retaining net
– Secure the hooks of the retaining net to the fastening rings at the bottom of the luggage compartment panel ⇒page 140,
fig. 117.
– Take hold of the handles and pull down the retaining hooks ⇒page 140, fig. 117 at the top of the luggage compartment.
Pull up the net and attach the loops onto the retaining hooks.You can also use the hooks to secure light items of luggage, such as shop-
ping bags and handbags, etc.
The hooks will fold up again by themselves when not in use.
WARNING
The retaining net should only be used to hold objects weighing up to 5 kg.
Heavier objects cannot be safely secured (injury risk).
Extending the luggage compartment
The two sections of the backrest can be folded forwards either
together or separately to increase the capacity of the luggage
compartment.
AA
Fig. 118 Backrest release
leverFig. 119 Locking the
backrest
Exeo_EN.book Seite 141 Freitag, 17. Oktober 2008 11:24 11
