256Changing the side light bulb (inside of vehicle)
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.
– Switch off the ignition and the lights.
–Raise the bonnet.
– Move the brace ⇒fig. 197 in the direction of the arrow and
remove the rigid cover, separating the brace side and then
removing the two tabs from the other end of the cover.
– Remove the bulb and the bulb holder by pulling on the bulb holder wiring.
– Separate the bulb from the bulb holder by pulling both pieces anti-clockwise.
– Fit the new bulb by pressing on the bulb holder.
– Insert the bulb into the socket so that the side of the bulb holder grip is vertical ⇒fig. 198 and press on it.
– Fit the cover, first inserting the side tabs and then closing the cover and the brace. Make sure that the gasket sits well on the
casing cover during the operation.
– Check whether the new bulb is working.Changing bulbs. Bi-Xenon AFS headlightsTypes of bulbsYou must only replace a bulb with a bulb of the same type. The name can be
found on the base of the bulb.
Fig. 197 Side light bulb
(inside of vehicle)Fig. 198 Side lights. Bulb
holder grip in vertical
position
A1
Exeo_EN.book Seite 256 Freitag, 17. Oktober 2008 11:24 11

If and when259
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

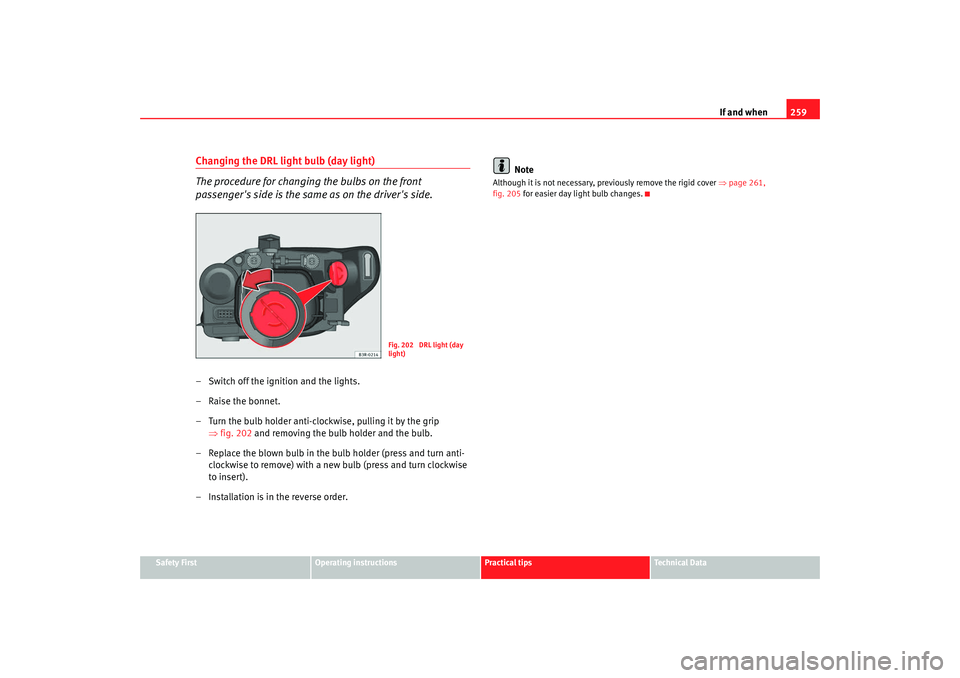

Changing the DRL light bulb (day light)
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.– Switch off the ignition and the lights.
–Raise the bonnet.
– Turn the bulb holder anti-clockwise, pulling it by the grip
⇒fig. 202 and removing the bulb holder and the bulb.
– Replace the blown bulb in the bulb holder (press and turn anti- clockwise to remove) with a new bulb (press and turn clockwise
to insert).
– Installation is in the reverse order. Note
Although it is not necessary, pr
eviously remove the rigid cover ⇒page 261,
fig. 205 for easier day light bulb changes.
Fig. 202 DRL light (day
light)
Exeo_EN.book Seite 259 Freitag, 17. Oktober 2008 11:24 11

If and when
260Changing the turn signal bulb
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.
– Switch off the ignition and the lights.
–Raise the bonnet.
– Pull the rubber cap ⇒fig. 203 to remove it.
– Remove the bulb holder by pulling on the grip and turning it anti- clockwise ⇒fig. 204.
– Replace the blown bulb in the bulb holder (press and turn anti- clockwise to remove) with a new bulb (press and turn clockwise
to insert).
– Insert the bulb holder into the socket with the tab facing upwards and the grip horizontal. Press it against the socket and turn
clockwise. When changing the bulb, you can check the position
of the bulb through the headlight glass.
– Fit the rubber cap and tighten, making sure it fit properly into the headlight casing.
– Check whether the new bulb is working.
Fig. 203 Turn signalFig. 204 Turn signal
Exeo_EN.book Seite 260 Freitag, 17. Oktober 2008 11:24 11

If and when261
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Changing the side light bulb
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.
– Switch off the ignition and the lights.
– Raise the bonnet.
– Move the brace ⇒fig. 205 in the direction of the arrow and
remove the rigid cover, separating the brace side and then
removing the two tabs from the other end of the cover.
– Remove the bulb holder by pulling on the grip ⇒fig. 206 (it can
also be removed by pulling on the bulb holder wires).
– Separate the bulb from the bulb holder by pulling both pieces anti-clockwise.
– Fit the new bulb by pressing on the bulb holder.
– Insert the bulb into the socket and press on the bulb holder grip.
– Fit the cover, first inserting the side tabs and then closing the cover and the brace. Make sure that the gasket sits well on the
casing cover during the operation.
– Check whether the new bulb is working.Changing the xenon bulbThe procedure for changing the bulbs on the front passenger's side is the
same as on the driver's side.
WARNING
This type of bulb should be changed at a qualified workshop.
Fig. 205 Side lightFig. 206 Side light
A1
Exeo_EN.book Seite 261 Freitag, 17. Oktober 2008 11:24 11
