Page 277 of 362
You have two minutes to match each tire and wheel
position. If it takes longer than two minutes to match
any tire and wheel position, the matching process stops
and you need to start over.
The TPMS matching process is outlined below:
1. Set the parking brake.
2. Turn the ignition switch to ON/RUN with the
engine off.
3. Press and hold the Remote Keyless Entry (RKE)
transmitter’s LOCK and UNLOCK buttons, at the
same time, for about ve seconds to start the TPMS
learn mode. The horn sounds twice indicating the
TPMS receiver is ready and in learn mode.
4. Start with the driver side front tire. The driver side
front turn signal also comes on to indicate that
corner’s sensor is ready to be learned.
5. Remove the valve cap from the tire’s valve stem.
Activate the TPMS sensor by increasing or
decreasing the tire’s air pressure for about
eight seconds. The horn chirp, can take up to
30 seconds to sound. It chirps one time and then
all the turn signals ash one time to con rm
the sensor identi cation code has been matched
to the tire/wheel position.6. The passenger side front turn signal comes on to
indicate that corner sensor is ready to be learned.
Proceed to the passenger side front tire and
repeat the procedure in Step 5.
7. The passenger side rear turn signal comes on to
indicate that corner sensor is ready to be learned.
Proceed to the passenger side rear tire and
repeat the procedure in Step 5.
8. The driver side rear turn signal comes on to
indicate that corner sensor is ready to be learned.
Proceed to the driver side rear tire, and repeat
the procedure in Step 5.
9. After hearing the single horn chirp for the driver
side rear tire, two additional horn chirps sound
to indicate the tire learning process is done.
Turn the ignition switch to LOCK/OFF.
If no tires are learned after entering the TPMS learn
mode, or if communication with the receiver stops,
or if the time limit has expired, turn the ignition switch
to LOCK/OFF and start over beginning with Step 2.
10. Set all four tires to the recommended air pressure
level as indicated on the Tire and Loading
Information label.
11. Put the valve caps back on the valve stems.
5-57
ProCarManuals.com
Page 287 of 362
If a Tire Goes Flat
Your vehicle has a tire sealant and compressor kit.
SeeTire Sealant and Compressor Kit on page 5-68.
There is no spare tire, no tire changing equipment,
and no place to store a tire.
It is unusual for a tire to blow out while you are driving,
especially if you maintain your tires properly. See
Tires on page 5-46. If air goes out of a tire, it is much
more likely to leak out slowly. But, if you should
ever have a blow out, here are a few tips about what
to expect and what to do:
If a front tire fails, the at tire will create a drag that
pulls the vehicle toward that side. Take your foot off the
accelerator pedal and grip the steering wheel rmly.
Steer to maintain lane position, and then gently brake
to a stop well out of the traffic lane.
A rear blow out, particularly on a curve, acts much like
a skid and may require the same correction you would
use in a skid. In any rear blow out, remove your foot
from the accelerator pedal. Get the vehicle under control
by steering the way you want the vehicle to go. It may
be very bumpy and noisy, but you can still steer.
Gently brake to a stop, well off the road if possible.If a tire goes at, avoid further tire and wheel damage by
driving slowly to a level place and stopping. Then do this:
1. Turn on the hazard warning ashers. SeeHazard
Warning Flashers on page 3-6.
2. Park your vehicle. Set the parking brake rmly and
put the shift lever in PARK (P). SeeShifting Into
PARK (P) on page 2-29.
3. Turn off the engine.
4. Inspect the at tire.
If the tire has been separated from the wheel, has
damaged sidewalls, or has a puncture larger than a
1 4inch (6 mm), the tire is too severely damaged for
the tire sealant and compressor kit to be effective.
SeeRoadside Assistance Program on page 7-7.
If the tire has a puncture less than a
1 4inch (6 mm)
in the tread area of the tire, seeTire Sealant and
Compressor Kit on page 5-68.
5-67
ProCarManuals.com
Page 291 of 362
5. Plug the air compressor accessory plug (C) into
an accessory power outlet in the vehicle.
SeeAccessory Power Outlet(s) on page 3-18
for more information.
Do not slam door or close window on the
compressor accessory plug.
{CAUTION:
Idling the engine in a closed-in place or with
the climate control system off can cause
deadly carbon monoxide (CO). SeeEngine
Exhaust on page 2-32.
6. Start the vehicle. SeeStarting the Engine
(Automatic Engine Start/Stop) on page 2-21
for more information. The vehicle must be
running while using the air compressor.
{CAUTION:
In ating something too much can make it
explode, and you or others could be injured.
Be sure to read the in ator instructions, and
in ate the tire to its recommended pressure.
Do not exceed 36 psi (248 kPa).
7. Push the On/Off kit switch to the I (on) position.
The sealant and compressor kit injects sealant
and air into the tire. Sealant could leak from
the puncture hole until the vehicle is driven and
the hole has sealed.
The pressure gage will initially show a high pressure
while the compressor injects the sealant into the
tire. Once the sealant is completely dispersed into
the tire, the pressure will quickly dropped and
start to rise again as the tire in ates with air.
5-71
ProCarManuals.com
Page 295 of 362
{CAUTION:
Idling the engine in a closed-in place or with
the climate control system off can cause
deadly carbon monoxide (CO). SeeEngine
Exhaust on page 2-32.
6. Start the vehicle. SeeStarting the Engine
(Automatic Engine Start/Stop) on page 2-21
for more information. The vehicle must be running
while using the air compressor.
{CAUTION:
In ating something too much can make it
explode, and you or others could be injured.
Be sure to read the in ator instructions, and
in ate the tire to its recommended pressure.
Do not exceed 36 psi (248 kPa).
7. Push the sealant and compressor kit switch to
the I (on) position.8. In ate the tire up to the recommended in ation
pressure using the air pressure gage on the top
of the unit.
9. Turn off the air compressor by moving the switch
to the O (off) position.
The pressure gage reads high while the compressor
is running. Turn the compressor off to get an
accurate reading. SeeInflation - Tire Pressure
on page 5-52for more information.
10. Disconnect the compressor in ator hose and
wrap the hose in the bottom of the sealant and
compressor kit.
{CAUTION:
Storing the tire sealant and compressor
kit or other equipment in the passenger
compartment of the vehicle could cause injury.
In a sudden stop or collision, loose equipment
could strike someone. Store the tire sealant
and compressor kit in the proper place.
11. Place the equipment in the original location in
the trunk of your vehicle.
5-75
ProCarManuals.com
Page 305 of 362

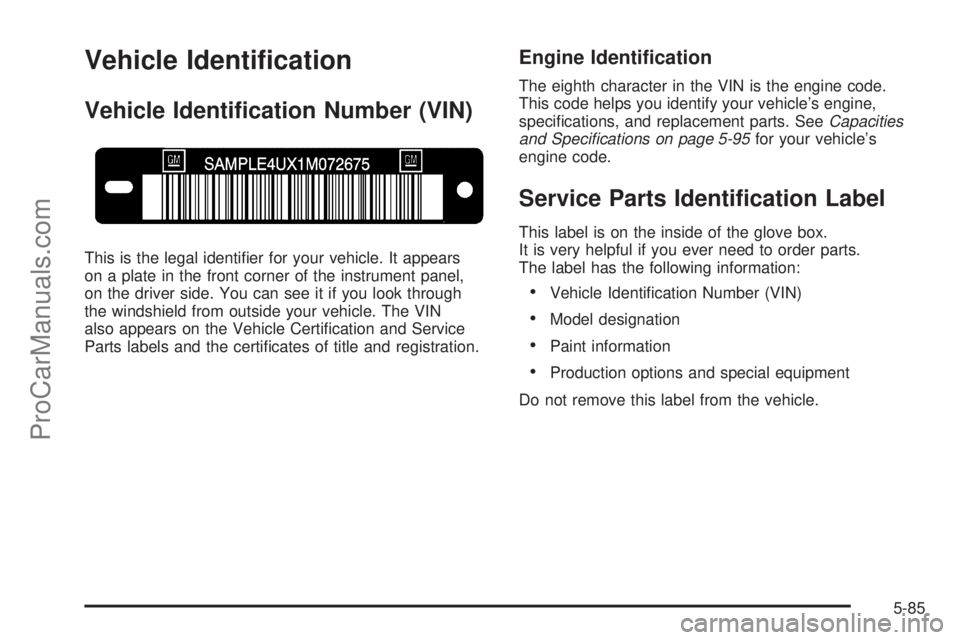

Vehicle Identi cation
Vehicle Identi cation Number (VIN)
This is the legal identi er for your vehicle. It appears
on a plate in the front corner of the instrument panel,
on the driver side. You can see it if you look through
the windshield from outside your vehicle. The VIN
also appears on the Vehicle Certi cation and Service
Parts labels and the certi cates of title and registration.
Engine Identi cation
The eighth character in the VIN is the engine code.
This code helps you identify your vehicle’s engine,
speci cations, and replacement parts. SeeCapacities
and Specifications on page 5-95for your vehicle’s
engine code.
Service Parts Identi cation Label
This label is on the inside of the glove box.
It is very helpful if you ever need to order parts.
The label has the following information:
Vehicle Identi cation Number (VIN)
Model designation
Paint information
Production options and special equipment
Do not remove this label from the vehicle.
5-85
ProCarManuals.com
Page 307 of 362
Fuses
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible links. This greatly reduces the chance of
damage caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure
to replace a bad fuse with a new one of the identical size
and rating.
There are three fuse blocks in your vehicle: one in
the center of the instrument panel, one in the engine
compartment and one in the trunk.
There is a fuse puller located on the instrument panel
fuse block. It can be used to easily remove fuses
from the fuse block.
Instrument Panel Fuse Block
The instrument panel fuse block is located on the
passenger side of the vehicle, on the lower portion
of the instrument panel near the oor.
Remove the panel cover to access the fuse block,
then remove the fuse block cover to access the fuses.
Your vehicle might not have all the fuses and
features listed.
5-87
ProCarManuals.com
Page 309 of 362
Fuses Usage
CLUSTER/
THEFTInstrument Panel Cluster,
Theft Deterrent System
ONSTAR OnStar
®
NOT
INSTALLEDNot Used
AIRBAG (IGN) Airbag (Ignition)
HVAC
CTRL (BATT)Heating Ventilation Air Conditioning
Control Diagnostic Link Connector
(Battery)
PEDAL Adjustable Pedals
WIPER SW Windshield Wiper/Washer Switch
IGN SENSOR Ignition Switch
STRG WHL
ILLUMSteering Wheel Illumination
NOT
INSTALLEDNot Used
RADIO Audio System
INTERIOR
LIGHTSInterior Lamps
REAR WIPER Not Used
POWER
WINDOWSPower Windows
HVAC
CTRL (IGN)Heating Ventilation Air Conditioning
Control (Ignition)
HVAC
BLOWERHeating Ventilation Air Conditioning
Blower Switch
Fuses Usage
DOOR LOCK Door Locks
ROOF/
HEAT SEATSunroof, Power Windows
NOT
INSTALLEDNot Used
NOT
INSTALLEDNot Used
AIRBAG (BATT) Airbag (Battery)
SPARE FUSE
HOLDERSpare Fuse Holder
SPARE FUSE
HOLDERSpare Fuse Holder
SPARE FUSE
HOLDERSpare Fuse Holder
SPARE FUSE
HOLDERSpare Fuse Holder
FUSE PULLER Fuse Puller
Engine Compartment Fuse Block
The engine compartment fuse block is located on the
driver side of the engine compartment, near the battery.
Your vehicle might not have all the fuses and
features listed.
Notice:Spilling liquid on any electrical components
on your vehicle may damage it. Always keep the
covers on any electrical component.
5-89
ProCarManuals.com
Page 311 of 362
Fuses Usage
6 Emission
7 Left Headlamp Low-Beam
8 Horn
9 Right Headlamp Low-Beam
11 Left Headlamp High-Beam
12 Right Headlamp High-Beam
13 Engine Control Module BATT
14 Windshield Wiper
15Antilock Brake
System (ABS) (IGN 1)
16 Engine Control Module (IGN 1)
17 Cooling Fan 1
18 Cooling Fan 2
19Run Relay, Heating, Ventilation,
Air Conditioning Blower
20 Body Control Module 1
21 Body Control Module Run/Crank
22 Rear Electrical Center 1
23 Rear Electrical Center 2
24 Antilock Brake System (ABS)
25 Body Control Module 2
26 StarterFuses Usage
41 Electric Power Steering
42Transmission Control
Module Battery
43 Ignition Module
44 Injectors
46 Daytime Running Lamps
47 Center High-Mounted Stoplamps
50 Driver Power Window
51 Belt Alternator Starter (BAS) BATT
52 Transmission Pump Motor
54 Battery Voltage Sense
Relays Usage
28 Cooling Fan 1
29 Cooling Fan Series/Parallel
30 Cooling Fan 2
31 Starter
32 Run/Crank, Ignition
33 Powertrain
34 Air Conditioning Clutch
35 High-Beam Headlamp
37 Horn
5-91
ProCarManuals.com
