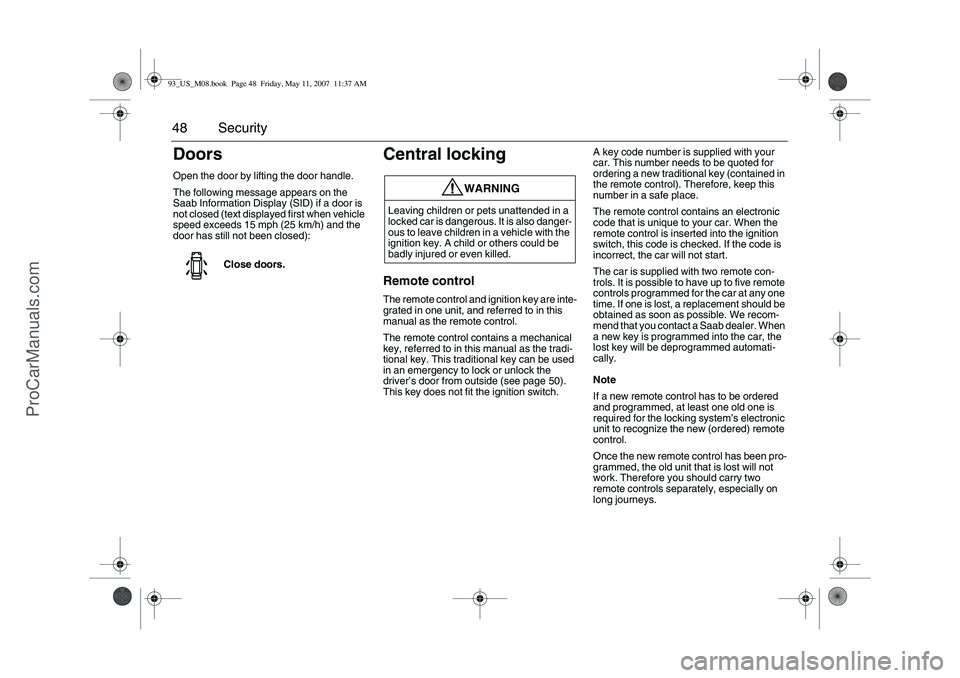

48 SecurityDoorsOpen the door by lifting the door handle.
The following message appears on the
Saab Information Display (SID) if a door is
not closed (text displayed first when vehicle
speed exceeds 15 mph (25 km/h) and the
door has still not been closed):
Central lockingRemote controlThe remote control and ignition key are inte-
grated in one unit, and referred to in this
manual as the remote control.
The remote control contains a mechanical
key, referred to in this manual as the tradi-
tional key. This traditional key can be used
in an emergency to lock or unlock the
driver’s door from outside (see page 50).
This key does not fit the ignition switch.A key code number is supplied with your
car. This number needs to be quoted for
ordering a new traditional key (contained in
the remote control). Therefore, keep this
number in a safe place.
The remote control contains an electronic
code that is unique to your car. When the
remote control is inserted into the ignition
switch, this code is checked. If the code is
incorrect, the car will not start.
The car is supplied with two remote con-
trols. It is possible to have up to five remote
controls programmed for the car at any one
time. If one is lost, a replacement should be
obtained as soon as possible. We recom-
mend that you contact a Saab dealer. When
a new key is programmed into the car, the
lost key will be deprogrammed automati-
cally.
Note
If a new remote control has to be ordered
and programmed, at least one old one is
required for the locking system’s electronic
unit to recognize the new (ordered) remote
control.
Once the new remote control has been pro-
grammed, the old unit that is lost will not
work. Therefore you should carry two
remote controls separately, especially on
long journeys. Close doors.
WARNING
Leaving children or pets unattended in a
locked car is dangerous. It is also danger-
ous to leave children in a vehicle with the
ignition key. A child or others could be
badly injured or even killed.
93_US_M08.book Page 48 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

55 Security
3 Change the battery. Fit the new battery
so that it is positioned in the same way
as the old battery, with the positive (+)
side facing down.
4 Fit the two halves of the remote control
together and press them together until
you hear several clicks. Avoid pressing
the buttons. Reinsert the traditional key
into the remote control.5 After changing the battery in the remote
control, it is only possible to use the
remote control a limited number of times
before synchronization with the car is
lost. Therefore, do not press the buttons
on the remote control repeatedly directly
after changing the battery.
Unlock the car and insert the remote
control into the ignition switch to
synchronize the remote control and car.
If the central locking system does not work
after changing the battery and the car is
locked, proceed as follows:
1 Unlock the front left door with the tradi-
tional key. If the car has a car alarm, this
will be tripped.
2 Open the door and insert the remote
control into the ignition switch. If the car
has a car alarm, this will be silenced.
The remote control and receiver unit are
now synchronized.
ImmobilizerThe remote control contains an electronic
code that is unique to your car. When the
remote control is inserted into the ignition
switch, this code is checked and the LED on
the dashboard double-flashes for
3 seconds. If the code is correct, the car can
be started.
Each time you remove the remote control
from the ignition, the electronic starting
interlock is activated, the LED dou-
ble-flashes for 3 seconds and the car
becomes immobilized. If an incorrect
remote control is now inserted into the igni-
tion switch (e.g. the remote control of
another car), the immobilizer will remain
operative (the LED will not flash for
3 seconds) and it will not be possible to start
the car.
If, when inserted into the ignition switch,
there is a problem checking the electronic
code of the remote control, the following
message will appear on the SID:
Visit a Saab dealer to have the problem
checked and rectified.Key not accepted.
Contact service.
Change the battery and fit together
the two halves of the remote control93_US_M08.book Page 55 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

56 SecurityCar alarmThe car alarm is armed when the car is
locked with the remote control.
The car alarm will not be armed if you
lock the car with the traditional key (see
page 50).
All the doors, the hood and the trunk lid are
monitored by the alarm.The alarm is armed 11 seconds after the car
has been locked by remote control.
During the delay period, the LED shines
constantly. It will then start to flash once
every 3 seconds. The LED is located on the
dashboard.
If a door or the trunk lid is open when the car
is locked with the remote control, the LED
will flash 3 times per second for
11 seconds. Check that the doors, hood
and trunk lid are closed.
If the signal persists, contact a Saab dealer
to have the problem checked and rectified.Locking the trunk lid
SportSedan
If you open the trunk lid from outside the car
with the button on the remote control,
you must lock the car with the button to
arm the car alarm.
SportCombi
If you unlock and/or open the trunk lid from
outside the car with the button on the
remote control, you must lock the car with
the button to arm the car alarm.
WARNING
Leaving children or pets unattended in a
locked car is dangerous. It is also danger-
ous to leave children in a vehicle with the
ignition key. A child or others could be
badly injured or even killed.93_US_M08.book Page 56 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

58 SecurityPanic functionThe car alarm includes a panic function. This function allows the
alarm to be started manually, for example, to attract attention.
The panic alarm can only be activated while the car is stationary.
The alarm is silenced if the car is driven off.
When the alarm is tripped, the lights and horn come on for 3 minutes
or until you press one of the remote control buttons.
To start the alarm manually proceed as follows:
Press and hold the button on the remote control for more than
2 seconds, or if you are sitting in the car...
Press and hold the or button on one of the front doors
for more than 2 seconds.
To switch off the alarm:
Press one of the remote control buttons or, if you are sitting in the
car, the or buttons on one of the front doors.
Overview of functionsLocking/arming Direction indicators flash once.
Unlocking/
disarmingDirection indicators flash twice.
Unlocking/
disarming trunk
lidDirection indicators flash three times.
Alarm triggered Direction indicators flash for 5 min.
The horn sounds for 30-second intervals with
10-second breaks (max. 10 cycles) or until you
press one of the remote control buttons or turn
the ignition switch to the ON position.
Remote control Normal range: 5–16 yds. (5–15 metres).
In favorable conditions the range can be signifi-
cantly greater.
Remote control
batteryNormal life: approx. 4 years.
Change the battery when the SID displays:
Remote control battery
low. Replace battery.
See Changing the key battery, page 54.
Some car alarm functions and indications can be reprogrammed.
Contact a Saab dealer for details of the possibilities and refer to
page 299.
93_US_M08.book Page 58 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

64 9-3 ConvertibleOpeningThe following conditions must be fulfilled for
the soft top to be folded:
Vehicle speed must not exceed 20 mph
(30 km/h).
Battery voltage must exceed 10 V.
Outside temperature must exceed 23°F
(–5°C).
The trunk lid must be locked.
There must be sufficient space in the
trunk for the soft top.
1 Start the engine and let it idle. Clearance
for soft top operation: height, min. 7.2 ft
(2.2 m); behind car, min. 2" (5 cm).2 Press and hold the soft top button until
the soft top is fully folded and the soft top
cover raised. Completed folding is indi-
cated by a chime. If there is a malfunc-
tion a text message will be shown on the
SID. Refer to page 71.
Do not press any of the buttons on the
same section of the instrument panel as
the soft top switch while folding the soft
top. This will cause the soft top to stop
and then sink after about 20 seconds.
If you continue to hold the button after the
chime, all the windows will open after a brief
delay.
Remote opening3
33 3
You can fold the soft top when outside the
car by pressing and holding the
(unlock) button on the remote control. See
also page 121.
Folding
93_US_M08.book Page 64 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

85 Instruments and controls
The brake system provides Electronic
Brakeforce Distribution (EBD). This distrib-
utes the brake pressure between the front
and rear wheels, in such a way as to achieve
optimum braking performance irrespective
of the car’s load.
If a fault arises in the EBD function, the ,
and lights will come on. Also, the
following message will appear on the Saab
Information Display (SID):
If this is the case, drive carefully and contact
a workshop as soon as possible. We recom-
mend that you contact a Saab dealer. Refer
to Brake warning light on page 84, Antilock
braking warning on page 82 and ESP
® OFF
indicator on page 86.
This light reminds the driver to buckle up,
see page 12.This light comes on when the parking brake
is applied (see page 179).
The parking brake is mechanical and oper-
ates on the rear wheels.
If the parking brake is applied when the car
starts off, the following message will appear
on the Saab Information Display (SID):
This light comes on if a potentially serious
fault has occurred in the airbag system, see
also page 32.The following message is shown on the
Saab Information Display (SID):
This light will come on for about four sec-
onds when the ignition switch is turned to
the Start or Drive position. Brake malfunction.
Make a safe stop.
Safetybelt reminder
Parking brake warning
lightRelease park brake.
WARNING
Always apply the parking brake when
parking, see page 179.
Always apply the parking brake
before removing the remote control.
Do not apply the parking brake while
the car is moving.
Airbag warning light
Airbag malfunction.
Contact service.
WARNING
If the airbag readiness light stays on
after you start your vehicle, it means
the airbag system may not be working
properly. One or more of the following
conditions may occur:
–Non-deployment of the airbags in the
event of a crash.
–Deployment of the airbags without a
crash.
–Deployment of the airbags in crashes
less severe than intended.
To help avoid injury to yourself or oth-
ers, have your vehicle serviced right
away if the airbag readiness light stays
on after you start your vehicle.
93_US_M08.book Page 85 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

121 Interior equipment
Electric windowsThe electric windows are operated by
means of switches in the door armrests.
For the electric windows to work, the ignition
switch must be in the ON position.
At the end of a journey and having removed
the remote control, you can still operate the
windows, so long as neither of the front
doors has been opened.Windows having the automatic closing func-
tion (option) can be operated as long as the
car is unlocked and until 20 minutes has
passed since the remote control was
removed from the ignition switch.
To openPress down the front edge of the button one
step.
The window will stop when it is fully open or
when the button is released.
Automatic opening: Press the button all
the way down and release it.
Comfort opening3
33 3Comfort opening is the remote opening of
windows and the moonroof.
Press and hold the unlocking button on the
remote control until the windows and
optional moonroof start to open (approx.
2 seconds).
During comfort opening of the windows,
moonroof3 and soft top (Convertible), the
range is reduced by approximately half.
Convertible: For the remote opening3 of
the soft top, refer to page 64.
WARNING
Bear in mind the pinch hazard when clos-
ing the side windows. May cause serious
or fatal injuries!
Always remove the remote control
from the ignition switch when you
leave the car. This will prevent per-
sonal injury caused by the activation of
the electric windows, for example, due
to children playing.
The person operating the electric
window is responsible for ensuring
that no one, especially a child, has
their head, hands or fingers in the
window openings, before raising the
window.
Do not stick any part of the body or the
head out through an open window
while the car is moving.
Window switches
Window switch in rear door
93_US_M08.book Page 121 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

131 Interior equipment
To closeManually controlled closing
Slide the control forward to its first position.
The moonroof will halt when you release the
control.
Automatic closing3
33 3
Slide the control forward to its second posi-
tion and release it. The moonroof will close
fully.
The moonroof pinch protection halts closing
and opens the moonroof slightly if some-
thing obstructs closing.
Moonroof without automatic closing3
33 3
Slide the control forward to position 3 (see
illustration). The moonroof will stop when
you release the control or once it is fully
closed.Ventilation position (rear edge of moon-
roof open)
To open – press in the control.
To close – slide the control forward to the
second position.
It is also possible to select the ventilation
position when the moonroof is open by
pressing in the control. The moonroof will
then close automatically. Press the control
once more to open the moonroof to its ven-
tilation position.
If you wish to open the moonroof fully from
the ventilation position, you must first close
it (slide the control forward). You can then
slide the control rearward to open the moon-
roof.
The moonroof incorporates an interior,
manual, sliding sun blind.
Moonroof without automatic closing3
33 3
To open – press the control up.
To c l o s e – slide the control forward to
position 3.
Comfort opening3
33 3Comfort opening is the remote opening of
windows and the moonroof.
Press and hold the unlocking button on the
remote control until the windows and
optional moonroof start to open (approx.
2 seconds).
During comfort opening of the windows,
moonroof (option) and soft top, the range is
reduced by approximately half.
If the moonroof is in the ventilation position,
it will not open.
Convertible: For the remote opening of the
soft top, refer to page 64.
WARNING
Exercise great care when closing the
moonroof to ensure that nothing gets
trapped.93_US_M08.book Page 131 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
