2008 SAAB 9-3 technical data

297 Technical data
Plates and labelsWhen contacting your Saab dealer it may
sometimes be necessary to quote the car’s
vehicle identification, engine and gearbox
numbers.
1 V.I.N. number and barcode, inside wind-
shield
2 Gearbox number
3 Engine number
4USA: Tire information label can be found
on the B-pillar. See also page 254.
Canada: Label for tire pressure and color
codes (trim and body)
5 V.I.N. label and certification label.
USA: V.I.N. label also includes color
codes for trim and body
6 Chassis number (stamped on body).93_US_M08.book Page 297 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

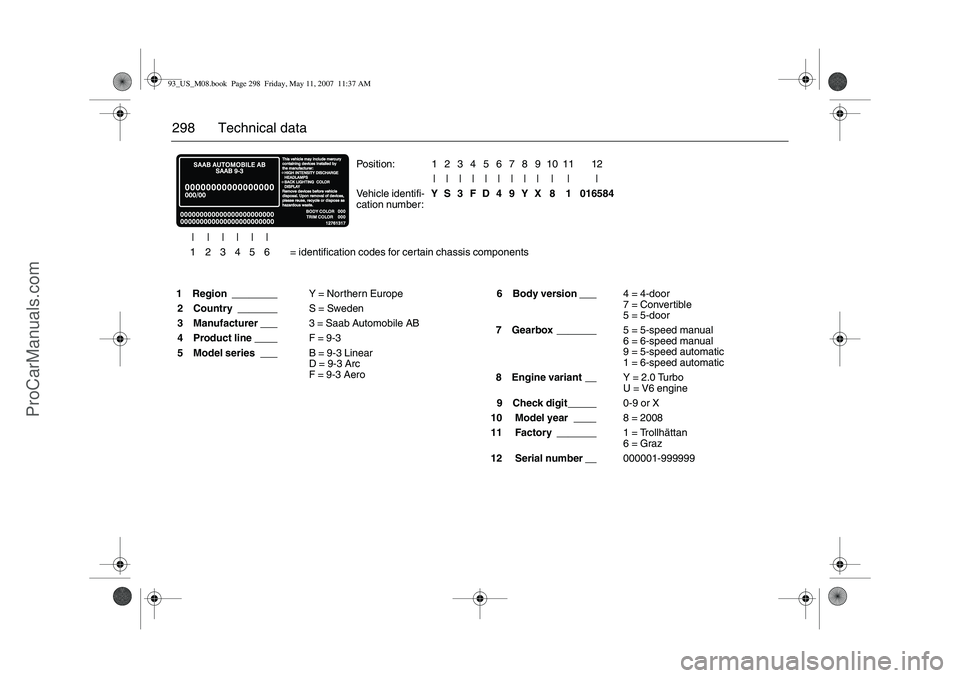

298 Technical data1 Region ________Y = Northern Europe
2 Country _______S = Sweden
3 Manufacturer ___3 = Saab Automobile AB
4 Product line ____F = 9-3
5 Model series ___B = 9-3 Linear
D = 9-3 Arc
F = 9-3 Aero6 Body version ___4 = 4-door
7 = Conver tible
5 = 5-door
7 Gearbox _______5 = 5-speed manual
6 = 6-speed manual
9 = 5-speed automatic
1 = 6-speed automatic
8Engine variant__Y = 2.0 Turbo
U = V6 engine
9 Check digit _____0-9 or X
10 Model year ____8 = 2008
11 Factory _______1 = Trollhättan
6 = Graz
12 Serial number __000001-999999 Position: 1234567891011 12
||||||||| | | |
Vehicle identifi-
cation number:Y S 3 F D 4 9 Y X 8 1 016584
| |||||
1 2 3 4 5 6 = identification codes for certain chassis components93_US_M08.book Page 298 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

299 Technical data
Customized systemsSeveral of the systems in your Saab can be
customized to better suit your individual
needs. Contact your Saab dealer
Central locking system
Some functions are governed by legal
requirements and cannot therefore be
reprogrammed.
We recommend that you consult a Saab
dealer for further information.
Listed below are a number of examples of
programmable functions.
Audible confirmation of arming/disarming
the car alarm.
Automatic unlocking when car stopped
and remote control removed from the igni-
tion switch.
Trunk lid locked when car driven off or
30 seconds after being shut.Courtesy Headlamp Feature
The length of time the lights are on.
Whether the reversing light or tail lights
should come on as well as the dipped
beam.
Automatic Climate System (ACC)
Convertible: A/C compressor not
switched off when the soft top is open.93_US_M08.book Page 299 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

300 Technical dataWarning and indications that can
be shown on the SIDWhich warnings and indications that can be
shown depends on engine variant and car
specification.
Symbol Text
Antilock brake malfunc.
Contact service.
Brake malfunction.
Make a safe stop.
Brake fluid level low.
Make a safe stop.
Release park brake.
Oil pressure low.
Make a safe stop.
Low engine oil level.
Fill oil now.
Reduced engine power.
Contact service.
Limited performance.
Coolant level low.
Refill.
Hot engine. Make a
safe stop. Idle engine.
Airbag malfunction.
Contact service.
Gearbox too hot. Make a
safe stop. Open hood.
Battery not charging.
Make a safe stop.
Headlight levelling
malfunction.
Cornering headlights
malfunction
Tap brakes lightly
before using cruise ctrl.
Traction control failure.
Contact service.
Stability control failure.
Contact service.
Turn on the lights.
Washer fluid level low.
Refill.
Rain sensor malfunc.
Contact service.
Key not accepted.
Contact service.
Remote control battery
low. Replace battery.
Number of keys:
Active key number:
Steering lock malfunc.
Make a safe stop.
Pull out key, turn
steering wheel. Restart.
Theft protection failure.
Contact service.
Alarm tripped during
last arming period.
Rear left seat
backrest unlocked.
Rear right seat
backrest unlocked.
93_US_M08.book Page 300 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

301 Technical data
Parking assistance
malfunction. Service.
Parking assistance
sensor interference.
Close doors.
Left brake light failure
Left high beam failure.
Left low beam failure.
Rear fog light failure.
Right brake light failure.
Right high beam failure.
Right low beam failure.
High mounted stop
light failure.
Left front turn signal
failure.
Left rear turn signal
failure.
Right front turn signal
failure.
Right rear turn signal
failure.
Right side-mounted
turn signal failure.
Left side-mounted
turn signal failure.
Left front position
light failure.
Right front position
light failure.
Left front fog light
failure.
Right front fog light
failure.
Left reversing light
failure.
Right reversing light
failure.
License plate light
failure.
Left rear taillight
failure.
Right rear taillight
failure.
Right side day-time
running light failure.
Left side day-time
running light failure.
Tire pressure low,
rear left. Check tires.
Tire pressure low,
rear right. Check tires.
Tire pressure low,
front right. Check tires.
Tire pressure low,
front left. Check tires.
Low tire pressure rear
left. Make a safe stop.
93_US_M08.book Page 301 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

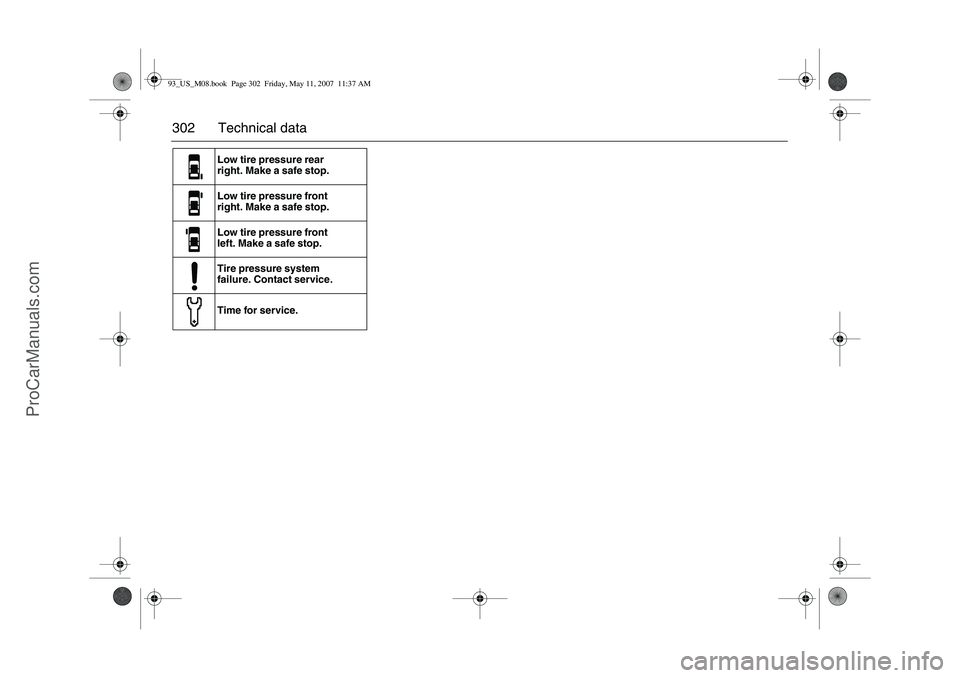

302 Technical data
Low tire pressure rear
right. Make a safe stop.
Low tire pressure front
right. Make a safe stop.
Low tire pressure front
left. Make a safe stop.
Tire pressure system
failure. Contact service.
Time for service.
93_US_M08.book Page 302 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

304 IndexDeep water, driving through
_______ 196
Definitions and terminology, tire ____ 254
Determining correct load, tires
_____ 256
Direction indicator stalk switch _____ 101
Direction indicators
______________ 101
Dome light, Convertible
__________ 232
Dome light, SportSedan __________ 232
Donor battery, boost starting
______ 200
Door handles
___________________ 48
Door mirrors
___________________ 124
Drive belt
______________________ 219
Drive belt, length
________________ 293
Driver’s seat with memory
_________ 21
Driving at night
_________________ 197
Driving in cold climates
___________ 187
Driving in deep water
____________ 196
Driving in hot climates ____________ 189
Driving techniques
______________ 185
Driving with a compact wheel fitted
_260
Driving with a heavy load on hilly
roads
________________________ 167
Driving with a load
______________ 196
Driving with a roof load ___________ 194
Driving with the trunk lid open
______ 196
EEasy entry, Convertible
____________ 73
EDR (Event Data Recorders)
______ 284
ESP®
________________________ 177
Economical motoring
____________ 185
Electrical system, technical data
____ 292Electrically adjustable seats
________ 20
Electric engine heater
____________ 186
Electric heating, front seats
________ 115
Electric windows
________________ 121
Electric windows, Convertible
_______ 77
Electronic Stability Program
_______ 177
Electronic steering wheel lock ______ 154
Emergency opening of the narrow
backrest, SportSedan
___________ 142
Emergency operation of the moonroof
132
Engine bay, cleaning
_____________ 267
Engine heater
__________________ 186
Engine immobilizer
_______________ 55
Engine management system
______ 206
Engine number
_________________ 299
Engine oil, checking
_____________ 210
Engine oil, grade
________________ 290
Engine oil, volume _______________ 291
Engine temperature gauge
_________ 88
Engine, description
______________ 205
Engine, technical data ____________ 289
Engines
_______________________ 292
Event Data Recorders (EDR)
______ 284
Extra electrical socket
____________ 136
FFacilitating entry to rear seat,
Convertible
____________________ 73
Factors affecting fuel consumption
__ 185
Filler cap
______________________ 160
Filling a portable fuel container
_____ 161Filling up
______________________ 159
Flat spots, tires
_________________ 246
Floor jack
______________________ 263
Folding down the rear seat backrest,
SportCombi
___________________ 143
Folding down the rear seat,
SportSedan ___________________ 138
Front fog lights __________________ 100
Front towing eye ________________ 197
Fuel container
__________________ 161
Fuel gauge
_____________________ 89
Fuel grade _____________________ 291
Fuel information
_________________ 161
Functions, car alarm
______________ 58
Fuse panel in luggage compartment
_240
Fuse table
_____________________ 239
Fuses
_________________________ 237
GGDO, garage door opener
_________ 126
Gearbox number
________________ 299
General safety instructions,
Convertible
____________________ 62
Glove box
_____________________ 136
Glovebox lighting
________________ 233
HHandbrake
_____________________ 179
Hazard warning lights
____________ 102
93_US_M08.book Page 304 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

307 Index
Signalling, horn
_________________ 120
Ski hatch, SportCombi
___________ 145
Ski hatch, SportSedan ___________ 140
Spare wheel
___________________ 260
Speed ratings, tires
______________ 253
Speedometer
___________________ 87
Sport mode, automatic transmission

167
Starting the engine
______________ 154
Steering wheel adjustment
________ 120
Steering wheel lock
______________ 154
Steps for determining correct load
limit
_________________________ 256
Storage compartments
___________ 136
Sun visor
______________________ 134
Switches _______________________ 97
TTCS
__________________________ 175
Technical data
_________________ 286
Textile carpeting, cleaning
________ 267
Tie down eyes, SportCombi _______ 146
Tie down eyes, SportSedan _______ 141
Tightening torque, wheels
_________ 265
Tire chains
____________________ 251
Tire date code __________________ 257
Tire inspection and rotation
_______ 245
Tire markings
__________________ 253
Tire sidewall labeling
____________ 252
Tire sizes
_____________________ 296
Tire terminology and definitions
____ 254
Tire, changing
__________________ 262Tire, spare
_____________________ 260
Tires
_________________________ 244
Tools and spare wheel
___________ 260
Touching up paintwork ___________ 270
Towbar
_______________________ 190
Towbar load
___________________ 192
Towing
_______________________ 197
Towing a trailer
_________________ 190
Towing the car _________________ 198
Traction Control System (TCS)
_____ 175
Transmission oil, checking
________ 212
Transmission oil, grade
___________ 293
Transmission, automatic __________ 165
Transmission, manual
____________ 164
Transporting the car
_____________ 199
Treadwear indicators ____________ 247
Trip computer
___________________ 90
Trip meter
______________________ 90
Troubleshooting, A/C and ACC
_____ 274
Trunk lid, driving when open
_______ 196
Trunk lid, opening
________________ 51
Turbo gauge
____________________ 88
UUniform tire quality grading
________ 248
Upholstery care
_________________ 266
Upholstery, cleaning
_____________ 266
Useful tips on night driving
________ 197
Useful tips on starting
____________ 155
VVanity mirror
___________________ 134
Vehicle Data Collection
___________ 284
Vehicle identification number
______ 299
Vehicle recovery
________________ 199
WWarning labels
____________________ 8
Warning lights ___________________ 82
Warning triangle ________________ 102
Warnings and messages on SID,
Convertible
____________________ 71
Washer fluid ___________________ 221
Washer jets
____________________ 222
Washers
______________________ 103
Washing ______________________ 267
Washing a Convertible
___________ 268
Waxing and polishing
____________ 270
Wear indicators, tires _____________ 247
What Will You See After an Airbag
Inflates?
______________________ 43
Wheel replacement
______________ 250
Wheels and tires, sizes ___________ 296
When it is time for new tires
_______ 246
Windshield washers
_____________ 103
Windshield wipers
_______________ 103
Wing mirrors
___________________ 124
Winter driving __________________ 187
Winter tires
____________________ 257
93_US_M08.book Page 307 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
