2008 PONTIAC VIBE display

Finding a Program Type (PTY)
Station (RDS and XM™)
To select and nd a desired PTY perform the following:
1. Press PROG TYPE, or depending on the radio,
P-TYPE, to activate program type select mode.
The PTY symbol displays.
2. Turn the SELECT, or depending on the radio,
P-TYPE, knob to select a PTY.
3. Once the desired PTY displays, press either SEEK
arrow to select the PTY and to take you to the
PTY’s rst station.
4. To go to another station within that PTY, and the
PTY displays, press either SEEK arrow once. If the
PTY is not displayed, press either SEEK arrow twice
to display the PTY and then to go to another station.
5. Press PROG TYPE, or depending on the radio,
P-TYPE, to exit program type select mode.
If PTY times out and is no longer on the display,
go back to Step 1.
If both PTY and TRAF are on, the radio searches
for stations with the selected PTY and traffic
announcements.
The Radio with Six-Disc CD player has the PTY
interrupt feature. To use this feature, press and hold the
P-TYPE button until a beep sounds on the PTY you
want to interrupt with. When selected, an asteriskdisplays beside that PTY on the display. Select multiple
interrupts if desired. When listening to a CD, the last
selected RDS station interrupts play if that selected
program type format is broadcast.
wxorstSCAN:Scan the stations within a PTY
by performing the following:
1. Press PROG TYPE, or depending on the radio,
P-TYPE, to activate program type select mode.
The PTY symbol displays.
2. Turn the SELECT, or depending on the radio,
P-TYPE, knob to select a PTY.
3. Once the desired PTY is displayed, press and hold
either SCAN arrow, and the radio begins scanning
the stations in the PTY.
4. Press either SCAN arrow to stop at a station.
If both PTY and TRAF are on, the radio scans for stations
with the selected PTY and traffic announcements.
BAND or AM/FM (Alternate Frequency):Alternate
frequency lets the radio switch to a stronger FM station
with the same program type. To turn alternate frequency
on, press and hold BAND or depending on the radio, A/M
for two seconds. AF ON displays. The radio can switch to
FM stations with a stronger frequency.
To turn alternate frequency off, press and hold BAND
again for two seconds. A F OFF displays. The radio does
not switch to stronger FM stations.
3-49

Setting Preset PTYs (RDS Only)
These pushbuttons have factory PTY presets. Up to
12 PTYs (six FM1 and six FM2), can be programmed
on the six numbered pushbuttons, by performing
the following steps:
1. Press BAND, or depending on the radio, AM/FM to
select FM1 or FM2.
2. Press PROG TYPE, or depending on the radio,
P-TYPE, to activate program type select mode.
The PTY symbol displays.
3. Turn the SELECT, or depending on the radio,
P-TYPE, knob to select a PTY.
4. Press and hold one of the six numbered
pushbuttons until a beep sounds. When that
numbered pushbutton is pressed, the PTY that
was set, returns, if program type select mode
is activated.
5. Repeat the steps for each pushbutton.
RDS Messages
ALERT!:Alert warns of local or national emergencies.
When an alert announcement comes on the current
radio station, ALERT! displays. You will hear the
announcement, even if the volume is low or a CD
is playing. If a CD is playing, play stops during the
announcement. Alert announcements cannot be
turned off.
ALERT! is not affected by tests of the emergency
broadcast system. This feature is not supported by
all RDS stations.
INFO (Information):If the current station has a
message, INFO displays. Press this button to see the
message. The message can display the artist, song title,
call in phone numbers, etc.
If the entire message is not displayed, parts of the
message displays every three seconds. To scroll
through the message, press and release the INFO
button. A new group of words display after every press of
this button. Once the complete message has displayed,
the information symbol disappears from the display until
another new message is received. The last message
can be displayed by pressing the INFO button. The last
message is shown until a new message is received or
you tune to a different station.
3-50

TRAF (Traffic):If TRAF displays, the tuned station
broadcasts traffic announcements. To receive the
traffic announcement from the tuned station, press
this button. Brackets are displayed around TRAF and
when a traffic announcement broadcasts on the
tuned radio station, you will hear it.
If the station does not broadcast traffic announcements,
press the TRAF button and the radio seeks to a station
that does. When a station that broadcasts traffic
announcements is found, the radio stops seeking
and brackets are displayed around TRAF. If no station
is found that broadcasts traffic announcements, NO
TRAFFIC displays.
If the brackets are on the display and TRAF is not,
press the TRAF button to remove the brackets or use
the TUNE knob or the SEEK arrows to go to a station
that supports traffic announcements. If no station is found
that broadcasts traffic announcements, NO TRAFFIC
displays.
The radio plays the traffic announcement if the volume is
low. The radio interrupts the play of a CD if the last tuned
station broadcasts traffic announcements and the
brackets display.
This function does not apply to XM™ Satellite Radio
Service.Radio Messages
If any error occurs repeatedly or if an error cannot be
corrected, contact your dealer/retailer.
Radio Messages for XM™ Only
SeeXM Radio Messages on page 3-63later in this
section for further detail.
Playing a CD
For the Radio with CD (Base), insert a CD partway into
the slot, label side up. The player pulls it in and the
CD should begin playing. If you insert a CD with
the radio off and the ignition on, it starts to play.
For the Radio with CD (MP3) Insert a CD partway into the
slot, label side up. The player pulls it in and READING
DISC and the CD symbol displays. If you want to insert a
CD with the ignition off, rst press the eject button or push
the RCL button.
If the ignition or radio is turned off while a CD is in
the player, it stays in the player. When the ignition
or radio is turned on, the CD starts to play where
it stopped, if it was the last selected audio source.
When the CD is inserted, the CD symbol displays. As
each new track starts to play, the track number displays.
The CD player can play the smaller 3 inch (8 cm)
single CDs with an adapter ring. Full-size CDs and
the smaller CDs are loaded in the same manner.
3-51

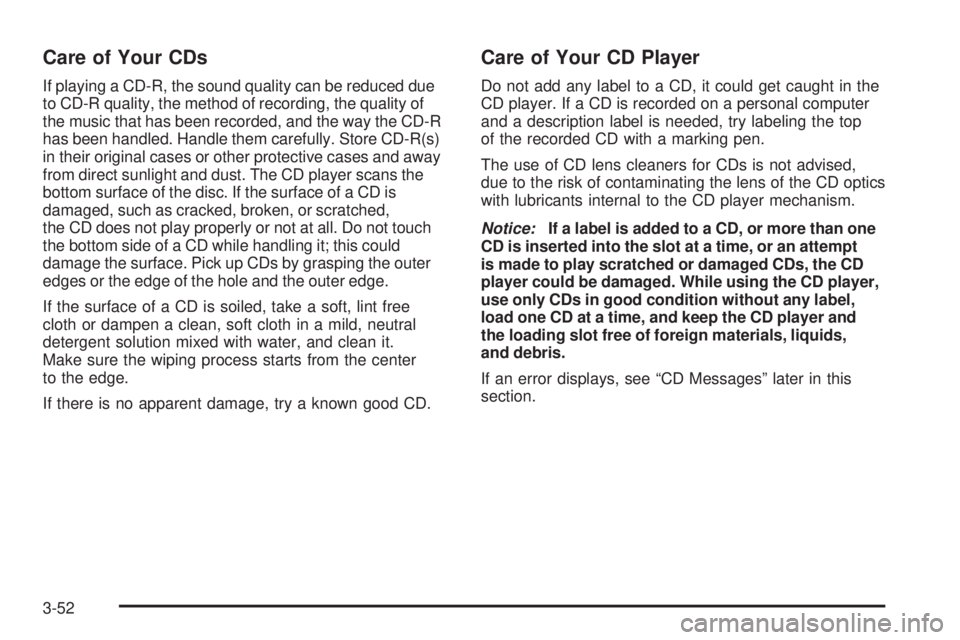

Care of Your CDs
If playing a CD-R, the sound quality can be reduced due
to CD-R quality, the method of recording, the quality of
the music that has been recorded, and the way the CD-R
has been handled. Handle them carefully. Store CD-R(s)
in their original cases or other protective cases and away
from direct sunlight and dust. The CD player scans the
bottom surface of the disc. If the surface of a CD is
damaged, such as cracked, broken, or scratched,
the CD does not play properly or not at all. Do not touch
the bottom side of a CD while handling it; this could
damage the surface. Pick up CDs by grasping the outer
edges or the edge of the hole and the outer edge.
If the surface of a CD is soiled, take a soft, lint free
cloth or dampen a clean, soft cloth in a mild, neutral
detergent solution mixed with water, and clean it.
Make sure the wiping process starts from the center
to the edge.
If there is no apparent damage, try a known good CD.
Care of Your CD Player
Do not add any label to a CD, it could get caught in the
CD player. If a CD is recorded on a personal computer
and a description label is needed, try labeling the top
of the recorded CD with a marking pen.
The use of CD lens cleaners for CDs is not advised,
due to the risk of contaminating the lens of the CD optics
with lubricants internal to the CD player mechanism.
Notice:If a label is added to a CD, or more than one
CD is inserted into the slot at a time, or an attempt
is made to play scratched or damaged CDs, the CD
player could be damaged. While using the CD player,
use only CDs in good condition without any label,
load one CD at a time, and keep the CD player and
the loading slot free of foreign materials, liquids,
and debris.
If an error displays, see “CD Messages” later in this
section.
3-52

For vehicles that have a radio with a Six-Disc CD player,
see the following:
LOAD / CD
Z:Press the LOAD side of this button to
load CDs into the CD player. This CD player holds up
to six CDs.
To insert one CD, do the following:
1. Turn the ignition on.
2. Press and release the LOAD button.
3. Wait for the indicator light, located to the right of the
slot, to turn green.
4. Load a CD. Insert the CD partway into the slot,
label side up. The player pulls the CD in.
To insert multiple CDs, do the following:
1. Turn the ignition on.
2. Press and hold the LOAD button for two seconds.
A beep sounds and the indicator light, located to
the right of the slot, begins to ash.
3. Once the light stops ashing and turns green, load
a CD. Insert the CD partway into the slot, label side
up. The player pulls the CD in.
Once the CD is loaded, the light begins ashing
again. Once the light stops ashing and turns green,
load another CD. The CD player takes up to six CDs.
Do not try to load more than six.To load more than one CD but less than six, complete
Steps 1 through 3. When nished loading CDs, the
radio begins to play the last CD loaded.
If more than one CD has been loaded, a number for
each CD displays.
Playing a Specic Loaded CD
For every CD loaded, a number appears on the display.
To play a specic CD, rst press the CD AUX button,
then press the numbered pushbutton that corresponds
to the CD. A small bar appears under the CD number
that is playing and the track number displays.
If an error appears on the display, see “CD Messages”
later in this section.
LOAD / CD
Z(Eject):Press the CD eject side of this
button to eject a CD(s). A beep sounds and the indicator
light ashes to let you know when a CD is being ejected.
REMOVE CD displays. The CD can be removed.
If the CD is not removed, after 25 seconds, the CD is
automatically pulled back into the player. If the CD is
pushed back into the player, before the 25 second time
period is complete, the player senses an error and tries
to eject the CD several times before stopping.
3-53

Do not repeatedly press the CD eject button to eject a CD
after trying to push it in manually. The player’s 25-second
eject timer resets at each press of eject, causing the
player to not eject the CD until the 25-second time period
has elapsed.
Once the player stops and the CD is ejected, remove the
CD. After removing the CD, push the PWR knob off and
then on again, or wait for the system to reset. This clears
the CD-sensing feature and enables CDs to be loaded
into the player again.
\1 (Forward) or FWD|(Forward):Depending on
the radio your vehicle has, the reverse arrows will look
different, but they function the same. Press and hold this
button to advance quickly within a track. Sound is heard
at a reduced volume. Release this pushbutton to play the
passage. The elapsed time of the track displays.
RPT (Repeat):For the Radio with Six-Disc CD player,
use this feature to repeat one track or an entire CD.
To use repeat, do the following:
To repeat the track, press and release the RPT
button. RPT displays. Press RPT again to turn
off repeat play.
To repeat the CD, press and hold the RPT button
for two seconds. RPT displays. Press RPT again
to turn off repeat play.RDM 2 / RDM 3 / RDM (Random):Depending on
the radio, press the RDM 2 or RDM 3 button to hear the
tracks in random, rather than sequential, order. RDM and
the track number displays. Press RDM again to turn off
random play.
For the Radio with Six-Disc CD player, the tracks can
be listened to in random order, on one CD or on all of
the CDs.
To use random on the Radio with Six-Disc CD player, do
one of the following:
To play the tracks on the CD in random order,
press and release the RDM button. RANDOM ONE
displays. Press RDM again to turn off random play.
To play the tracks on all of the CDs that are loaded
in random order, press and hold RDM for more than
two seconds. A beep sounds and RANDOM ALL
displays. Press RDM again to turn off random play.
#3 (Next Folder):This button does not have a
function for non-MP3 CDs. Press this button to go to
the next MP3 folder.
3-54

4sor{REV (Reverse):Depending on the
radio that your vehicle has, the reverse arrows will look
different, but they function the same. Press and hold this
button to reverse quickly within a track. Sound is heard at
a reduced volume. Release this pushbutton to play the
passage. The elapsed time of the track displays.
6
!(Previous Folder):This button does not have a
function for non-MP3 CDs. Press this button to go to
the previous MP3 folder.
EQ or AUTO EQ (Equalization):Press EQ, or
depending on the radio, AUTO EQ, to select the desired
customized equalization setting while playing a CD. The
equalization is automatically set when a CD is played.
See “EQ” or “AUTO EQ” listed previously for more
information.
wSEEKx(Radios with CD):Press the SEEK
arrows to go to the previous or to the next track.
Pressing either arrow for more than two seconds
searches the previous or next tracks at two tracks
per second. When the desired track number displays,
release the arrow to stop searching and to play the
track.
sSEEKt(Radio with Six-Disc CD Player):Press
the left arrow to go to the start of the current track, if more
than ten seconds have played. Press the right arrow to go
to the next track. If either arrow is held or pressed more
than once, the player continues moving backward or
forward through the CD.
wSCANx(Radios with CD):Press and hold either
arrow for more than two seconds until SCAN and the
track number displays and a beep sounds. The CD goes
to the next track, plays for a few seconds, then goes
to the next track. Press either arrow again to stop
scanning.
sSCANt(Radio with Six-Disc CD Player):
To scan one CD, press and hold either SCAN arrow
for more than two seconds until SCAN displays
and a beep sounds. The radio goes to the next track,
plays for 10 seconds, then goes to the next track.
Press either SCAN arrow again, to stop scanning.
To scan all loaded CDs, press and hold either
SCAN arrow for more than four seconds until CD SCAN
displays and a beep sounds. Use this feature to listen
to 10 seconds of the rst track of each loaded CD.
Press either SCAN arrow again, to stop scanning.
3-55

RCL (Recall):Push this button to see how long the
current track has been playing. To change the default on
the display, track and elapsed time, push the button until
the desired option displays, then hold the button until the
display ashes. The selected display is now the default.
BAND or AM/FM:Depending on the radio, press
this button to listen to the radio when a CD is playing.
The inactive CD remains inside the radio for future
listening.
CD AUX (Auxiliary):Press this button to play a CD
while listening to the radio.
Z(Eject):For the Radios with CD, press this button
to eject a CD. Eject can be activated with either the
ignition or radio off. CDs can be loaded with the radio
and ignition off if this button is pressed rst.
Using Song List Mode
(Radio with Six-Disc CD Player)
This type of radio has a feature called song list.
This feature is capable of saving 20 track selections.
To save tracks into the song list feature, perform
the following steps:
1. Turn the CD player on and load it with at least one
CD. See “LOAD CD” listed previously in this section
for more information.
2. Check to see that the CD changer is not in song list
mode. S-LIST should not display. If S-LIST displays,
press the SONG LIST button to turn it off.
3. Select the desired CD by pressing the numbered
pushbutton and then use the SEEK SCAN right
arrow to locate the track to be saved. The
track begins to play.
4. Press and hold the SONG LIST button to save the
track into memory. When SONG LIST is pressed,
one beep sounds. After two seconds of continuously
pressing the SONG LIST button, two beeps
sound to conrm the track has been saved.
5. Repeat Steps 3 and 4 for saving other selections.
S-LIST FULL displays if more than 20 selections
are saved.
3-56
