Using the Tire Sealant and
Compressor Kit to
Temporarily Seal and Inate a
Punctured Tire
Follow these directions closely for
correct sealant usage.
A. On/Off Switch
B. Air Compressor Accessory Plug
C. Air Compressor
D. Sealant Canister
E. Sealant/Air Hose
F. Air-only Hose
G. Pressure GageDo a safety check before
proceeding. SeeIf a Tire Goes Flat
on page 9-62.
Inspect the damaged tire.
The sealant cannot seal sidewall
damage, large punctures, or a
tire that has unseated from
the wheel. SeeRoadside Assistance
Program on page 12-6.
Do not remove any objects that
have penetrated the tire.
1. Place the tire sealant and
compressor kit on the ground and
unwrap the sealant/air hose (E)
from the side of the compressor.
2. Remove the air compressor
accessory plug (B) from the unit.
Do not plug the plug in yet.
3. Turn the tire valve stem cap
counterclockwise to remove.
4. Attach the sealant/air hose (E)
onto the tire valve stem. Turn
it clockwise until tight.5. Make sure the sealant and
compressor kit on/off switch (A) is
in the O (off) position.
Plug the air compressor
accessory plug (B) into an
accessory power outlet in the
vehicle. SeeAccessory Power
Outlet(s) on page 4-9for
more information.
Do not slam door or close
window on the compressor
accessory plug cord.
{CAUTION
Idling the engine in a closed-in
place or with the climate
control system off can cause
deadly carbon monoxide (CO).
SeeEngine Exhaust on
page 8-12.
6. Start the vehicle. The vehicle
must be running while using
the air compressor.
Vehicle Service and Care 9-65
2008 - Pontiac G8 Owner Manual

{CAUTION
Idling the engine in a closed-in
place or with the climate
control system off can cause
deadly carbon monoxide (CO).
SeeEngine Exhaust on
page 8-12.
5. Start the vehicle. The vehicle
must be running while using
the air compressor.
{CAUTION
Overination could cause the
tire to rupture, and you or
others could be injured. Be
sure to read the inator
instructions, and inate the tire
to its recommended pressure.
Do not exceed 36 psi (248 kPa).6. Push the On/Off switch (G) to the
I (on) position.
Check the pressure gage (F). If
there is not a pressure reading
while the compressor is running,
check for leaks at the connection
between the hose and the tire
valve stem.
7. Inate the tire up to the
recommended ination pressure
using the air pressure gage (F)
on the top of the unit. See
Inflation - Tire Pressure on
page 9-46.
The pressure gage (F) reads
slightly high while the compressor
is on. Turn the compressor off to
get an accurate reading. The
compressor may be turned on
and off until the correct pressure
is reached.
8. Push the On/Off switch (G) to the
O (off) position.
Be careful while handling the tire
sealant and compressor kit as
they could be hot after usage.9. Unplug the air compressor
accessory plug (A) from the
accessory power outlet in the
vehicle and stow it in its original
location.
10. Disconnect the air-only hose (E)
from the tire valve stem and
stow it back in its original
location.
11. Replace the tire valve stem cap.
{CAUTION
Storing the tire sealant and
compressor kit or other
equipment in the passenger
compartment of the vehicle
could cause injury. In a sudden
stop or collision, loose
equipment could strike
someone. Store the tire sealant
and compressor kit in its
original location.
12. Place the equipment in the
original location in the trunk
of your vehicle.
Vehicle Service and Care 9-69
2008 - Pontiac G8 Owner Manual

The jump start positive (A) and
negative posts (B) are located in the
engine compartment on the driver
side of the vehicle.These posts are used instead of a
direct connection to the battery.The positive jump start connection
is covered by a red cap. Remove to
expose the terminal.
1. Check the other vehicle. It must
have a 12-volt battery with a
negative ground system.
Notice: If the other vehicle’s
system is not a 12-volt system
with a negative ground, both
vehicles can be damaged. Only
use vehicles with 12-volt systems
with negative grounds to jump
start your vehicle.
2. Position the two vehicles so that they are not touching.
3. Set the parking brake rmly and put the shift lever in PARK (P).
See Shifting Into Park (Automatic
Transmission) on page 8-10 .
Vehicle Service and Care 9-81
2008 - Pontiac G8 Owner Manual

Turn Signals When Towing a
Trailer
When you tow a trailer, your vehicle
may need a different turn signal
asher and/or extra wiring. Check
with your dealer/retailer. The arrows
on your instrument panel will
ash whenever you signal a turn or
lane change. Properly hooked
up, the trailer lamps will also ash,
telling other drivers you are
about to turn, change lanes or stop.
When towing a trailer, the arrows
on your instrument panel will
ash for turns even if the bulbs on
the trailer are burned out. Thus, you
may think drivers behind you are
seeing your signal when they
are not. It is important to check
occasionally to be sure the trailer
bulbs are still working.
Your vehicle has bulb warning
lights. When you plug a trailer
lighting system into your vehicle’s
lighting system, its bulb warning
lights may not let you know if one of
your lamps goes out. So, whenyou have a trailer lighting system
plugged in, be sure to check
your vehicle and trailer lamps from
time to time to be sure they are
all working. Once you disconnect the
trailer lamps, the bulb warning
lights again can tell you if one of
your vehicle lamps is out.
Driving On Grades
Reduce speed and shift to a lower
gearbeforeyou start down a
long or steep downgrade. If you do
not shift down, you might have
to use your brakes so much
that they would get hot and no
longer work well.
On a long uphill grade, shift down to
a lower gear and reduce your
speed to around 45 mph (70 km/h)
to reduce the possibility of engine
and transmission overheating.
Parking on Hills
{CAUTION
You really should not park your
vehicle, with a trailer attached,
on a hill. If something goes
wrong, your rig could start to
move. People can be injured,
and both your vehicle and the
trailer can be damaged.
But if you ever have to park your rig
on a hill, here is how to do it:
1. Apply your regular brakes, but do
not shift into P (Park) yet.
2. Have someone place chocks
under the trailer wheels.
3. When the wheel chocks are in
place, release the regular
brakes until the chocks absorb
the load.
4. Reapply the regular brakes.
Then apply your parking
brake, and then shift to P (Park).
5. Release the regular brakes.
9-90 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

When You Are Ready to Leave
After Parking on a Hill
1. Apply your regular brakes and
hold the pedal down while you:
Start your engine.
Shift into a gear.
Release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is
clear of the chocks.
4. Stop and have someone pick up
and store the chocks.
Maintenance When Trailer
Towing
Your vehicle will need service more
often when you’re pulling a trailer.
See the Maintenance Schedule for
more on this. Things that are
especially important in trailer
operation are automatic transmission
uid (don’t overll), engine oil, drivebelt, cooling system and brake
system. Each of these is covered in
this manual, and the Index will help
you nd them quickly. If you’re
trailering, it’s a good idea to review
this information before you start
your trip.
Check periodically to see that all
hitch nuts and bolts are tight.
Engine Cooling When Trailer
Towing
Your cooling system may
temporarily overheat during severe
operating conditions. SeeEngine
Overheating on page 9-16.
Appearance Care
Interior Cleaning
Your vehicle’s interior will continue
to look its best if it is cleaned
often. Although not always visible,
dust and dirt can accumulate
on your upholstery. Dirt can damage
carpet, fabric, leather, and plastic
surfaces. Regular vacuuming
is recommended to remove particles
from the upholstery. It is important
to keep your upholstery from
becoming and remaining heavily
soiled. Soils should be removed as
quickly as possible. Your vehicle’s
interior may experience extremes of
heat that could cause stains to
set rapidly.
Lighter colored interiors may require
more frequent cleaning. Use care
because newspapers and garments
that transfer color to your home
furnishings may also transfer color
to your vehicle’s interior.
Vehicle Service and Care 9-91
2008 - Pontiac G8 Owner Manual

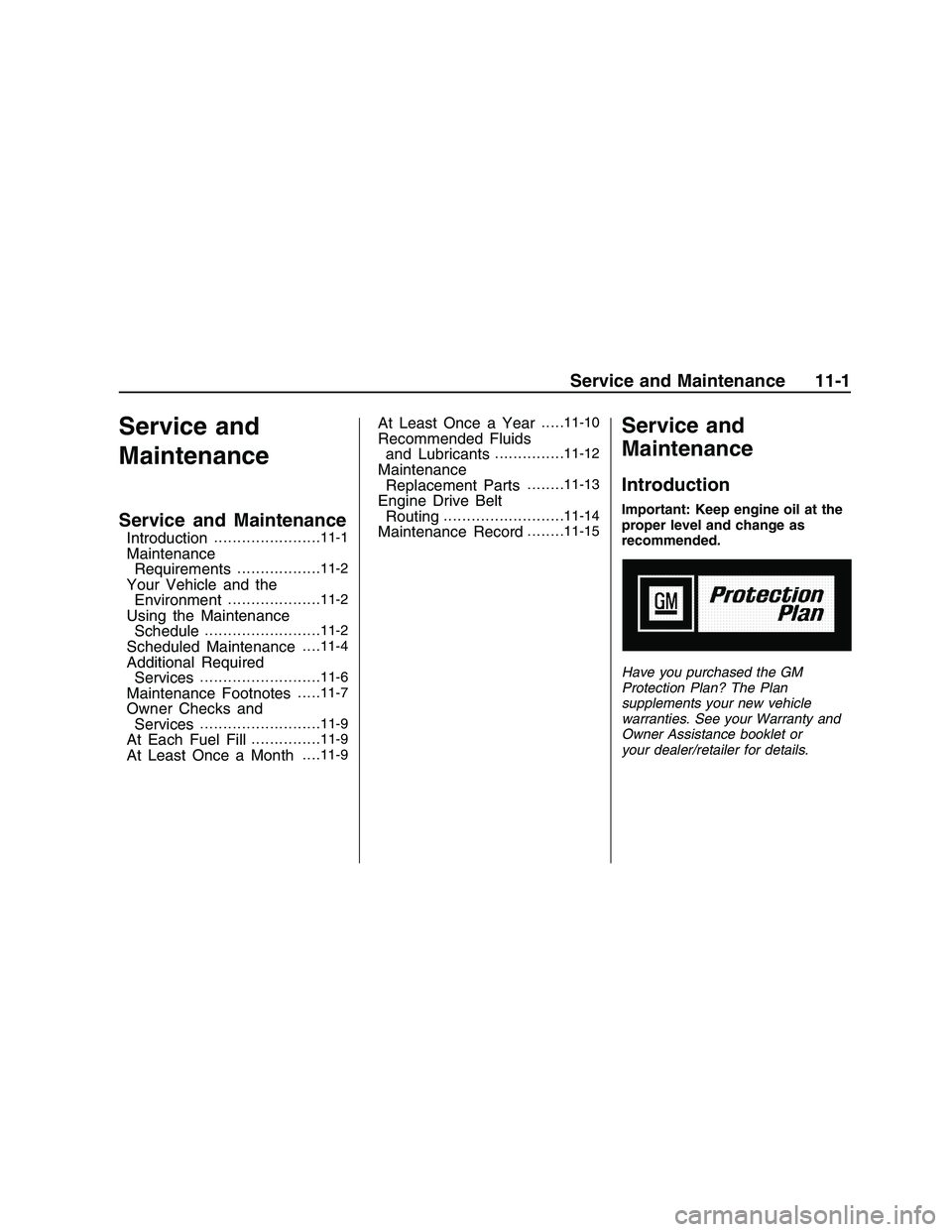

Service and
Maintenance
Service and Maintenance
Introduction.......................11-1
Maintenance
Requirements..................11-2
Your Vehicle and the
Environment....................11-2
Using the Maintenance
Schedule.........................11-2
Scheduled Maintenance. . . .11-4
Additional Required
Services..........................11-6
Maintenance Footnotes.....11-7
Owner Checks and
Services..........................11-9
At Each Fuel Fill...............11-9
At Least Once a Month. . . .11-9
At Least Once a Year.....11-10
Recommended Fluids
and Lubricants...............11-12
Maintenance
Replacement Parts........11-13
Engine Drive Belt
Routing..........................11-14
Maintenance Record........11-15
Service and
Maintenance
Introduction
Important: Keep engine oil at the
proper level and change as
recommended.
Have you purchased the GM
Protection Plan? The Plan
supplements your new vehicle
warranties. See your Warranty and
Owner Assistance booklet or
your dealer/retailer for details.
Service and Maintenance 11-1
2008 - Pontiac G8 Owner Manual

Scheduled Maintenance
When the Service Engine Oil
message comes on, it means that
service is required for your vehicle.
Have your vehicle serviced as soon
as possible within the next 600 miles
(1 000 km). It is possible that, if you
are driving under the best conditions,
the engine oil life system may not
indicate that vehicle service is
necessary for over a year. However,
your engine oil and lter must be
changed at least once a year and at
this time the system must be reset.
Your dealer/retailer has trained
service technicians who will perform
this work using genuine parts and
reset the system.If the engine oil life system is ever
reset accidentally, you must
service your vehicle within
3,000 miles (5 000 km) since your
last service. Remember to reset the
oil life system whenever the oil is
changed. SeeEngine Oil Life
System on page 9-10for information
on the Engine Oil Life System
and resetting the system.
When the Service Engine Oil
message appears, certain services,
checks, and inspections are
required. Required services are
described in the following for
“MaintenanceI” and
“MaintenanceII.” Generally, it is
recommended that your rst service
be MaintenanceI, your second
service be MaintenanceII, and that
you alternate MaintenanceIand
MaintenanceIIthereafter. However,
in some cases, MaintenanceII
may be required more often.MaintenanceI— Use
MaintenanceIif the Service Engine
Oil message comes on within
10 months since the vehicle was
purchased or MaintenanceII
was performed.
MaintenanceII— Use
MaintenanceIIif the previous
service performed was
MaintenanceI. Always use
MaintenanceIIwhenever the
Service Engine Oil message comes
on 10 months or more since the
last service or if the message
has not come on at all for one year.
11-4 Service and Maintenance
2008 - Pontiac G8 Owner Manual

Scheduled Maintenance
Service MaintenanceIMaintenance II
Change engine oil and lter. See Engine Oil on page 9-8. Reset oil life
system. See Engine Oil Life System on page 9-10 .An Emission Control
Service. ••
Visually check for any leaks or damage. See footnote (j). ••
Inspect engine air cleaner lter. If necessary, replace lter. See Engine Air
Cleaner/Filter on page 9-11 .See footnote (k). •
Rotate tires and check ination pressures and wear. See Tire Inspection and
Rotation on page 9-54 and “Tire Wear Inspection” in At Least Once a Month
on page 11-9 . ••
Inspect brake system. See footnote (a). ••
Check engine coolant and windshield washer uid levels and add uid as
needed. ••
Perform any needed additional services. See “Additional Required Services”
in this section. ••
Inspect suspension and steering components. See footnote (b). •
Inspect engine cooling system. See footnote (c). •
Inspect wiper blades. See footnote (d). •
Inspect restraint system components. See footnote (e). •
Lubricate body components. See footnote (f). •
Replace passenger compartment air lter. See footnote (l). •
Service and Maintenance 11-5
2008 - Pontiac G8 Owner Manual
