Additives
To provide cleaner air, all gasolines
in the United States are now required
to contain additives that help prevent
engine and fuel system deposits
from forming, allowing the emission
control system to work properly.
In most cases, you should not have
to add anything to the fuel. However,
some gasolines contain only the
minimum amount of additive required
to meet U.S. Environmental
Protection Agency regulations.
To help keep fuel injectors and intake
valves clean, or if your vehicle
experiences problems due to dirty
injectors or valves, look for gasoline
that is advertised as TOP TIER
Detergent Gasoline. Also, your
dealer/retailer has additives that will
help correct and prevent most
deposit-related problems.
Gasolines containing oxygenates,
such as ethers and ethanol, and
reformulated gasolines might
be available in your area.We recommend that you use these
gasolines, if they comply with the
specications described earlier.
However, E85 (85% ethanol) and
other fuels containing more than
10% ethanol must not be used in
vehicles that were not designed
for those fuels.
Notice:Your vehicle was not
designed for fuel that contains
methanol. Do not use fuel
containing methanol. It can
corrode metal parts in the fuel
system and also damage plastic
and rubber parts. That damage
would not be covered under your
warranty.
Some gasolines that are not
reformulated for low emissions can
contain an octane-enhancing additive
called methylcyclopentadienyl
manganese tricarbonyl (MMT); ask
the attendant where you buy gasoline
whether the fuel contains MMT.We recommend against the use of
such gasolines. Fuels containing
MMT can reduce the life of spark
plugs and the performance of the
emission control system could be
affected. The malfunction indicator
lamp might turn on. If this occurs,
return to your dealer/retailer for
service.
Fuels in Foreign
Countries
If you plan on driving in another
country outside the United States or
Canada, the proper fuel might be
hard to nd. Never use leaded
gasoline or any other fuel not
recommended in the previous text
on fuel. Costly repairs caused
by use of improper fuel would not
be covered by your warranty.
To check the fuel availability, ask an
auto club, or contact a major oil
company that does business in the
country where you will be driving.
8-34 Driving and Operating
2008 - Pontiac G8 Owner Manual

Vehicle Service
and Care
Service
Service...............................9-2
Accessories and
Modications.....................9-3
California Proposition 65
Warning............................9-3
California Perchlorate
Materials Requirements.....9-3
Doing Your Own
Service Work....................9-4
Adding Equipment to the
Outside of the Vehicle......9-4
Owner Checks
Owner Checks....................9-5
Hood Release.....................9-5
Engine Compartment
Overview...........................9-6
Engine Oil..........................9-8
Engine Oil Life System.....9-10
Engine Air Cleaner/Filter. . .9-11
Automatic Transmission
Fluid................................9-13
Engine Coolant.................9-13
Radiator Pressure Cap......9-15
Engine Overheating...........9-16
Cooling System.................9-17
Power Steering Fluid.........9-21
Windshield Washer Fluid. . .9-22
Windshield Wiper Blade
Replacement...................9-23
Brakes..............................9-24
Battery..............................9-26
Headlamp Aiming
Headlamp Aiming..............9-27
Bulb Replacement
Bulb Replacement.............9-29
Halogen Bulbs..................9-29
Headlamps and Parking
Lamps.............................9-29
Taillamps..........................9-31
Replacement Bulbs...........9-32
Electrical System
Add-On Electrical
Equipment.......................9-32
Headlamp Wiring..............9-33
Windshield Wiper Fuses. . . .9-33
Power Windows and
Other Power Options. . . . . . .9-33
Instrument Panel Fuse
Block...............................9-33
Engine Compartment
Fuse Block......................9-35
Rear Compartment Fuse
Block...............................9-38
Tires
Tires.................................9-39
Tire Sidewall Labeling. . . . . . .9-40
Tire Terminology and
Denitions.......................9-43
Ination - Tire Pressure. . . .9-46
High-Speed Operation. . . . . . .9-48
Tire Pressure Monitor
System............................9-49
Tire Pressure Monitor
Operation........................9-51
Tire Inspection and
Rotation..........................9-54
When It Is Time for
New Tires.......................9-56
Buying New Tires.............9-56
Different Size Tires and
Wheels............................9-58
Vehicle Service and Care 9-1
2008 - Pontiac G8 Owner Manual

Owner Checks
{CAUTION
An electric fan under the hood
can start up and injure you
even when the engine is not
running. Keep hands, clothing,
and tools away from any
underhood electric fan.
{CAUTION
Things that burn can get on hot
engine parts and start a re.
These include liquids like fuel,
oil, coolant, brake uid,
windshield washer and other
uids, and plastic or rubber.
You or others could be burned.
Be careful not to drop or spill
things that will burn onto a hot
engine.
Hood Release
To open the hood:
1. Pull the release handle with the
above symbol on it. It is located
below the instrument panel to
the left of the steering wheel.2. Pull up on the secondary hood
release. The lever is located
near the middle of the hood.
3. Lift the hood.
4. Release the hood prop rod from
its retainer and put it into the
slot in the hood. To insert
the hood prop rod into the slot.
Before closing the hood, be sure all
the ller caps are on properly.
Make sure to return the hood prop
rod carefully back to its retainer
to avoid damaging the vehicle.
Vehicle Service and Care 9-5
2008 - Pontiac G8 Owner Manual

Engine Compartment Overview
When you open the hood, this is what you will see:A. Engine Compartment Fuse
Block. See Engine Compartment
Fuse Block on page 9-35 .
B. Coolant Reservoir and Dipstick. See Cooling System on
page 9-17 .
C. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine
Oil on page 9-8 .
D. Engine Oil Dipstick (Out of View). See “Checking Engine Oil” under
Engine Oil on page 9-8 .
E. Brake Master Cylinder Reservoir. See “Brake Fluid” under Brakes
on page 9-24 .
F. Power Steering Reservoir. See Power Steering Fluid on
page 9-21 .
G. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter
on page 9-11 .
H. Windshield Washer Fluid Reservoir. See Windshield
Washer Fluid on page 9-22 .
I. Radiator Pressure Cap. See Cooling System on page 9-17 .
V6 Engine
9-6 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

A. Engine Compartment FuseBlock. See Engine Compartment
Fuse Block on page 9-35 .
B. Coolant Reservoir and Dipstick. See Cooling System on
page 9-17 .
C. Engine Oil Dipstick. See “Checking Engine Oil” under
Engine Oil on page 9-8 .
D. Engine Oil Fill Cap. See “When to Add Oil” under Engine Oil on
page 9-8 .
E. Power Steering Reservoir. See Power Steering Fluid on
page 9-21 .
F. Brake Master Cylinder Reservoir. See “Brake Fluid” under Brakes
on page 9-24 .
G. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on
page 9-11 .
H. Windshield Washer Fluid Reservoir. See Windshield
Washer Fluid on page 9-22 .
I. Radiator Pressure Cap. See Cooling System on page 9-17 .
V8 Engine
Vehicle Service and Care 9-7
2008 - Pontiac G8 Owner Manual

Engine Oil
Checking Engine Oil
It is a good idea to check the
engine oil every time you get fuel.
In order to get an accurate reading,
the oil must be warm and the
vehicle must be on level ground.
The engine oil dipstick handle
is a yellow loop. SeeEngine
Compartment Overview on page 9-6
for the location of the engine oil
dipstick.
1. Turn off the engine and give the
oil several minutes to drain back
into the oil pan. If you do not
do this, the oil dipstick might not
show the actual level.
2. Pull the dipstick and clean it with
a paper towel or cloth, then push
it back in all the way. Remove
it again, keeping the tip down and
check the level.
When to Add Engine Oil
If the oil is below the MIN (minimum)
mark, add at least one quart/liter
of the recommended oil. This
section explains what kind of oil to
use. For engine oil crankcase
capacity, seeCapacities and
Specifications on page 10-2.
Notice:Do not add too much oil.
If the engine has so much oil
that the oil level gets above the
upper mark that shows the proper
operating range, the engine
could be damaged.SeeEngine Compartment Overview
on page 9-6for the location of
the engine oil ll cap.
Be sure to add enough oil to put the
level somewhere in the proper
operating range. Push the dipstick
all the way back in when you
are through.
9-8 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

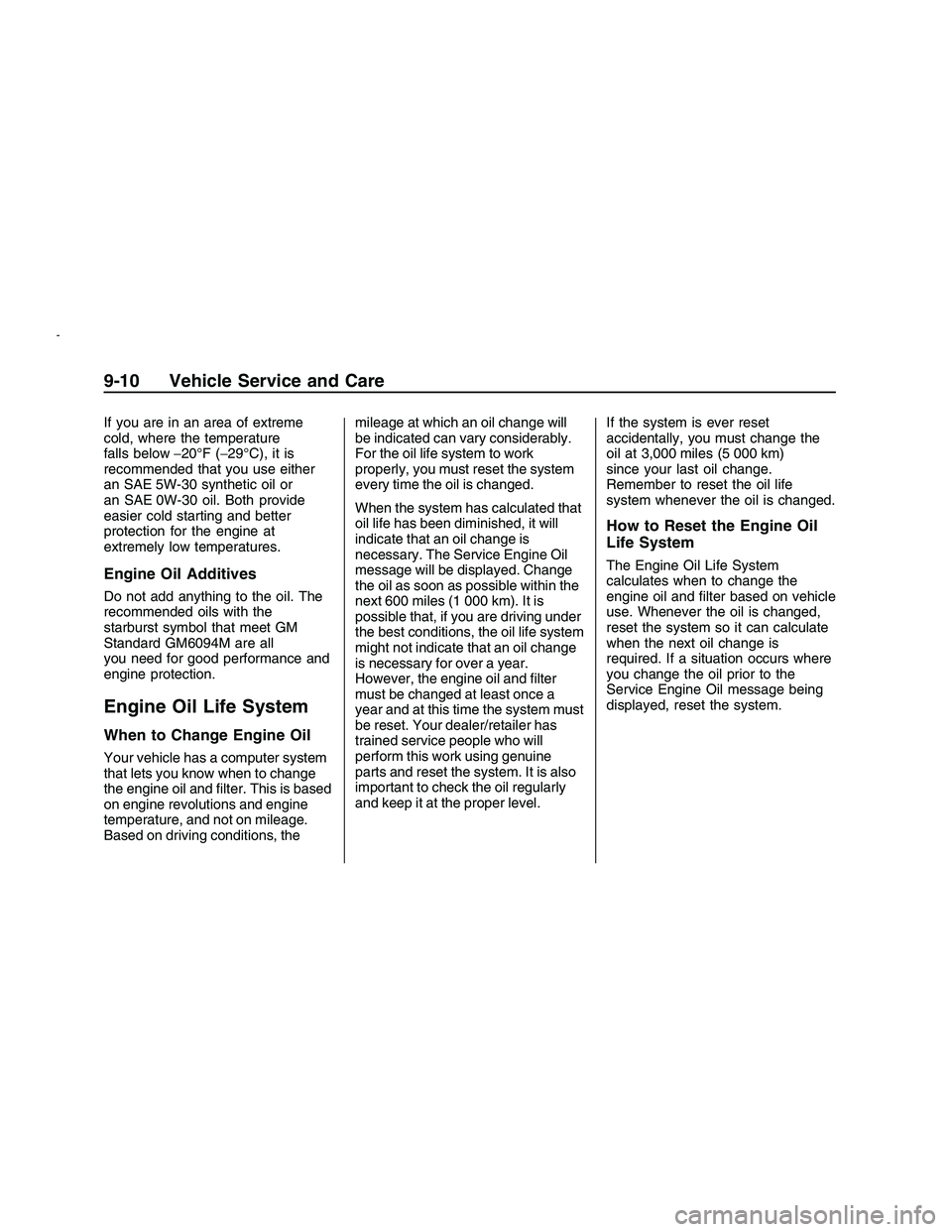

If you are in an area of extreme
cold, where the temperature
falls below−20°F (−29°C), it is
recommended that you use either
an SAE 5W-30 synthetic oil or
an SAE 0W-30 oil. Both provide
easier cold starting and better
protection for the engine at
extremely low temperatures.
Engine Oil Additives
Do not add anything to the oil. The
recommended oils with the
starburst symbol that meet GM
Standard GM6094M are all
you need for good performance and
engine protection.
Engine Oil Life System
When to Change Engine Oil
Your vehicle has a computer system
that lets you know when to change
the engine oil and lter. This is based
on engine revolutions and engine
temperature, and not on mileage.
Based on driving conditions, themileage at which an oil change will
be indicated can vary considerably.
For the oil life system to work
properly, you must reset the system
every time the oil is changed.
When the system has calculated that
oil life has been diminished, it will
indicate that an oil change is
necessary. The Service Engine Oil
message will be displayed. Change
the oil as soon as possible within the
next 600 miles (1 000 km). It is
possible that, if you are driving under
the best conditions, the oil life system
might not indicate that an oil change
is necessary for over a year.
However, the engine oil and lter
must be changed at least once a
year and at this time the system must
be reset. Your dealer/retailer has
trained service people who will
perform this work using genuine
parts and reset the system. It is also
important to check the oil regularly
and keep it at the proper level.If the system is ever reset
accidentally, you must change the
oil at 3,000 miles (5 000 km)
since your last oil change.
Remember to reset the oil life
system whenever the oil is changed.
How to Reset the Engine Oil
Life System
The Engine Oil Life System
calculates when to change the
engine oil and lter based on vehicle
use. Whenever the oil is changed,
reset the system so it can calculate
when the next oil change is
required. If a situation occurs where
you change the oil prior to the
Service Engine Oil message being
displayed, reset the system.
9-10 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

Notice:If the air cleaner/lter is
off, a backre can cause a
damaging engine re. And, dirt
can easily get into your engine,
which will damage it. Always have
the air cleaner/lter in place
when you are driving.
Automatic Transmission
Fluid
It is not necessary to check the
transmission uid level. A
transmission uid leak is the only
reason for uid loss. If a leak occurs,
take your vehicle to a dealer/retailer
and have it repaired as soon as
possible.
Change the uid and lter at the
intervals listed in the Maintenance
Schedule. SeeScheduled
Maintenance on page 11-4. Be sure
to use the transmission uid
listed inRecommended Fluids and
Lubricants on page 11-12.Notice:Use of the incorrect
automatic transmission uid may
damage your vehicle, and the
damages may not be covered by
your warranty. Always use the
automatic transmission uid
listed inRecommended Fluids
and Lubricants on page 11-12.
Engine Coolant
The cooling system in your vehicle is
lled with DEX-COOL®engine
coolant. This coolant is designed to
remain in your vehicle for ve years
or 150,000 miles (240 000 km),
whichever occurs rst, if you add
only DEX-COOL
®extended life
coolant.
The following explains your cooling
system and how to add coolant
when it is low. If you have a problem
with engine overheating, see
Engine Overheating on page 9-16.A 50/50 mixture of clean, drinkable
water and DEX-COOL
®coolant will:
Give freezing protection down
to−34°F (−37°C).
Give boiling protection up to
265°F (129°C).
Protect against rust and
corrosion.
Help keep the proper engine
temperature.
Let the warning lights and gages
work as they should.
Notice:Using coolant other than
DEX-COOL
®can cause premature
engine, heater core, or radiator
corrosion. In addition, the engine
coolant may require changing
sooner, at the rst maintenance
service after each 30,000 miles
(50 000 km) or 24 months,
whichever occurs rst. Any
repairs would not be covered by
the vehicle warranty. Always
use DEX-COOL
®(silicate-free)
coolant in the vehicle.
Vehicle Service and Care 9-13
2008 - Pontiac G8 Owner Manual
