Page 1 of 131
4 PRESENTATION
The handbook is designed to familiarise you with your new
vehicle from the moment you get behind the wheel an d to
describe the operating features.
Reading the handbook is made easy by a Familiarisa tion
chapter, followed by 8 identified chapters which ca n be located
by means of a colour code specific to each one. Its sections
cover, by theme, all of the functions of the vehicl e in its most
complete specification.
Chapter 2 indicates all of the technical data rela ting to your
vehicle. At the end of the handbook, diagrams of th e outside
and inside of the vehicle will assist you in locati ng equipment
or functions and page numbers refer you to the rele vant
section of the handbook. Within the chapters symbols draw your attention to
specific
information:
COMMUNICATION
The technical data, equipment and accessories may change
during the year. To obtain this new data, refer to the "Latest
Information" section on the SERVICEBOX Internet sit e.
Simple registration permits access to the site and free
consultation of the vehicle documentation.
http://public.servicebox.peugeot.com , select:
- the vehicle documentation/handbooks item,
- your model,
- the body type: saloon, CC, SW, estate, van, …,
- the period corresponding to the date of first registration,
- the "Latest Information" section. directs you to the chapter and section which conta
ins
detailed information concerning a function,
indicates important information relating to use of the
equipment,
alerts you to the safety of individuals and equipm ent on
board.
PEUGEOT PUTS AN INTERNET SITE AT YOUR DISPOSAL
Page 51 of 131
45
2
Dimensions
TECHNICAL DATA
DIMENSIONS
The light van "L1" is the standard model, the "L2 - Worksite Pack" version is a model sold according to country:

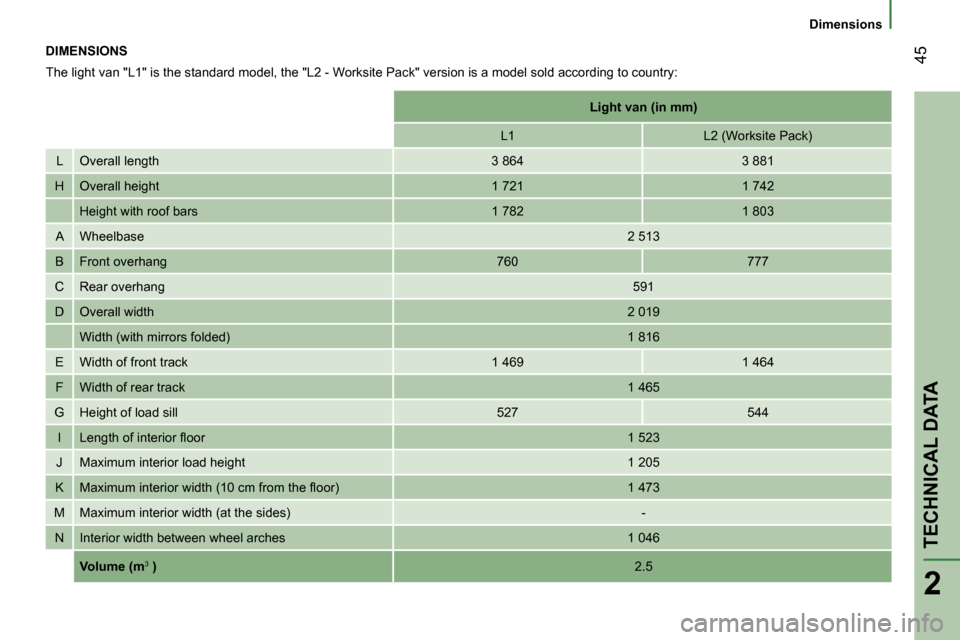

Light van (in mm)
L1 L2 (Worksite Pack)
L Overall length 3 864 3 881
H Overall height 1 721 1 742
Height with roof bars 1 782 1 803
A Wheelbase 2 513
B Front overhang 760 777
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 469 1 464
F Width of rear track 1 465
G Height of load sill 527 544
I L e n g t h o f i n t e r i o r fl o o r 1 523
J Maximum interior load height 1 205
K M a x i m u m i n t e r i o r w i d t h ( 1 0 c m f r o m t h e fl o o r ) 1 473
M Maximum interior width (at the sides) -
N Interior width between wheel arches 1 046
Volume (m
3
) 2.5
Page 53 of 131
47
2
Dimensions
TECHNICAL DATA
Combi (in mm)
Standard All-terrain
L Overall length 3 959 3 970
H Overall height 1 721 1 742
Height with roof bars 1 782 1 803
A Wheelbase 2 513
B Front overhang 855 866
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 464
F Width of rear track 1 465
G Height of load sill 527 544
I L e n g t h o f i n t e r i o r fl o o r ( r e a r b e n c h s e a t i n p l a c e ) 743
L e n g t h o f i n t e r i o r fl o o r ( r e a r b e n c h s e a t f u l l y f o l d e d ) 1 130
J Maximum interior load height (under rear shelf) 592
K M a x i m u m i n t e r i o r w i d t h ( 1 0 c m f r o m t h e fl o o r ) 1 473
M Maximum interior width (at the sides) -
N Interior width between wheel arches 1 046
Page 55 of 131
49
2
Engines
TECHNICAL DATA
PETROL ENGINE
1.4 l 75 bhp
Gearbox Manual
Gears 5
EU standard maximum power (kW) 54
Cubic capacity (cm 3
) 1 360
Bore x stroke (mm) 75 x 77
Max power engine speed (rpm) 5 200
EU standard max torque (Nm) 118
Max torque engine speed (rpm) 2 600
Fuel Unleaded petrol
Engine oil capacity (in litres) 3.0
Page 57 of 131
51
2
Weights
TECHNICAL DATA

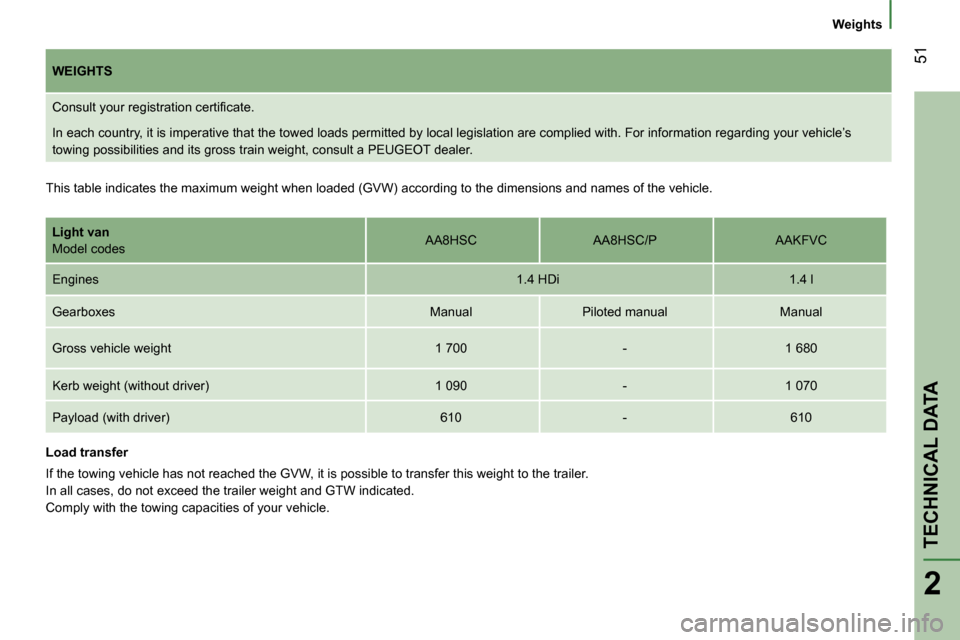

WEIGHTS
C o n s u l t y o u r r e g i s t r a t i o n c e r t i fi c a t e .
In each country, it is imperative that the towed loads permi tted by local legislation are complied with. For information regarding your vehicle’s
towing possibilities and its gross train weight, consult a PEU GEOT dealer.
This table indicates the maximum weight when loaded (GVW) acco rding to the dimensions and names of the vehicle.
Light van
Model codes AA8HSC AA8HSC/P AAKFVC
Engines 1.4 HDi 1.4 l
Gearboxes Manual Piloted manual Manual
Gross vehicle weight 1 700 - 1 680
Kerb weight (without driver) 1 090 - 1 070
Payload (with driver) 610 - 610
Load transfer
If the towing vehicle has not reached the GVW, it is possib le to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW in dicated.
Comply with the towing capacities of your vehicle.
Page 103 of 131
94
Towing a trailer
In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this
case, the automatic cutting off of the air
conditioning allows the engine power to be
recovered. If the coolant temperature
warning light comes on, stop the
vehicle and switch off the engine
as soon as possible.
See the "Levels" section of chapter 7.
Tyres: check the tyre pressures of the
towing vehicle (see the "Identification
features" section of chapter 7) and of
the trailer, observing the recommended
pressure.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
ABS: the system only controls the vehicle,
not the trailer.
Rear parking assistance: the
assistance will be deactivated
automatically when an original PEUGEOT
towbar is used (see the "Rear parking
assistance" section of chapter 4).
We recommend the use of original
PEUGEOT towbars and their harnesses,
which have been tested and approved from
the design stage of your vehicle, and that
the fitting of this equipment is entrusted to a
PEUGEOT dealer .
If this equipment is not fitted by a PEUGEOT
dealer , it is essential that it is fitted using
the electrical pre-equipment located at the
rear of the vehicle in accordance with the
manufacturer ’s instructions.
The operation of the sensors is deactivated
automatically when the pin of the trailer
cable is inserted in the towbar socket.
When the trailer cable pin is removed, the
sensors are re-activated.
Distribution of loads
Distribute the load in the trailer so that the
heaviest objects are as close as possible
to the axle and the nose weight is close to
the maximum authorised without, however,
exceeding it. The air density decreases with
altitude, so reducing the performance of
the engine. The maximum towed load must
be reduced by 10 % for each 1 000 metres
of altitude. Refer to the "Technical data"
chapter for details of the weights and
towed loads applicable to your vehicle and
also to the administrative documents (V5
registration document, ...).
