Steering wheel controls
Headlamp beam
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can only be accessed in
the main beam headlamps and dipped
headlamps position. Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.
An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).
Fog lamps
The controls are located on the fascia panel
control pad.
Front and rear fog lamps
The fog lamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.
"Follow me home" lighting
The temporary maintaining of the dipped
headlamps, after switching off the vehicle’s
ignition, makes the driver ’s exit easier when
the light is poor and lights the space in front
of the vehicle.
Activation
With the ignition key in the STOP position
or removed, pull the lighting control towards
the steering wheel within 2 minutes after
switching off the engine.
Each time the control is operated, the
duration for which the lights will remain on is
extended by 30 seconds, up to a maximum
of 210 seconds. Once this period of time has
elapsed, the lights switch off automatically.
Deactivation
Pull the lighting control towards the steering
wheel for more than 2 seconds.
The front fog lamps operate with
the side lights and the dipped
headlamps.
The rear fog lamps operate with
the dipped headlamps.
Press one of these controls to switch on the
lights. The warning light comes on,
accompanied by a message
on the display, the first time
the control is operated and
remains on until the function is deactivated
automatically.
Page 47 of 131
Gearbox and steering wheel
PILOTED MANUAL GEARBOX
The five-speed piloted manual gearbox
offers a choice between the comfort of
automatic regulation or the pleasure of
manual gear changing.
This gearbox enables you to access two
driving modes:
- an automated mode for automatic control of the gears by the gearbox and therefore
without any action on the part of the
driver,
- a sequential mode for manual changing of the gears by the driver using the gear
lever.

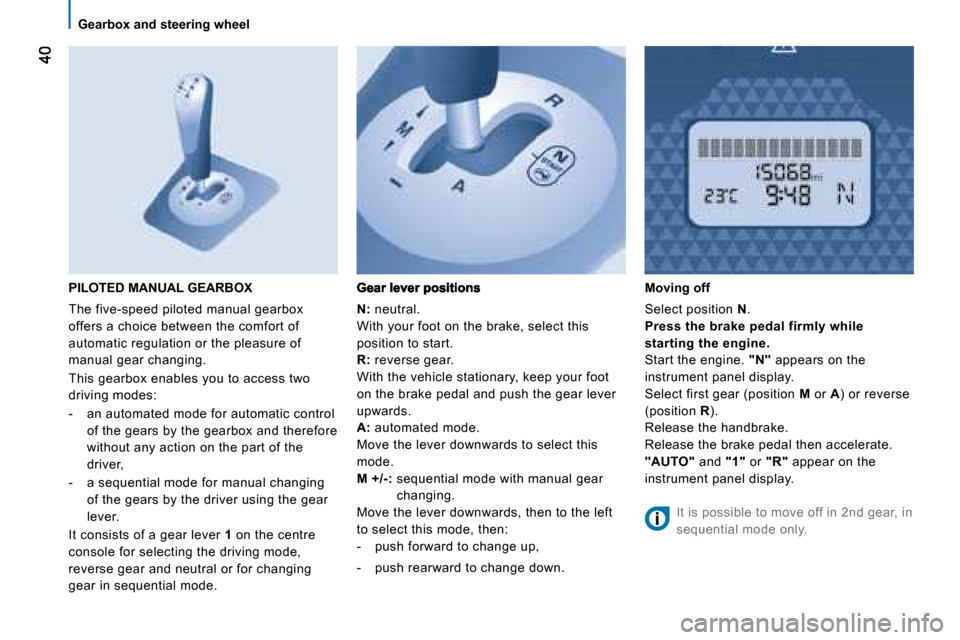

It consists of a gear lever 1 on the centre
console for selecting the driving mode,
reverse gear and neutral or for changing
gear in sequential mode.
N: neutral.
With your foot on the brake, select this
position to start.
R: reverse gear.
With the vehicle stationary, keep your foot
on the brake pedal and push the gear lever
upwards.
A: automated mode.
Move the lever downwards to select this
mode.
M +/-: sequential mode with manual gear
changing.
Move the lever downwards, then to the left
to select this mode, then:
- push forward to change up,
- push rearward to change down.
Moving off
Select position N .
Press the brake pedal firmly while
starting the engine.
Start the engine. "N" appears on the
instrument panel display.
Select first gear (position M or A ) or reverse
(position R ).
Release the handbrake.
Release the brake pedal then accelerate.
"AUTO" and "1" or "R" appear on the
instrument panel display.
It is possible to move off in 2nd gear, in
sequential mode only.
Page 48 of 131
AUTO41
1
READY TO SET OFF
Gearbox and steering wheel
Stopping - Starting on a slope
This gearbox is a piloted manual gearbox
which does not have a clutch pedal.
Do not use the accelerator pedal to
immobilise the vehicle on a slope, apply
the handbrake instead.
When moving off on a slope, accelerate
gradually while releasing the
handbrake.
Switching to sequential mode
Once you have moved off, you can switch to
sequential mode by selecting position M .
"AUTO" disappears and the
gears engaged appear in
succession on the instrument
panel display.
The gear change requests are only carried
out if the engine speed permits it.
Take your foot off the accelerator pedal
gently to engage the gear.
At low speeds, when approaching a stop
or traffic lights for example, the gearbox
changes down to first gear automatically.
Switching to automated mode
After using the sequential mode, you can
return to the automated mode by selecting
position A .
"AUTO" and the gear engaged
appear on the instrument panel
display.
The gearbox then operates in
auto-active mode, without any action on the
part of the driver.
It continuously selects the gear most suited
to the following parameters:
- driving style,
- road characteristics,
- vehicle load.
To optimise driving comfort and obtain the
most suitable gear, avoid sharp variations in
the pressure on the accelerator pedal.
If you press the accelerator pedal beyond
the point of resistance, the gearbox
selects the gear below to permit sharper
acceleration.
Stopping the vehicle
Before switching off the engine, you can:
- move to position N to leave the gearbox
in neutral.
- leave a gear engaged, such as first or reverse.
In both cases, it is imperative that you apply
the handbrake to immobilise the vehicle.
Reinitialisation
Following disconnection of the battery, the
gearbox must be reinitialised:
- switch on the ignition, "AUTO" appears
on the instrument panel display,
- press the brake pedal,
- wait approximately 30 seconds until "N"
or a gear appears on the instrument
panel display,
- release the brake pedal.
The gearbox is operational again.
Operating anomaly
With the ignition on, the flashing
of "AUTO" and lighting of this
warning light, accompanied by
an audible signal and a message
on the instrument panel display, indicate a
gearbox malfunction.
Have it checked by a PEUGEOT dealer. The brake pedal must be pressed while
starting the engine.
Never select neutral N while the vehicle is
moving.
Only engage reverse gear R with the vehicle
immobilised and the brake pedal pressed.
In all cases, it is imperative that you apply
the handbrake in order to immobilise the
vehicle.
On a steep gradient, it is preferable to
switch to sequential mode.
Page 54 of 131
48
Engines
DIESEL
ENGINE
1.4 HDi 70 bhp
Gearbox Manual Piloted manual
Gears 5
EU standard maximum power (kW) 50
Cubic capacity (cm 3
) 1 399
Bore x stroke (mm) 73.7 x 82
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 160
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
Engine oil capacity (in litres) 3.8
Page 55 of 131
49
2
Engines
TECHNICAL DATA
PETROL ENGINE
1.4 l 75 bhp
Gearbox Manual
Gears 5
EU standard maximum power (kW) 54
Cubic capacity (cm 3
) 1 360
Bore x stroke (mm) 75 x 77
Max power engine speed (rpm) 5 200
EU standard max torque (Nm) 118
Max torque engine speed (rpm) 2 600
Fuel Unleaded petrol
Engine oil capacity (in litres) 3.0
Page 56 of 131
50
Engines
CONSUMPTION
T h e s e c o n s u m p t i o n v a l u e s w e r e e s t a b l i s h e d i n a c c o r d a n c e w i t h d i r e c t i v e 8 0 / 1 2 6 8 / E C . T h e y m a y v a r y d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c
conditions, weather conditions, the load in the vehicle, t he maintenance of the vehicle and the use of the accessories.
Light van
According to directive 80/1268/EC
Engines Gearboxes Model codes Urban driving
mpg (litres/100 km) Inter-urban driving
mpg (litres/100 km)
Mixed driving
mpg (litres/100 km) Emission of CO 2 by
mass (g/km)
1.4 HDi Manual AA8HSC 49.6 (5.7) 74.3 (3.8) 62.8 (4.5)
119
Piloted
manual AA8HSC/P - - - -
1.4 l Manual AAKFVC 32.1 (8.8) 47.9 (5.9) 40. 9 (6.9) 164
Combi
According to directive 80/1268/EC
Engines Gearboxes Model codes Urban driving
mpg (litres/100 km) Inter-urban driving
mpg (litres/100 km) Mixed driving
mpg (litres/100 km) Emission of CO
2
by mass (g/km)
1.4 HDi Manual AJ8HSC
5.93.94.6123
Piloted
manual AJ8HSC/P - - - -
1.4 l Manual AJ8KFVC
8.85.97.0165
C o n s u m p t i o n fi g u r e s c o r r e c t a t t i m e o f p r i n t i n g .
Page 57 of 131
51
2
Weights
TECHNICAL DATA
WEIGHTS
C o n s u l t y o u r r e g i s t r a t i o n c e r t i fi c a t e .
In each country, it is imperative that the towed loads permi tted by local legislation are complied with. For information regarding your vehicle’s
towing possibilities and its gross train weight, consult a PEU GEOT dealer.
This table indicates the maximum weight when loaded (GVW) acco rding to the dimensions and names of the vehicle.
Light van
Model codes AA8HSC AA8HSC/P AAKFVC
Engines 1.4 HDi 1.4 l
Gearboxes Manual Piloted manual Manual
Gross vehicle weight 1 700 - 1 680
Kerb weight (without driver) 1 090 - 1 070
Payload (with driver) 610 - 610
Load transfer
If the towing vehicle has not reached the GVW, it is possib le to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW in dicated.
Comply with the towing capacities of your vehicle.
Page 58 of 131
52
Weights
Combi
Model codes AJ8HSC AJ8HSC/P AJKFVC
Engines 1.4 HDi 1.4 l
Gearboxes Manual Piloted manual Manual
Gross vehicle weight
-1 680
Kerb weight (without driver) 1 185-1 165
Payload (with driver) 515-515
