A. Unfolding/Folding of the key.
B. Normal locking or deadlocking.
C. Complete or selective unlocking.
D. Unlocking of the boot.
1. Bonnet opening control.
2. Opening of the bonnet.
104
Low fuel level
73
1. F u e l fi l l e r fl a p o p e n i n g b u t t o n .
2. O p e n i n g o f t h e f u e l fi l l e r fl a p .
3. Opening and hooking of the fuel
tank cap.
Capacity of the tank: approximately
67 litres.
When this warning light
comes on on the instru-
ment panel, you have
enough fuel left to drive
approximately 30 miles
(50 km).
64
Fuel tank Bonnet Remote control key
Page 3 of 211
71
Boot Sunroof
72
1. Opening of the sunroof.
2. Closing of the sunroof.
Doors
To facilitate opening of the door,
the window lowers automatically
by a few centimetres.
It rises and adjusts automatically
when the door is closed to guarantee per-
fect sealing.
After unlocking the vehicle, pull the
door handle. To open the boot, press the button and
raise the tailgate.
70 If the permanent locking of the
boot is activated, the boot can
only be opened using the but-
ton on the remote control.
Page 32 of 211
2
33
COLOUR SCREEN C
This displays the following informa-
tion, via the WIP Sound audio system
control pad:
- the time,
- the date,
- the exterior temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k
of ice),
- t h e a c c e s s e s c h e c k ,
- the warning messages,
- the audio functions,
- the trip computer information,
-
t h e p e r s o n a l i s a t i o n a n d c o n fi g u r a t i o n
displays,
- the air conditioning parameters,
-
t h e f r o n t a n d r e a r p a r k i n g a s s i s t a n c e
display,
- t h e h a n d s - f r e e k i t d i s p l a y s . Management of the displays
General menu
Press the
"MENU" button to gain ac-
cess to the general menu and select
one of the following functions:
- "Audio functions",
- "Trip computer",
- " P e r s o n a l i s a t i o n - C o n fi g u r a t i o n " ,
- "Air conditioning",
- " T e l e p h o n e " . " P e r s o n a l i s a t i o n - C o n fi g u r a t i o n "
menu
This provides access to successive
c o n fi r m a t i o n w i n d o w s .
D e fi n i n g t h e v e h i c l e p a r a m e t e r s
This enables you to activate or de-
activate certain driving and comfort
elements:
-
"Automatic switching on of the lights", - "Follow-me-home lighting" and
"Duration",
- "Remote control action",
- " P e r m a n e n t l o c k i n g o f t h e b o o t " ,
- " D i r e c t i o n a l h e a d l a m p s " .
Example: "Automatic switching on of
the lights"
The
"AUDIO" , "TRIP" , "CLIM" and
"TEL" buttons on the RD4 audio
equipment control pad permit display-
i n g i n t h e m a i n w i n d o w .
Example: "TRIP"
Example: "Audio functions"
Page 35 of 211

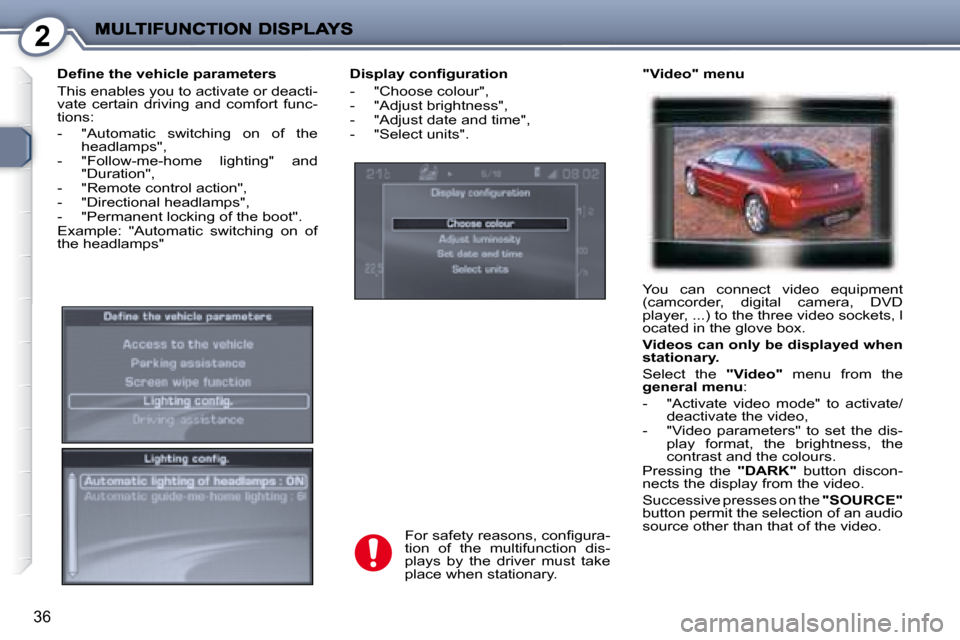

2
36
D i s p l a y c o n fi g u r a t i o n
- "Choose colour",
- "Adjust brightness",
- "Adjust date and time",
- " S e l e c t u n i t s " . "Video" menu
D e fi n e t h e v e h i c l e p a r a m e t e r s
This enables you to activate or deacti-
vate certain driving and comfort func-
tions:
- "Automatic switching on of the
headlamps",
- "Follow-me-home lighting" and "Duration",
- "Remote control action",
- "Directional headlamps",
- " P e r m a n e n t l o c k i n g o f t h e b o o t " .
Example: "Automatic switching on of
the headlamps"
You can connect video equipment
(camcorder, digital camera, DVD
p l a y e r , . . . ) t o t h e t h r e e v i d e o s o c k e t s , l
o c a t e d i n t h e g l o v e b o x .
V i d e o s c a n o n l y b e d i s p l a y e d w h e n
stationary.
Select the "Video" menu from the
general menu :
- "Activate video mode" to activate/ deactivate the video,
- "Video parameters" to set the dis- play format, the brightness, the
c o n t r a s t a n d t h e c o l o u r s .
Pressing the "DARK" button discon-
n e c t s t h e d i s p l a y f r o m t h e v i d e o .
Successive presses on the "SOURCE"
button permit the selection of an audio
s o u r c e o t h e r t h a n t h a t o f t h e v i d e o .
F o r s a f e t y r e a s o n s , c o n fi g u r a -
tion of the multifunction dis-
p l a y s b y t h e d r i v e r m u s t t a k e
p l a c e w h e n s t a t i o n a r y .
Page 36 of 211
2
36
D i s p l a y c o n fi g u r a t i o n
- "Choose colour",
- "Adjust brightness",
- "Adjust date and time",
- " S e l e c t u n i t s " . "Video" menu
D e fi n e t h e v e h i c l e p a r a m e t e r s
This enables you to activate or deacti-
vate certain driving and comfort func-
tions:
- "Automatic switching on of the
headlamps",
- "Follow-me-home lighting" and "Duration",
- "Remote control action",
- "Directional headlamps",
- " P e r m a n e n t l o c k i n g o f t h e b o o t " .
Example: "Automatic switching on of
the headlamps"
You can connect video equipment
(camcorder, digital camera, DVD
p l a y e r , . . . ) t o t h e t h r e e v i d e o s o c k e t s , l
o c a t e d i n t h e g l o v e b o x .
V i d e o s c a n o n l y b e d i s p l a y e d w h e n
stationary.
Select the "Video" menu from the
general menu :
- "Activate video mode" to activate/ deactivate the video,
- "Video parameters" to set the dis- play format, the brightness, the
c o n t r a s t a n d t h e c o l o u r s .
Pressing the "DARK" button discon-
n e c t s t h e d i s p l a y f r o m t h e v i d e o .
Successive presses on the "SOURCE"
button permit the selection of an audio
s o u r c e o t h e r t h a n t h a t o f t h e v i d e o .
F o r s a f e t y r e a s o n s , c o n fi g u r a -
tion of the multifunction dis-
p l a y s b y t h e d r i v e r m u s t t a k e
p l a c e w h e n s t a t i o n a r y .
Page 43 of 211
3
44
PROGRAMMABLE HEATING Programming remote control
T h e h e a t i n g s y s t e m p r o g r a m m i n g r e -
mote control consists of the following
b u t t o n s a n d d i s p l a y s :
1. Scrolling functions menu buttons.
2. Function indicator lights: clock,
t e m p e r a t u r e , o p e r a t i n g t i m e , p r o -
g r a m m e d t i m e , h e a t e r o p e r a t i o n ,
h e a t i n g m a n a g e m e n t s y m b o l s .
3. D i g i t a l d i s p l a y s : t i m e , t e m p e r a t u r e ,
d u r a t i o n o f o p e r a t i o n , p r o g r a m m e d
time or level of heating.
4. Off button.
5. On button.
Displaying the functions
If a malfunction of the programma-
ble heating system occurs, contact
a PEUGEOT dealer.
T h e p r o g r a m m a b l e h e a t i n g o p e r a t e s
i n d e p e n d e n t l y o f t h e e n g i n e .
W h e n t h e e n g i n e i s o f f , i t p r e - h e a t s
t h e c o o l a n t c i r c u i t i n o r d e r t o b e n e fi t
f r o m a n o p t i m u m e n g i n e o p e r a t i n g
t e m p e r a t u r e f r o m t h e t i m e t h e e n g i n e
is switched on.
T h e p r o g r a m m a b l e h e a t i n g s y s t e m
is switched on using the long range
r e m o t e c o n t r o l . A c t i v a t i o n c a n b e i m -
m e d i a t e o r d e f e r r e d b y m e a n s o f a
p r o g r a m m i n g f u n c t i o n .
screen
Press the buttons
1 in succession to
d i s p l a y t h e f u n c t i o n s .
T h e fi r s t p r e s s o f t h e l e f t - h a n d o r r i g h t -
h a n d b u t t o n d i s p l a y s t h e t i m e .
N e x t , t h e l e f t - h a n d b u t t o n p e r m i t s a c -
c e s s t o t h e p r o g r a m m i n g t i m e t h e n t o
t h e l e v e l o f h e a t i n g ( C 1 t o C 5 ) .
T h e r i g h t - h a n d b u t t o n p e r m i t s a c c e s s
t o t h e p a s s e n g e r c o m p a r t m e n t t e m -
p e r a t u r e t h e n t o t h e d u r a t i o n o f o p e r a -
tion of the heater if it is to be switched
o n i m m e d i a t e l y .
T h e p a s s e n g e r c o m p a r t m e n t
t e m p e r a t u r e i n f o r m a t i o n i s o n l y
available when the engine is off.
Page 46 of 211
3
A l w a y s s w i t c h o f f t h e p r o g r a m m a b l e
h e a t i n g w h i l e fi l l i n g w i t h f u e l t o a v o i d
a n y r i s k o f fi r e o r e x p l o s i o n .
T o a v o i d a n y r i s k o f p o i s o n i n g a n d a s -
p h y x i a t i o n , t h e p r o g r a m m a b l e h e a t -
ing must not be used, even for short
p e r i o d s , i n a n e n c l o s e d s p a c e s u c h
a s a g a r a g e o r w o r k s h o p w h i c h i s n o t
e q u i p p e d w i t h a n e x h a u s t g a s e x t r a c -
t i o n s y s t e m .
D o n o t p a r k t h e v e h i c l e o n a n i n fl a m -
m a b l e s u r f a c e ( d r y g r a s s , d e a d l e a v e s ,
p a p e r … ) , t h e r e i s a r i s k o f fi r e .
T h e p r o g r a m m a b l e h e a t i n g s y s t e m
i s s u p p l i e d b y t h e v e h i c l e ' s f u e l t a n k .
B e f o r e u s e , e n s u r e t h a t t h e q u a n t i t y o f
f u e l r e m a i n i n g i s s u f fi c i e n t . I f t h e f u e l
t a n k i s a t t h e r e s e r v e , w e s t r o n g l y a d -
v i s e t h a t y o u d o n o t p r o g r a m m e t h e
heating.
Changing the battery
T h e r e m o t e c o n t r o l i s s u p p l i e d b y a
6 V - 2 8 L b a t t e r y , w h i c h i s s u p p l i e d .
I n f o r m a t i o n o n t h e d i s p l a y i n d i c a t e s
w h e n i t i s t i m e t o r e p l a c e t h i s b a t t e r y .
U n c l i p t h e c a s i n g t h e n r e p l a c e t h e b a t -
t e r y .
T h e r e m o t e c o n t r o l m u s t t h e n b e r e i n i -
tialised, see below.
Do not discard the used batteries, take
t h e m t o a n a p p r o v e d c o l l e c t i o n p o i n t . Reinitialising the remote
control
I f t h e v e h i c l e ' s b a t t e r y i s d i s -
c o n n e c t e d o r t h e r e m o t e c o n -
t r o l ' s b a t t e r y i s r e p l a c e d , t h e r e m o t e
control must be reinitialised.
A f t e r s w i t c h i n g o n t h e p o w e r , p r e s s
button 4 ( O F F ) f o r 1 s e c o n d w i t h i n t h e
n e x t 5 s e c o n d s . I f t h e o p e r a t i o n h a s
t a k e n p l a c e c o r r e c t l y t h e m e s s a g e
"OK" i s d i s p l a y e d o n t h e r e m o t e c o n -
trol screen.
I f a p r o b l e m o c c u r s , t h e m e s s a g e
"FAIL" a p p e a r s . R e p e a t t h e o p e r a t i o n .
A s a n a c c e s s o r y , y o u r p r o g r a m m a b l e
h e a t i n g c a n b e a d a p t e d t o p r e - h e a t
y o u r v e h i c l e ' s p a s s e n g e r c o m p a r t m e n t .
Page 67 of 211
4
64
REMOTE CONTROL KEY
The remote control in the key locks,
deadlocks and unlocks the doors and
boot at a distance and folds and un-
folds the exterior mirrors.
The key permits mechanical and in-
dependent operation of the glove box
lock, of the passenger air bag disarm-
ing control and of the boot access from
the rear seat locks as well as switch-
ing on of the ignition.
From the driver's door, the key permits
electrical control of the locking or un-
locking of the doors and boot.
If one of the doors or the boot is open,
the central locking does not function.
Unfolding/Folding the key
To unfold or fold the key, press button
A fi r s t .
Deadlocking
This renders the external and internal
door controls inoperative.
It also deactivates the internal central
locking button.
Normal locking
This renders the external door controls
inoperative.
It also deactivates the internal central
locking button.
Press button B for complete lock-
ing of the vehicle.
Press button B for more than
2 seconds for automatic closing
of the windows and tilting of the
sunroof, if it is open, in addition to
locking.
E a c h a c t i o n i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
The exterior mirrors fold at the same
time. Using the key
Turn the key in the door lock to
lock the vehicle.
W i t h i n fi v e s e c o n d s , t u r n t h e k e y
again to deadlock the vehicle.
E a c h a c t i o n i s c o n fi r m e d b y fi x e d l i g h t -
ing of the the direction indicators for
approximately two seconds.
When the windows are closed
automatically using the remote
control, ensure that no one is
preventing them from closing
correctly. Using the remote control
Pressing button B permits com-
plete locking of the vehicle or
pressing button B for more than
2 seconds permits automatic clos-
ing of the windows and tilting of the
sunroof, if it is open, in addition to
locking.
W i t h i n fi v e s e c o n d s , a second
press permits deadlocking of the
vehicle.
E a c h a c t i o n i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
proximately two seconds.
