2008 Peugeot 407 C engine
[x] Cancel search: enginePage 43 of 211
3
44
PROGRAMMABLE HEATING Programming remote control
T h e h e a t i n g s y s t e m p r o g r a m m i n g r e -
mote control consists of the following
b u t t o n s a n d d i s p l a y s :
1. Scrolling functions menu buttons.
2. Function indicator lights: clock,
t e m p e r a t u r e , o p e r a t i n g t i m e , p r o -
g r a m m e d t i m e , h e a t e r o p e r a t i o n ,
h e a t i n g m a n a g e m e n t s y m b o l s .
3. D i g i t a l d i s p l a y s : t i m e , t e m p e r a t u r e ,
d u r a t i o n o f o p e r a t i o n , p r o g r a m m e d
time or level of heating.
4. Off button.
5. On button.
Displaying the functions
If a malfunction of the programma-
ble heating system occurs, contact
a PEUGEOT dealer.
T h e p r o g r a m m a b l e h e a t i n g o p e r a t e s
i n d e p e n d e n t l y o f t h e e n g i n e .
W h e n t h e e n g i n e i s o f f , i t p r e - h e a t s
t h e c o o l a n t c i r c u i t i n o r d e r t o b e n e fi t
f r o m a n o p t i m u m e n g i n e o p e r a t i n g
t e m p e r a t u r e f r o m t h e t i m e t h e e n g i n e
is switched on.
T h e p r o g r a m m a b l e h e a t i n g s y s t e m
is switched on using the long range
r e m o t e c o n t r o l . A c t i v a t i o n c a n b e i m -
m e d i a t e o r d e f e r r e d b y m e a n s o f a
p r o g r a m m i n g f u n c t i o n .
screen
Press the buttons
1 in succession to
d i s p l a y t h e f u n c t i o n s .
T h e fi r s t p r e s s o f t h e l e f t - h a n d o r r i g h t -
h a n d b u t t o n d i s p l a y s t h e t i m e .
N e x t , t h e l e f t - h a n d b u t t o n p e r m i t s a c -
c e s s t o t h e p r o g r a m m i n g t i m e t h e n t o
t h e l e v e l o f h e a t i n g ( C 1 t o C 5 ) .
T h e r i g h t - h a n d b u t t o n p e r m i t s a c c e s s
t o t h e p a s s e n g e r c o m p a r t m e n t t e m -
p e r a t u r e t h e n t o t h e d u r a t i o n o f o p e r a -
tion of the heater if it is to be switched
o n i m m e d i a t e l y .
T h e p a s s e n g e r c o m p a r t m e n t
t e m p e r a t u r e i n f o r m a t i o n i s o n l y
available when the engine is off.
Page 51 of 211
3
53

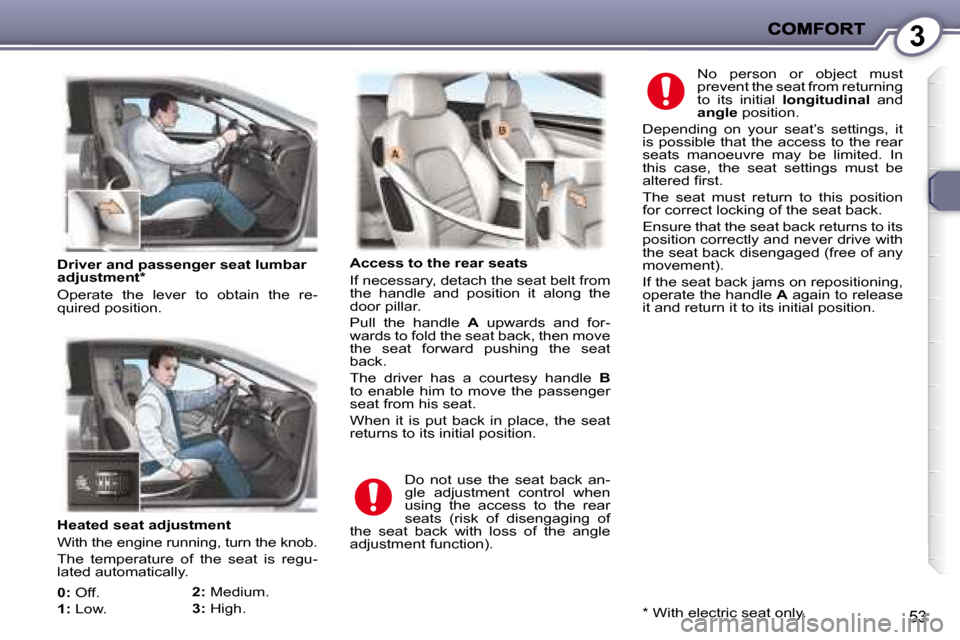

Heated seat adjustment
With the engine running, turn the knob.
T h e t e m p e r a t u r e o f t h e s e a t i s r e g u -
l a t e d a u t o m a t i c a l l y .
0: Off.
1: L o w .
2: M e d i u m .
3: H i g h .
Driver and passenger seat lumbar
adjustment *
O p e r a t e t h e l e v e r t o o b t a i n t h e r e -
q u i r e d p o s i t i o n .
Access to the rear seats
I f n e c e s s a r y , d e t a c h t h e s e a t b e l t f r o m
t h e h a n d l e a n d p o s i t i o n i t a l o n g t h e
d o o r p i l l a r .
Pull the handle
A u p w a r d s a n d f o r -
wards to fold the seat back, then move
t h e s e a t f o r w a r d p u s h i n g t h e s e a t
back.
T h e d r i v e r h a s a c o u r t e s y h a n d l e B
t o e n a b l e h i m t o m o v e t h e p a s s e n g e r
seat from his seat.
W h e n i t i s p u t b a c k i n p l a c e , t h e s e a t
r e t u r n s t o i t s i n i t i a l p o s i t i o n . N o p e r s o n o r o b j e c t m u s t
p r e v e n t t h e s e a t f r o m r e t u r n i n g
to its initial
longitudinal and
angle p o s i t i o n .
D e p e n d i n g o n y o u r s e a t ’ s s e t t i n g s , i t
i s p o s s i b l e t h a t t h e a c c e s s t o t h e r e a r
s e a t s m a n o e u v r e m a y b e l i m i t e d . I n
this case, the seat settings must be
a l t e r e d fi r s t .
T h e s e a t m u s t r e t u r n t o t h i s p o s i t i o n
for correct locking of the seat back.
Ensure that the seat back returns to its
p o s i t i o n c o r r e c t l y a n d n e v e r d r i v e w i t h
t h e s e a t b a c k d i s e n g a g e d ( f r e e o f a n y
m o v e m e n t ) .
I f t h e s e a t b a c k j a m s o n r e p o s i t i o n i n g ,
o p e r a t e t h e h a n d l e A again to release
i t a n d r e t u r n i t t o i t s i n i t i a l p o s i t i o n .
* W i t h e l e c t r i c s e a t o n l y .
D o n o t u s e t h e s e a t b a c k a n -
gle adjustment control when
using the access to the rear
seats (risk of disengaging of
the seat back with loss of the angle
a d j u s t m e n t f u n c t i o n ) .
Page 54 of 211
3
53
Heated seat adjustment
With the engine running, turn the knob.
T h e t e m p e r a t u r e o f t h e s e a t i s r e g u -
l a t e d a u t o m a t i c a l l y .
0: Off.
1: L o w .
2: M e d i u m .
3: H i g h .
Driver and passenger seat lumbar
adjustment *
O p e r a t e t h e l e v e r t o o b t a i n t h e r e -
q u i r e d p o s i t i o n .
Access to the rear seats
I f n e c e s s a r y , d e t a c h t h e s e a t b e l t f r o m
t h e h a n d l e a n d p o s i t i o n i t a l o n g t h e
d o o r p i l l a r .
Pull the handle
A u p w a r d s a n d f o r -
wards to fold the seat back, then move
t h e s e a t f o r w a r d p u s h i n g t h e s e a t
back.
T h e d r i v e r h a s a c o u r t e s y h a n d l e B
t o e n a b l e h i m t o m o v e t h e p a s s e n g e r
seat from his seat.
W h e n i t i s p u t b a c k i n p l a c e , t h e s e a t
r e t u r n s t o i t s i n i t i a l p o s i t i o n . N o p e r s o n o r o b j e c t m u s t
p r e v e n t t h e s e a t f r o m r e t u r n i n g
to its initial
longitudinal and
angle p o s i t i o n .
D e p e n d i n g o n y o u r s e a t ’ s s e t t i n g s , i t
i s p o s s i b l e t h a t t h e a c c e s s t o t h e r e a r
s e a t s m a n o e u v r e m a y b e l i m i t e d . I n
this case, the seat settings must be
a l t e r e d fi r s t .
T h e s e a t m u s t r e t u r n t o t h i s p o s i t i o n
for correct locking of the seat back.
Ensure that the seat back returns to its
p o s i t i o n c o r r e c t l y a n d n e v e r d r i v e w i t h
t h e s e a t b a c k d i s e n g a g e d ( f r e e o f a n y
m o v e m e n t ) .
I f t h e s e a t b a c k j a m s o n r e p o s i t i o n i n g ,
o p e r a t e t h e h a n d l e A again to release
i t a n d r e t u r n i t t o i t s i n i t i a l p o s i t i o n .
* W i t h e l e c t r i c s e a t o n l y .
D o n o t u s e t h e s e a t b a c k a n -
gle adjustment control when
using the access to the rear
seats (risk of disengaging of
the seat back with loss of the angle
a d j u s t m e n t f u n c t i o n ) .
Page 56 of 211
3
Memorising driving positions
T h e e l e c t r i c a l a d j u s t m e n t s o f t h e d r i v -
er’s seat, steering wheel and exterior
mirrors are memorised.
T w o d r i v i n g p o s i t i o n s c a n b e m e m o -
rised using buttons M/1and M/2 . A n a u d i b l e s i g n a l c o n fi r m s t h a t a p o s i -
tion has been memorised.
M e m o r i s i n g a n e w p o s i t i o n c a n c e l s
t h e p r e v i o u s o n e .
Recalling a memorised driving
position
During access to the rear
s e a t s , t h e m e m o r i s i n g a n d r e -
c a l l i n g o f t h e d r i v i n g p o s i t i o n s
are deactivated.
Vehicle moving
K e e p b u t t o n 1 or 2 p r e s s e d d o w n
u n t i l t h e b l e e p i n d i c a t e s t h a t s e t -
t i n g o f t h e c o r r e s p o n d i n g m e m o -
r i s e d p o s i t i o n i s c o m p l e t e .
REAR HEAD RESTRAINTS
T h e r e a r h e a d r e s t r a i n t s h a v e a h i g h p o s i -
t i o n f o r u s e a n d a l o w p o s i t i o n f o r s t o r i n g .
T h e y c a n a l s o b e r e m o v e d .
T o r e m o v e t h e m , p u l l u p w a r d s f u l l y
a n d p r e s s t h e l u g .
N e v e r d r i v e w i t h t h e h e a d r e -
s t r a i n t s r e m o v e d ; t h e y m u s t
b e i n p l a c e a n d a d j u s t e d c o r -
r e c t l y .
Memorising using the controls on
the driver’s door
To memorise:
P l a c e t h e k e y i n t h e i g n i t i o n o n p o -
sition,
A d j u s t y o u r s e a t , s t e e r i n g w h e e l
and mirrors,
Press button M , then button 1 " fi r s t
d r i v i n g p o s i t i o n " o r b u t t o n 2 " s e c -
o n d d r i v i n g p o s i t i o n " w i t h i n f o u r
seconds. Ignition on, vehicle stationary
B r i e fl y p r e s s b u t t o n 1 or 2 to recall
t h e c o r r e s p o n d i n g m e m o r i s e d p o -
s i t i o n . T h e e n d o f t h e s e t t i n g i s i n -
d i c a t e d b y a b l e e p .
A f t e r r e c a l l i n g a m e m o r i s e d p o s i t i o n
a f e w t i m e s i n s u c c e s s i o n , t h e f u n c -
tion will be cancelled until the engine
is started.
Page 69 of 211
4
66
CHANGING THE REMOTE CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the cas-
ing using a coin at the notch.
REPROGRAMMING THE REMOTE CONTROL
Switch off the ignition.
Switch the ignition on again.
Press the remote control locking but-
ton immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the ig-
nition lock. The remote control is
now working again.
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system
a few moments after the ignition has
been switched off and therefore pre-
vents starting of the vehicle by anyone
who does not have the key.
The ignition key has an electronic chip
which has a special code. When the
ignition is switched on, the code is rec-
ognised and starting is possible.
Do not discard the batteries,
they contain metals which are
harmful to the environment.
Take them to an approved col-
lection point.
If the system does not
f u n c t i o n c o r r e c t l y , the
warning light comes on on
the instrument panel display,
accompanied by an audible
signal and a message on the
multifunction display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
If the remote control does not work af-
ter the battery has been changed, re-
programme the remote control.
Page 70 of 211
4
67
M a k e a c a r e f u l n o t e o f t h e
n u m b e r o n e a c h k e y . T h e
k e y n u m b e r i s c o d e d o n t h e
l a b e l a t t a c h e d t o t h e k e y .
If the keys are lost, a PEUGEOT
d e a l e r c a n r a p i d l y s u p p l y y o u w i t h
n e w k e y s .
T h e h i g h f r e q u e n c y r e m o t e c o n t r o l i s
a sensitive system; do not operate it
w h i l e i t i s i n y o u r p o c k e t a s t h e r e i s a
p o s s i b i l i t y t h a t i t m a y u n l o c k y o u r v e -
h i c l e , w i t h o u t y o u b e i n g a w a r e o f i t .
The remote control does not oper-
a t e w h e n t h e k e y i s i n t h e i g n i t i o n ,
e v e n w h e n t h e i g n i t i o n i s s w i t c h e d
o f f , e x c e p t f o r r e p r o g r a m m i n g .
Do not operate the deadlocking
f u n c t i o n i f t h e r e i s a n y o n e i n s i d e
t h e v e h i c l e .
D r i v i n g w i t h t h e d o o r s l o c k e d m a y
make access to the passenger com-
partment by the emergency servic-
e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
A s a s a f e t y p r e c a u t i o n ( w i t h c h i l -
dren on board), remove the ignition
k e y w h e n y o u l e a v e t h e v e h i c l e ,
e v e n f o r a s h o r t t i m e .
D o n o t r e p e a t e d l y p r e s s t h e b u t t o n
o f y o u r r e m o t e c o n t r o l o u t o f r a n g e
a n d o u t o f s i g h t o f y o u r v e h i c l e .
Y o u r u n t h e r i s k o f s t o p p i n g i t f r o m
w o r k i n g a n d t h e r e m o t e c o n t r o l
w o u l d h a v e t o b e r e p r o g r a m m e d .
W h e n p u r c h a s i n g a s e c o n d - h a n d v e -
hicle, have the key codes memorised
b y a P E U G E O T d e a l e r t o e n s u r e t h a t
t h e k e y s i n y o u r p o s s e s s i o n a r e t h e
o n l y o n e s w h i c h c a n s t a r t t h e v e h i c l e .
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
s y s t e m .
Page 72 of 211
4
66
CHANGING THE REMOTE CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the cas-
ing using a coin at the notch.
REPROGRAMMING THE REMOTE CONTROL
Switch off the ignition.
Switch the ignition on again.
Press the remote control locking but-
ton immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the ig-
nition lock. The remote control is
now working again.
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system
a few moments after the ignition has
been switched off and therefore pre-
vents starting of the vehicle by anyone
who does not have the key.
The ignition key has an electronic chip
which has a special code. When the
ignition is switched on, the code is rec-
ognised and starting is possible.
Do not discard the batteries,
they contain metals which are
harmful to the environment.
Take them to an approved col-
lection point.
If the system does not
f u n c t i o n c o r r e c t l y , the
warning light comes on on
the instrument panel display,
accompanied by an audible
signal and a message on the
multifunction display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
If the remote control does not work af-
ter the battery has been changed, re-
programme the remote control.
Page 73 of 211
4
66
CHANGING THE REMOTE CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the cas-
ing using a coin at the notch.
REPROGRAMMING THE REMOTE CONTROL
Switch off the ignition.
Switch the ignition on again.
Press the remote control locking but-
ton immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the ig-
nition lock. The remote control is
now working again.
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system
a few moments after the ignition has
been switched off and therefore pre-
vents starting of the vehicle by anyone
who does not have the key.
The ignition key has an electronic chip
which has a special code. When the
ignition is switched on, the code is rec-
ognised and starting is possible.
Do not discard the batteries,
they contain metals which are
harmful to the environment.
Take them to an approved col-
lection point.
If the system does not
f u n c t i o n c o r r e c t l y , the
warning light comes on on
the instrument panel display,
accompanied by an audible
signal and a message on the
multifunction display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
If the remote control does not work af-
ter the battery has been changed, re-
programme the remote control.
