Front seat belt
1. Fastening.
2. Height adjustment.
86
1. Stop position.
2. Running position.
3. Starting position.
Ignition switch
B. Windows manual or automatic open-
ing and closing control.
1. Driver's electric window.
2. Passenger electric window.
Electric windows
69
Page 20 of 211
1
23
Braking system warning
light
This indicates:
- handbrake applied or incorrectly released,
- a n e x c e s s i v e d r o p i n t h e b r a k e fl u i d level, in this case linked with the
STOP warning light,
- an electronic brake force distribu- tion malfunction, linked with the
STOP warning light.
WARNING LIGHTS WHICH ARE DISPLAYED ON THE INSTRUMENT PANEL
Seat belt warning light
When the ignition is switched
on, the warning light comes
on if a front occupant has not
fastened his seat belt or if he
unfastens it.
Fuel warning light
In certain driving conditions and
depending on the engine, the
distance which you will be able
to travel with the remaining fuel
may be less than 30 miles (50 kilometres)
(the capacity of the tank is approximately
67 litres).
Emission control system
warning light
This should switch off a few
seconds after the engine is
switched on.
When the engine is running, if the warn-
i n g l i g h t fl a s h e s o r c o m e s o n c o n t i n u -
ously, this indicates an emission control
system malfunction.
Contact a PEUGEOT dealer as soon
as possible. Passenger air bag
disarmed warning light *
If the warning light remains
on, this indicates that the
passenger air bag has been
disarmed intentionally.
This warning light is re-
peated on the instrument
panel screen in the case
of the last 2 faults.
Stop immediately in the two latter
cases. Consult a PEUGEOT dealer. Anti-lock braking system
(ABS) warning light
If it comes on continuously
above 6 mph (10 km/h), it
indica tes an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
This warning light is re-
peated on the instrument
panel screen.
Directional headlamps
warning light
W h e n t h i s fl a s h e s , i t i n d i c a t e s
a malfunction of the directional
headlamps.
Consult a PEUGEOT dealer. Diesel engine pre-heat
warning light
Wait for the warning light to
switch off before starting.
The duration of the display
is determined by the exterior
climatic conditions.
This warning light is re-
peated on the instrument
panel screen.
Page 83 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 84 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 131 of 211
1010
118
CHANGING A WINDSCREEN WIPER BLADE
ECONOMY MODE FUNCTION
After the engine has stopped, certain
electrical functions can be used for a
maximum duration of approximately
one hour, to prevent discharging of the
battery.
LOAD REDUCTION FUNCTION
When driving, certain functions (air
conditioning, heated rear screen,
heating system for passenger com-
partment of diesel vehicles, etc.) may
be switched off temporarily, depending
on the level of battery charge.
Reactivation of these functions is au-
tomatic, once the battery charge is
s u f fi c i e n t .
Note: at the risk of discharg-
ing the battery, the functions
that have been switched off
may be reactivated manually.
Note: if the telephone is being
used when economy mode
starts, it will still be possible to
fi n i s h t h e c a l l .
A fl a t b a t t e r y p r e v e n t s t h e e n -
gine from starting.
Replacing a blade
Lift the arm, then unclip the blade
and remove it.
Fit the new blade and fold down
the arm.
To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk. Once the hour is over, a switching to
economy mode message appears on
the multi-function display and the ac-
tive functions are put on standby.
These functions are reactivated au-
tomatically next time the vehicle is
driven.
In order to resume the use of these
functions immediately, the engine
must be started and left to run for a
few minutes.
The time available to you will then be
approximately double the duration
for which the engine is left running.
However, this period will always be
b e t w e e n fi v e a n d t h i r t y m i n u t e s .
T h i s t i m e m a y b e s i g n i fi c a n t l y
reduced if the battery charge
is low.
Placing the wiper blades in the
maintenance position
Less than one minute after switching
off the ignition, press the windscreen
wiper stalk down once to position the
blades at the top of the windscreen
(maintenance position).
Page 166 of 211
2 2
11
153

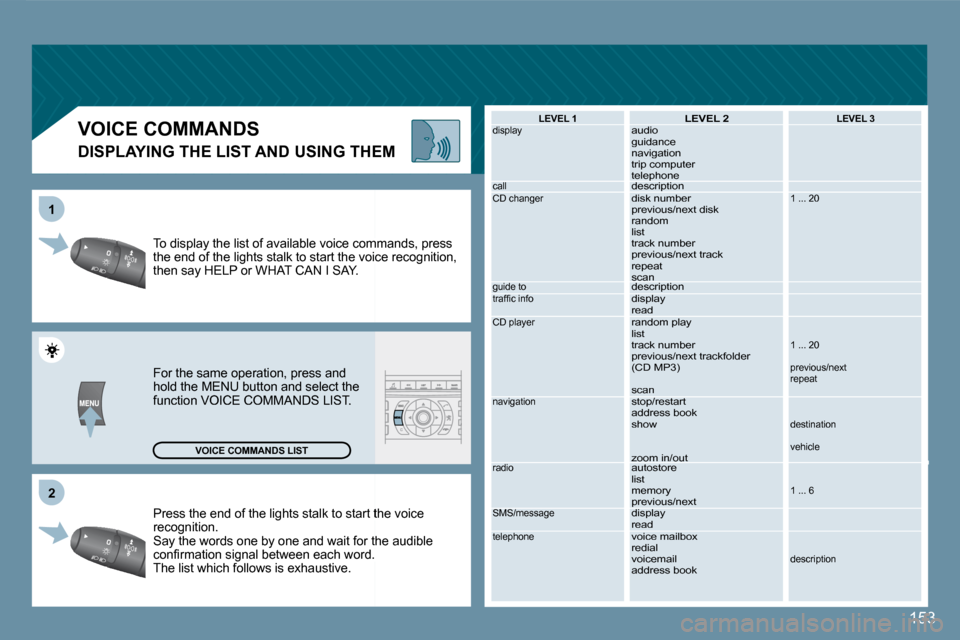

Press the end of the lights stalk to start thtart the voice recognition. Say the words one by one and wait for the for the audible c o n fi r m a t i o n s i g n a l b e t w e e n e a c h w o r d . c o n fi r m a t i o n s i g n a l b e t w e e n e a c h w o r d . The list which follows is exhaustive.
D I S P L A Y I N G T H E L I S T A N D U S I N G T H E M
To display the list of available voice commcommands, press the end of the lights stalk to start the voice voice recognition, then say HELP or WHAT CAN I SAY.
For the same operation, press and hold the MENU button and select the function VOICE COMMANDS LIST.
V O I C E C O M M A N D S L I S T
V O I C E C O M M A N D S L E V E L 1 display
callCD changer
guide to t r a f fi c i n f o
CD player
navigation
radio
SMS/message
telephone
L E V E L 2 audioguidancenavigationtrip computertelephonedescription
descriptiondisplayreadrandom playlisttrack numberprevious/next trackfolder ( C D M P 3 )
scanstop/restartaddress bookshow
zoom in/outautostorelistmemoryprevious/nextdisplayreadvoice mailbox redialvoicemailaddress book
L E V E L 3
1 ... 20
1 ... 20
previous/nextrepeat
destination
vehicle
1 ... 6
disk numberprevious/next diskrandomlisttrack numberprevious/next trackrepeatscan
description
Page 173 of 211
171
( T A ) i s d i s p l a y e d . I d o n o t r e c e i v e a n y t r a f fi c information.
T u n e t o a r a d i o s t a t i o n w h i c h b r o a d c a s t s t r a f fi c information. T h e r a d i o s t a t i o n i s n o t p a r t o f t h e r e g i o n a l t r a f fi c i n f o r m a t i o n n e t w o r k .
QUESTION SOLUTION RESPONSE
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is d i s p l a y e d . . . ) .
The vehicle is too far from the transmitter used b y the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going t h r o u g h a c a r w a s h o r i n t o a n u n d e r g r o u n d c a r p a r k ) .
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The stored stations do not function (no sound, 8 7 . 5 M h z i s d i s p l a y e d . . . ) .
An incorrect waveband is selected. Press the BAND AST button to return to the w a v e b a n d ( A M , F M 1 , F M 2 , F M A S T ) o n w h i c h t h e stations are stored.
The message "the audio system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. In order to protect the installation if the surrounding temperature is too high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.
Page 210 of 211
26
QUESTION SOLUTION RESPONSE
The TRAFFIC INFO b o x i s t i c k e d . H o w e v e r , c e r t a i n t r a f fi c j a m s a l o n g t h e r o u t e a r e n o t indicated in real time.
O n s t a r t i n g , i t i s s e v e r a l m i n u t e s b e f o r e t h e s y s t e m b e g i n s t o r e c e i v e t h e t r a f fi c i n f o r m a t i o n . W a i t u n t i l t h e t r a f fi c i n f o r m a t i o n i s b e i n g r e c e i v e d c o r r e c t l y ( d i s p l a y i n g o f t h e t r a f fi c i n f o r m a t i o n symbols on the map).
In certain countries, only major routes (motorways , ...) are listed for the t r a f fi c i n f o r m a t i o n .
The time taken to calculate a route sometimes seems l o n g e r t h a n u s u a l .
This phenomenon is normal. The system is d e p e n d e n t o n t h e t r a f fi c i n f o r m a t i o n a v a i l a b l e .
The performance of the system may slow down tempor arily if a CD/DVD i s b e i n g c o p i e d o n t o t h e J u k e b o x a t t h e s a m e t i m e a s a r o u t e i s b e i n g calculated.
Wait until the CD/DVD has been copied or stop t h e c o p y i n g b e f o r e s t a r t i n g t h e g u i d a n c e f u n c t i o n .
D o e s t h e e m e r g e n c y c a l l function work without a S I M c a r d ?
N o , E u r o p e a n r e g u l a t i o n s i m p o s e t h e p r e s e n c e o f a S I M c a r d i n o r d e r t o m a k e a n e m e r g e n c y c a l l . Insert a valid SIM card in the slot on the WIP Nav.
The altitude is not displayed. O n s t a r t i n g , t h e i n i t i a l i s a t i o n o f t h e G P S m a y t a k e u p t o 3 m i n u t e s t o receive more than 4 satellites correctly. Wait until the system has started up completely. C h e c k t h a t t h e r e i s a G P S c o v e r a g e o f a t l e a s t 4 s a t e l l i t e s ( l o n g p r e s s o n t h e M E N U b u t t o n , t h e n s e l e c t A U D I O / T E L E P H O N E D I A G N O S T I C S , t h e n GPS COVERAGE).
D e p e n d i n g o n t h e g e o g r a p h i c a l e n v i r o n m e n t ( t u n n e l , . . . ) o r t h e w e a t h e r , t h e c o n d i t i o n s o f r e c e p t i o n o f t h e G P S s i g n a l m a y v a r y . This phenomenon is normal. The system is dependent on the conditions of reception of the G P S s i g n a l .
The route calculation is not successful. T h e e x c l u s i o n c r i t e r i a m a y c o n fl i c t w i t h t h e c u r r e n t l o c a t i o n ( e x c l u s i o n o f toll roads on a toll motorway). Check the exclusion criteria.
