7
DRIVING
HANDBRAKE HANDBRAKE
Releasing
Pull on the handle and press the
button A to release the handbrake.
Applying
Pull the handbrake to immobilise
your vehicle.
When parking on a slope, direct your
wheels towards the pavement and apply
the handbrake.
6-SPEED MANUAL GEARBOX 6-SPEED MANUAL GEARBOX 6-SPEED MANUAL GEARBOX
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push the
gear lever to the left then to the front.
Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling.
When the vehicle is being
driven, the displaying of this
screen indicates that the
handbrake is still on or has
not been properly released.
Mechanical brake to hold the vehicle
when stationary.
"CVT" GEARBOX "CVT" GEARBOX
The six-speed automatic gearbox of-
fers a choice between the comfort of
automatic regulation or the pleasure of
manual gear changing.
This gearbox enables you to access
two driving modes:
- an automated mode for automatic control of the gears by the gearbox
and therefore without any action on
the part of the driver,
- a sequential mode for manual changing of the gears by the driver
using the steering wheel controls or
the gear lever.
It consists of the following controls:
- a gear lever 1 on the centre console
for selecting the driving mode, reverse
gear and neutral or for changing gear
in sequential mode,
Page 120 of 226
7
DRIVING
HANDBRAKE HANDBRAKE
Releasing
Pull on the handle and press the
button A to release the handbrake.
Applying
Pull the handbrake to immobilise
your vehicle.
When parking on a slope, direct your
wheels towards the pavement and apply
the handbrake.
6-SPEED MANUAL GEARBOX 6-SPEED MANUAL GEARBOX 6-SPEED MANUAL GEARBOX
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push the
gear lever to the left then to the front.
Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling.
When the vehicle is being
driven, the displaying of this
screen indicates that the
handbrake is still on or has
not been properly released.
Mechanical brake to hold the vehicle
when stationary.
"CVT" GEARBOX "CVT" GEARBOX
The six-speed automatic gearbox of-
fers a choice between the comfort of
automatic regulation or the pleasure of
manual gear changing.
This gearbox enables you to access
two driving modes:
- an automated mode for automatic control of the gears by the gearbox
and therefore without any action on
the part of the driver,
- a sequential mode for manual changing of the gears by the driver
using the steering wheel controls or
the gear lever.
It consists of the following controls:
- a gear lever 1 on the centre console
for selecting the driving mode, reverse
gear and neutral or for changing gear
in sequential mode,
Page 124 of 226
7
i
DRIVING

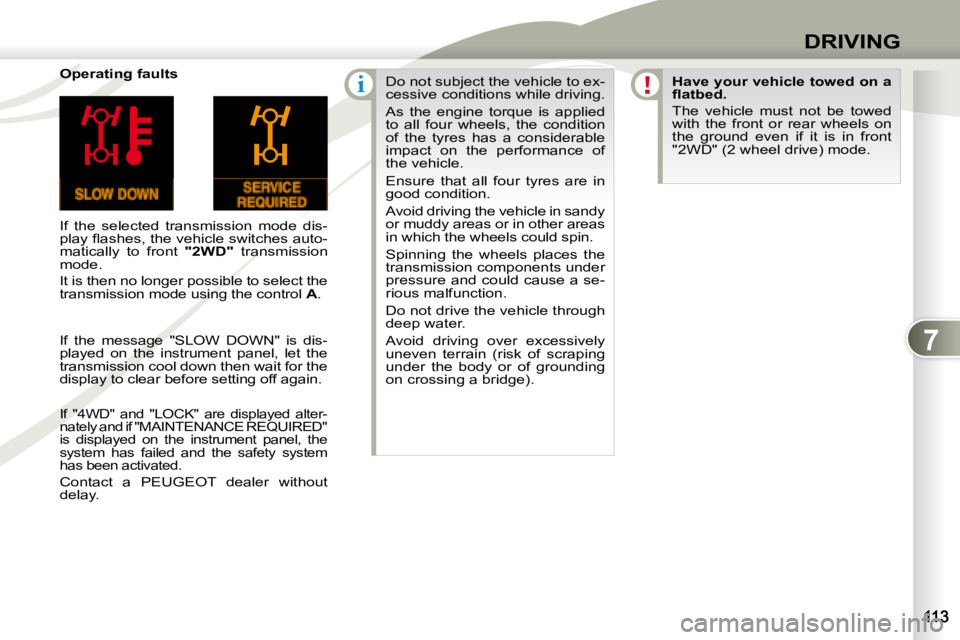

Operating faults
If the selected transmission mode dis-
p l a y fl a s h e s , t h e v e h i c l e s w i t c h e s a u t o -
matically to front "2WD" transmission
mode.
It is then no longer possible to select the
transmission mode using the control A . Do not subject the vehicle to ex-
cessive conditions while driving.
As the engine torque is applied
to all four wheels, the condition
of the tyres has a considerable
impact on the performance of
the vehicle.
Ensure that all four tyres are in
good condition.
Avoid driving the vehicle in sandy
or muddy areas or in other areas
in which the wheels could spin.
Spinning the wheels places the
transmission components under
pressure and could cause a se-
rious malfunction.
Do not drive the vehicle through
deep water.
Avoid driving over excessively
u n e v e n t e r r a i n ( r i s k o f s c r a p i n g
under the body or of grounding
on crossing a bridge).
Have your vehicle towed on a
fl a t b e d .
The vehicle must not be towed
with the front or rear wheels on
the ground even if it is in front
" 2 W D " ( 2 w h e e l d r i v e ) m o d e .
If the message "SLOW DOWN" is dis-
played on the instrument panel, let the
transmission cool down then wait for the
display to clear before setting off again.
If "4WD" and "LOCK" are displayed alter-
nately and if "MAINTENANCE REQUIRED"
is displayed on the instrument panel, the
system has failed and the safety system
has been activated.
Contact a PEUGEOT dealer without
delay.
Page 127 of 226
7
i
i
DRIVING
AUDIBLE REAR PARKING
ASSISTANCE
I t d e t e c t s a n y o b s t a c l e ( p e r s o n , v e h i c l e ,
tree, gate, ...) located behind the vehicle,
but it can not detect obstacles located
immediately below the bumper. Activation
The parking assistance is activated by
engaging reverse gear.
The proximity information is indicated by
an audible signal which becomes more
frequent as the vehicle approaches the
obstacle.
When a certain distance between the
rear of the vehicle and the obstacle is
reached, the audible signal becomes
continuous:
An object such as a stake, a road
works cone or any other similar
object may be detected at the
beginning of the manoeuvre but
may no longer be detected when
the vehicle moves closer to it.
Location of the sensors
T h e v e h i c l e i s fi t t e d w i t h f o u r s e n s o r s :
- two side sensors
A
- two central sensors B . Vehicle only
V e h i c l e fi t t e d w i t h a t o w b a r
Detection zones
The detection zones differ according to
the vehicle’s equipment, with or without
towbar.
Therefore, you can select the towbar
m o d e , t h e fi t t i n g z o n e
C is excluded
from the detection zones.
The parking assistance system
cannot, in any circumstances,
take the place of the need for
vigilance and responsibility on
the part of the driver.
Sensors
Distance between
vehicle and obstacle less than:
Side A Approximately
25 cm
Central B without
towbar Approximately
40 cm
Central B with
towbar Approximately
6 0 c m
System consisting of proximity sensors,
installed in the rear bumper.
Page 128 of 226
7
i
i
DRIVING
REVERSING CAMERA REVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automatically
when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indicator
light on button
A fl a s h e s w h e n r e v e r s e
gear is engaged.
Consult a PEUGEOT dealer.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the system.
Press button A again for a few seconds
and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal
which:
- is heard twice o n v e h i c l e s fi t t e d w i t h
a towbar,
- is heard once on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the distance
required to open the lower tailgate.
Page 129 of 226
7
i
i
DRIVING
REVERSING CAMERA REVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automatically
when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indicator
light on button
A fl a s h e s w h e n r e v e r s e
gear is engaged.
Consult a PEUGEOT dealer.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the system.
Press button A again for a few seconds
and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal
which:
- is heard twice o n v e h i c l e s fi t t e d w i t h
a towbar,
- is heard once on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the distance
required to open the lower tailgate.
Page 130 of 226
8
CHECKS
Bonnet strut
OPENING THE BONNET
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.
From inside: pull the handle A , on the
right-hand side below the door, towards
you.
From outside: move the catch to the
left then raise the bonnet. Secure the strut in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
strut in its clip.
RUNNING OUT OF FUEL
Protection system which also provides
access for checking the various levels
of the engine components.
I f y o u r u n o u t o f f u e l , fi l l t h e t a n k a n d o p -
erate the starter until the engine starts.
Several attempts must be made before
the engine re-starts.
Page 136 of 226
8
CHECKS
Manual gearbox Refer to the servicing booklet
for details of gearbox mainte-
nance.
Brake pads Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn. Brake disc wear status
For any information relating to
checking of the brake disc wear
status, contact a PEUGEOT
dealer.
Handbrake
If the handbrake travel is too
long or if you notice a loss
of effectiveness of this sys-
tem, the handbrake must
be adjusted, even between
two services.
This system must be checked by a
PEUGEOT dealer.
Only use products recommended by
PEUGEOT or products of equivalent
q u a l i t y a n d s p e c i fi c a t i o n s . In order to optimise the opera-
tion of units as important as
the braking system, PEUGEOT
s e l e c t s a n d o f f e r s v e r y s p e c i fi c
products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compart-
ment is
s t r i c t l y p r o h i b i t e d . Transfer box and rear differential
Refer to the servicing booklet
for details of the service inter-
val for these components.
