11
!
!
i
182
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the vehicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
tive terminal (-).
Check that the terminals and con-
nectors are clean. If they are cov-
ered with sulphate (whitish or
greenish deposit), remove them and
clean them.
At the risk of discharging the bat-
tery, the deactivated functions can
be reactivated manually.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the rear screen de-icing...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
t e m s . H o w e v e r , i f s l i g h t d i f fi c u l t i e s
are encountered following this oper-
ation, contact a PEUGEOT dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the glass panoramic roof shut-
ter,
- the GPS satellite navigation system.
Page 178 of 260
11
!
!
i
182
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the vehicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
tive terminal (-).
Check that the terminals and con-
nectors are clean. If they are cov-
ered with sulphate (whitish or
greenish deposit), remove them and
clean them.
At the risk of discharging the bat-
tery, the deactivated functions can
be reactivated manually.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the rear screen de-icing...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
t e m s . H o w e v e r , i f s l i g h t d i f fi c u l t i e s
are encountered following this oper-
ation, contact a PEUGEOT dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the glass panoramic roof shut-
ter,
- the GPS satellite navigation system.
Page 179 of 260
11
!
i
183
PRACTICAL INFORMATION
A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
sponding paragraph).
If the telephone is being used at
this time:
- it will be maintained for 5 min- utes with the RD4 audio equip-
ment hands-free kit,
- i t w i l l s t i l l b e p o s s i b l e t o fi n i s h the call with the RT4 GPS audio/
telephone.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
headlamps, courtesy lights, etc. for a
m a x i m u m c o m b i n e d d u r a t i o n o f t h i r t y
minutes. Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y n e x t t i m e t h e v e h i c l e i s d r i v e n .
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be
double the duration for which the en-
gine is left running. However, this period
w i l l a l w a y s b e b e t w e e n fi v e a n d t h i r t y
minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-func-
tion display indicating that the vehicle
has switched to economy mode and the
active functions are put on standby.
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removing a front or rear wiper
blade
Raise the corresponding wiper arm.
Unclip the wiper blade and remove
it.
Fitting a front or rear wiper
blade
At the front, check the size of the
wiper blade as the shorter blade is
fi t t e d o n t h e r i g h t - h a n d s i d e o f t h e
vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wipers stalk
to position the wiper blades in the
centre of the windscreen.
After fitting a front wiper blade
Switch on the ignition.
Operate the wipers stalk again to
park the wiper blades.
Page 229 of 260
232
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 #
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 #
11
22
33
11
22
06

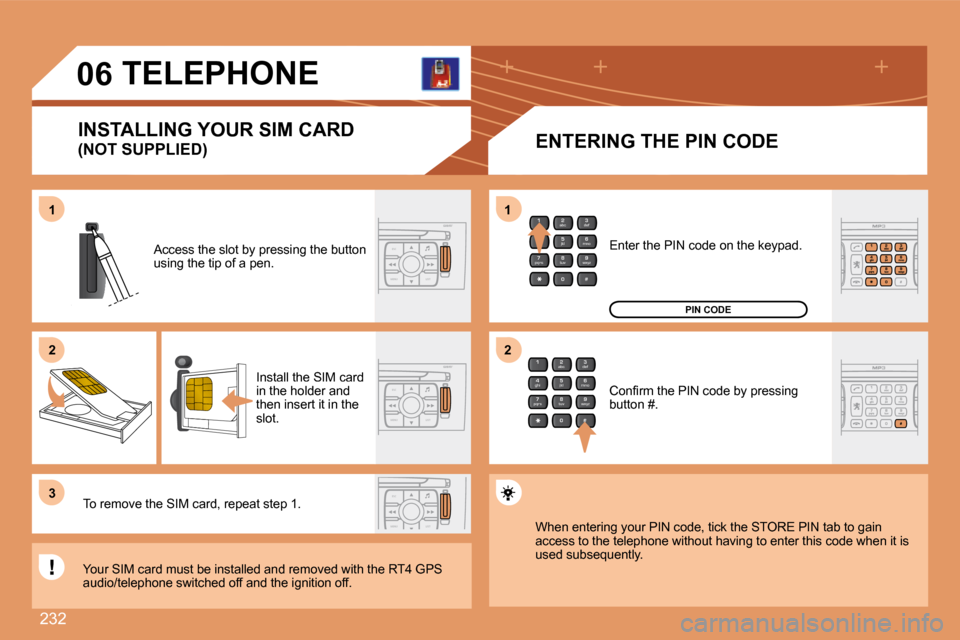

ENTERING THE PIN CODE
Access the slot by pressing the button using the tip of a pen.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
Your SIM card must be installed and removed with t he RT4 GPS audio/telephone switched off and the ignition off.
Enter the PIN code on the keypad.
C o n fi r m t h e P I N c o d e b y p r e s s i n g button #.
PIN CODE
When entering your PIN code, tick the STORE PIN ta b to gain access to the telephone without having to enter this code when it is used subsequently.
TELEPHONE
INSTALLING YOUR SIM CARD
(NOT SUPPLIED)
Page 249 of 260
249
11
22
33
11
22
5511
04 HANDS-FREE KIT
For safety reasons and because they require prolonged attention on the part of the driver, the operations for matching of the Bluetooth mobile telephone with the RD4 hands-free kit must b e carried out with the vehicle stationary and the ignition on.
Select the accessory which corresponds to the n a m e o f t h e v e h i c l e , a s u p e r i m p o s e d c o n fi g u r a t i o n display appears on the multifunction display.
Activate the telephone's Bluetooth function and carry out a search of the Bluetooth accessories present for the telephone.
Select the YES tab on the display using t h e b u t t o n s t h e n c o n fi r m b y p r e s s i n g O K .
Enter the vehicle's authentication code (=1234). Depending on the telephone, you may be asked to enter this code before the superimposed c o n fi g u r a t i o n d i s p l a y a p p e a r s .
YES
YES
The services offered by the hands-free kit depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. C o n s u l t y o u r t e l e p h o n e ' s m a n u a l a n d y o u r o p e r a t o r t o fi n d o u t w h i c h s e r v i c e s a r e a v a i l a b l e t o y o u . A list of mobile telephones which offer the best rang e of services is available from the network. Consult a PEUGEOT dealer.
RECEIVING A CALL
An incoming call is announced by a ring and a supe rimposed display on the multifunction display.
Select the YES tab on the display u s i n g t h e b u t t o n s a n d c o n fi r m b y pressing OK.
Press the end of the steering wheel stalk to accept the call.
Press the end of the steering wheel stalk for more than two seconds to access your directory.
To dial a number, use the keypad on your telephone.
MAKING A CALL
MATCHING A TELEPHONE
DISPLAY C
