i
131
SAFETY
1.
Front and/or rear seat belts not fastened/
unfastened warning light.
2. Front left seat belt warning light.
3. Front right seat belt warning light.
4. Rear right seat belt warning light.
5. Rear centre seat belt warning light.
6. Rear left seat belt warning light.
Seat belt not fastened/unfastened
warning lights display
Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t t e d w i t h a
three-point inertia reel seat belt with
f o r c e l i m i t e r ( w i t h t h e e x c e p t i o n o f t h e
rear centre seat).
Seat belt unfastened warning light
This warning light comes on,
either on the instrument panel
or on the seat belt and passen-
ger's front air bag warning lights
display, when one or more rear passen-
gers unfasten their seat belt.
F r o m a p p r o x i m a t e l y 1 2 m p h ( 2 0 k m / h ) ,
t h i s w a r n i n g l i g h t fl a s h e s f o r t w o m i n u t e s
accompanied by an audible signal of in-
creasing volume. Once these two minutes
have elapsed, this warning light remains
on until the one or more rear passengers
fasten their seat belt.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap. Seat belt unfastened warning lights
display
When the ignition is switched on, the
corresponding warning lights
4 , 5 and
6 c o m e o n i n r e d f o r a p p r o x i m a t e l y
30 seconds, if the seat belt is not fas-
tened.
When the engine is running or the ve-
hicle is moving, the corresponding
warning light 4 , 5 or 6 comes on in red,
accompanied by an audible signal and
a message on the multifunction display,
if a rear passenger has unfastened his
seat belt.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it rolls up.
The corresponding warning light 2 or 3
comes on in red on the seat belt and
passenger's front air bag warning lights
display if the seat belt is not fastened or
is unfastened.
The 3 rd row of seats (SW with pan-
o r a m i c r o o f ) i s n o t fi t t e d w i t h s e a t
belt unfastened warning lights.
Page 128 of 260
i
133
SAFETY
The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic adjust-
ment of the length of the strap to your
size. The seat belt is stored automat-
ically when not in use.
Before and after use, ensure that the
seat belt is rolled up correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- must not be transformed or modi- fi e d t o a v o i d a l t e r i n g i t s p e r f o r m -
ance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
w a t e r o r a t e x t i l e c l e a n i n g p r o d u c t ,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
s h o r t e r t h a n o n e m e t r e fi f t y .
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the air bag warning light
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 130 of 260
!
!
135
SAFETY
If at least one of the two air bag
warning lights come on continu-
ously, do not install a child seat on
the front passenger seat.
Have the system checked by a
PEUGEOT dealer.
Operating fault If this warning light comes on on
the instrument panel, accompa-
nied by an audible warning and
a message on the multifunction
display, contact a PEUGEOT dealer to
have the system checked. The air bags
may no longer be triggered in the event
of a serious impact. Steering column air bag *
System which protects the driver's
knees in the event of a serious front im-
pact.
This air bag is incorporated in the fascia
below the steering column.
Activation
It is deployed at the same time as the
front air bags.
Reactivation
When you remove the child seat, turn
switch
1 to the "ON" position to re-arm
the air bag and so guarantee the safety
of your front passenger in the event of
an impact.
With the ignition on, this warn-
ing light comes on on the seat
belt and passenger's front air
bag warning lights display for
a p p r o x i m a t e l y o n e m i n u t e , i f t h e p a s -
senger's front air bag is activated. To guarantee the safety of your
child, it is imperative that the pas-
senger's front air bag is disarmed
when you install a "rear facing"
child seat on the front passenger
seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
air bag were triggered.
According to version, this warn-
ing light comes on either on the
instrument panel or on the seat
belt and passenger's front air bag
warning lights display when the ignition is
on and until the air bag is re-armed. I f t h i s w a r n i n g l i g h t fl a s h e s ,
contact a PEUGEOT dealer.
The passenger's front air bag
may no longer be triggered in
the event of a serious impact.
Deactivation
Only the passenger's front air bag can
be disarmed:
with the ignition off , insert the key
in the passenger air bag disarming
switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping the
switch in this position.
* According to country.
Page 131 of 260
!
136
SAFETY
Side air bags
System which protects the driver and
p a s s e n g e r s ( w i t h t h e e x c e p t i o n o f t h e
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the chest.
Each side air bag is incorporated:
- in the front, in the seat back frame, on the door side,
- i n t h e r e a r , i n t h e s i d e t r i m ( e x c e p t on 3-door and SW models).
Activation
The side air bags are triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle. Curtain air bags
System which protects the driver and
p a s s e n g e r s ( w i t h t h e e x c e p t i o n o f t h e
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the head.
Each curtain air bag is incorporated in
the pillars and the upper section of the
passenger compartment.
Operating fault
Activation
The curtain air bag is triggered at the
same time as the corresponding side air
bags in the event of a serious side impact
applied to all or part of the side impact
zone
B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
may not be triggered.
In the event of a rear or front collision,
the air bag is not triggered.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
If this warning light comes on on
the instrument panel, accompa-
nied by an audible signal and a
message on the multifunction
display, contact a PEUGEOT dealer to
have the system checked. The air bags
may no longer be triggered in the event
of a serious impact.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the corresponding door trim pad.
Page 133 of 260
!
i
!
138
DRIVING When parking on a slope, direct
your wheels to chock them against
the pavement, pull the handbrake
and engage a gear.
HANDBRAKE
Mechanical brake to hold the vehicle
when stationary.
Applying
Pull the handbrake to immobilise
your vehicle. When the vehicle is being
driven, if this warning light and
STOP the warning light come
on, accompanied by an audible
signal and a message on the multi-func-
tion display, this indicates that the hand-
brake is still on or has not been properly
released.
Releasing
Pull on the handle and press the
button A to release the handbrake.
6-SPEED MANUAL GEARBOX
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Raise the ring under the knob and
push the gear lever to the left then
forwards.
Page 135 of 260
i
i
!i

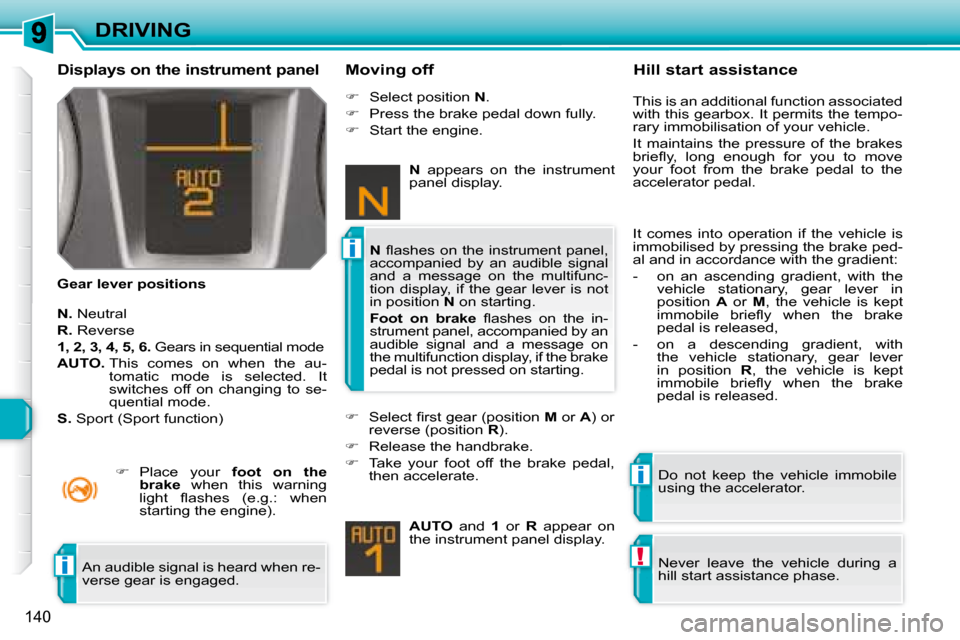

140
DRIVING
Displays on the instrument panel
Gear lever positions Moving off
N. Neutral
R. Reverse
1, 2, 3, 4, 5, 6. Gears in sequential mode
AUTO. This comes on when the au-
tomatic mode is selected. It
switches off on changing to se-
quential mode.
S. Sport (Sport function)
Place your foot on the
brake when this warning
l i g h t fl a s h e s ( e . g . : w h e n
starting the engine).
Select position N .
Press the brake pedal down fully.
Start the engine.
S e l e c t fi r s t g e a r ( p o s i t i o n M or A ) or
reverse (position R ).
Release the handbrake.
Take your foot off the brake pedal,
then accelerate.
AUTO and 1 or R appear on
the instrument panel display. Do not keep the vehicle immobile
using the accelerator.
N fl a s h e s o n t h e i n s t r u m e n t p a n e l ,
accompanied by an audible signal
and a message on the multifunc-
tion display, if the gear lever is not
in position N on starting.
Foot on brake fl a s h e s o n t h e i n -
strument panel, accompanied by an
audible signal and a message on
the multifunction display, if the brake
pedal is not pressed on starting. Hill start assistance
This is an additional function associated
w i t h t h i s g e a r b o x . I t p e r m i t s t h e t e m p o -
rary immobilisation of your vehicle.
It maintains the pressure of the brakes
b r i e fl y , l o n g e n o u g h f o r y o u t o m o v e
your foot from the brake pedal to the
accelerator pedal.
Never leave the vehicle during a
hill start assistance phase.
It comes into operation if the vehicle is
immobilised by pressing the brake ped-
al and in accordance with the gradient:
- on an ascending gradient, with the
vehicle stationary, gear lever in
position A or M , the vehicle is kept
i m m o b i l e b r i e fl y w h e n t h e b r a k e
pedal is released,
- on a descending gradient, with the vehicle stationary, gear lever
in position R , the vehicle is kept
i m m o b i l e b r i e fl y w h e n t h e b r a k e
pedal is released.
An audible signal is heard when re-
verse gear is engaged.
N appears on the instrument
panel display.
Page 137 of 260
!!
i
142
DRIVING Stopping the vehicle Operating fault With the ignition on, if this warn-
ing light comes on and AUTO
fl a s h e s , a c c o m p a n i e d b y a n a u -
dible signal and a message on
the multifunction display, this indicates
a m a l f u n c t i o n o f t h e g e a r b o x .
Have it checked by a PEUGEOT dealer.
It is essential to press the brake
pedal when starting the engine.
When parking, is it essential to apply
the handbrake to immobilise the ve-
hicle, whatever the circumstances.
When immobilising the vehicle,
with the engine running, it is es-
sential to place the gear lever in
neutral
N .
Before carrying out any work in the
engine compartment, check that
the gear lever is in neutral N and
that the handbrake is applied. With the ignition on, if the warn-
ing light above and this warning
light come on, accompanied by
an audible signal and a mes-
sage on the multifunction display, this
indicates a malfunction of the hill start
assistance.
Have it checked by a PEUGEOT dealer.
Sport function
Following selection of the sequential
mode or automatic mode, press
button S to activate the Sport
function which offers you a more
dynamic style of driving.
S a p p e a r s n e x t t o t h e g e a r e n -
gaged on the instrument panel
display.
Press button S again to deactivate
the function.
S is then cleared from the instrument
panel display.
The Sport function is deactivated
each time the ignition is switched
off. Before switching off the engine, you can
choose to:
- move to position
N to engage
neutral,
- leave the gear engaged; in this case, it will not be possible to move
the vehicle.
In both cases, it is essential that you
apply the handbrake to immobilise the
vehicle.
Page 140 of 260
!i
145
DRIVING
Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
g e a r b o x i n n e u t r a l .
In both cases, apply the handbrake to
immobilise the vehicle. Operating fault
When the ignition is on, the
lighting of this warning light, ac-
companied by an audible signal
and a message on the multi-
f u n c t i o n d i s p l a y , i n d i c a t e s a g e a r b o x
malfunction.
I n t h i s c a s e , t h e g e a r b o x s w i t c h e s t o
emergency mode and is locked in 3rd
gear. You may feel a substantial knock
when changing from P to R and from N
to R . This will not cause any damage to
t h e g e a r b o x .
D o n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) , l o c a l
speed restrictions permitting.
Have it checked by a PEUGEOT dealer.
I f t h e b a t t e r y i s fl a t a n d t h e l e v e r i s
in position P , it will not be possible
to change to another position.
Above all, do not force the lever as
t h i s c o u l d d a m a g e t h e g e a r b o x .
Manual operation
Select position M for sequential
c h a n g i n g o f t h e f o u r o r s i x g e a r s .
Push the lever towards the + sign to
change up a gear.
Pull the lever towards the - sign to
change down a gear.
D disappears and the gears
engaged appear in succes-
sion on the instrument panel.
In the event of under-revving
or over-revving, the gear se-
l e c t e d fl a s h e s f o r a f e w s e c o n d s , t h e n
the actual gear engaged is displayed. If the lever is not in position
P ,
when the driver's door is opened or
a p p r o x i m a t e l y 4 5 s e c o n d s a f t e r t h e
ignition is switched off, an audible
signal is heard and a message ap-
pears.
Return the lever to position P ;
the audible signal stops and the
message disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
g e a r b o x w i l l o p e r a t e t e m p o r a r i l y i n a u -
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selec-
tor between two positions).
It is possible to change from position D
(automatic) to position M (manual) at
any time.
When the vehicle is stationary or mov-
i n g v e r y s l o w l y , t h e g e a r b o x s e l e c t s
gear M1 automatically.
The sport and snow programmes do not
operate in manual mode.
