i
144
DRIVING
Moving off
Apply the handbrake.
Select position P or N .
Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction display.
With the engine running, press the
brake pedal.
Release the handbrake.
Select position R , D or M ,
Gradually release the brake pedal.
The vehicle moves off immediately.
If position N is engaged inadvertently
while driving, allow the engine to re-
turn to idle then engage position D to
accelerate. T h e g e a r b o x t h e n o p e r a t e s i n a u t o -
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
i n g t o t h e s t y l e o f d r i v i n g , t h e p r o fi l e o f
the road and the load in the vehicle.
F o r m a x i m u m a c c e l e r a t i o n w i t h o u t
touching the lever, press the accelera-
tor pedal down fully (kick down). The
g e a r b o x c h a n g e s d o w n a u t o m a t i c a l l y
or maintains the gear selected until the
m a x i m u m e n g i n e s p e e d i s r e a c h e d .
O n b r a k i n g , t h e g e a r b o x c h a n g e s d o w n
a u t o m a t i c a l l y t o p r o v i d e e f fi c i e n t e n g i n e
braking.
If you release the accelerator sharply,
t h e g e a r b o x w i l l n o t c h a n g e t o a h i g h e r
gear for safety reasons.
Automatic operation
Select position D for automatic
c h a n g i n g o f t h e f o u r o r s i x g e a r s .
appears on the instrument
panel.
Snow programme "
"
Press button " ", after starting the
engine.
T h e g e a r b o x a d a p t s t o d r i v i n g o n s l i p p e r y
roads.
This programme improves starting and
drive when traction is poor.
S appears on the instrument
panel.
Sport programme "S"
Press button "S" , after starting the
engine.
T h e g e a r b o x a u t o m a t i c a l l y f a v o u r s a
dynamic style of driving.
Never select position N while the
vehicle is moving.
Never select positions P or R unless
the vehicle is completely stationary.
When the engine is running at idle,
with the brakes released, if position
R , D or M is selected, the vehicle
moves even without the accelerator
being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance
with the engine running, apply the
handbrake and select position P . Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
s p e c i fi c c o n d i t i o n s o f u s e .
Return to automatic operation
At any time, press the button
selected again to quit the programme
engaged and return to auto-adaptive
mode.
Page 140 of 260
!i
145
DRIVING
Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
g e a r b o x i n n e u t r a l .
In both cases, apply the handbrake to
immobilise the vehicle. Operating fault
When the ignition is on, the
lighting of this warning light, ac-
companied by an audible signal
and a message on the multi-
f u n c t i o n d i s p l a y , i n d i c a t e s a g e a r b o x
malfunction.
I n t h i s c a s e , t h e g e a r b o x s w i t c h e s t o
emergency mode and is locked in 3rd
gear. You may feel a substantial knock
when changing from P to R and from N
to R . This will not cause any damage to
t h e g e a r b o x .
D o n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) , l o c a l
speed restrictions permitting.
Have it checked by a PEUGEOT dealer.
I f t h e b a t t e r y i s fl a t a n d t h e l e v e r i s
in position P , it will not be possible
to change to another position.
Above all, do not force the lever as
t h i s c o u l d d a m a g e t h e g e a r b o x .
Manual operation
Select position M for sequential
c h a n g i n g o f t h e f o u r o r s i x g e a r s .
Push the lever towards the + sign to
change up a gear.
Pull the lever towards the - sign to
change down a gear.
D disappears and the gears
engaged appear in succes-
sion on the instrument panel.
In the event of under-revving
or over-revving, the gear se-
l e c t e d fl a s h e s f o r a f e w s e c o n d s , t h e n
the actual gear engaged is displayed. If the lever is not in position
P ,
when the driver's door is opened or
a p p r o x i m a t e l y 4 5 s e c o n d s a f t e r t h e
ignition is switched off, an audible
signal is heard and a message ap-
pears.
Return the lever to position P ;
the audible signal stops and the
message disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
g e a r b o x w i l l o p e r a t e t e m p o r a r i l y i n a u -
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selec-
tor between two positions).
It is possible to change from position D
(automatic) to position M (manual) at
any time.
When the vehicle is stationary or mov-
i n g v e r y s l o w l y , t h e g e a r b o x s e l e c t s
gear M1 automatically.
The sport and snow programmes do not
operate in manual mode.
Page 141 of 260
i
146
DRIVING

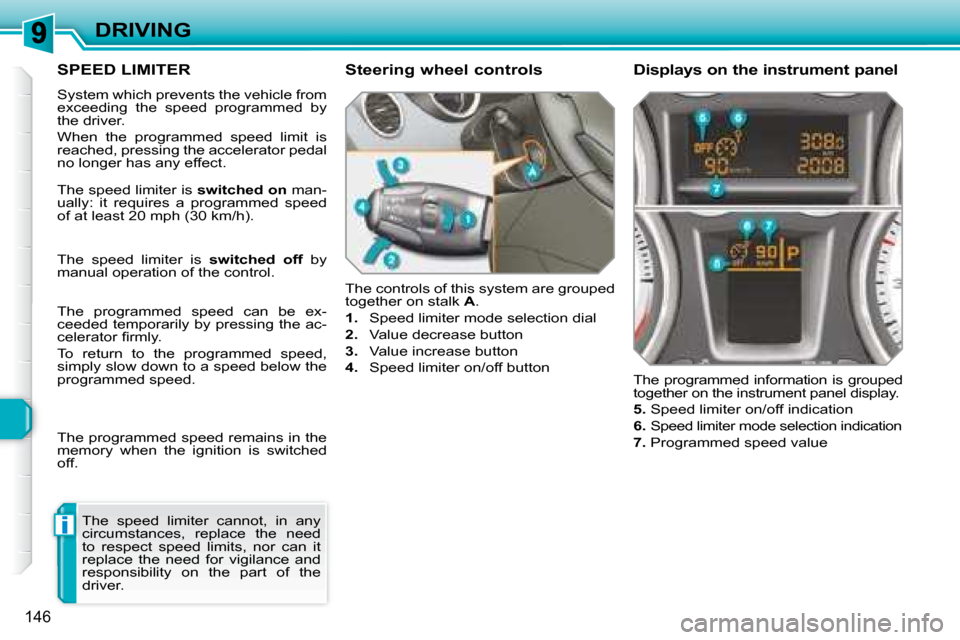

SPEED LIMITER
System which prevents the vehicle from
e x c e e d i n g t h e s p e e d p r o g r a m m e d b y
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal
no longer has any effect. The controls of this system are grouped
together on stalk A .
1. Speed limiter mode selection dial
2. Value decrease button
3. Value increase button
4. Speed limiter on/off button
The programmed information is grouped
together on the instrument panel display.
5. Speed limiter on/off indication
6.
Speed limiter mode selection indication
7. Programmed speed value
Steering wheel controls Displays on the instrument
panel
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
The speed limiter is
switched on man-
ually: it requires a programmed speed
of at least 20 mph (30 km/h).
The speed limiter is switched off by
manual operation of the control.
T h e p r o g r a m m e d s p e e d c a n b e e x -
ceeded temporarily by pressing the ac-
c e l e r a t o r fi r m l y .
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched
off.
Page 143 of 260
i
148
DRIVING
CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gaging:
- of fourth gear on the manual g e a r b o x ,
- of second gear on the piloted manual g e a r b o x o r a u t o m a t i c g e a r b o x , i n
sequential driving mode,
- of position A on the piloted manual
g e a r b o x o r D on the automatic
g e a r b o x . The controls of this system are grouped
together on lever
A .
1. Cruise control mode selection dial
2. Speed programming/value decrease
button
3. Speed programming/value increase
button
4. Cruise control off/resume button The programmed information is grouped
together on the instrument panel display.
5. Cruise control off/resume indication
6.
Cruise control mode selection indication
7. Programmed speed value
Steering wheel controls Displays on the instrument
panel
The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
The cruise control is
switched off
manually or by pressing the brake or
clutch pedal or on triggering of the ESP
system for safety reasons.
I t i s p o s s i b l e t o e x c e e d t h e p r o g r a m m e d
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
Page 147 of 260
i
i
152
DRIVING
Deactivation Operating fault
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
PEUGEOT ).
Reactivation
Press button A again, the warning
light switches off, the system is
reactivated.
Press button A , the warning light
comes on, the system is fully
deactivated. In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear
is engaged, an audible signal (long
beep) indicates that the sensors may
be dirty. If an operating fault occurs, this
warning light is displayed on the
instrument panel and/or a mes-
sage appears on the multifunc-
tion display, accompanied by an audible
signal (short beep), when reverse gear
is engaged.
Consult a PEUGEOT dealer.
Page 152 of 260
10
158
CHECKS
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding circuit checked by a
PEUGEOT dealer. Brake fluid level
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when the
ignition is switched on using the oil level
indicator on the instrument panel, or us-
ing the dipstick.
Between two oil changes, the consump-
t i o n s h o u l d n o t e x c e e d 0 . 5 l i t r e p e r
600 miles (1,000 km). T h e b r a k e fl u i d l e v e l s h o u l d b e
close to the "MAX" mark. If it is
not, check the brake pad wear.
Draining the circuit
Refer to the servicing booklet for details
of the interval for this operation.
Power steering fluid level T h e p o w e r s t e e r i n g fl u i d l e v e l
should be close to the "MAX"
mark. Unscrew the cap, with
the engine cold, to check the
level. Screenwash and headlamp
wash fluid
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, the
m i n i m u m l e v e l o f t h i s fl u i d i s
indicated by an audible signal
and a message on the multifunction
display.
Top up the level when you stop the ve-
hicle.
Draining the engine
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your engine
and conform to the manufacturer's rec-
ommendations. F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations and
f u l fi l t h e D O T 4 s t a n d a r d s .
Draining the circuit
The coolant does not have to be
changed.
F l u i d s p e c i fi c a t i o n
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up or replaced with water.
Coolant level
The coolant level should be
close to the "MAX" mark but
s h o u l d n e v e r e x c e e d i t .
When the engine is warm, the tempera-
ture of the coolant is regulated by the fan.
This can operate with the ignition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a
p a r t i c l e e m i s s i o n fi l t e r , t h e f a n m a y
operate after the vehicle has been
switched off, even if the engine is
cold. F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-
facturer's recommendations.
Page 172 of 260
11
177
PRACTICAL INFORMATION
Fuse N° Rating Functions
F8 20 A Audio equipment, audio/telephone, CD changer,
m u l t i f u n c t i o n d i s p l a y , t y r e u n d e r - i n fl a t i o n d e t e c t i o n .
F9 30 A Front 12 V socket, lighter.
F10 15 A Steering wheel controls, alarm siren, alarm control
unit.
F11 15 A Low current ignition switch.
F12 15 A Instrument panel, seat belt and passenger's front
air bag warning lights display, air conditioning,
driver's seat memory unit, 2nd row rear seat
switches, driving school module.
F13 5 A E n g i n e f u s e b o x , a i r b a g s , p i l o t e d m a n u a l g e a r b o x
gear lever.
F14 15 A M u l t i f u n c t i o n d i s p l a y , a m p l i fi e r , h a n d s - f r e e k i t , r a i n /
brightness sensor, parking assistance control unit,
t r a i l e r f u s e b o x , l a n e d e p a r t u r e w a r n i n g s y s t e m .
F15 30 A Locking and deadlocking.
F17 40 A R e a r s c r e e n a n d e x t e r i o r m i r r o r s d e - i c i n g .
SH - PARC shunt.
