i
i

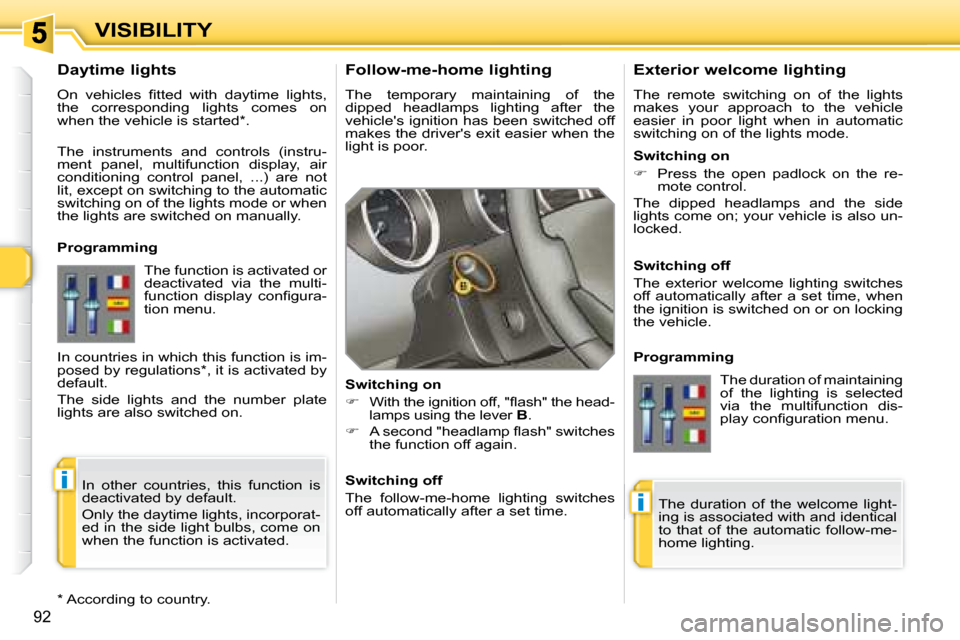

92
VISIBILITY Follow-me-home lighting
The temporary maintaining of the
dipped headlamps lighting after the
vehicle's ignition has been switched off
m a k e s t h e d r i v e r ' s e x i t e a s i e r w h e n t h e
light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e h e a d -
lamps using the lever B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The follow-me-home lighting switches
off automatically after a set time.
Daytime lights
O n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s ,
the corresponding lights comes on
when the vehicle is started * .
* According to country.
The instruments and controls (instru-
ment panel, multifunction display, air
conditioning control panel, ...) are not
l i t , e x c e p t o n s w i t c h i n g t o t h e a u t o m a t i c
switching on of the lights mode or when
the lights are switched on manually.
Exterior welcome lighting
The remote switching on of the lights
makes your approach to the vehicle
easier in poor light when in automatic
switching on of the lights mode.
Switching on
Press the open padlock on the re-
mote control.
The dipped headlamps and the side
lights come on; your vehicle is also un-
locked.
Switching off
T h e e x t e r i o r w e l c o m e l i g h t i n g s w i t c h e s
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Programming
The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
Programming The duration of maintaining
of the lighting is selected
via the multifunction dis-
p l a y c o n fi g u r a t i o n m e n u .
In other countries, this function is
deactivated by default.
Only the daytime lights, incorporat-
ed in the side light bulbs, come on
when the function is activated. The duration of the welcome light-
ing is associated with and identical
to that of the automatic follow-me-
home lighting.
In countries in which this function is im-
posed by regulations * , it is activated by
default.
The side lights and the number plate
lights are also switched on.
Page 83 of 260
!
i
93
VISIBILITY
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the "Follow-me-
home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle para-
meters on the multifunction display
c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
w h e n a l o w l e v e l o f e x t e r n a l l i g h t i s d e -
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, this warning light is displayed
on the instrument panel and/or a
message appears on the multifunction dis-
play, accompanied by an audible signal.
Consult a PEUGEOT dealer.
MANUAL HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 p e o p l e + m a x i m u m a u t h o r i s e d
load.
3. D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
Page 84 of 260
!
i
93
VISIBILITY
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the "Follow-me-
home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle para-
meters on the multifunction display
c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
w h e n a l o w l e v e l o f e x t e r n a l l i g h t i s d e -
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, this warning light is displayed
on the instrument panel and/or a
message appears on the multifunction dis-
play, accompanied by an audible signal.
Consult a PEUGEOT dealer.
MANUAL HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 p e o p l e + m a x i m u m a u t h o r i s e d
load.
3. D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
Page 85 of 260
!
i
94
VISIBILITY
DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beam to follow the direction of the
road.
The use of this function, coupled with
t h e x e n o n h e a d l a m p s o n l y , c o n s i d e r a -
bly improves the quality of your lighting
when cornering.
with directional lighting
without directional lighting Programming
Operating fault
The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
If a malfunction occurs, this warn-
i n g l i g h t fl a s h e s o n t h e i n s t r u m e n t
panel, accompanied by a mes-
sage on the multifunction display.
Consult a PEUGEOT dealer.
AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
D o n o t t o u c h t h e x e n o n h e a d l a m p s .
Consult a PEUGEOT dealer.
In order to avoid causing a nuisance to
other road users, this system corrects
t h e h e i g h t o f t h e x e n o n h e a d l a m p s b e a m
automatically and when stationary, in re-
lation to the load in the vehicle.
If a malfunction occurs, this
warning light and/or the service
warning light is displayed on the
instrument panel, accompanied
by an audible signal and a message on
the multifunction display.
The system then places your head-
lamps in the lowest position. When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
Page 86 of 260
!
i
94
VISIBILITY
DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beam to follow the direction of the
road.
The use of this function, coupled with
t h e x e n o n h e a d l a m p s o n l y , c o n s i d e r a -
bly improves the quality of your lighting
when cornering.
with directional lighting
without directional lighting Programming
Operating fault
The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
If a malfunction occurs, this warn-
i n g l i g h t fl a s h e s o n t h e i n s t r u m e n t
panel, accompanied by a mes-
sage on the multifunction display.
Consult a PEUGEOT dealer.
AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
D o n o t t o u c h t h e x e n o n h e a d l a m p s .
Consult a PEUGEOT dealer.
In order to avoid causing a nuisance to
other road users, this system corrects
t h e h e i g h t o f t h e x e n o n h e a d l a m p s b e a m
automatically and when stationary, in re-
lation to the load in the vehicle.
If a malfunction occurs, this
warning light and/or the service
warning light is displayed on the
instrument panel, accompanied
by an audible signal and a message on
the multifunction display.
The system then places your head-
lamps in the lowest position. When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
Page 88 of 260
!
96
VISIBILITY Windscreen and headlamp wash
B.
rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
Programming
Pull the windscreen wiper stalk towards
you. The windscreen wash then the
w i n d s c r e e n w i p e r s o p e r a t e f o r a fi x e d
period.
If the dipped headlamps are on , the
headlamp washers operate at the same
time.
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
This function is activated by
default.
Screenwash/headlamp wash low
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, when
the minimum level of the res-
ervoir is reached, this warning
light and/or the service warning light is
displayed on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction display.
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n w a s h /
headlamp wash reservoir.
The warning light is displayed when the ig-
nition is switched on, or every time the stalk
i s o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d .
Page 122 of 260
!
i
i
i
127
SAFETY
TYRE UNDER-INFLATION DETECTION
System which automatically checks the
pressure of the tyres while driving. All repairs and changing of tyres
o n a w h e e l fi t t e d w i t h t h i s s y s t e m
must be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
" I d e n t i fi c a t i o n f e a t u r e s " p a r a g r a p h )
to ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).
The tyre pressures must be checked
cold, at least once a month. Re-
member to check the pressure of
the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to radioelectric
emissions on a frequency close to
that used by the system.
S e n s o r s fi t t e d i n e a c h v a l v e t r i g g e r a
warning in the event of malfunction
(speed above 12 mph (20 km/h)).
This warning light is displayed
on the instrument panel and/or a
message appears on the multi-
function display, accompanied by
an audible signal, to locate the
wheel concerned.
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Flat tyre The
STOP warning light comes
on and/or this warning light is
displayed on the instrument
panel, accompanied by an audi-
ble signal and a message on the
multifunction display locating the
wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d h a v e
the tyre pressure checked as soon as
possible.
Puncture
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly. Sensor(s) not detected or faulty
This warning light is displayed
on the instrument panel and/or
a message appears on the mul-
tifunction display, accompanied
by an audible signal, to locate the wheel
or wheels which are not detected or to
indicate a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor.
Page 124 of 260
!
SAFETY
T h e E S P / A S R s y s t e m s o f f e r e x -
ceptional safety in normal driving,
but this should not encourage the
d r i v e r t o t a k e e x t r a r i s k s o r d r i v e a t
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
PEUGEOT assembly and operation
procedures.
After an impact, have these systems
checked by a PEUGEOT dealer.
Disarming
I n e x c e p t i o n a l c o n d i t i o n s ( s t a r t i n g a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
Press the "ESP OFF" button, located
in the centre of the fascia.
If this warning light comes on
the instrument panel and the
indicator light on the button
comes on, this indicates that
the ASR and ESP systems are
disarmed.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
back on or from 30 mph (50 km/h).
Press the "ESP OFF" button again
to reactivate them manually. Operating fault
If this warning light comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion display, this indicates a mal-
function of these systems.
Have the systems checked by a PEUGEOT
dealer.
TRAJECTORY CONTROL SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
They come into operation in the event
of a grip or trajectory problem.
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver.
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning light on the instru-
ment panel.
